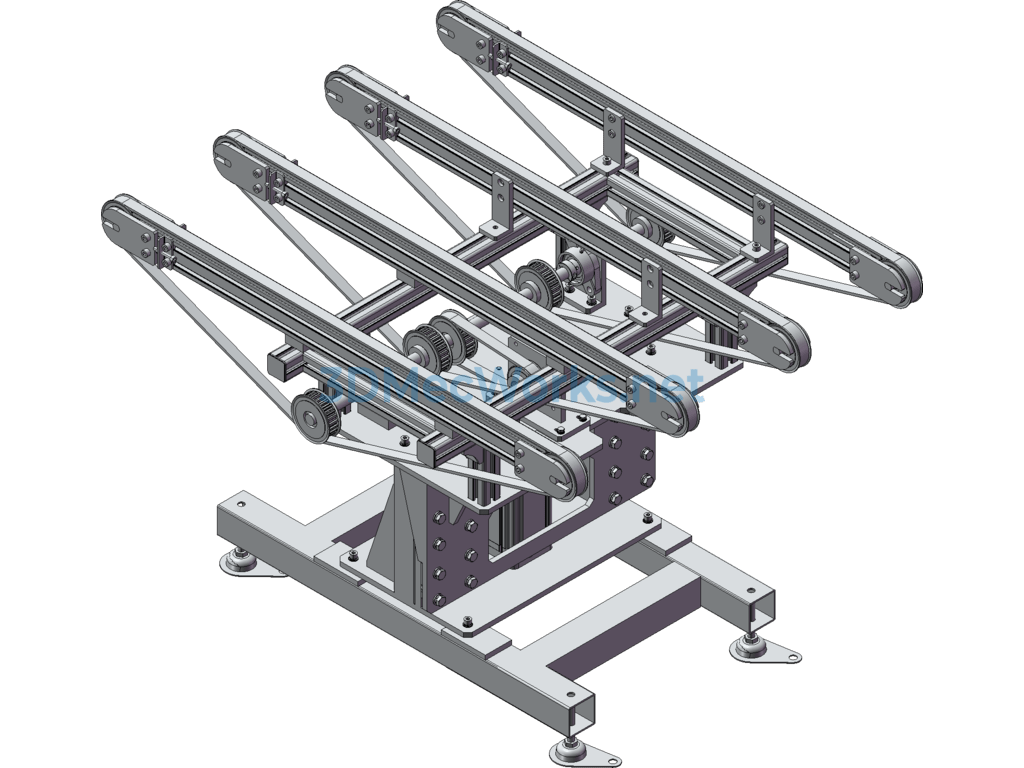

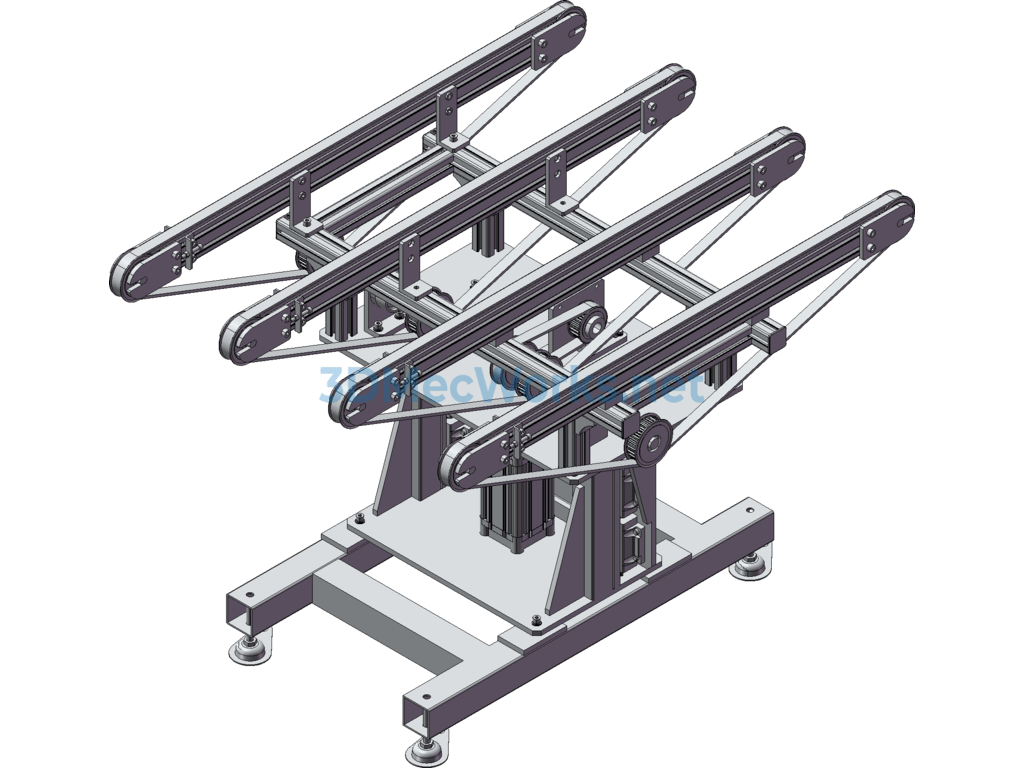

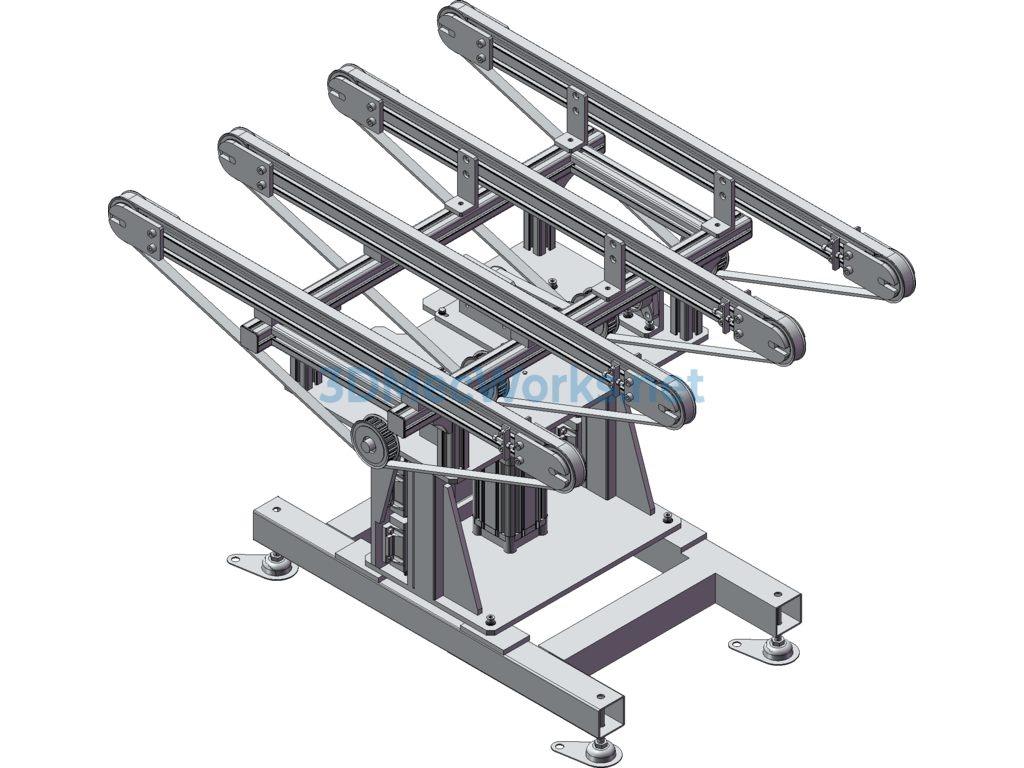

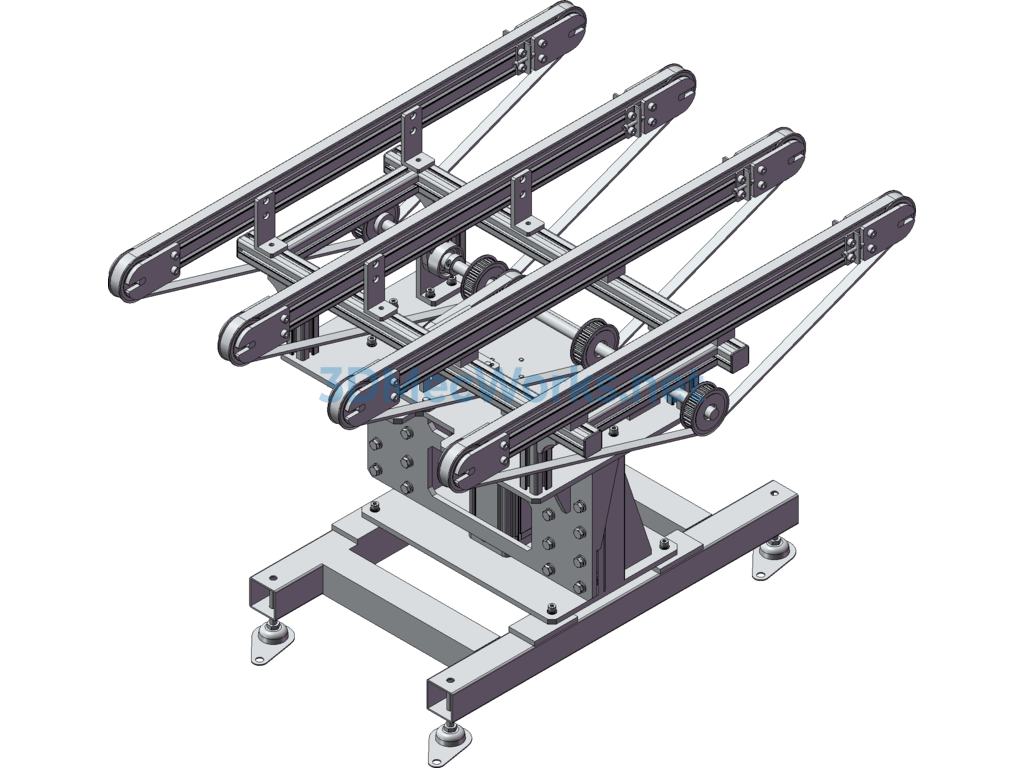

This model is a small mesh belt conveyor chain. The mesh belt serial line uses the 5935 series mesh belt chain with a 17-tooth sprocket design. The motor is a right-angle hollow shaft reduction motor, with a blocking mechanism and a diverging mechanism. The file includes formats such as STEP, IGS, and X_T for easy use.

Specification: Small Belt Conveyor Line Diverter Machine - SolidWorks - Free Download

Design Software	SolidWorks
Editable	Editable, With parameters
File Formats	iges(igs), Sldasm, Sldprt, step(stp), x_t
Industry Application	Creative Design, Mechanical Equipment, Molds & Tooling, Steel Structures
Sharing Level	Diamond
Version	2018
