Small and Medium-Sized Corn Sheller (sw2013 Design)

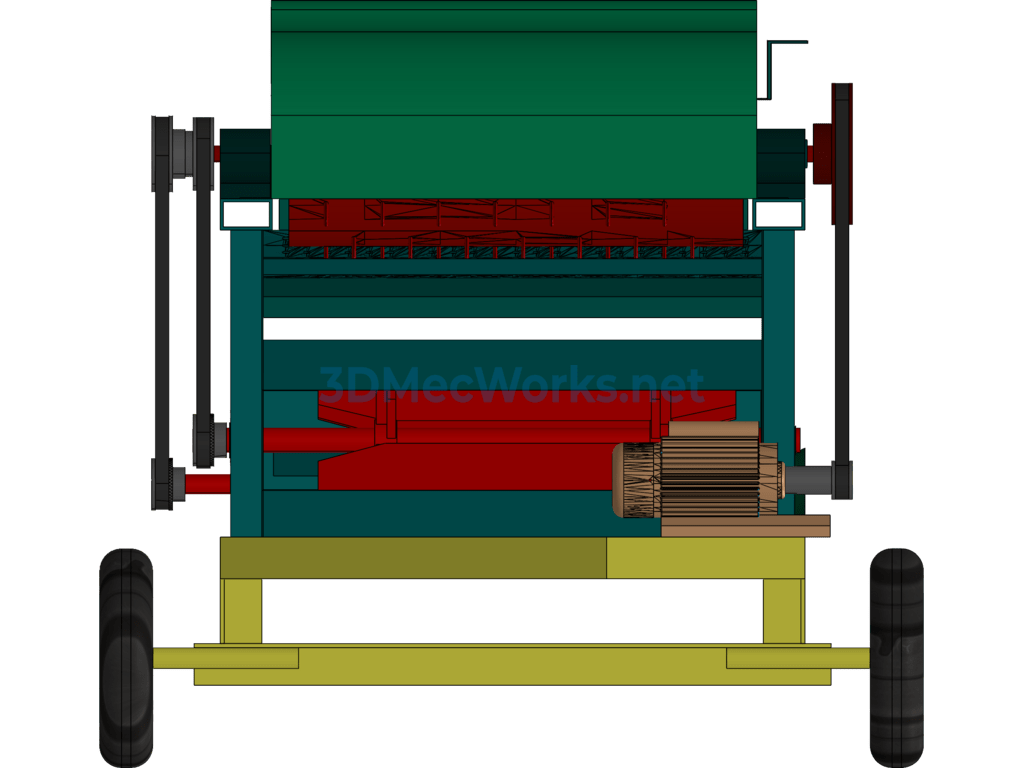

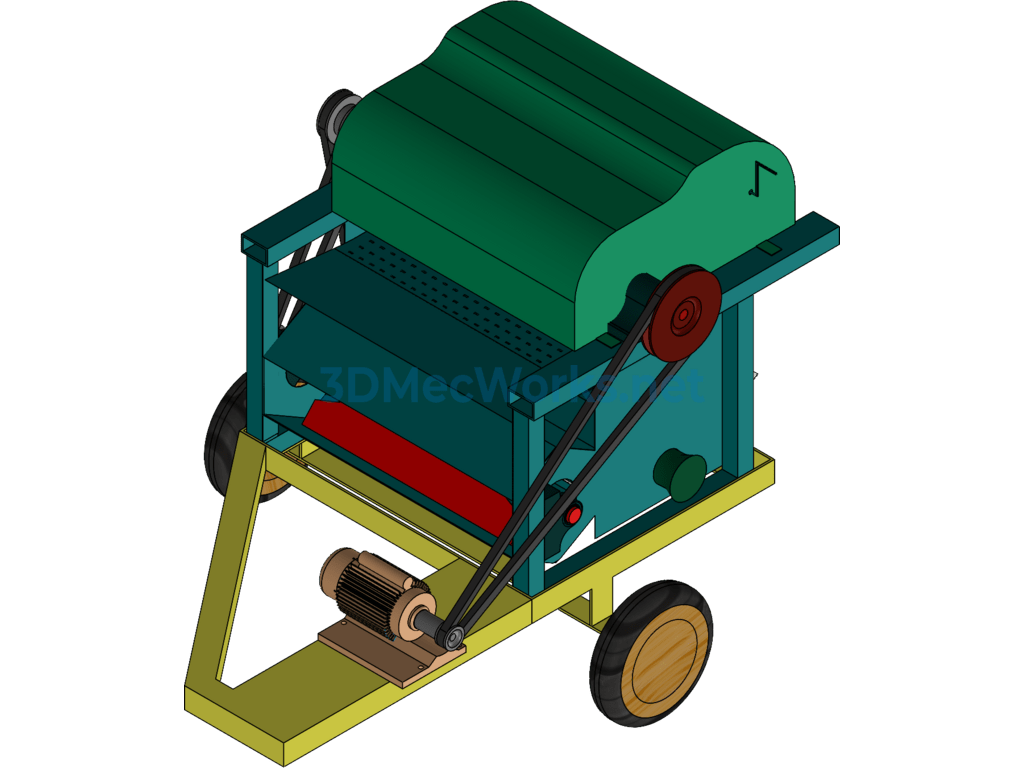

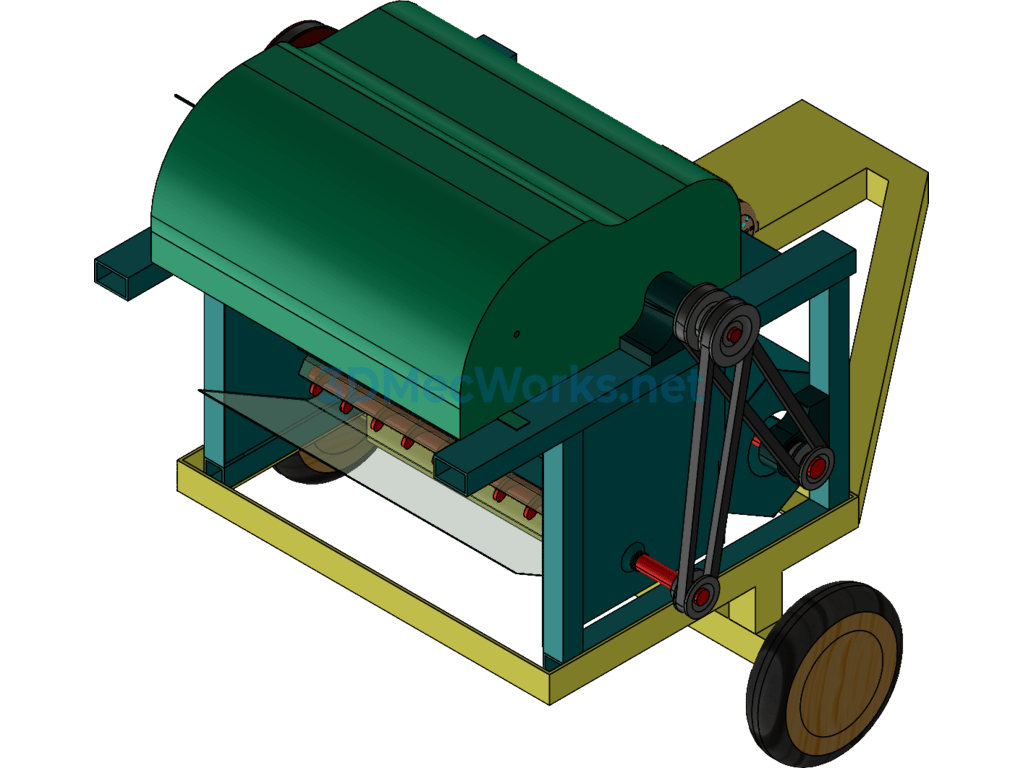

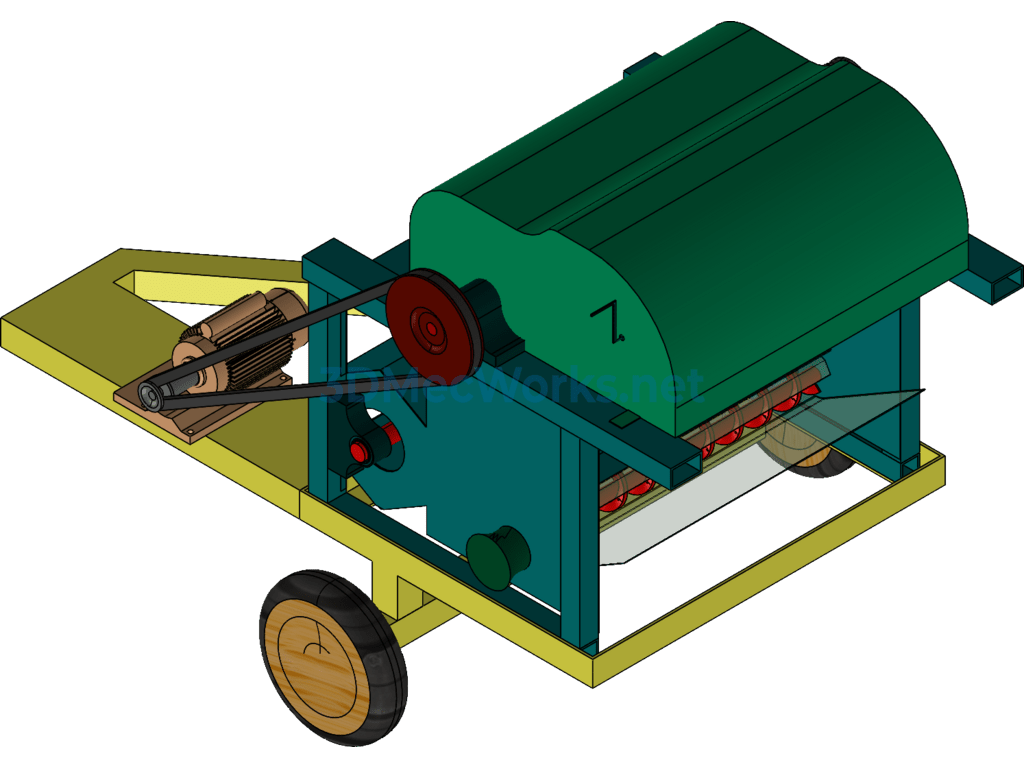

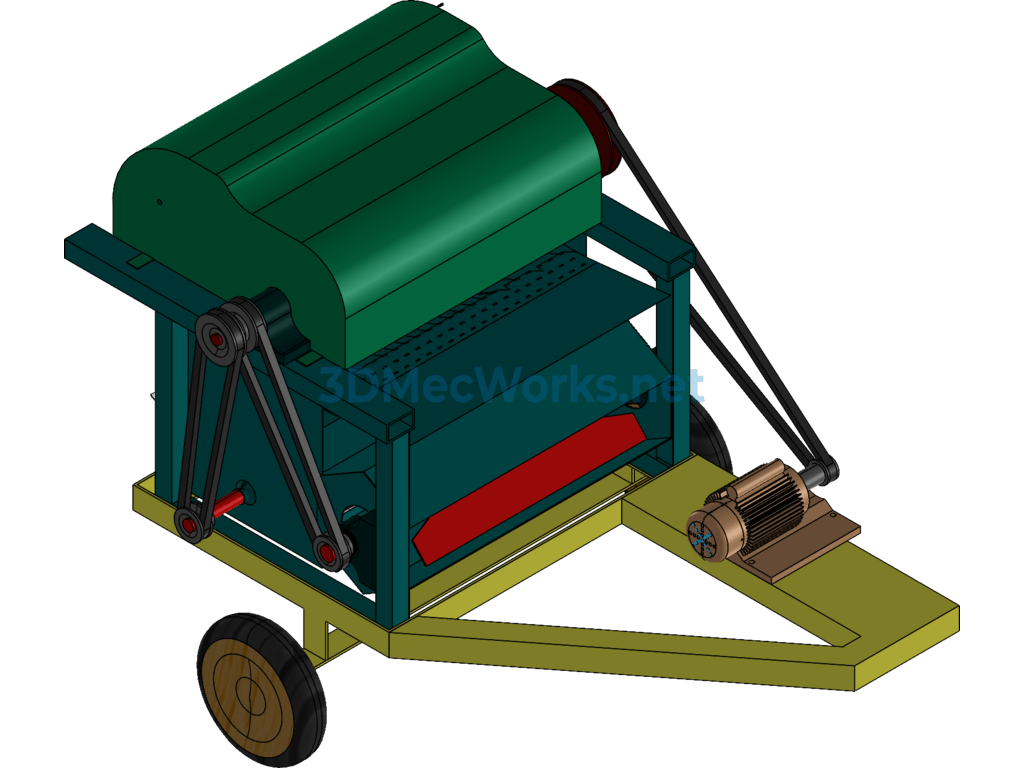

A 3D model of a corn thresher designed with SW2013. The basic working principle of the thresher is to achieve threshing by using teeth arranged in a staggered pattern on the rotor to agitate the grains and collide with the drum. Then, separation of the kernels and residues is accomplished through a vibrating screen and filter mesh. Corn threshers generally have three outputs: kernels, cobs, and residues. This model is classified as a small to medium-sized device, with top feeding and bottom spiral discharge. It mainly focuses on the principle structure; the details are not comprehensive. Includes SolidWorks 2013 parametric source files and a general STP file.
