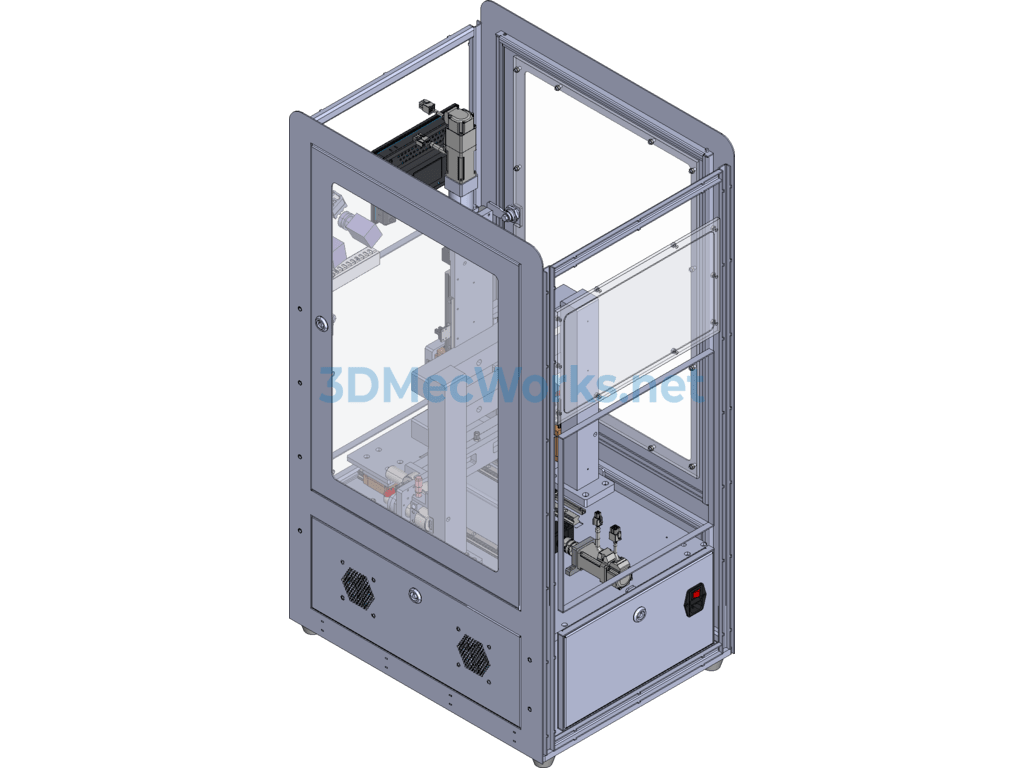

1. The slit-type dispensing machine uses Y-axis and Z-axis servo drives, controlled by a Weintek touch screen integrated machine.
2. The dispensing volume is uniform and adjustable. The slit-type dispensing head is made of stainless steel with a surface roughness of 0.4. It is equipped with 0.1mm and 0.2mm shims to control the dispensing volume, and the dispensing volume of the slit-type dispensing head can also be adjusted locally.
3. The dispensing range is for glass with dimensions under 210x210mm.
4. The slit-type dispensing head uses a micrometer head design to accurately control the gap with the glass by adjusting the height up and down, and to adjust the parallelism with the glass.
5. The slit-type dispensing head can be quickly disassembled for easy cleaning of glue and replacement of shims.
6. The Y-axis uses a bellows cover design to prevent glue from penetrating into the guide rail and screw rod.
7. The display screen has automatic monitoring screens and alarm screens; convenient for setting parameters and viewing information.
8. Modular assembly process, with each key component and position being individually detachable, allowing for quick replacement of accidentally damaged parts.
9. Multiple units have been mass-produced, with drawings included.
