Slipper Rack Cover (Numerous Angled Tops + Horn Gate) - UG(NX) - Free Download

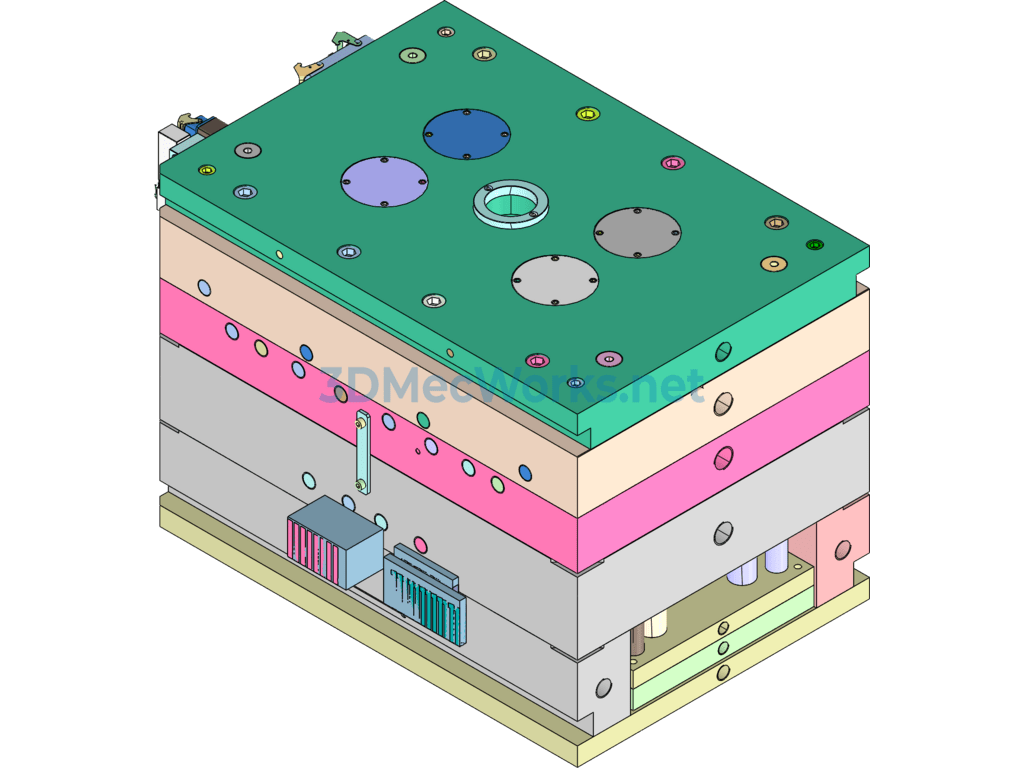

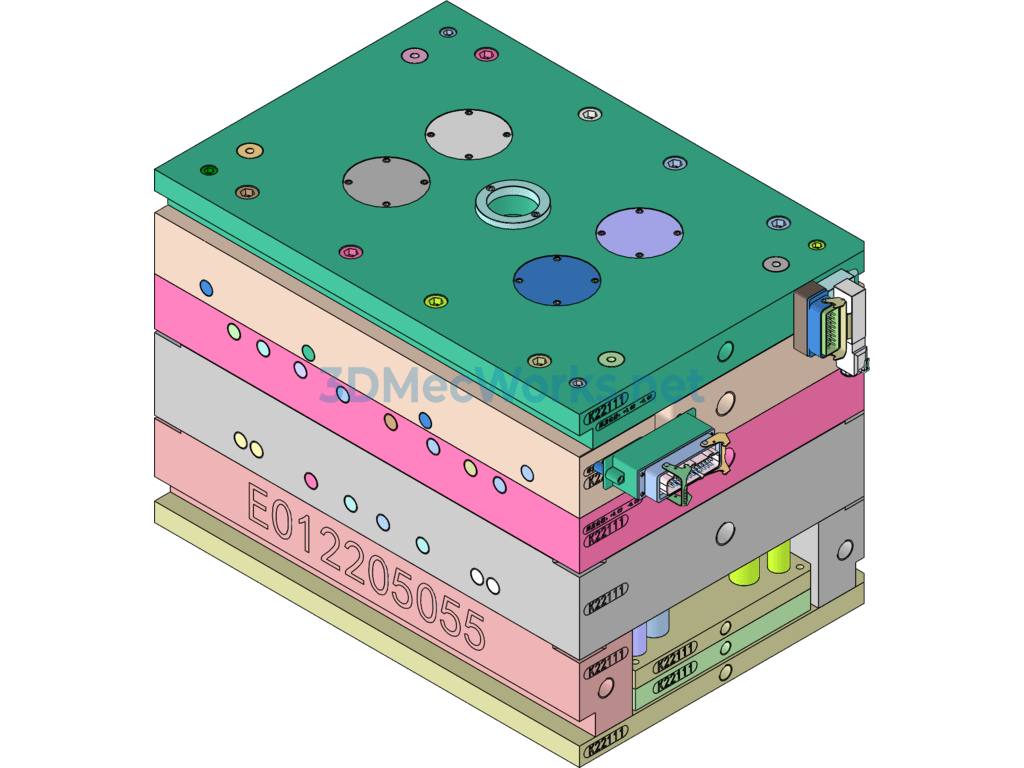

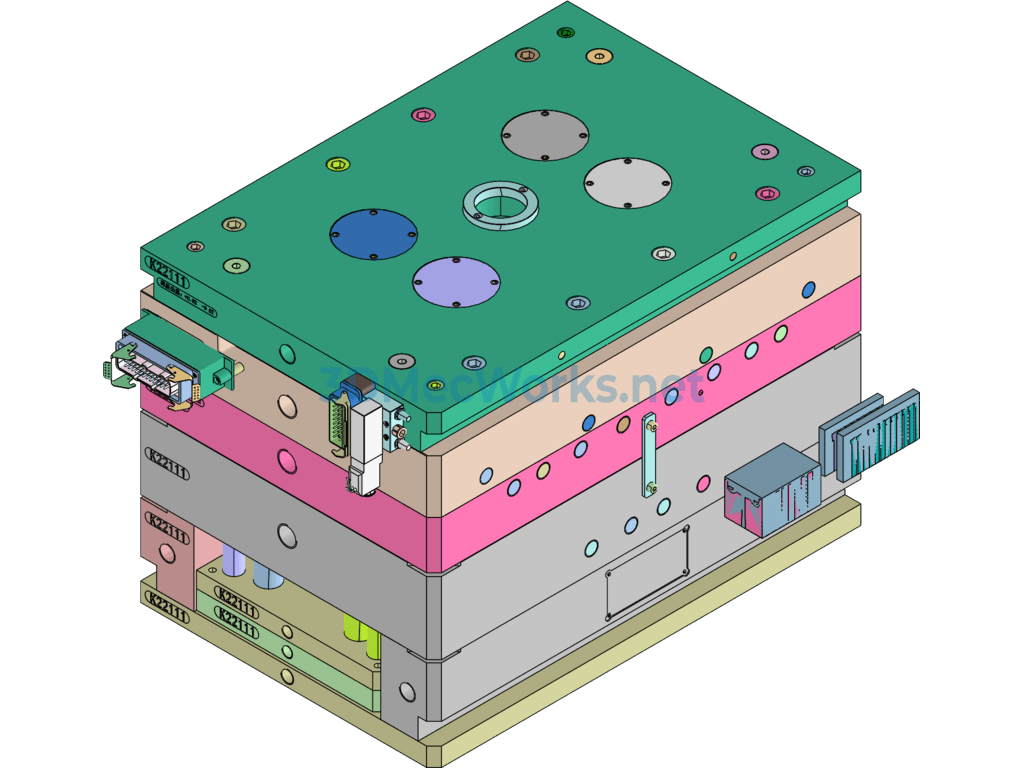

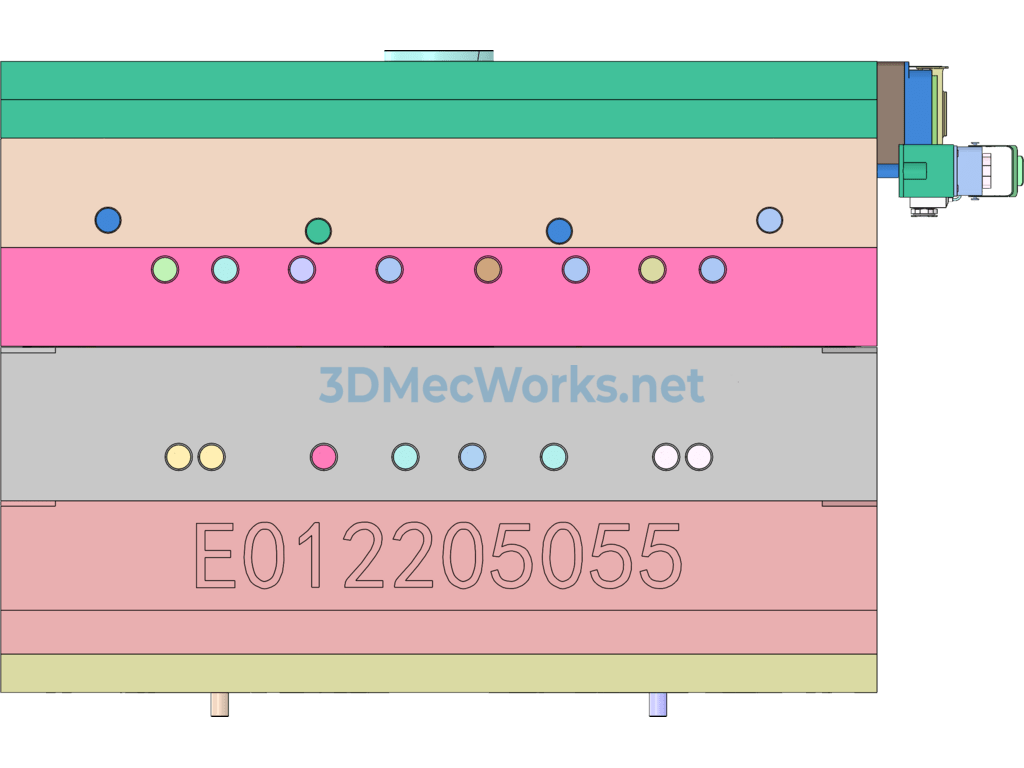

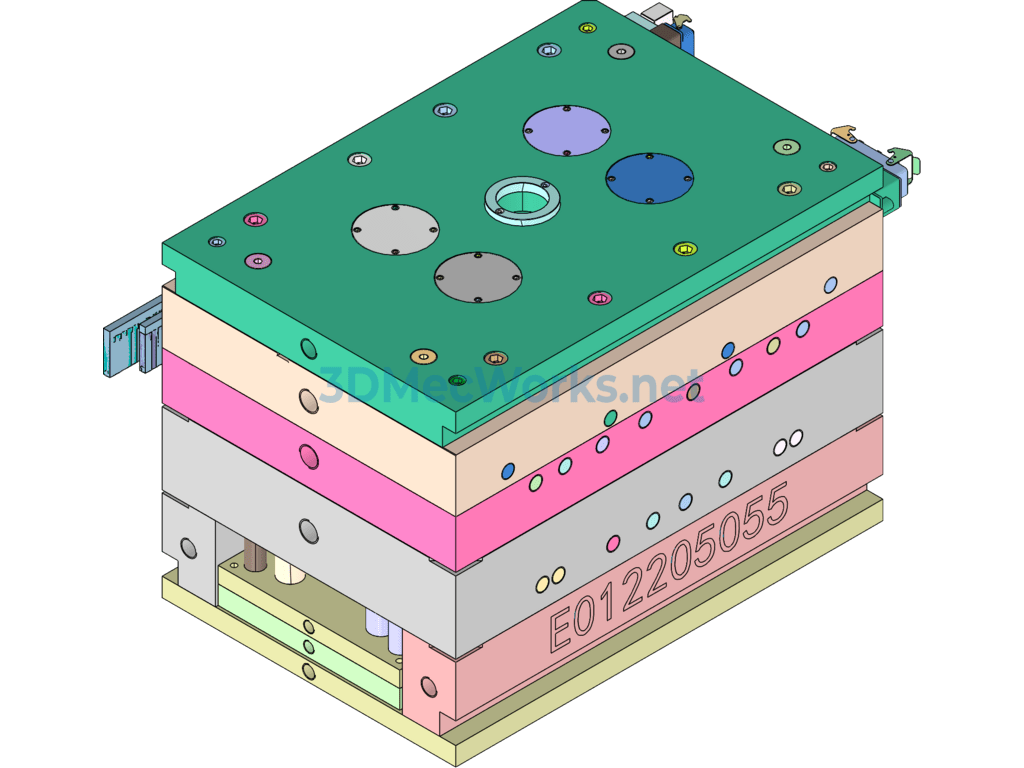

This model is a decorative cover mold for a slipper rack, with one mold cavity producing four parts. The injection system uses a needle valve-type hot runner with an angled injection. Ejection is done by angled lifters and ejector pins. The product has many internal snap fits, so the mold is designed with angled ejection, and due to considerations of ejector plate strength, the angled ejection uses a hanging ejector pin form. The structure of the drawing is very clear, and everyone is welcome to download it for study.
