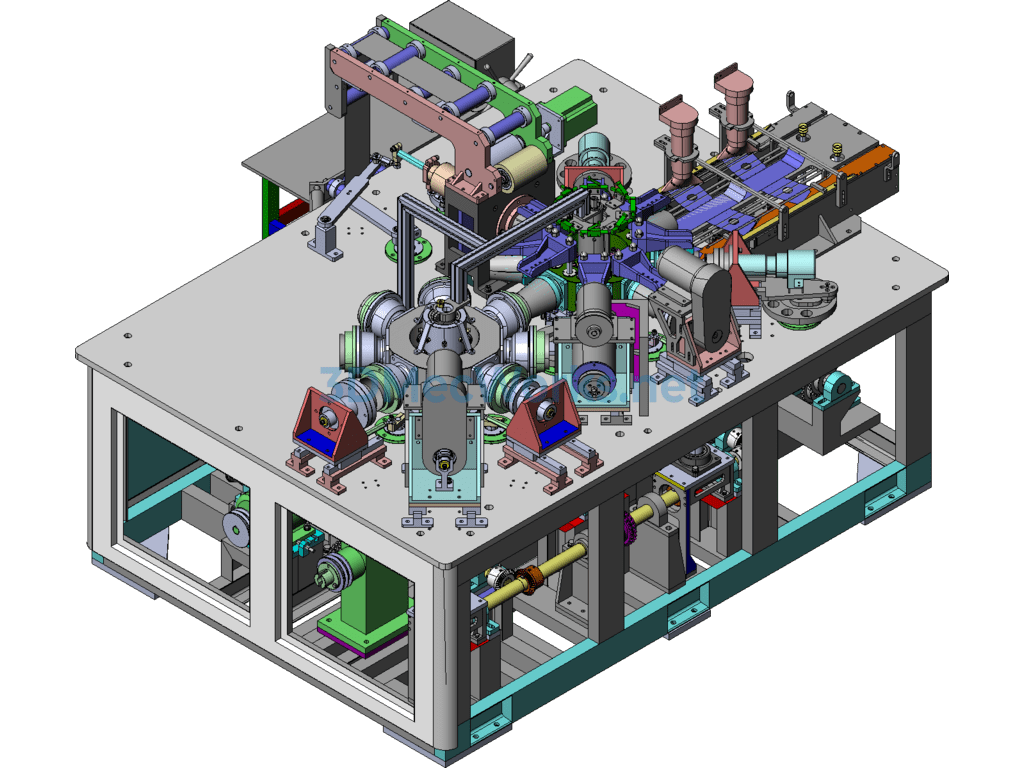

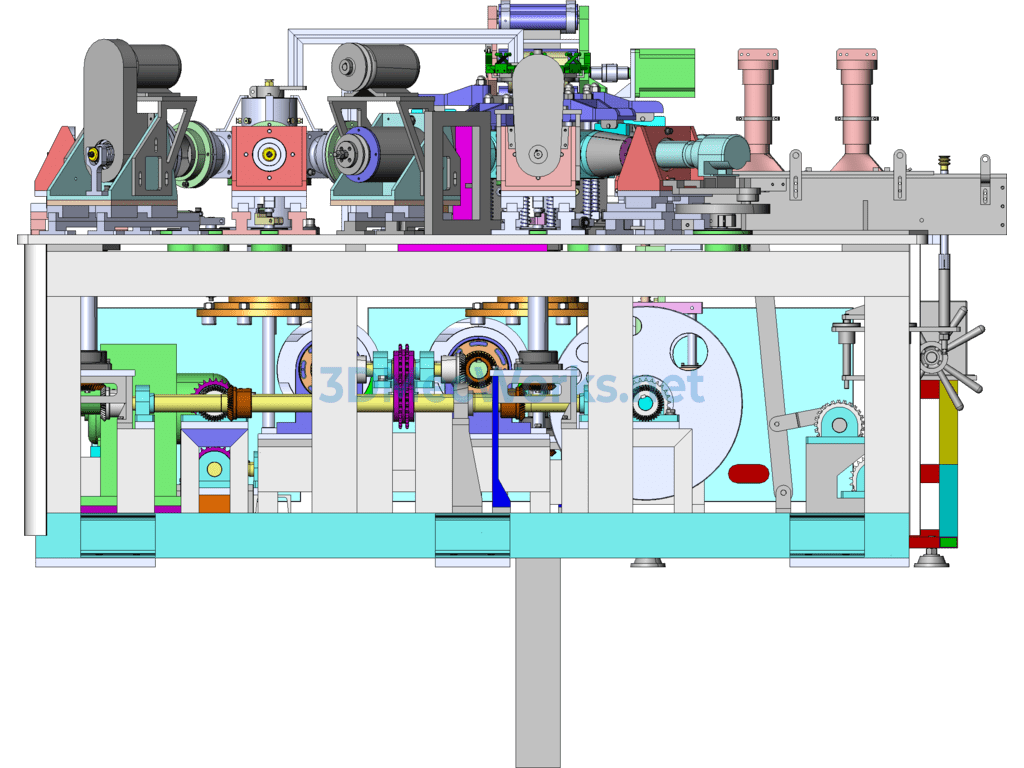

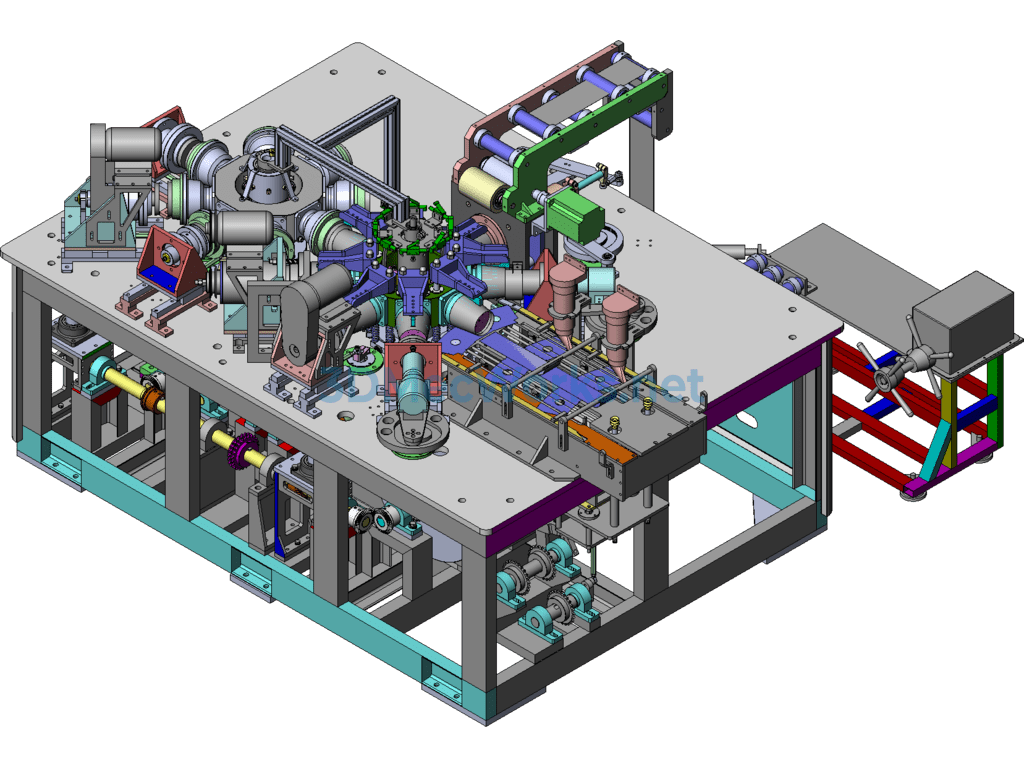

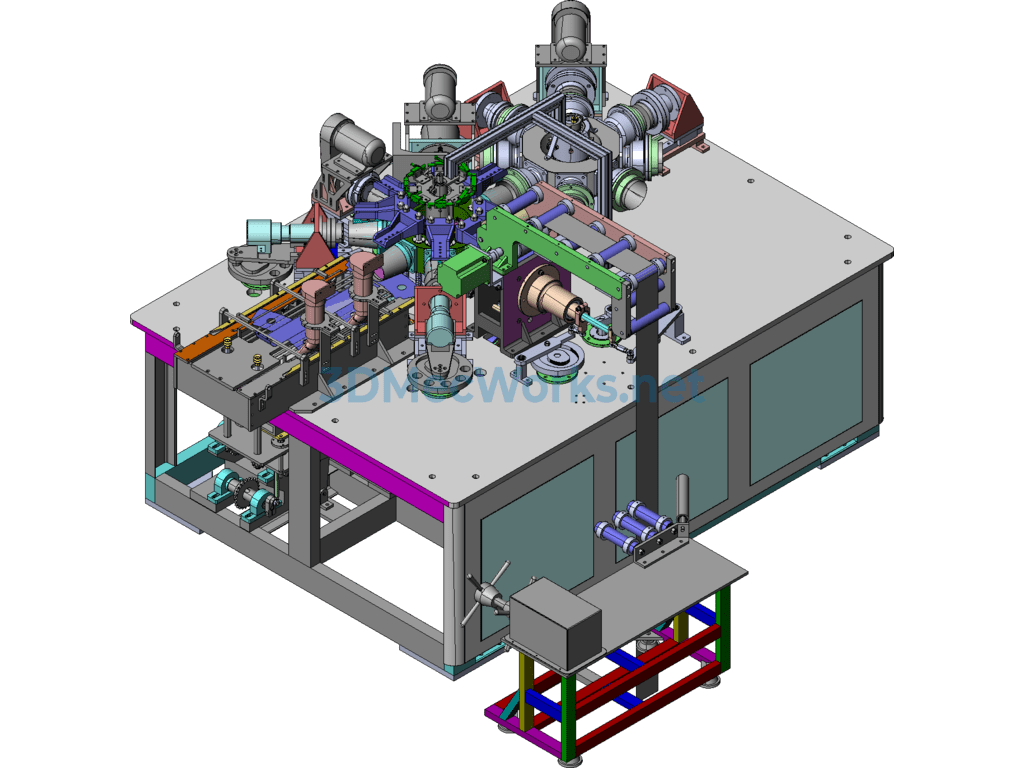

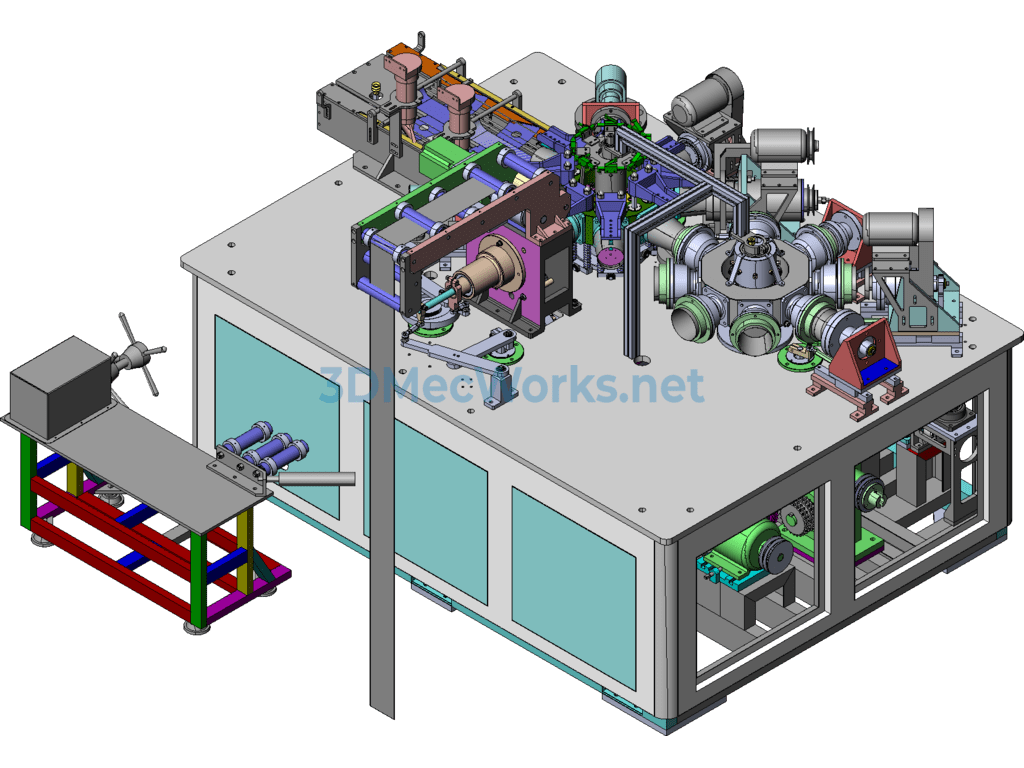

High-Speed Paper Bowl Machine
This equipment is used for the production of disposable paper cups. It employs a cam mechanism linkage principle, ensuring extremely high efficiency. There are both drawings and a parts list available. It is in mass production and available for download.
This equipment includes: ZWJ-01-00-000_Main Turntable Mechanism, ZWJ-02-00-000_Auxiliary Turntable Mechanism, ZWJ-03-00-000_Bowl Forming Mechanism, ZWJ-04-00-000_Bowl Molding Mechanism, ZWJ-05-00-000_Transmission Mechanism, ZWJ-06-00-000_Bowl Bottom Paper Feeding Mechanism, ZWJ-07-00-000_Cylindrical Splitter Assembly, ZWJ-08-00-000_Bowl Body Paper Rack, https://3dmec.net/_Bowl Stacking Mechanism, ZWJ-10-00-000_Frame Section, ZWJ-11-00-000_Accessories Section, ZWJ-12-00-000_Line Support Frame, Bowl Unloading Mechanism: Fixed Bowl Assembly, Pipeline Assembly, Frame Assembly, Bowl Pushing Assembly, Bowl Unloading General Assembly Drawing, etc.

Specification: Single-Use Cup Production Equipment (mass-Produced) 3d + Engineering Drawings + Bom List

Design Software

Editable

,

File Formats

, , , ,

Industry Application

Sharing Level

Version
