During welding, the current is directed away from the positioning cylinder, thus preventing damage to the internal components of the positioning cylinder, protecting it, ensuring safe usage, and extending its lifespan.

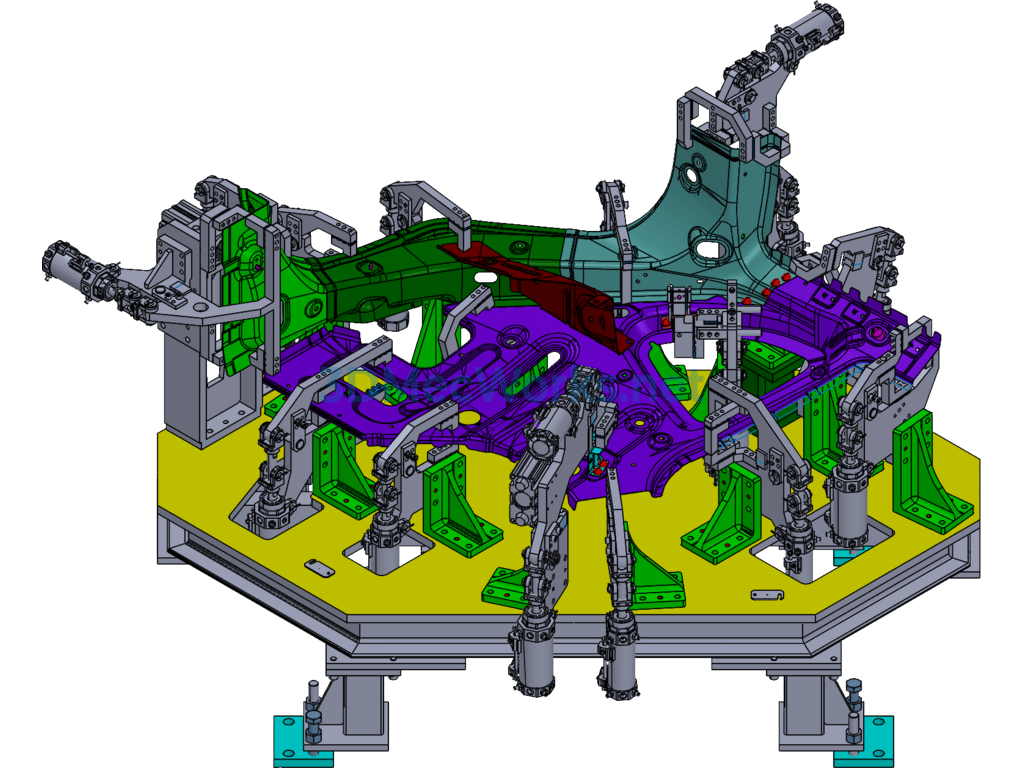

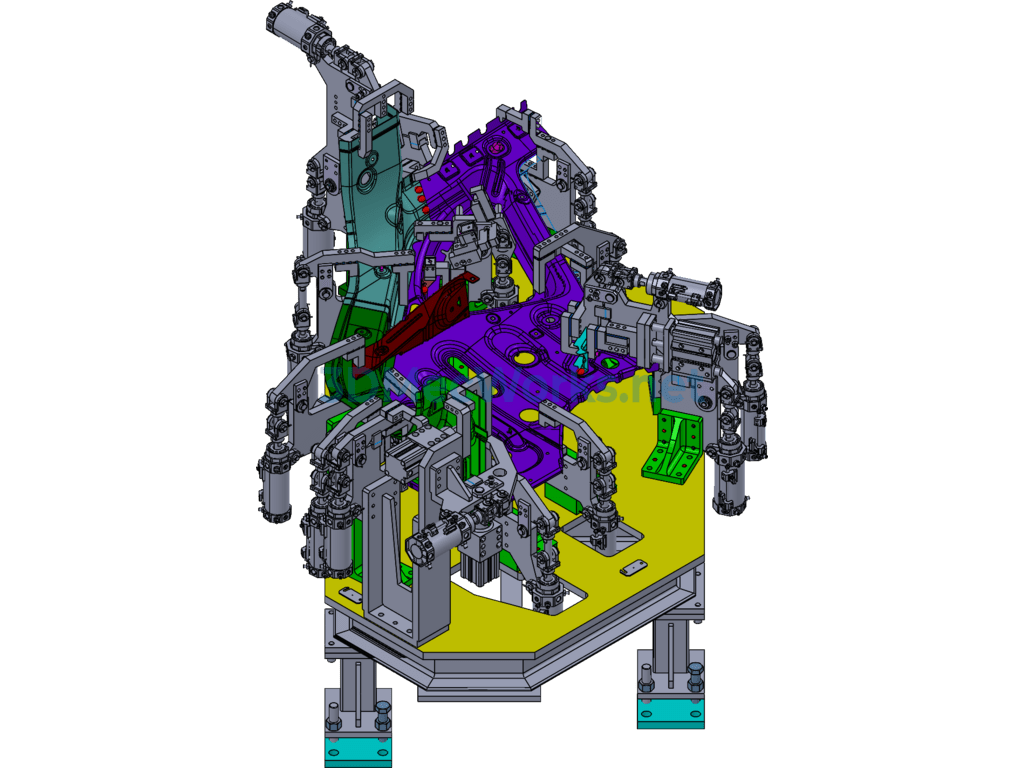

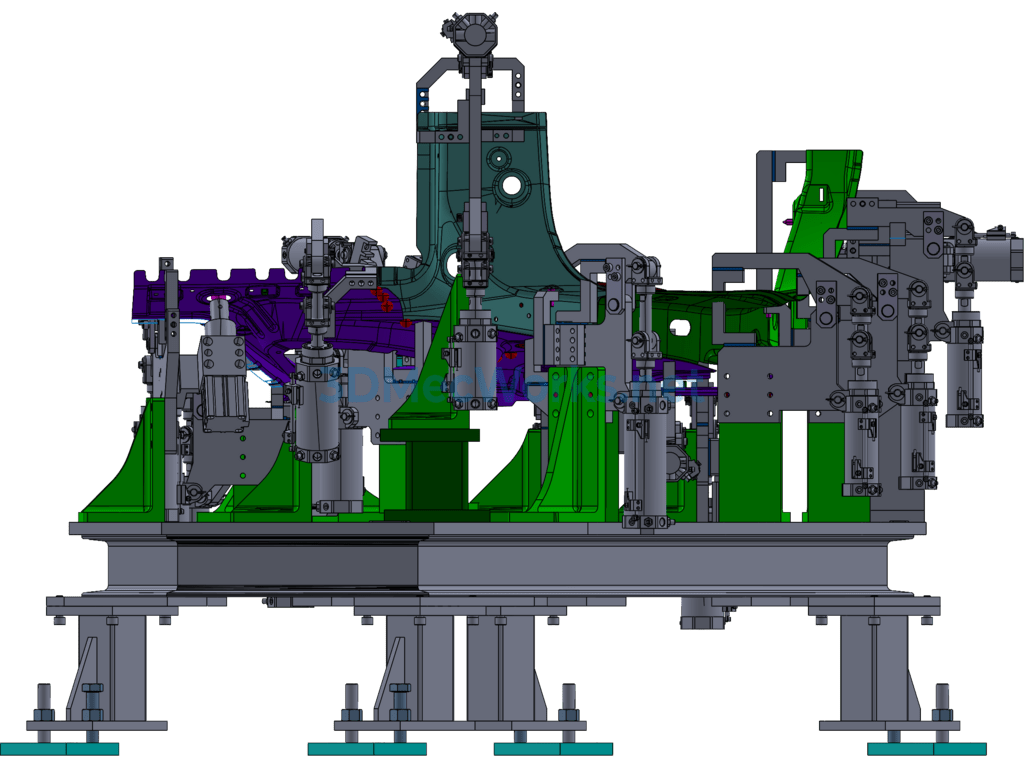

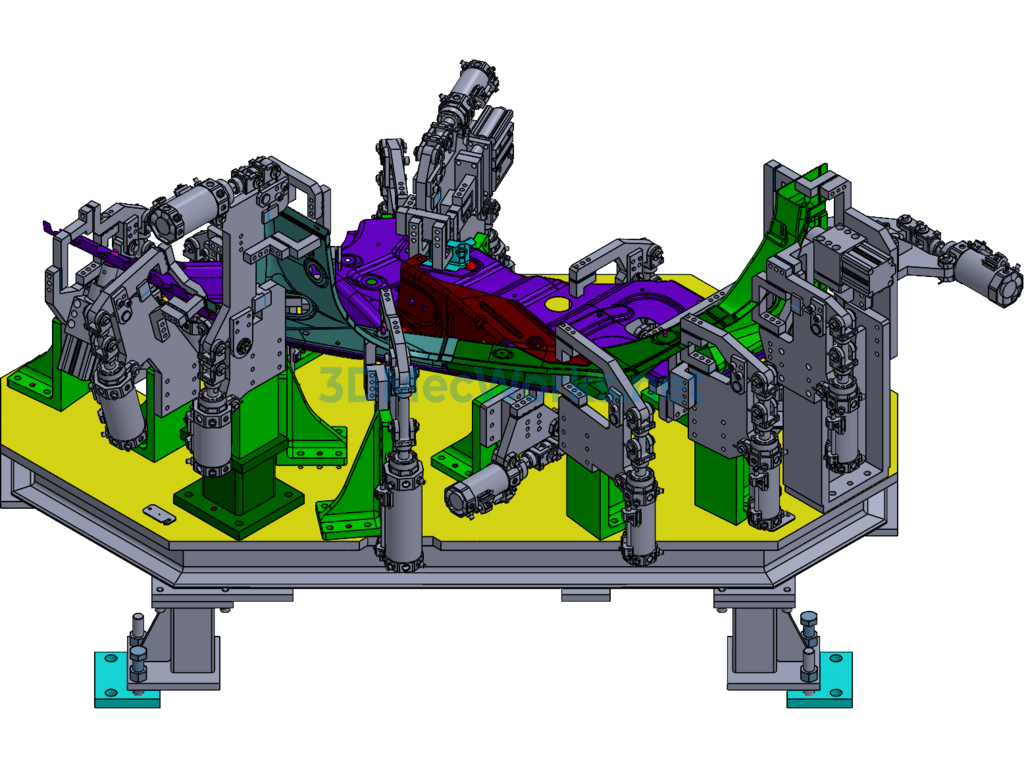

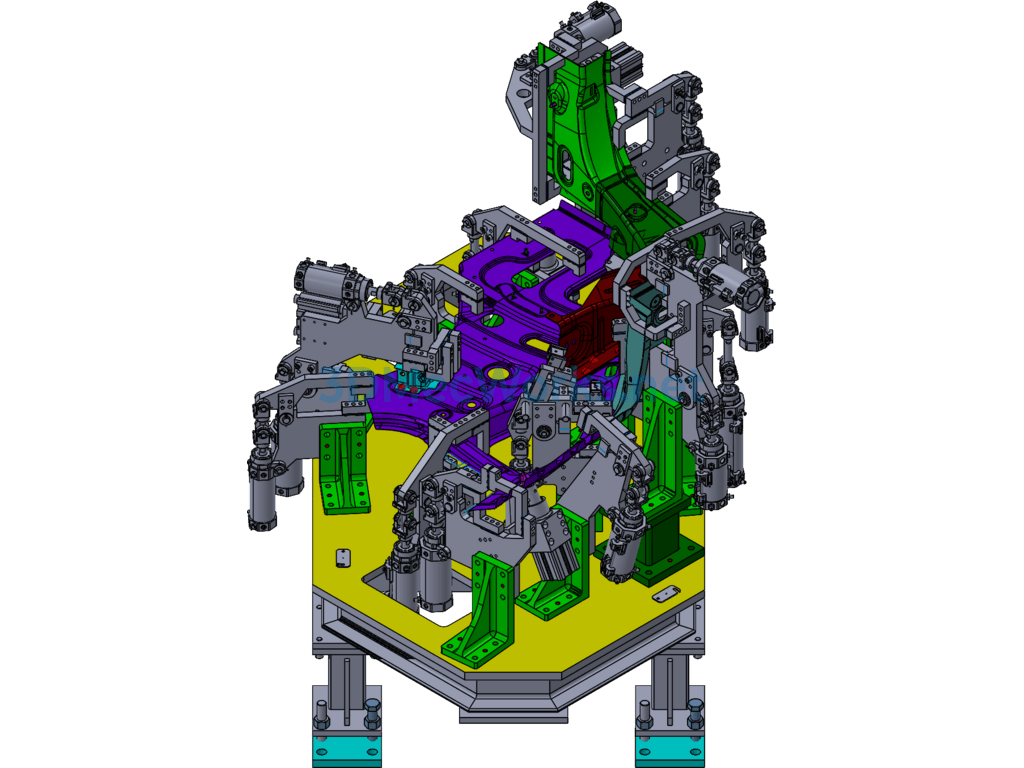

This is a model of a side plate welding positioning fixture, containing 174 sldprt files and sldasm files. The model is editable and does not include parameters. It offers a highly realistic creation effect, and it is recommended to use a higher version of SolidWorks to open this model. Everyone is welcome to download and study it.
Specification: Side Plate Welding Positioning Fixture
|
