Shower Seat Lower Shell (Cylinder Draft Slider) - UG(NX) - Free Download

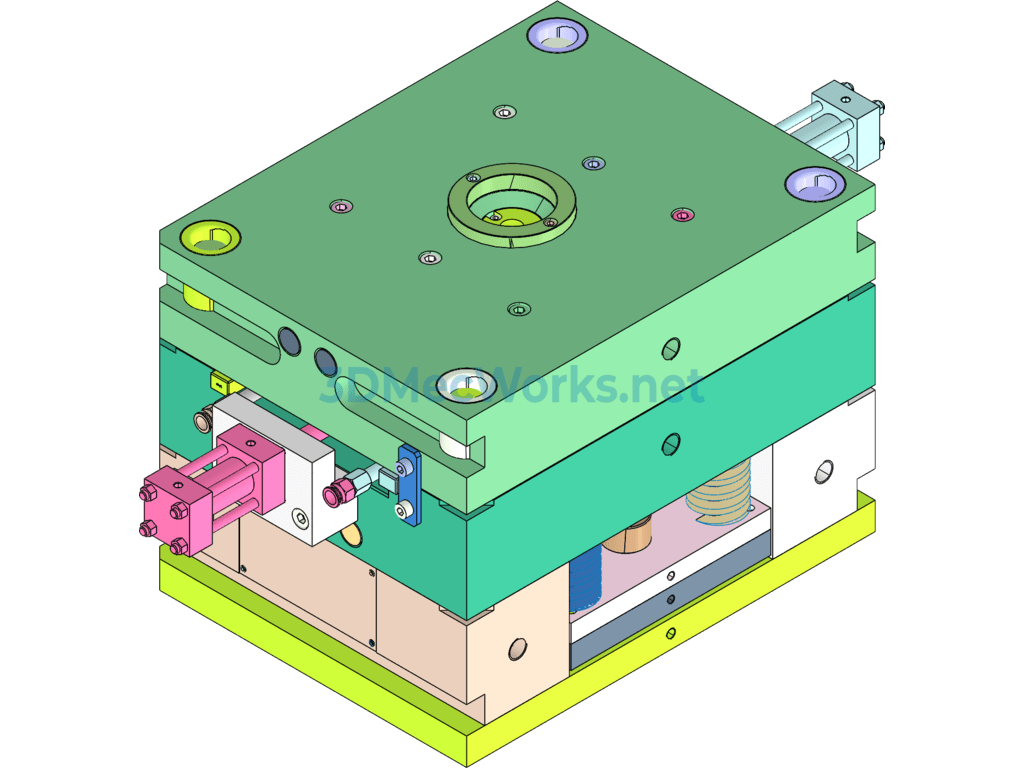

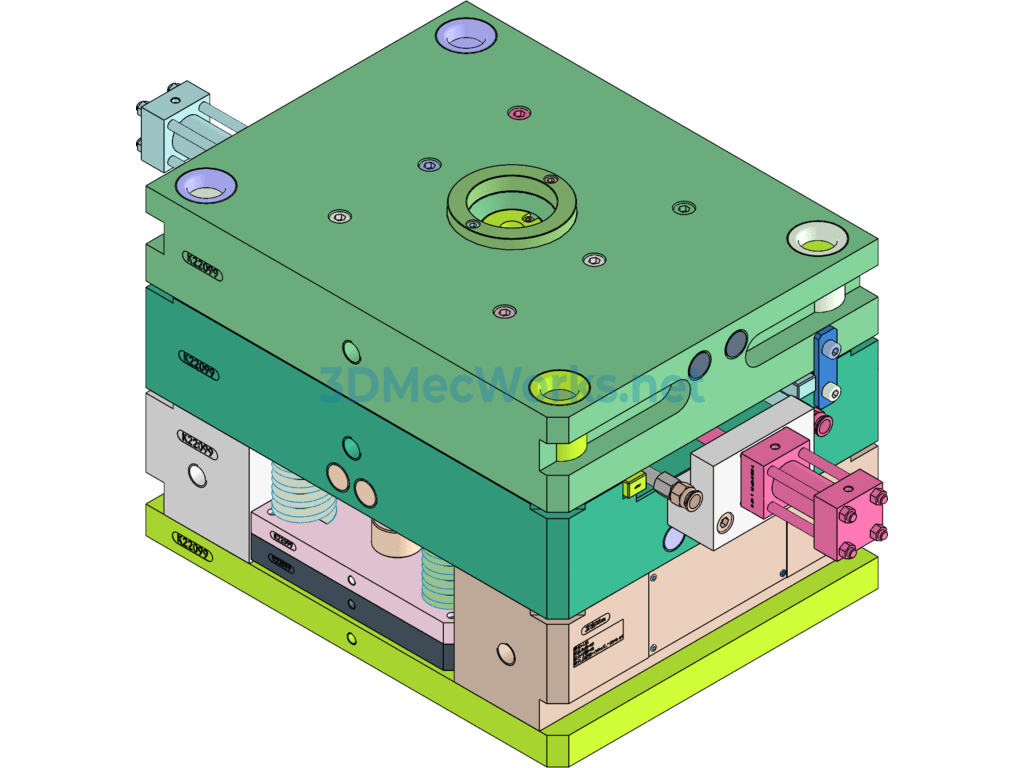

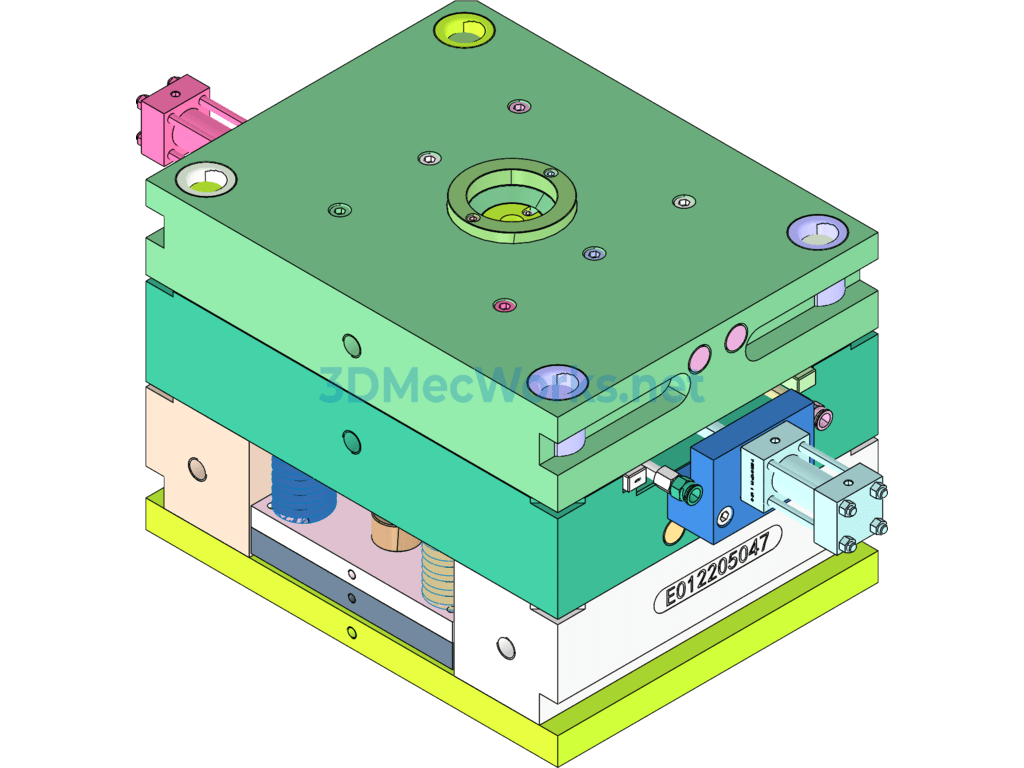

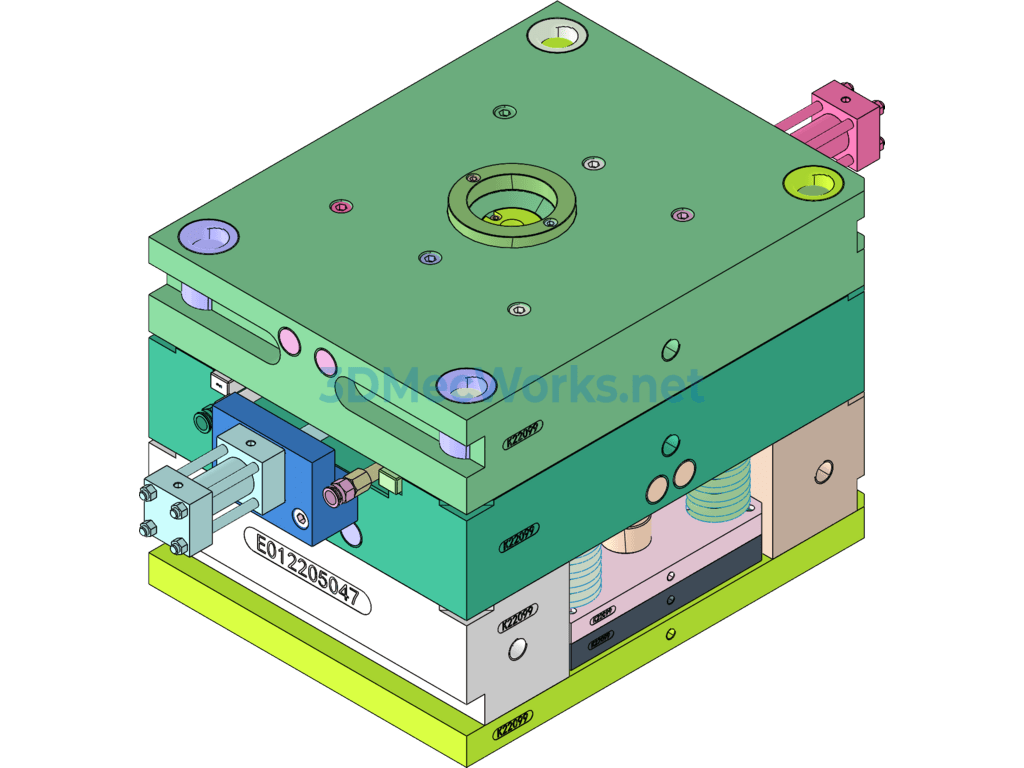

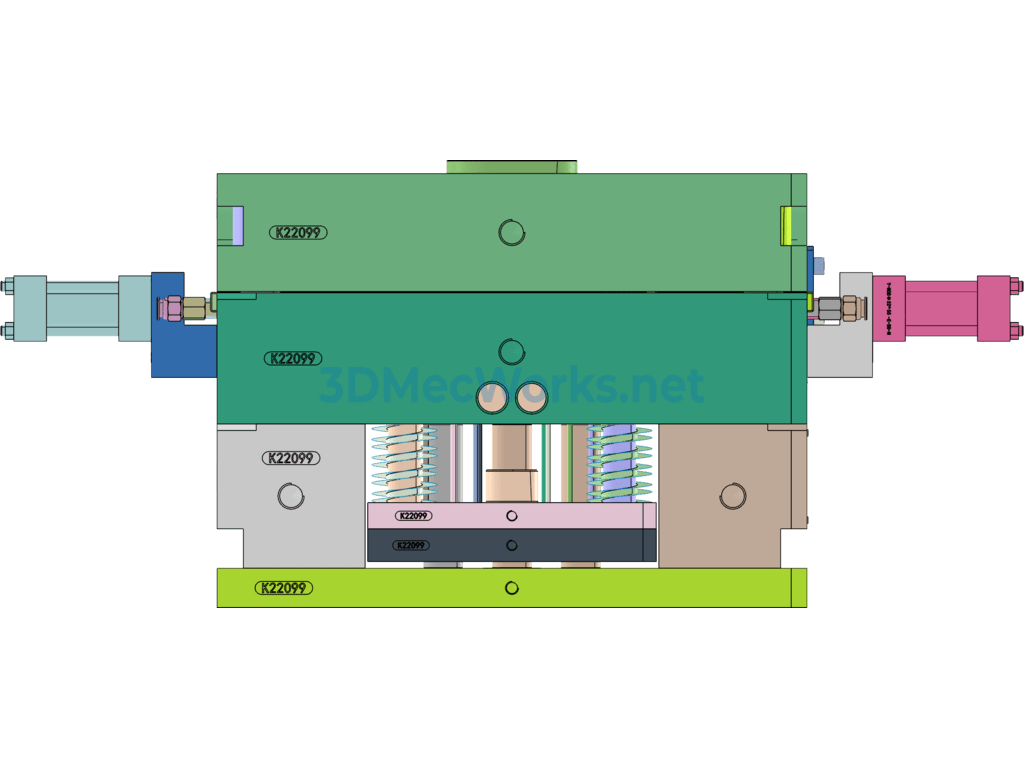

This model is an injection mold diagram for the shower head base lower shell; the mold cavity is designed for one mold with four cavities, the product material is ABS, and uses a large gate stealth injection. The product is ejected by ejector pins; the product has a relatively deep undercut, and the mold structure uses a hydraulic cylinder slide core pulling. The drawing structure is very clear and everyone is welcome to download and learn.
Specification: Shower Seat Lower Shell (Cylinder Draft Slider) - UG(NX) - Free Download
|
