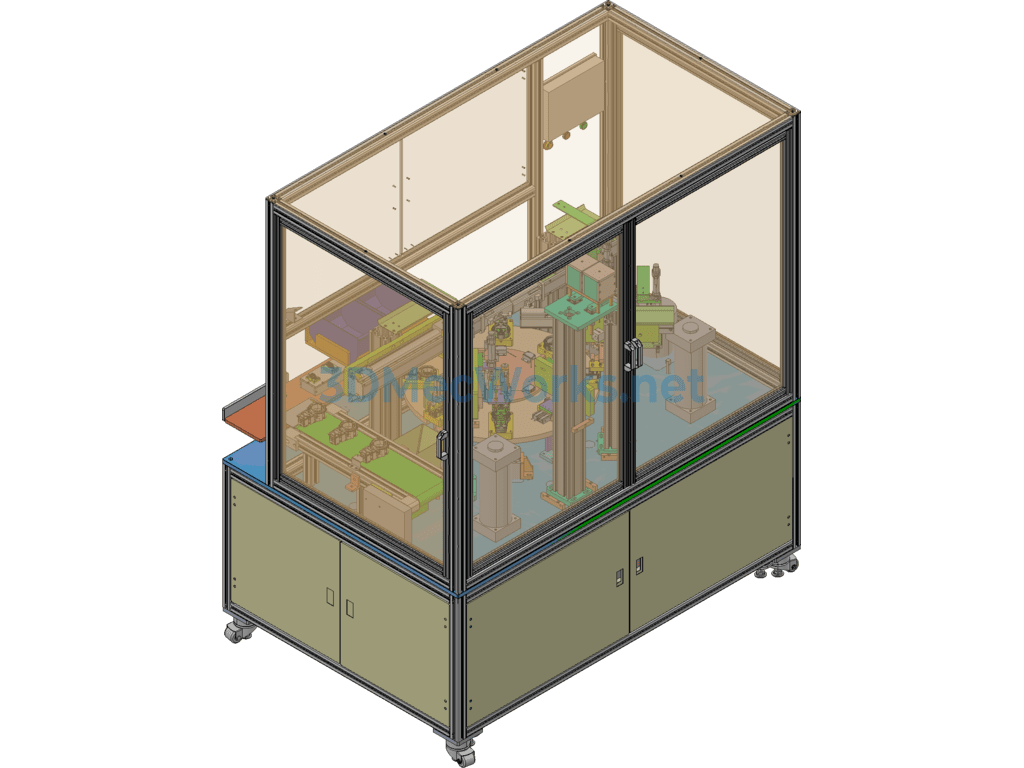

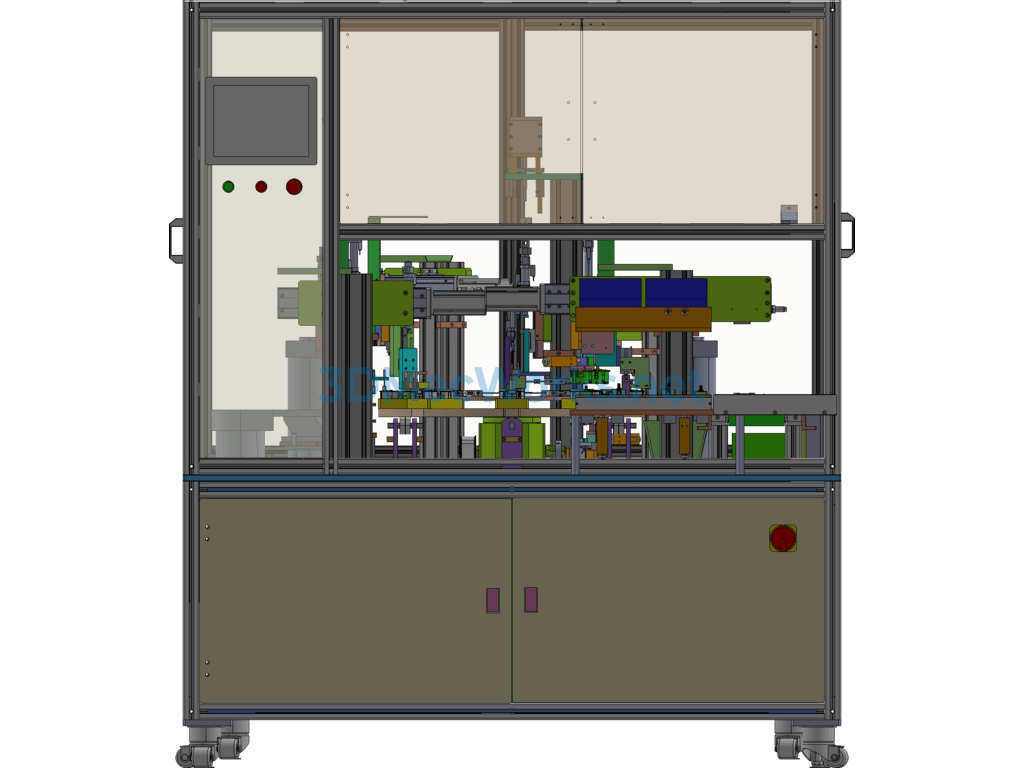

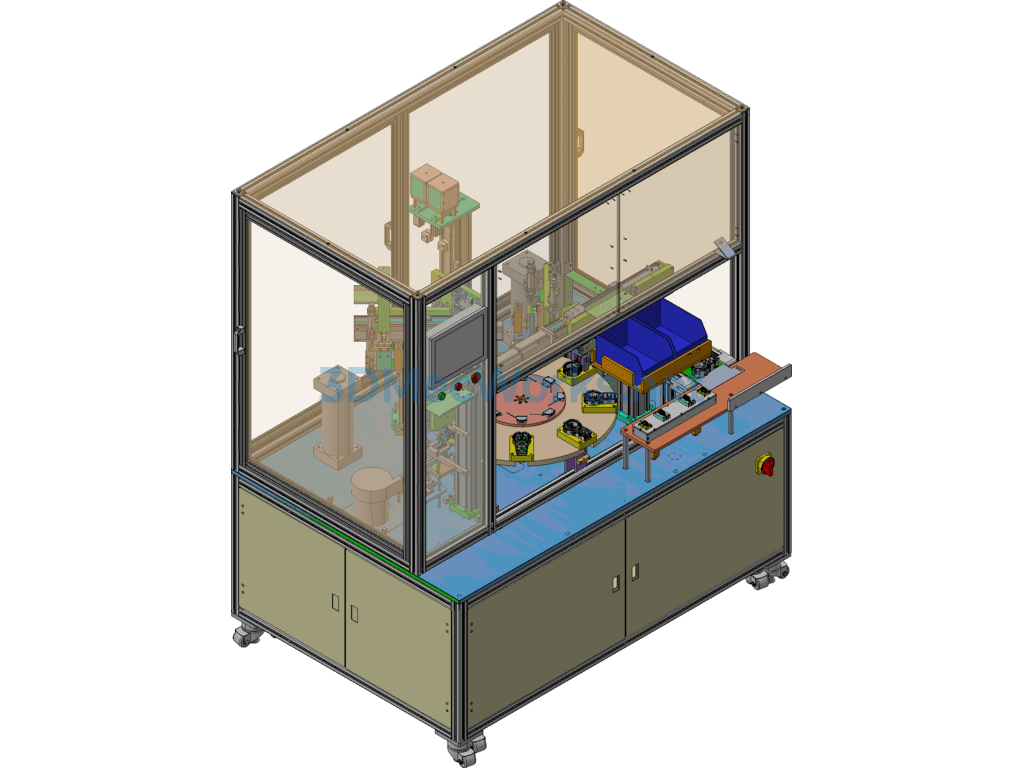

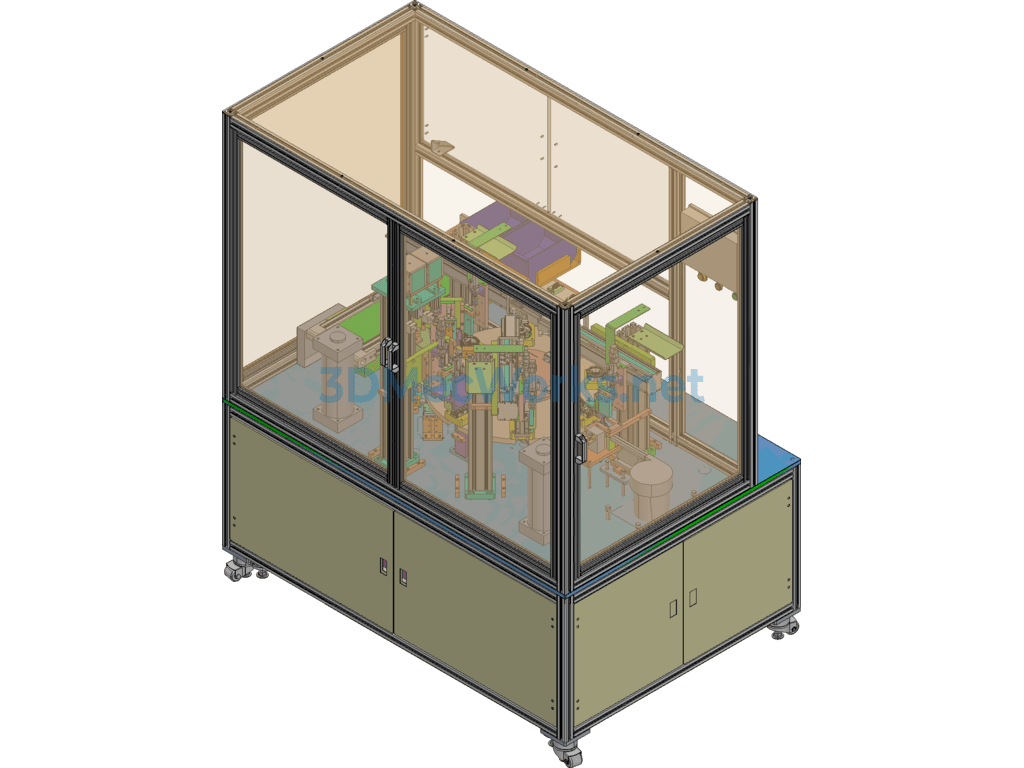

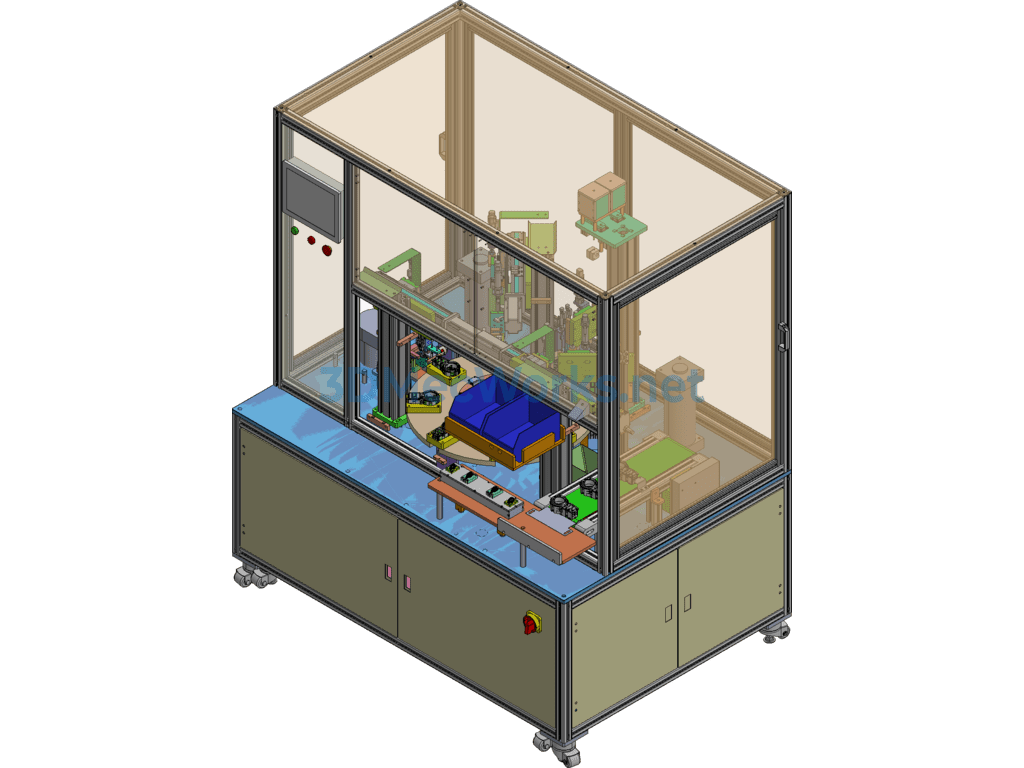

A divider, slide table, rodless cylinder, vibrating plate, and error material mechanism are used in the shrapnel assembly machine. It’s a relatively complex design. If you’re interested, you can download and take a look. It seems that the Creo STP might show format errors when opened with lower versions of SW and UG, but any version of Pro/E opens it without any issues.
Specification: Shell Assembly Machine, Non-Standard Automation Equipment
|
