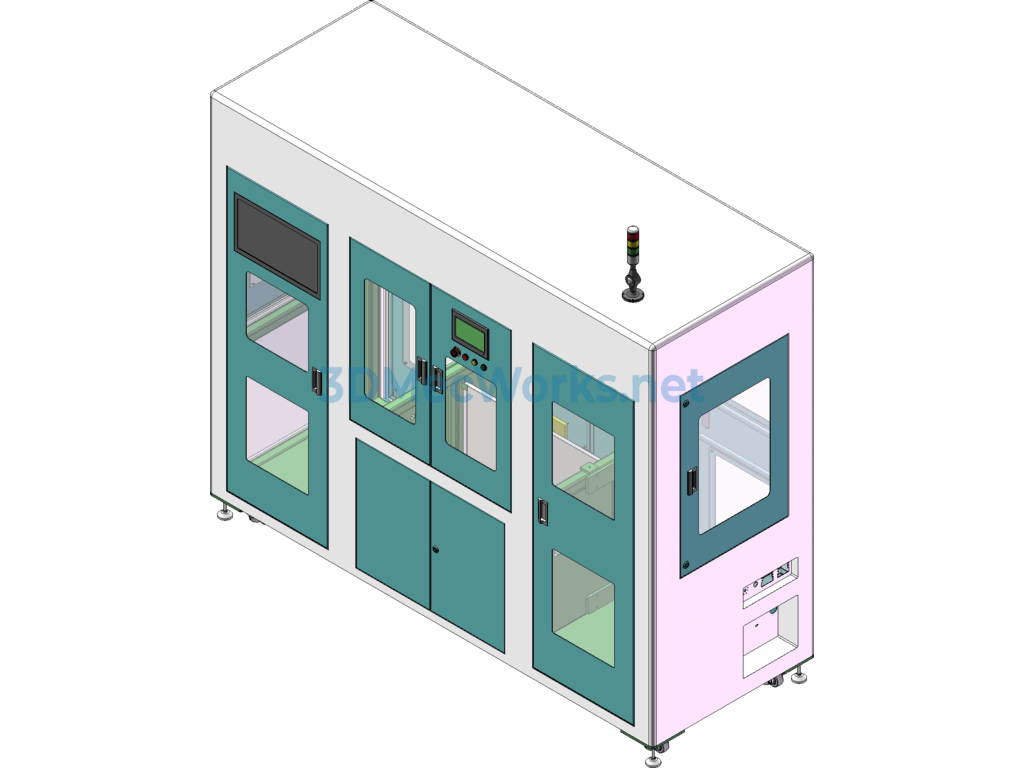

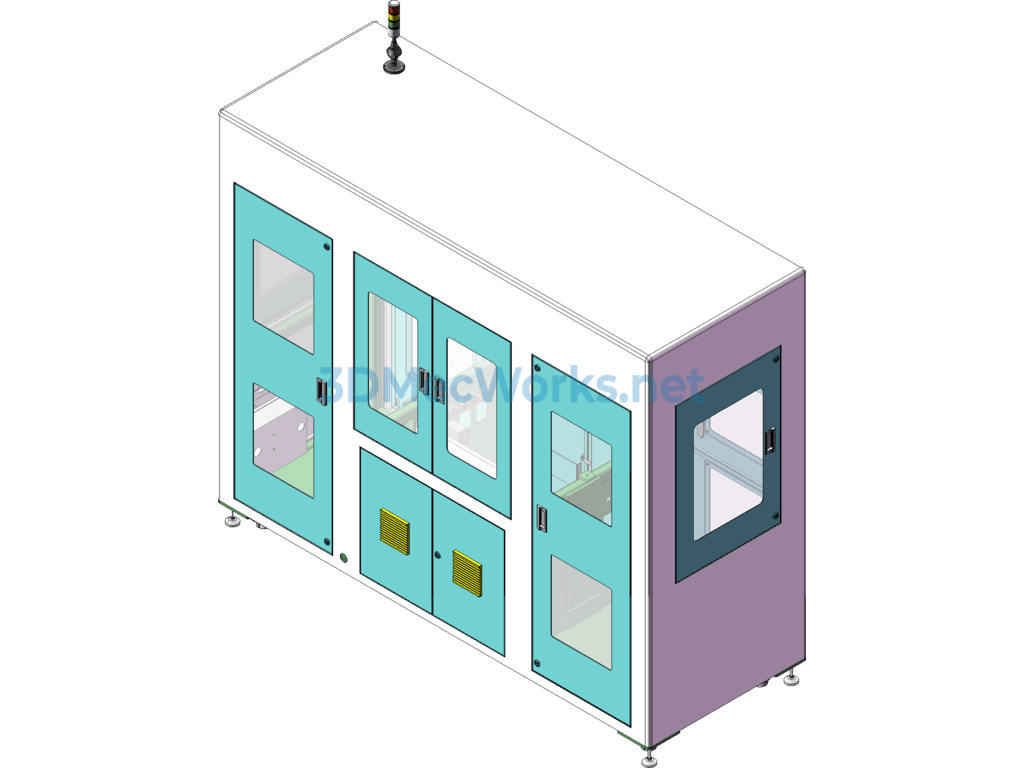

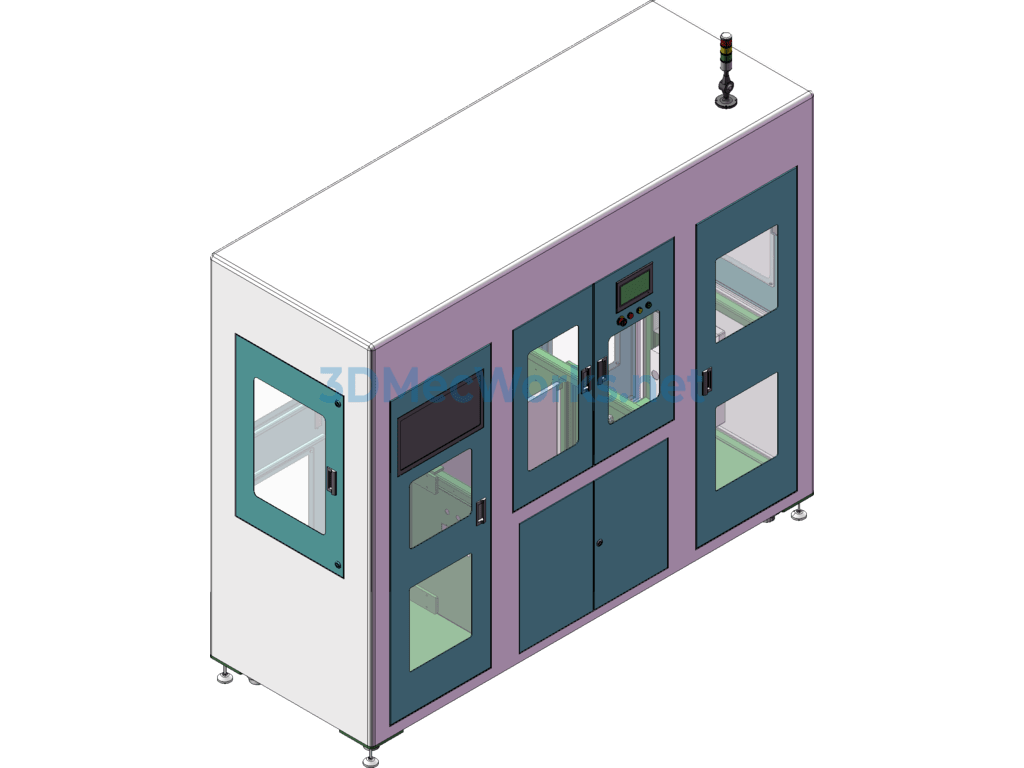

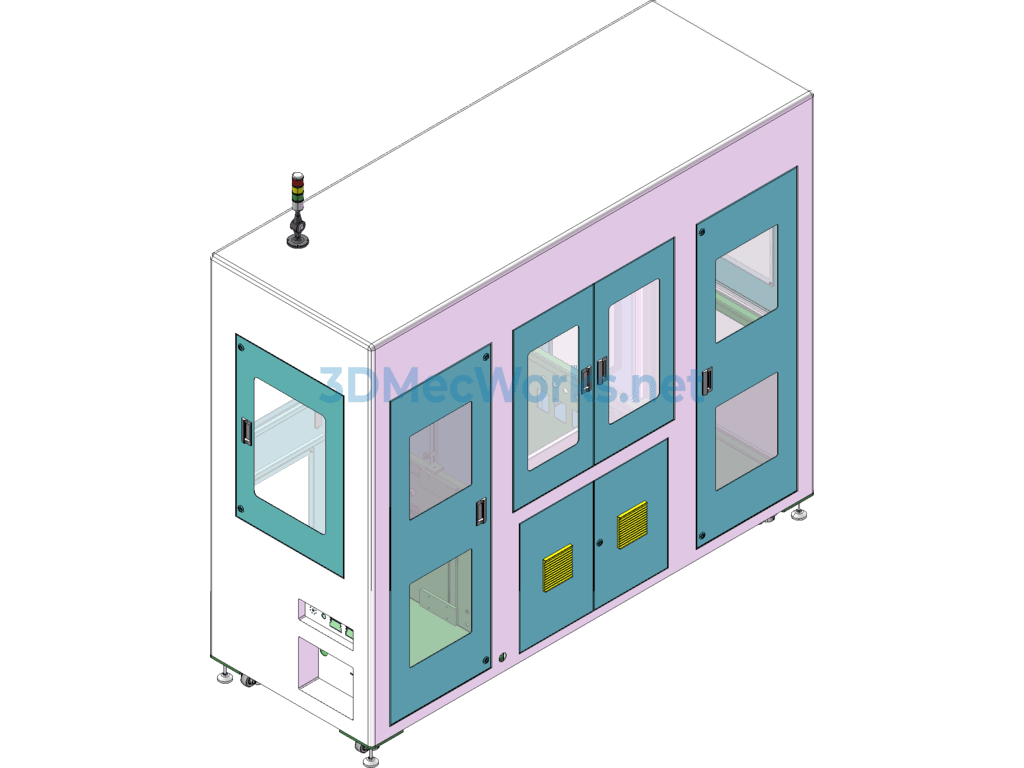

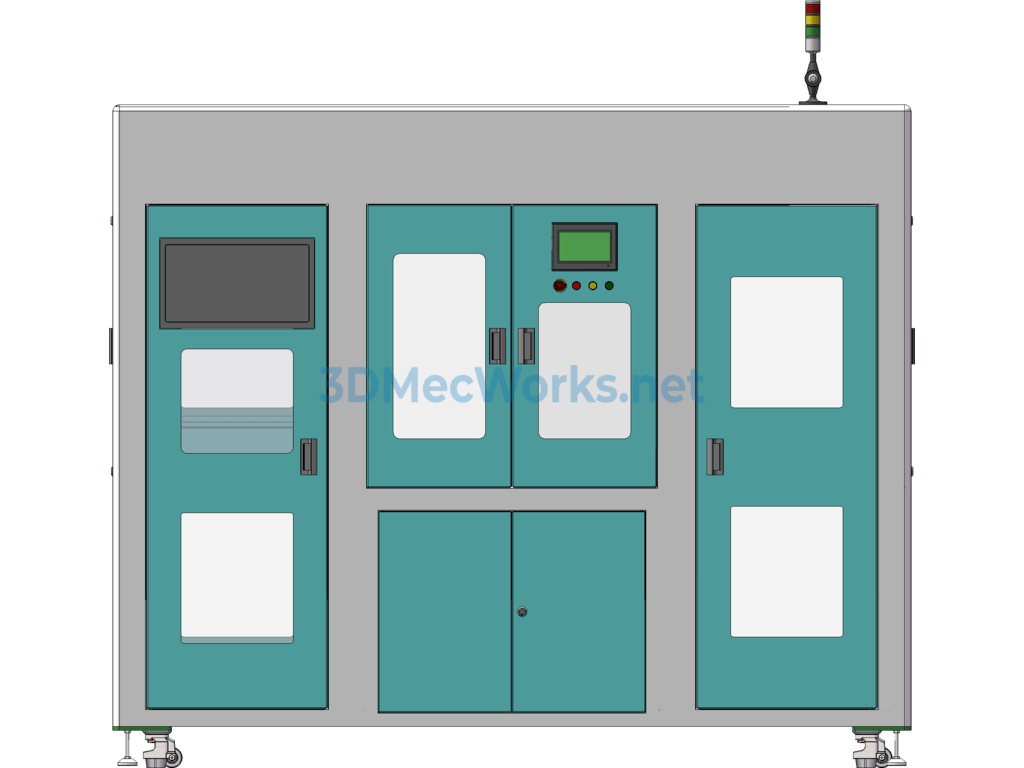

Equipment Outer Frame Design: This model is the outer frame of a non-standard equipment. The main support of the frame is welded with square tubes, and the entire structure is enclosed with sheet metal, featuring front and rear swing doors. The file is uploaded in SolidWorks 2018 and is editable. It includes complete engineering drawings and a BOM. Welcome to download and use.

Specification: Sheet Metal Outer Frame
