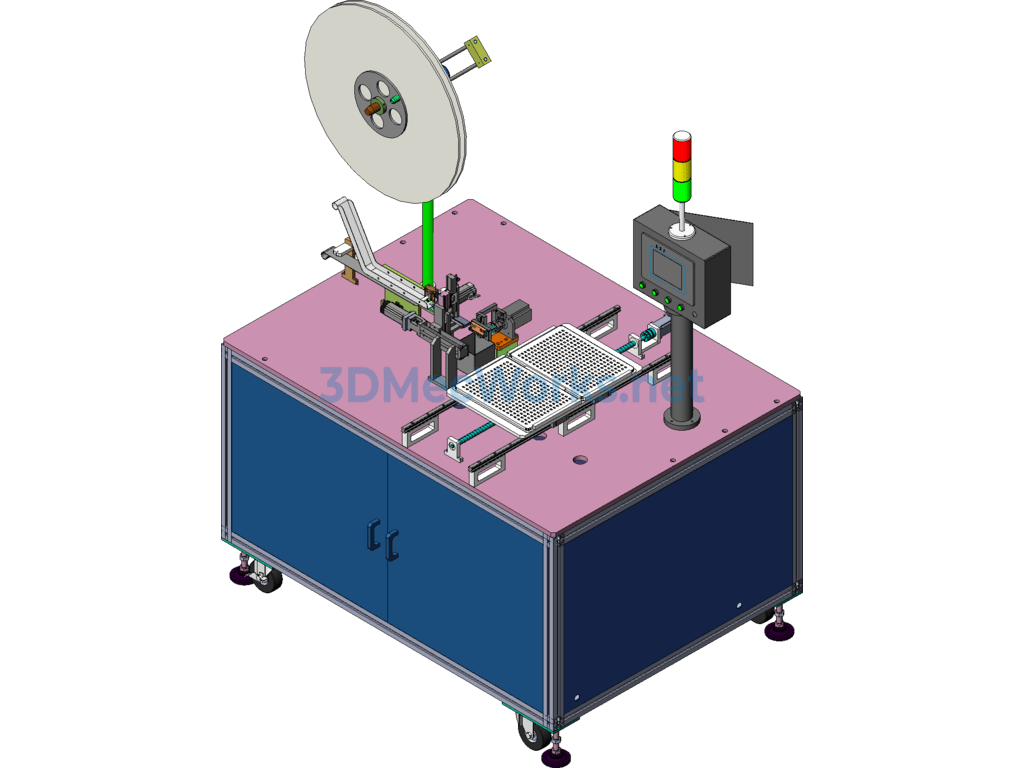

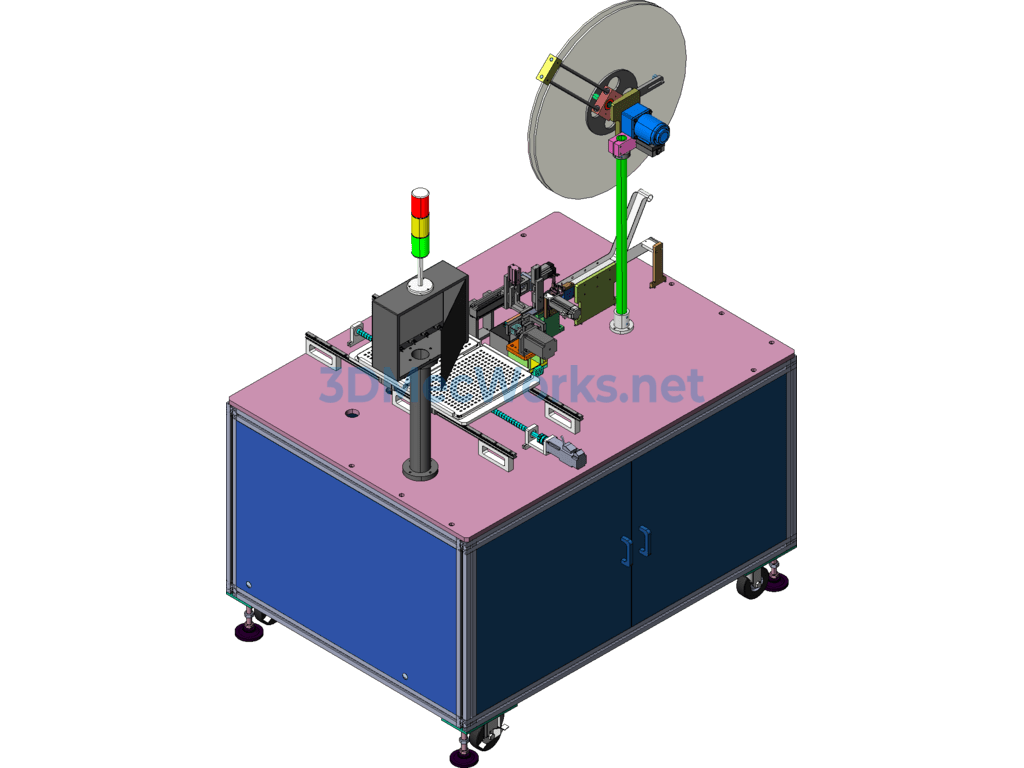

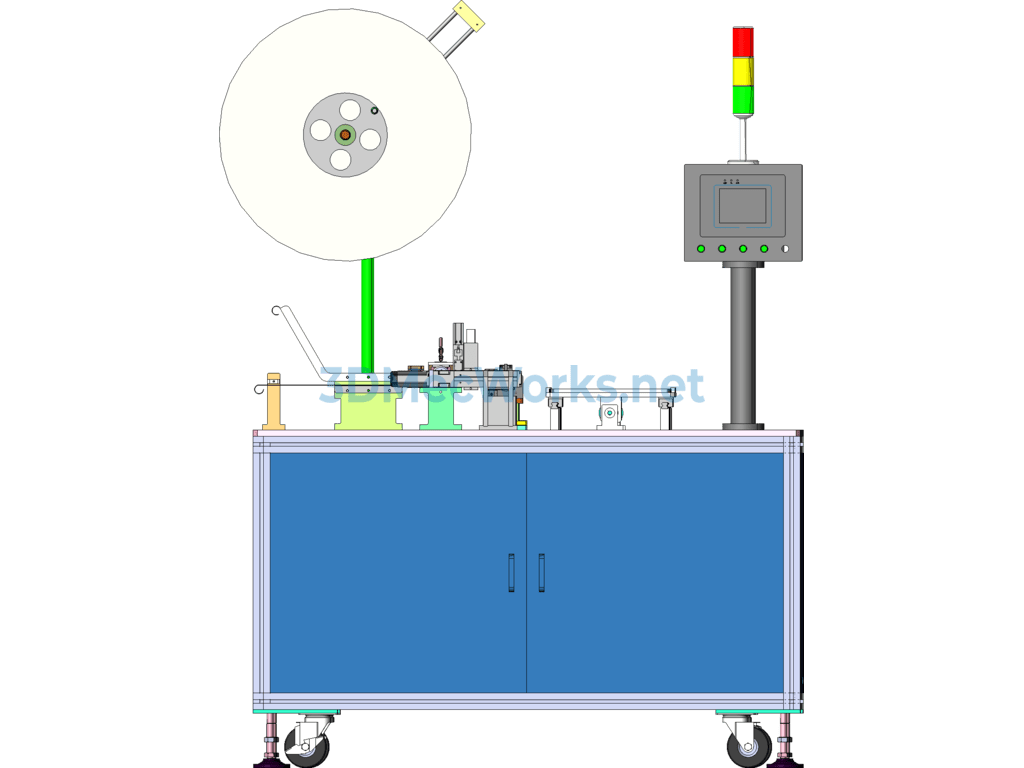

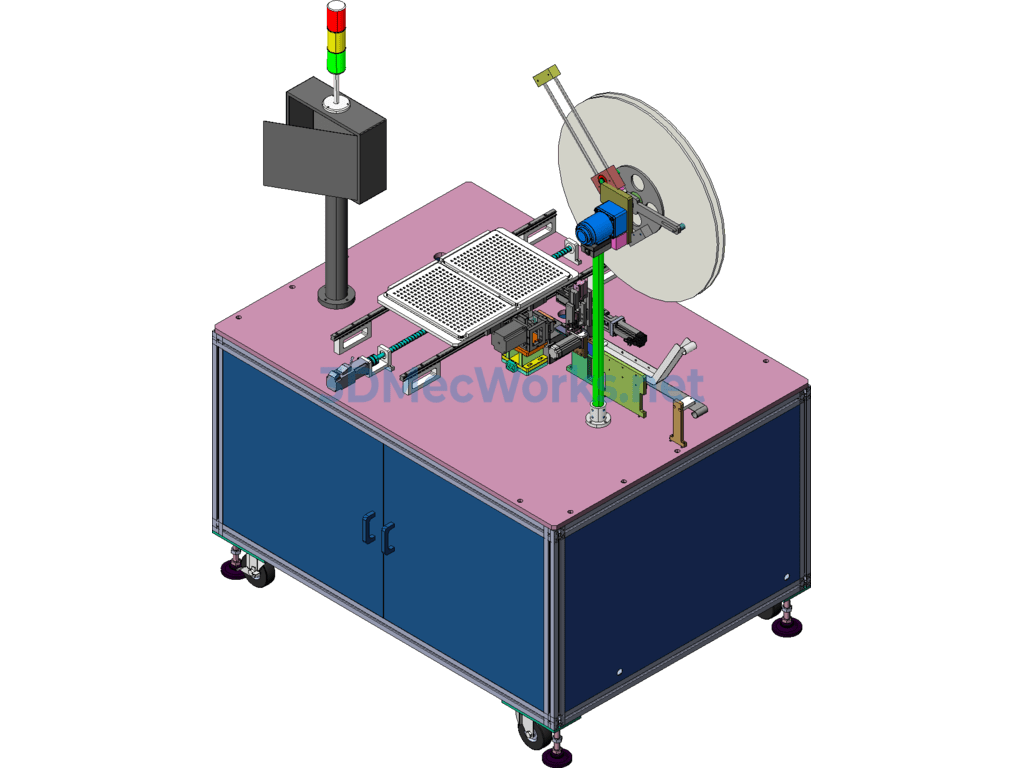

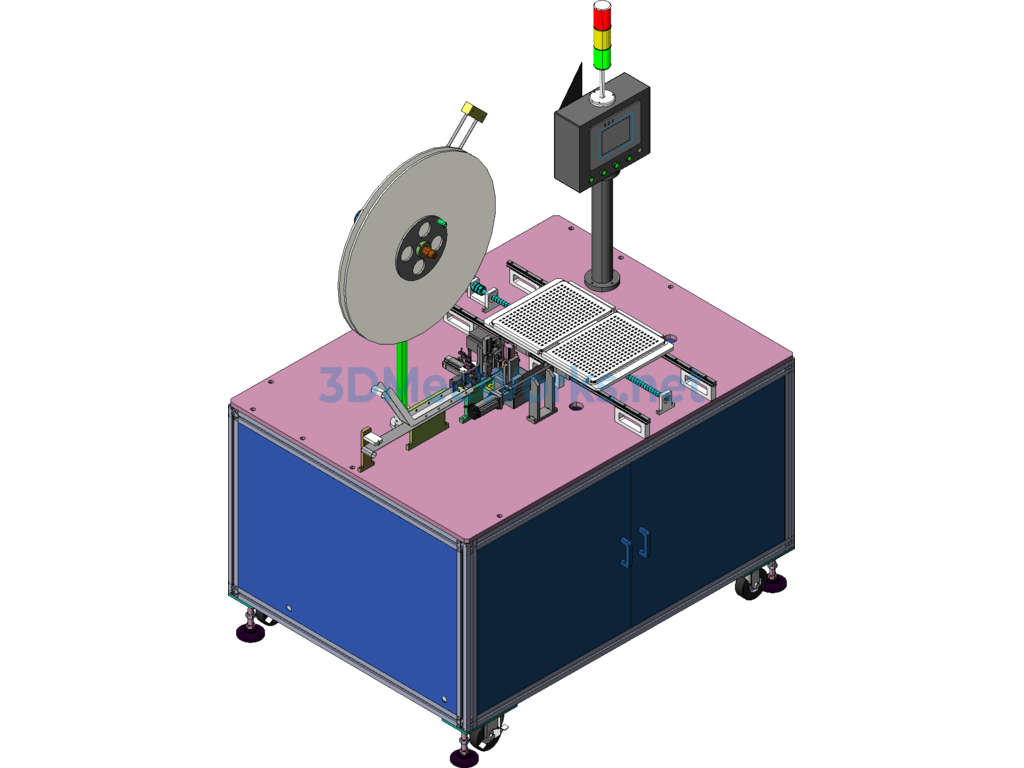

Shearing Tray Equipment (Including Detailed DFM) - SolidWorks - Free Download
Shear Plating Machine Action Process:
1. The material tray is manually loaded onto the device and positioned on the turntable;
2. The material tray motor rotates to supply the material;
3. Jog feeding ensures each material is equal;
4. Enter the cutting oscillation motor to cut the product;
5. Place the product into the tray through the handling module.
