Servo Motor Screw Locking Machine Assembly Line + Bom List

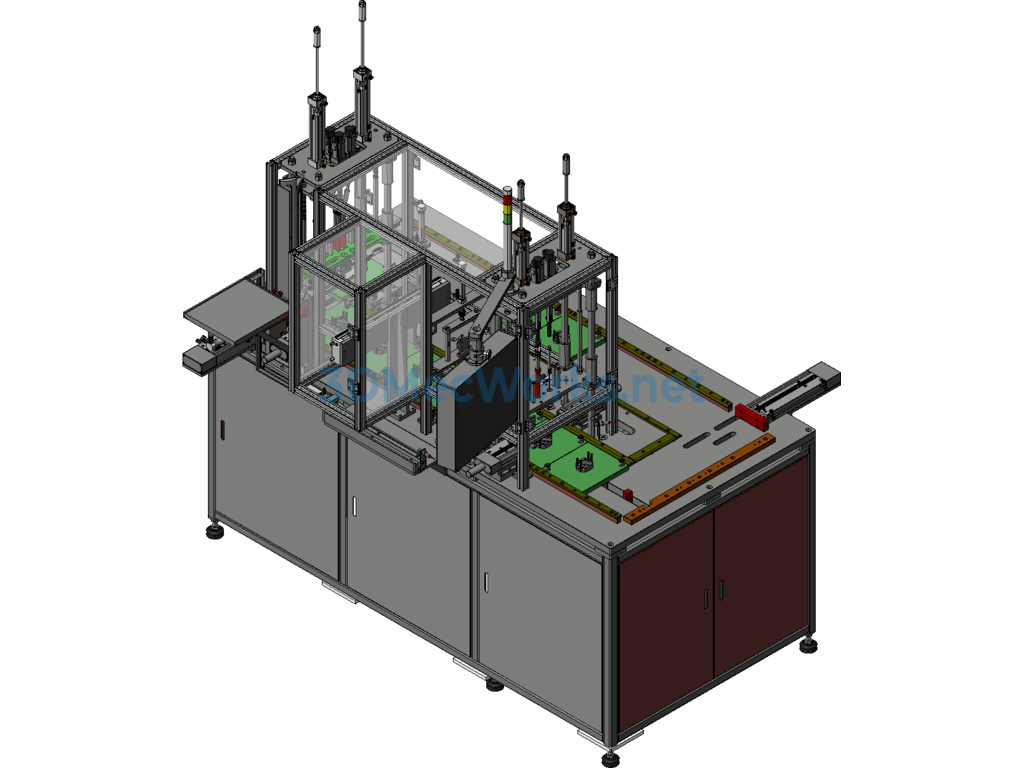

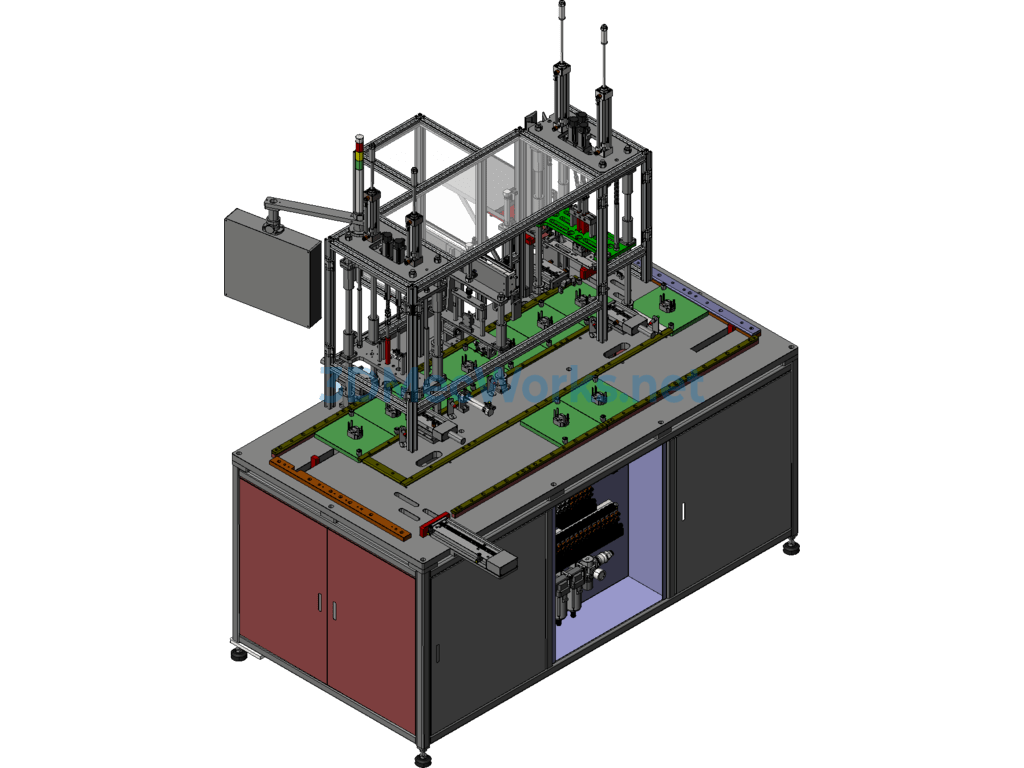

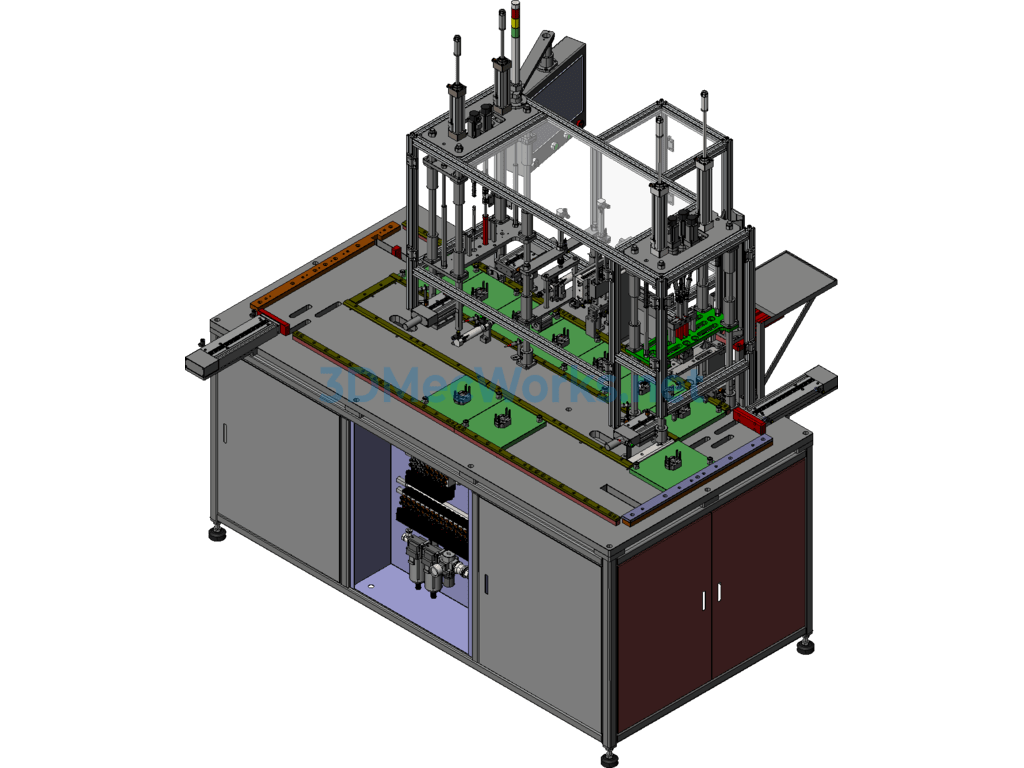

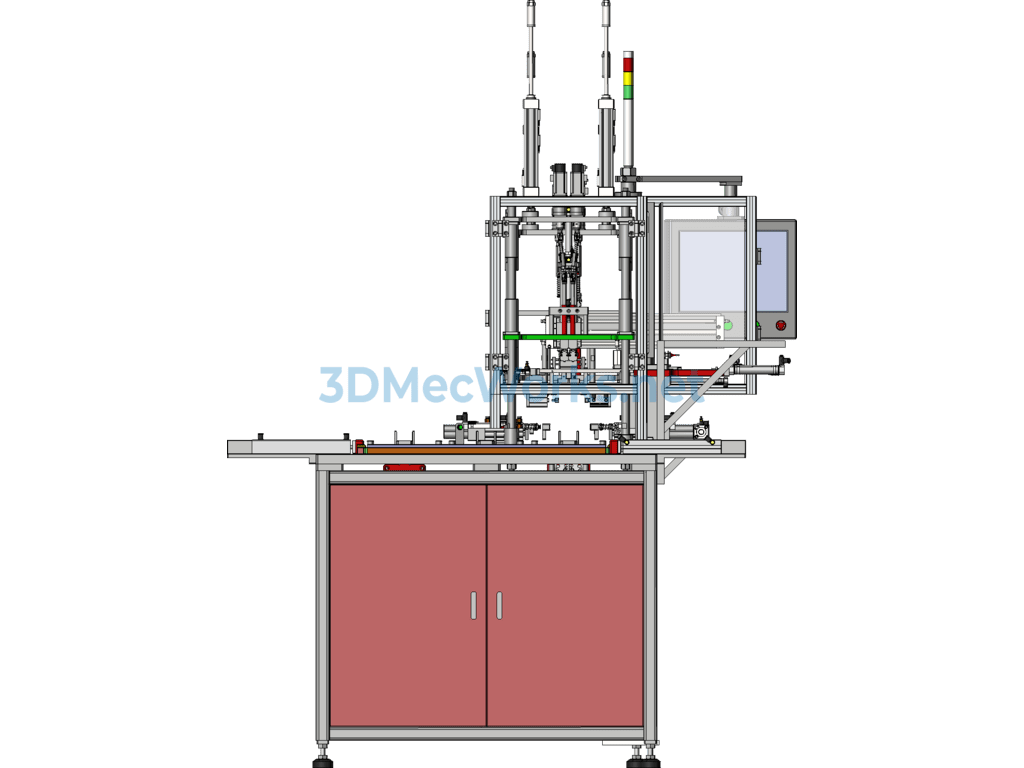

Precision servo motor screw machine Full name: servo motor screw locking machine cycle assembly production line. A set of the latest drawings for locking screws with a servo motor is shared with everyone. This original set of drawings includes a complete set of engineering drawings as well as a BOM for standard parts, making the quality of the drawings very good and very comprehensive.
The main function of this device is to transport products through the cycle carrier plate on the equipment to lock screws and perform detection and unloading. From the front end, the product is placed and fixed in the carrier by hand, then the equipment starts pushing the carrier plate to the screw locking workstation from the first station. It first locks 2 screws (the product’s precision requirement is high due to the small screws, so a servo motor is used for screw locking). The second station performs inspection, and if the product is non-defective, when it reaches the third station, the defective product extraction mechanism removes the product from the line. Good products move to the final station, where 4 screws are locked. Before locking these 4 screws, a thin plate must be inserted into the product in the carrier. From the drawing, you can see the stacking feeding frame for thin plates. After the final screws are locked, the cylinder pushes the carrier plate to the next station for cyclic operation. Back-end personnel only need to perform feeding and unloading operations. This screw locking machine is much more precise than the general type of equipment. So for those who are interested, you can download it to study. It is very worthwhile as it includes the entire set of engineering drawings and BOM, which can all be learned after downloading. The overall structure of the equipment is very stable and is currently in mass production.
Solidworks2012 source file + engineering drawing + BOM provided, with editable parameters.
The assembly drawing is in the folder: Servo Motor Screw Machine Non-standard Assembly EquipmentServo Motor Screw Locking Machine Cycle Assembly Production Line70 Series Motor Screw Locking Assembly Machine – General Assembly.SLDASM
