Semiconductor Transistor Heatsink Equipment (heatsink Automatic Screw Locking Machine)

A complete set of semiconductor transistor lock heatsink equipment 3D model [complete 3D drawings + engineering drawings] is provided for everyone. The source files are designed in SW and are editable, with 650 documents available for download and reference. This model is extremely valuable for reference!

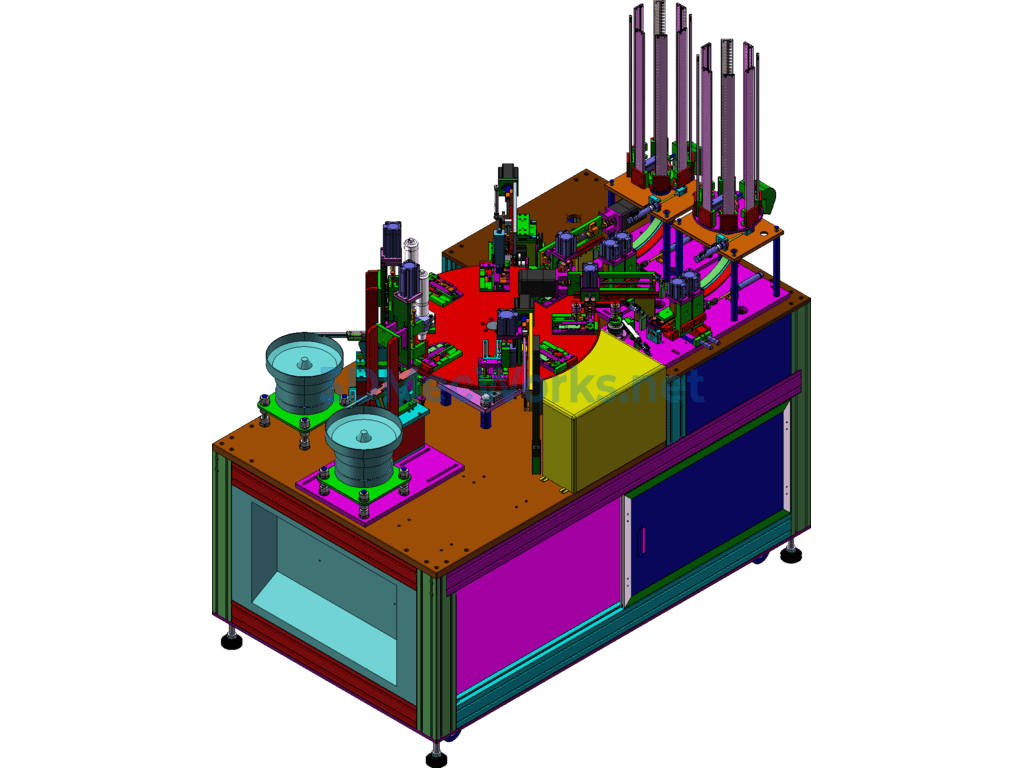

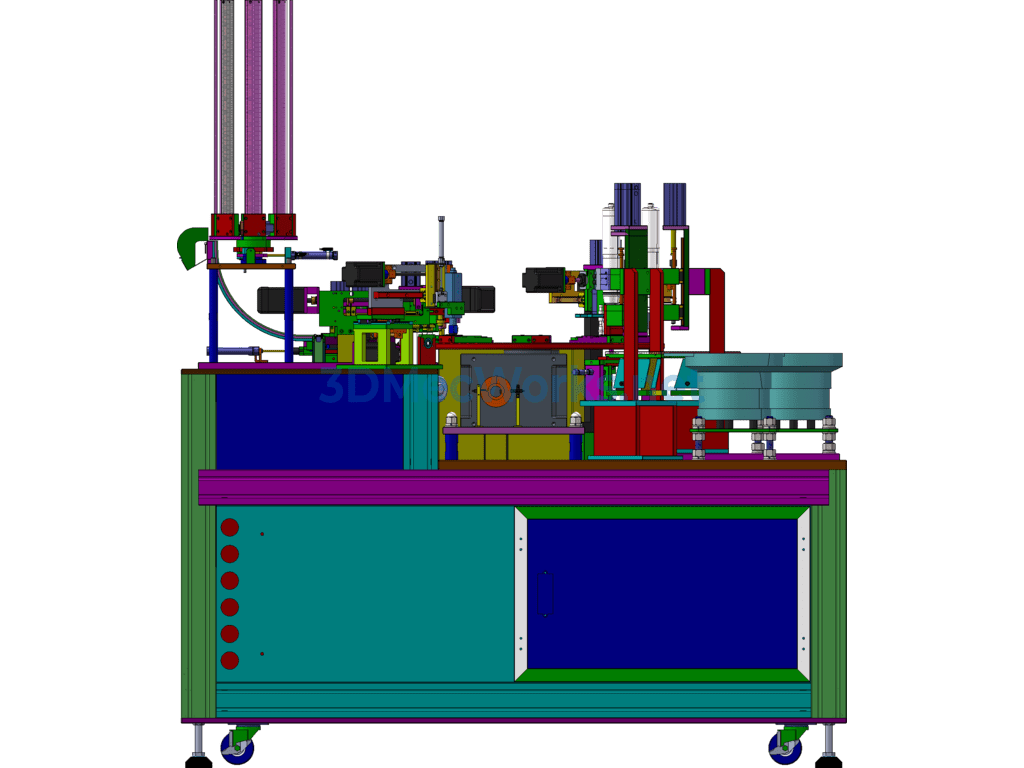

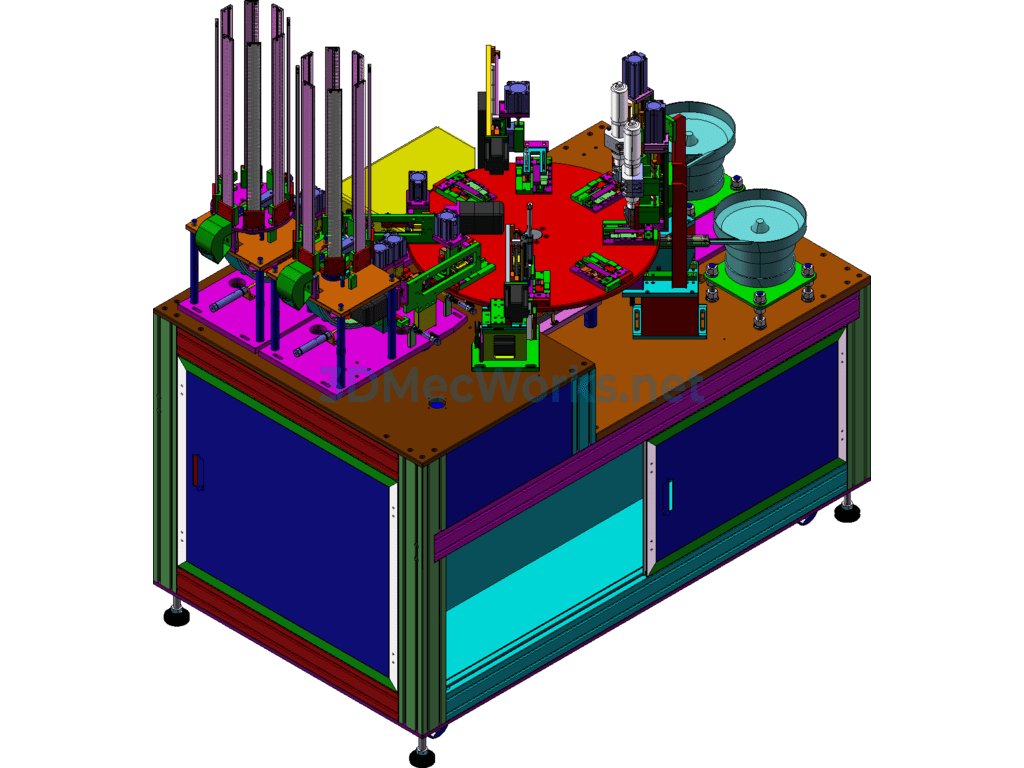

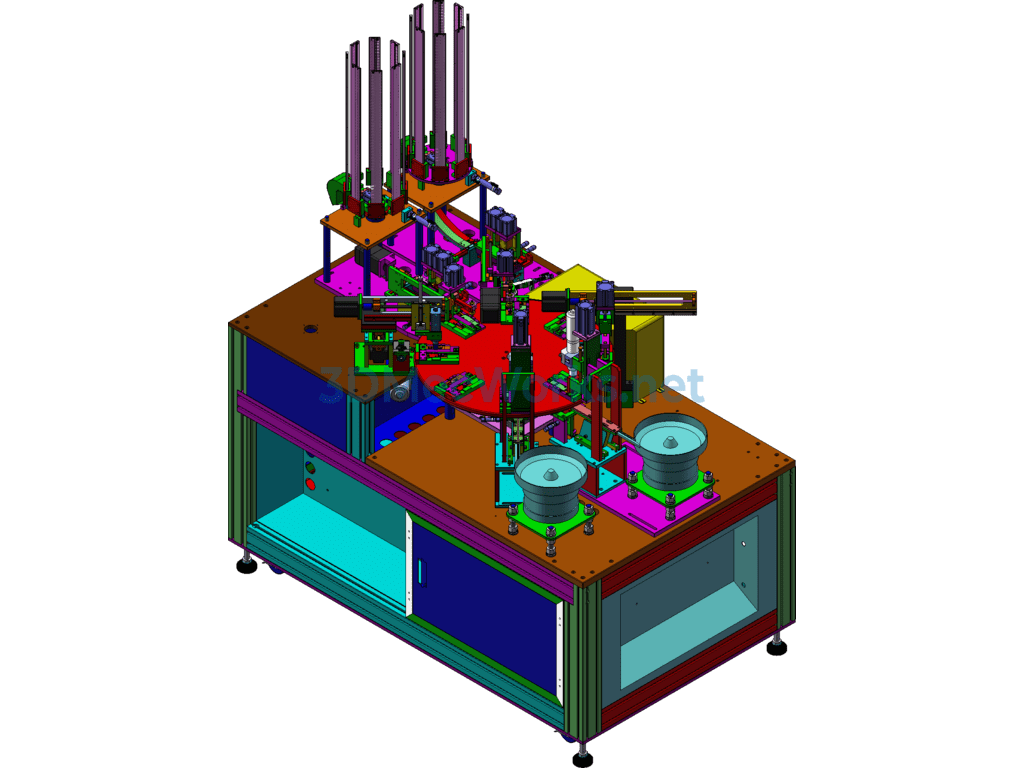

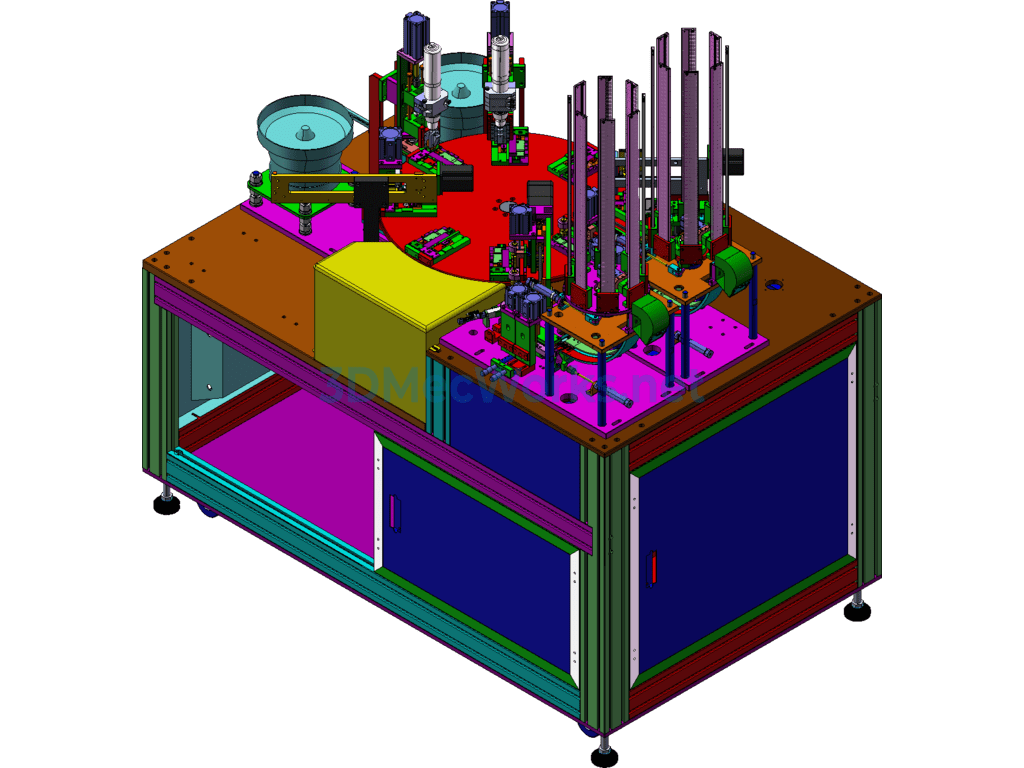

This is a complete set of semiconductor transistor lock heatsink equipment, which is essentially an automatic heatsink screw locking machine. The internal structure mainly includes components such as transistor loading, unloading track, rotary table for screw locking, etc. There are 2 tube feeders at the front, each feeding material to the rotary loading table driven by a cylinder. The material flows down the track to the pick point, where a lead screw module picks up the material to the rotary table indexer position for rotation, and then to the screw locking position to lock the transistor heatsink finally reaching the unloading position.
This entire set of drawings has many ingenious structures, so those who are interested must download it because this is a complete set of drawings with all the engineering drawings issued, and you can download it with confidence.
