Semi-Automatic ACF Bonding Machine - SolidWorks - Free Download

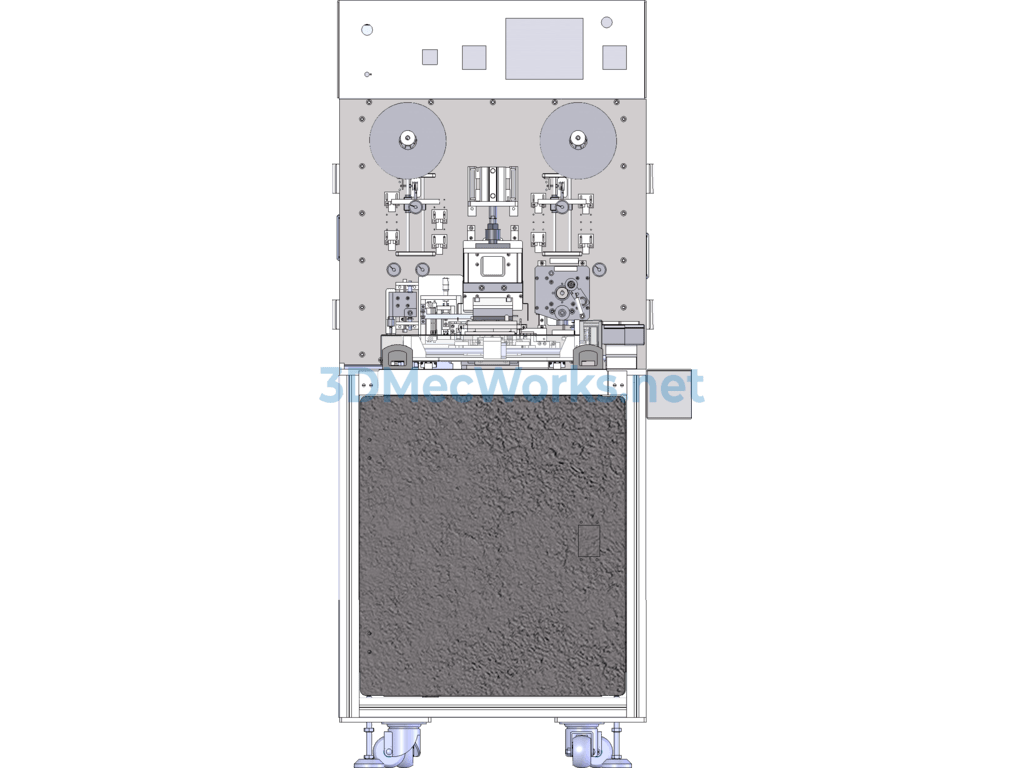

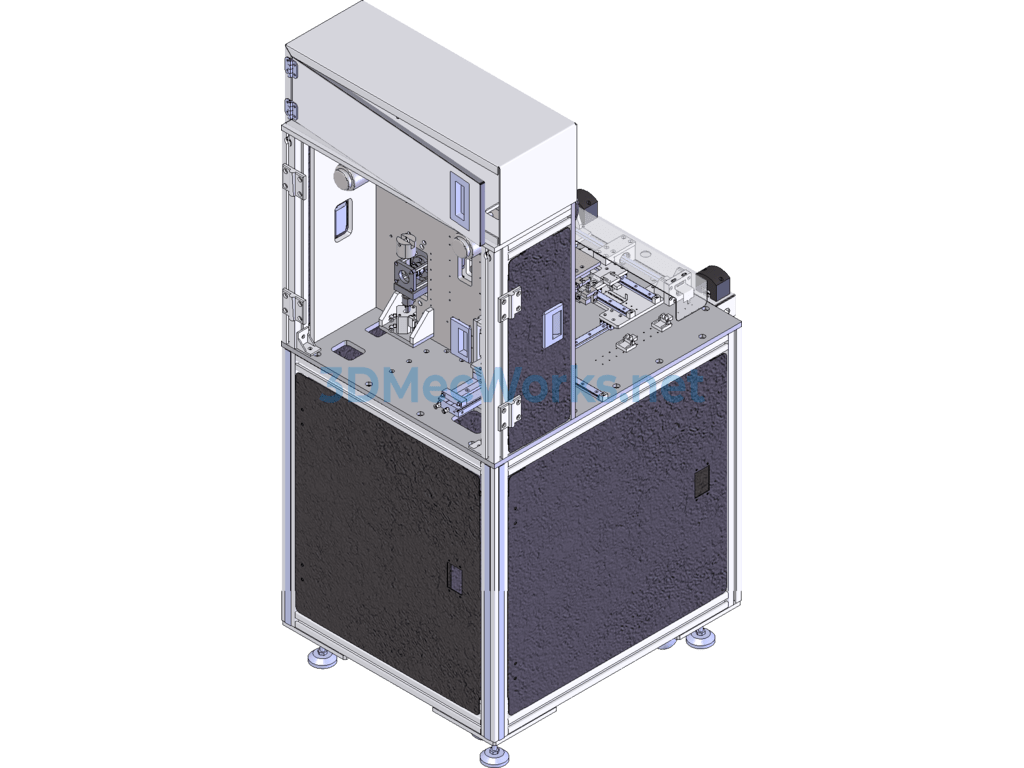

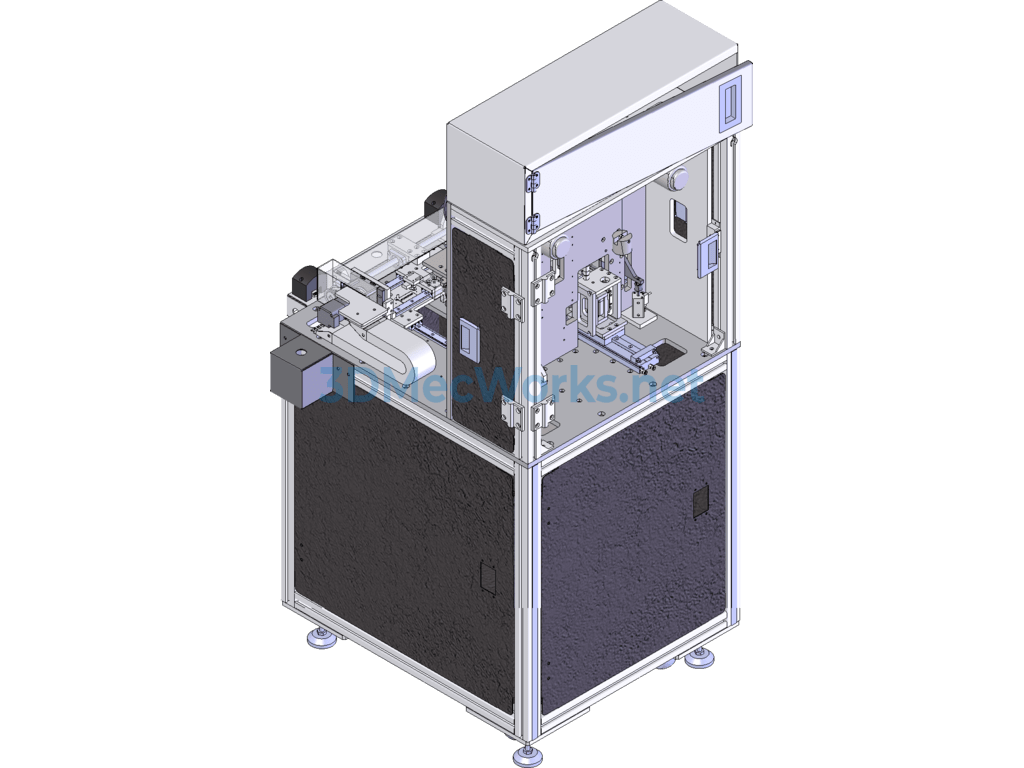

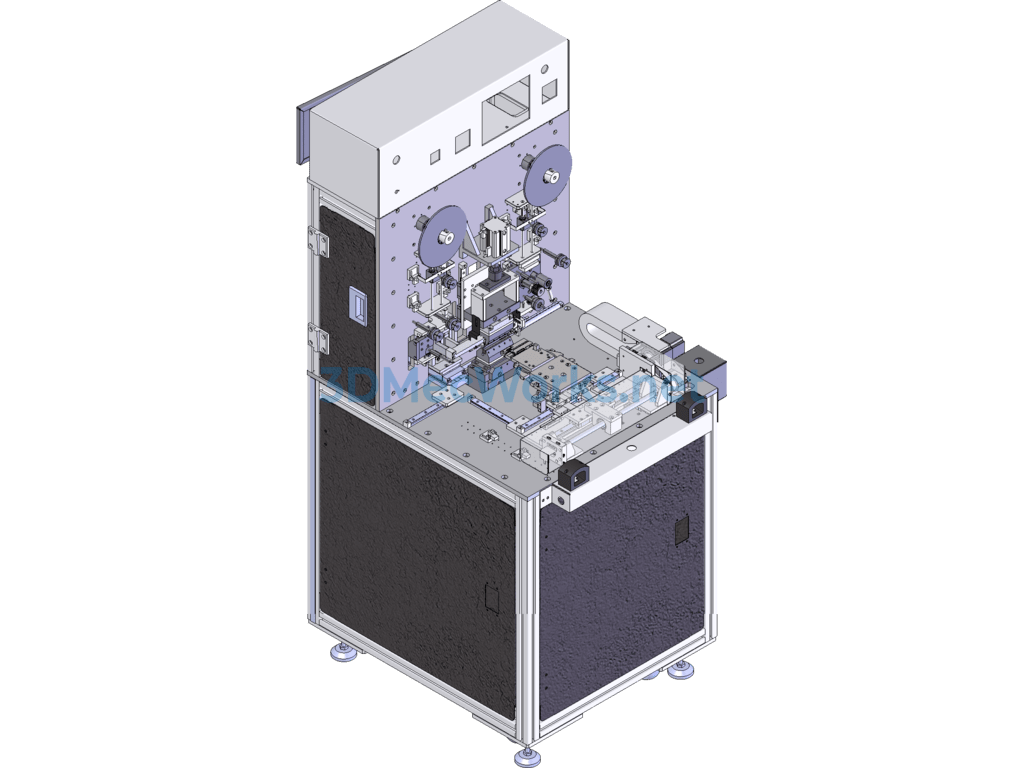

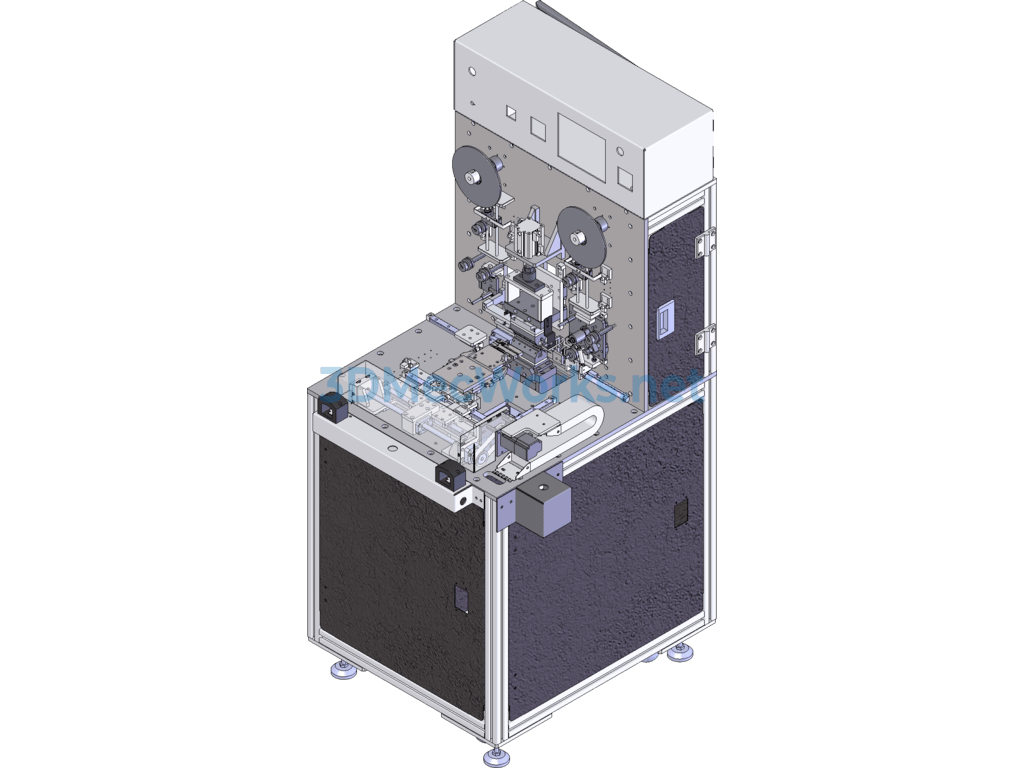

This equipment is a single-stage ACF attachment machine, which can adhere conductive films (ACF) onto LCDs (or FPCs). The placement and removal of LCDs (or FPCs) are done manually, while hot pressing, shearing, and length control are automatically completed by the equipment. The complete set of equipment includes all sw format drawings, and includes descriptions of each segment, timing analysis, and a list of purchased parts.
Specification: Semi-Automatic ACF Bonding Machine - SolidWorks - Free Download
|
