Semi-Automated Welding Production Line

A complex semi-automated welding production line drawing. The semi-automated welding production line mainly includes: local welding of high-constrained structural parts, control of deformation of complex structures, welding fixture design, offline programming of welding robots, welding trajectory simulation, welding stress-strain simulation, automatic robot identification, ultrasonic phased array inspection, eddy current inspection, heat treatment of large structural parts, etc.

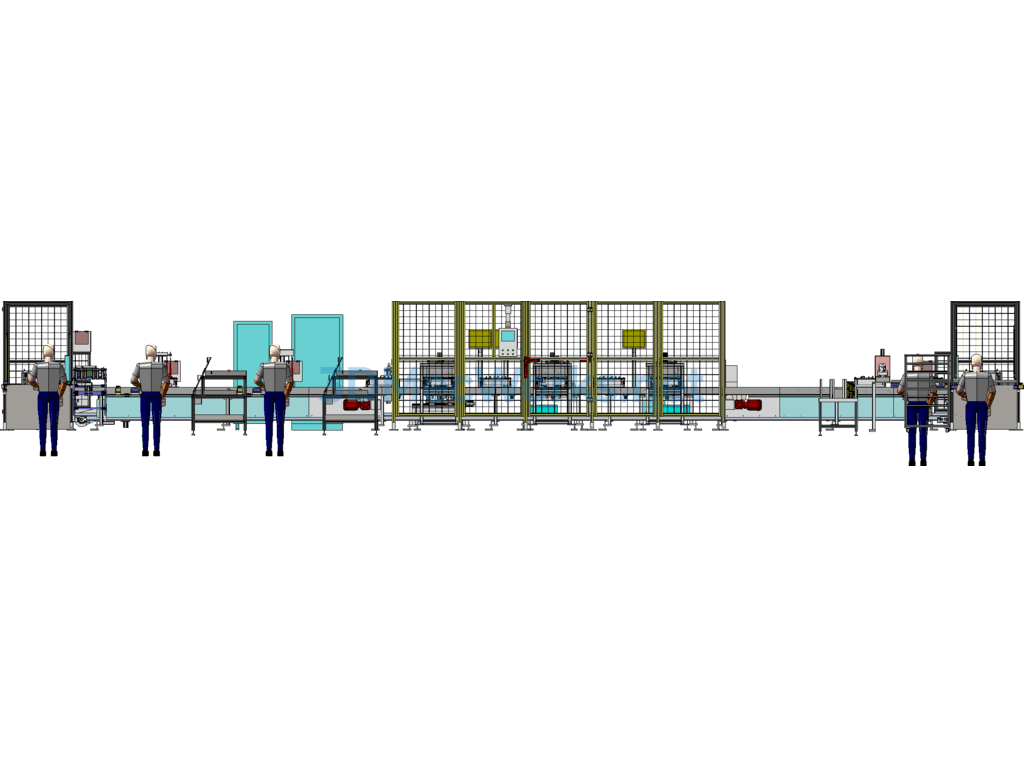

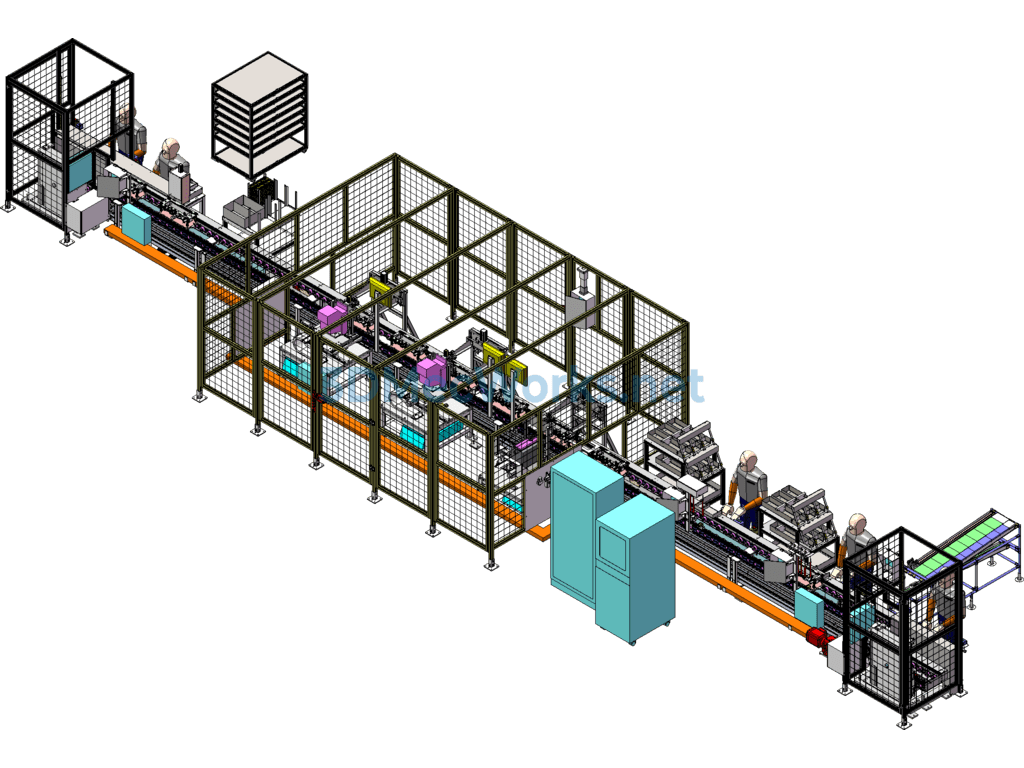

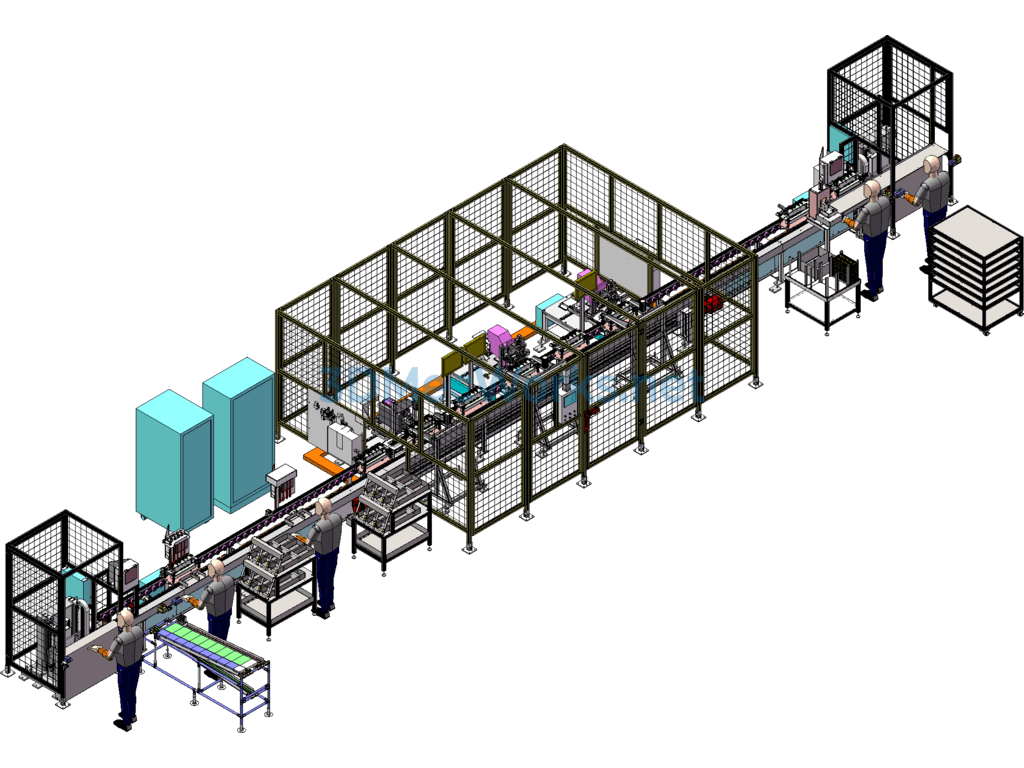

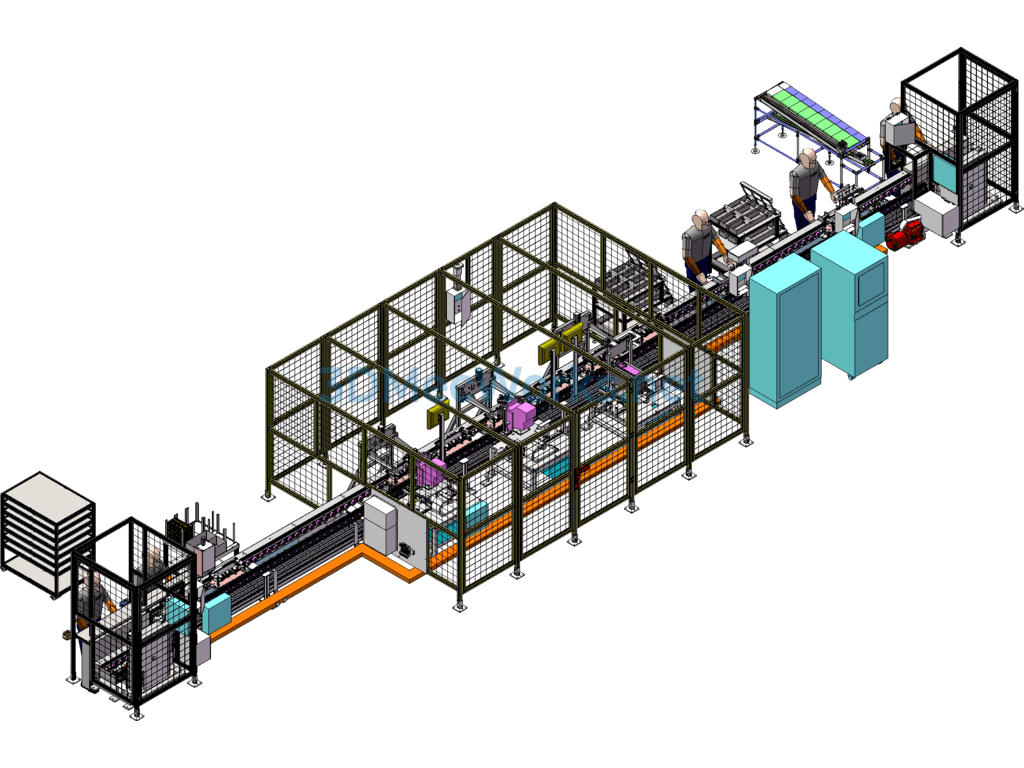

Semi-automated welding production line 3D model, SW design source files provided, clear structure, complete parts with approximately 1000 components. Welcome to download for reference.
