Self-Clamping Alignment Positioning Tray - SolidWorks - Free Download

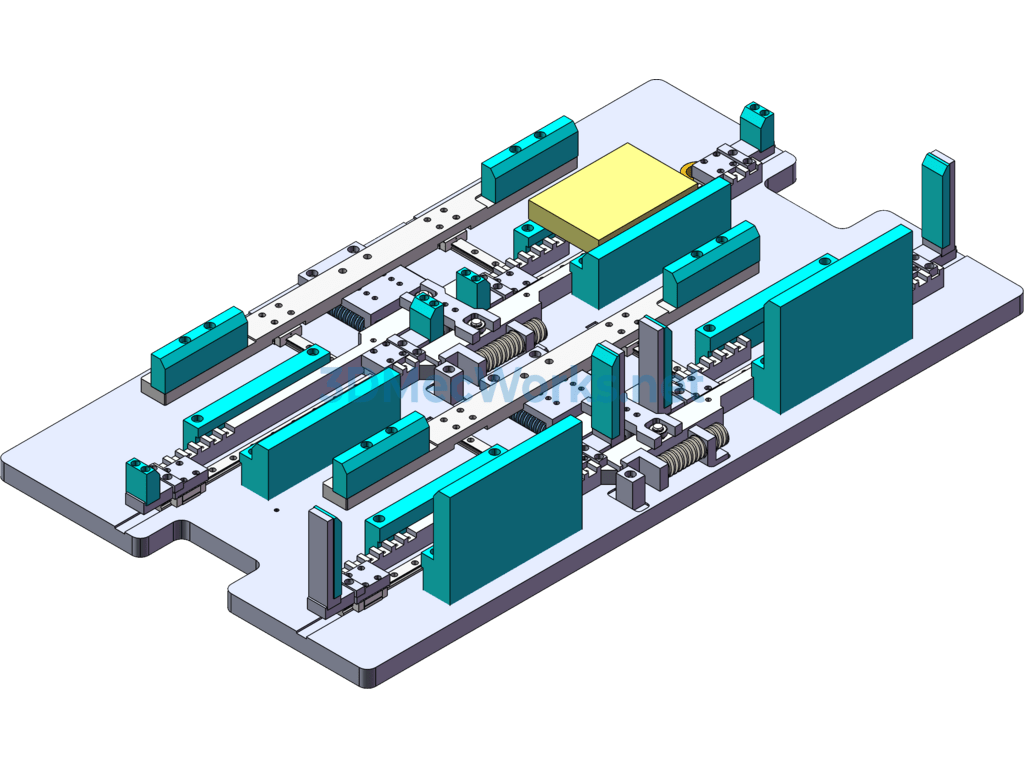

A self-clamping centering positioning tray for end plates. The loading position is opened by a cylinder to release the clamping block. After the end plate is placed into the tray, the cylinder releases, and the clamping block relies on spring force to clamp the end plate. Once the work is completed, the unloading position is opened by a cylinder, and the transfer machine removes the end plate. The tray positioning is set with multiple stops to adjust and accommodate different sizes of end plates.
