Second Generation Centrally-Mounted Cabinet Kyn28a-12

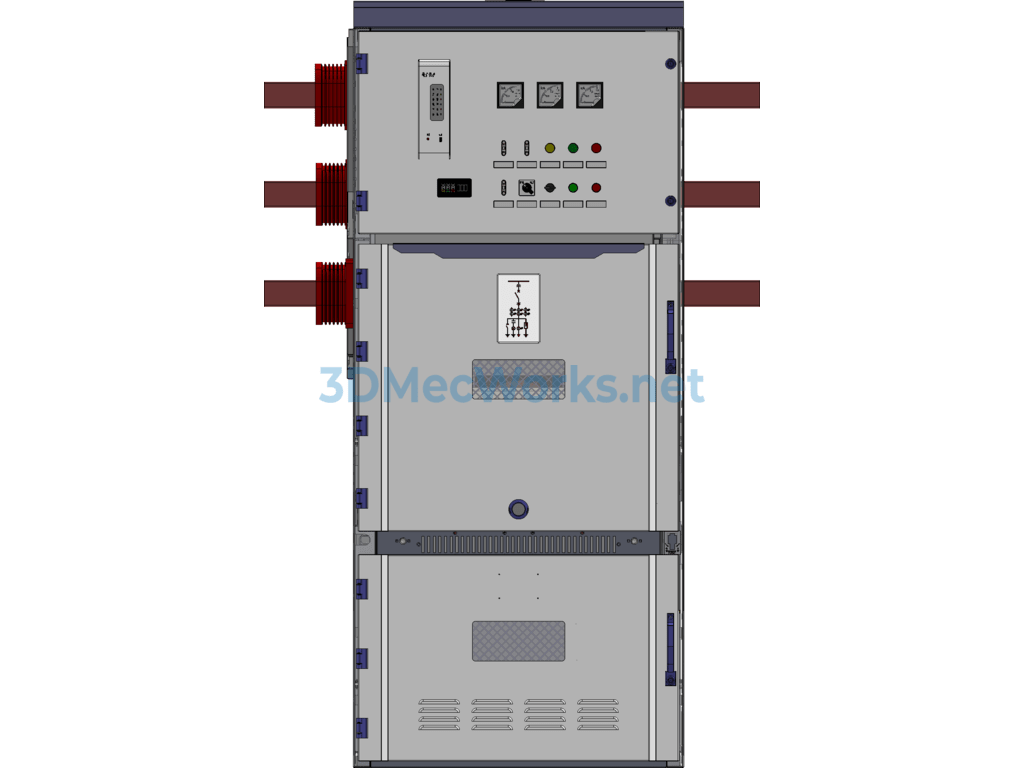

This scheme has specifications of 1000X1800X2320 and is a mid-mounted cabinet high current conventional scheme. The main busbar uses double rows of 80X10. There is a complete standardized copper busbar layout and instrument door component layout inside the cabinet. The cabinet design fully considers heat dissipation effects (front lower door, rear lower door, middle partition, and top pressure relief cover with ventilation holes, and meets the protection level of IP4X). All parts are modeled and named according to standards, and all parts can be edited, unfolded, and processed. This scheme comes with a parts processing list, which includes detailed part drawing numbers, materials, and specifications. This scheme can be used as a design reference.
