Seal Strip Punching, Drilling, And Cutting Integrated Machine - SolidWorks - Free Download

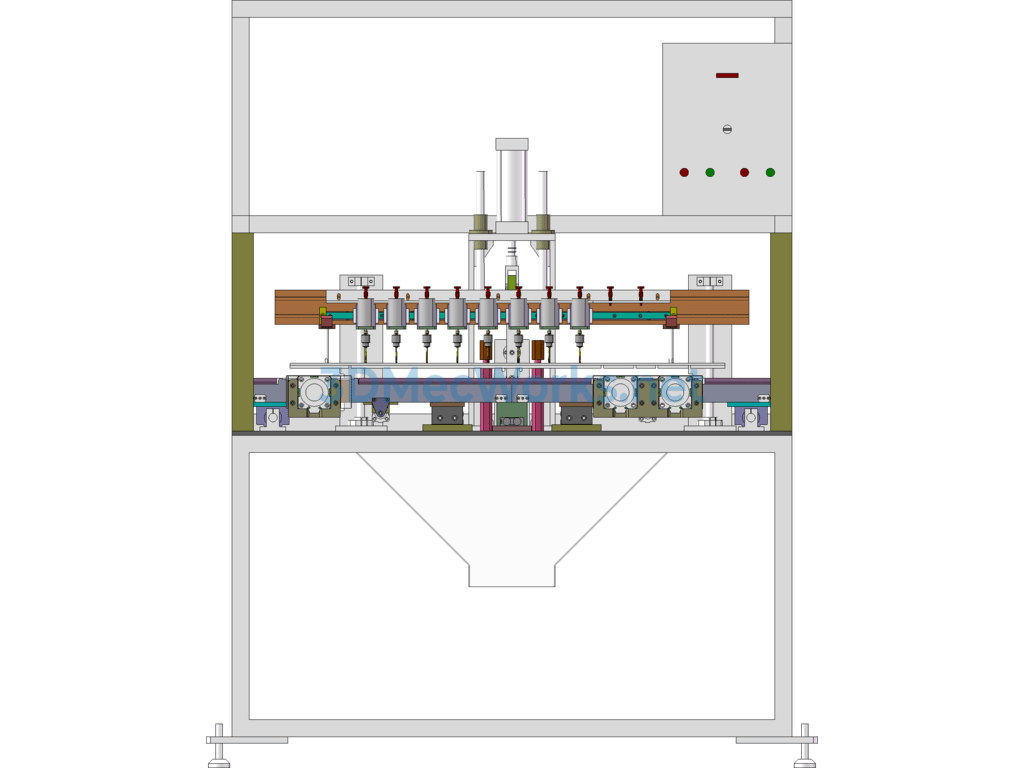

This is a 3D model diagram of a heat dissipation strip punching and cutting machine. The punching distance is adjustable, and it includes engineering drawings. The equipment is used for drilling holes in automotive sealing strips. The drawings have been used in actual production and feature many classic structures, with many designs that can be referenced. The tooling principle is relatively simple: use a high-speed motor to install a drill bit of the corresponding size to drill holes in the product. The drawings are very detailed and in SolidWorks 2018 format. Everyone is welcome to download.
