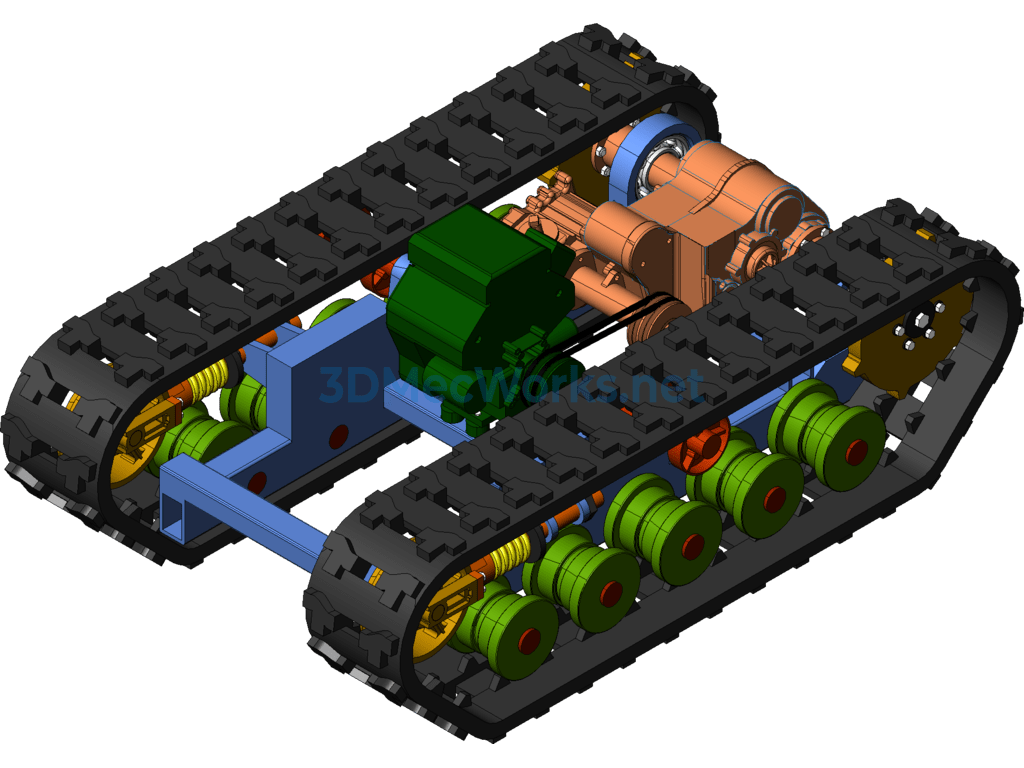

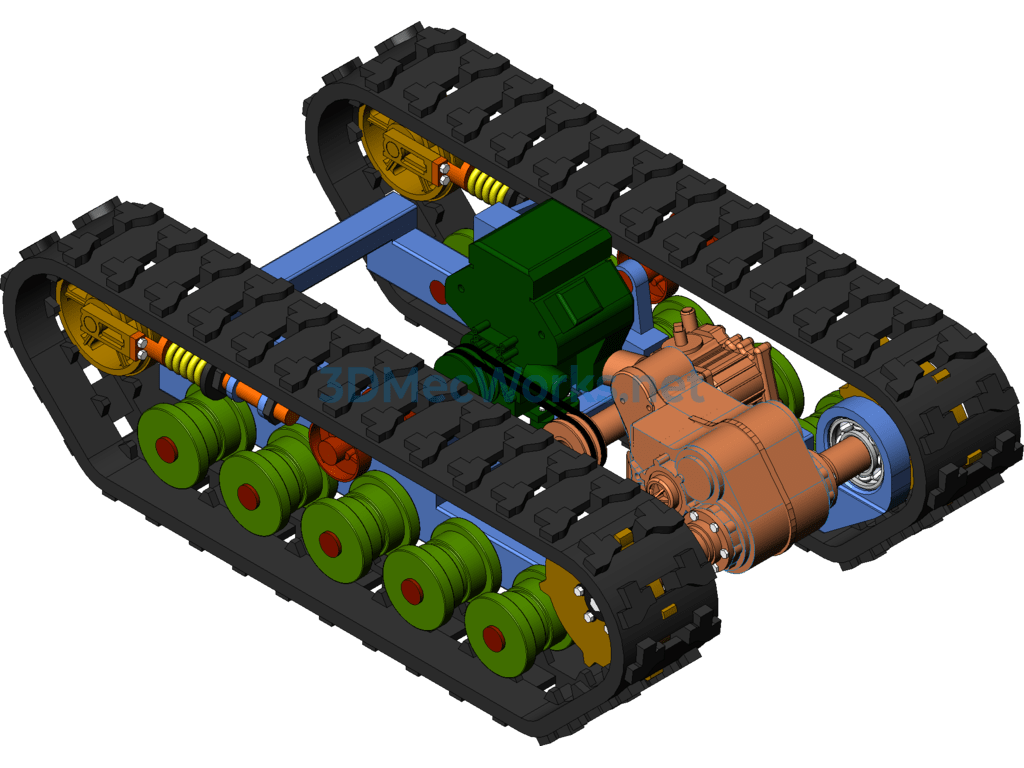

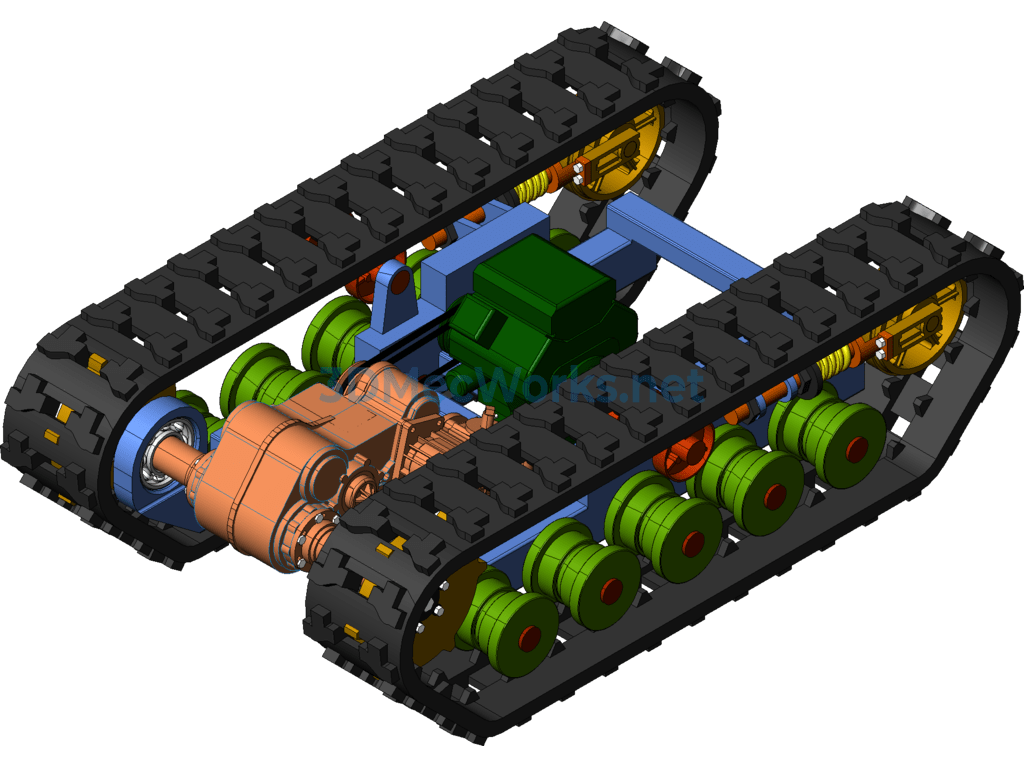

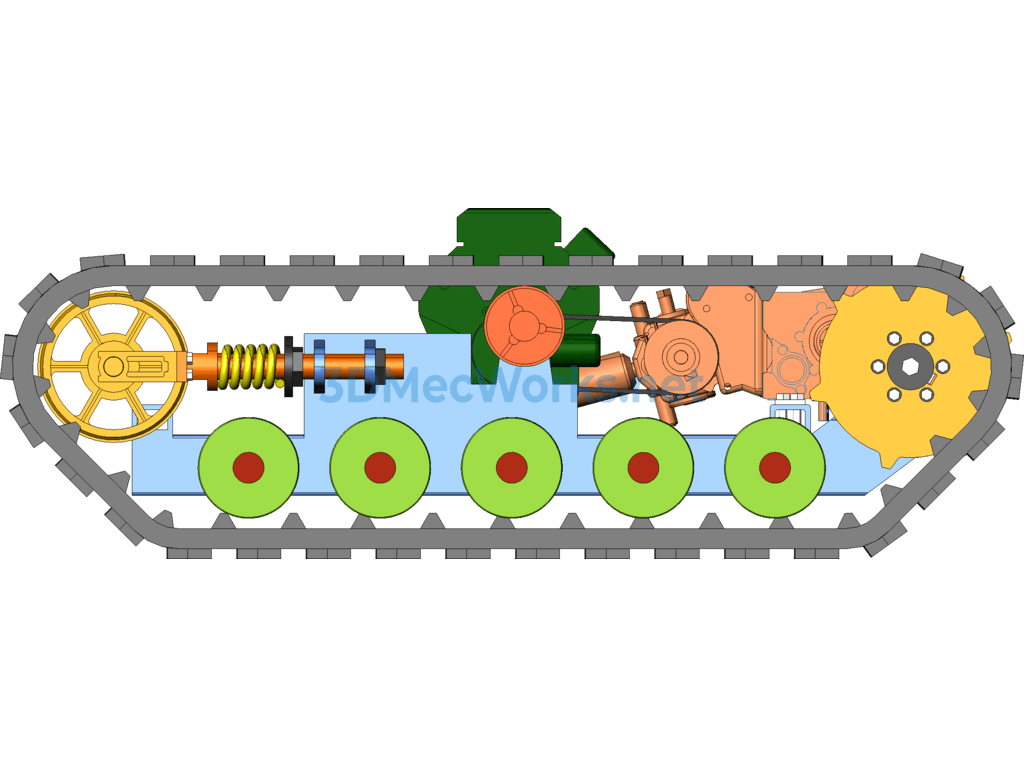

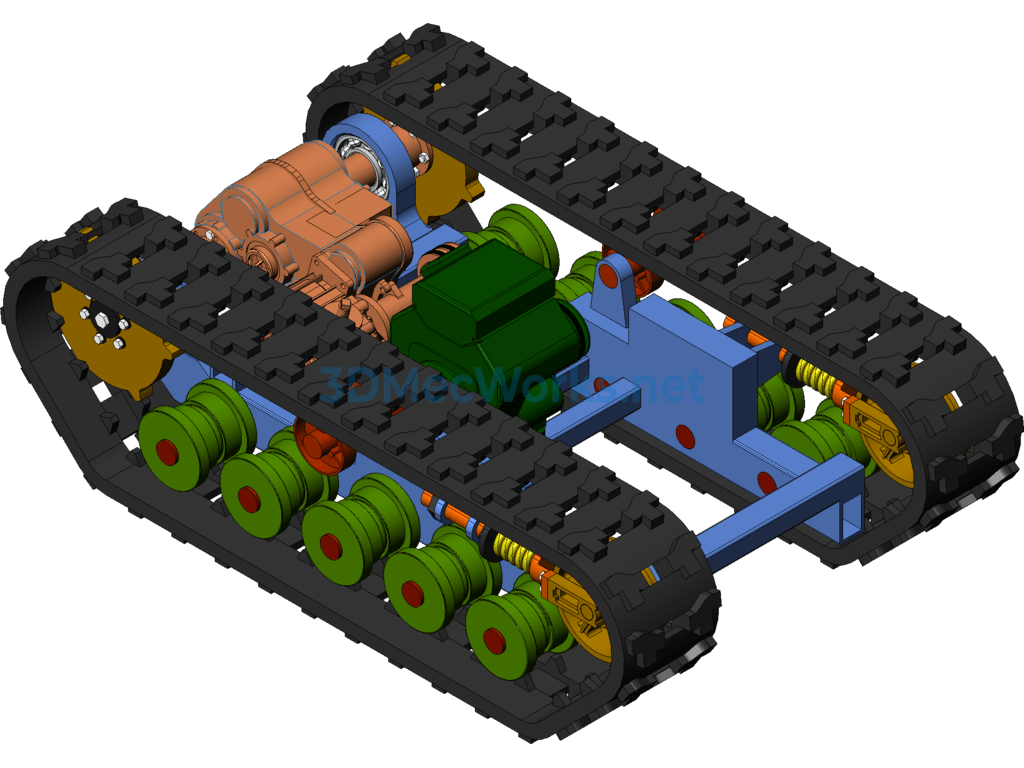

The combat-type crawler chassis model is designed using SOLIDWORKS 2016 version, featuring a simple crawler transmission model. The crawler is driven by a drive wheel and forms a flexible chain loop around the drive wheel, load-bearing wheels, idler wheels, and carrier wheels. The crawler consists of crawler plates and pins. The model is realistic in appearance, lacks parameters, is modifiable, and is available for download in STP and SOLIDWORKS 2016 formats to aid your product design. For mechanical enthusiasts and model fans, welcome to download.
