Rotary Tablet Press (a Relatively Complex Mechanical Device)

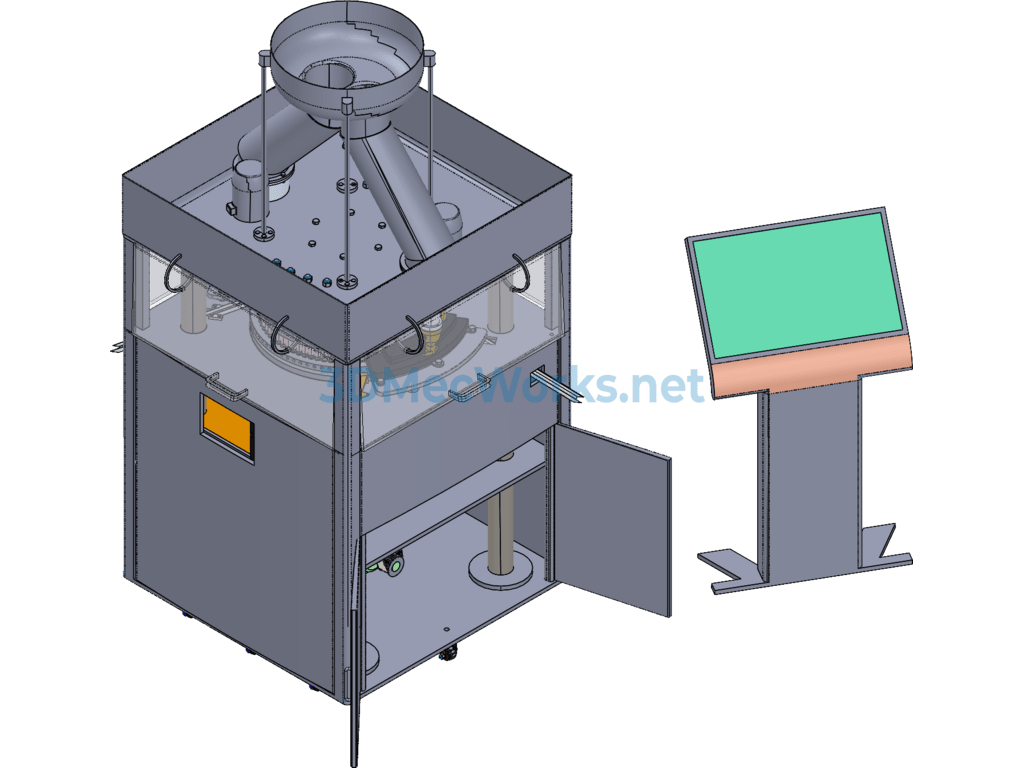

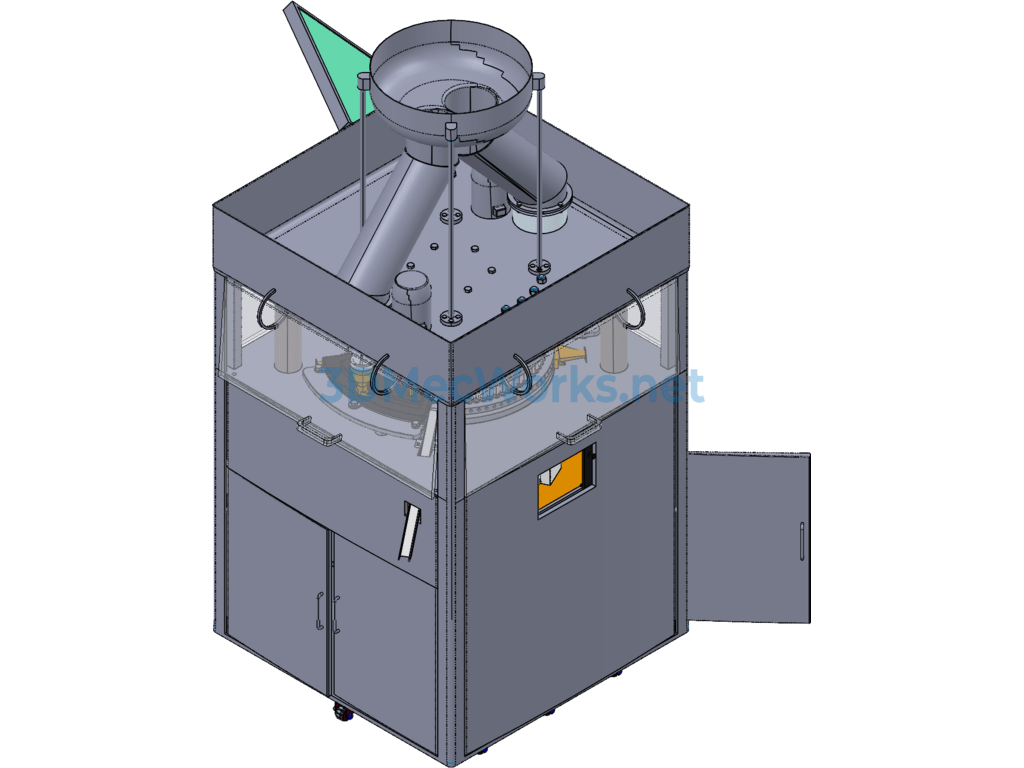

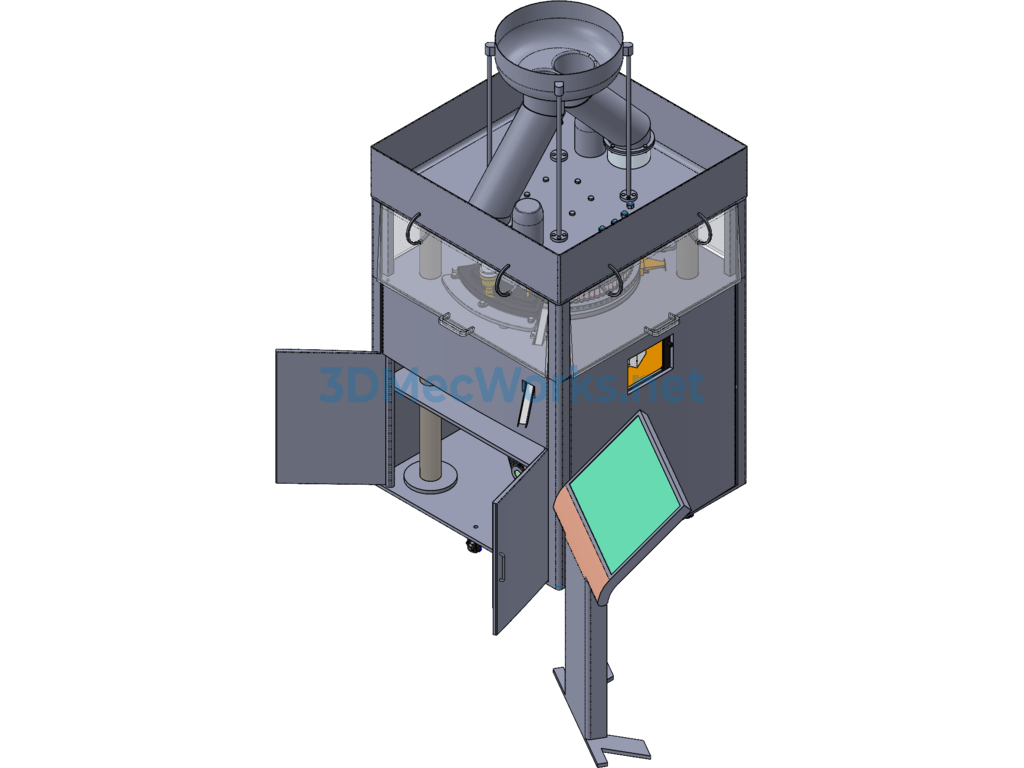

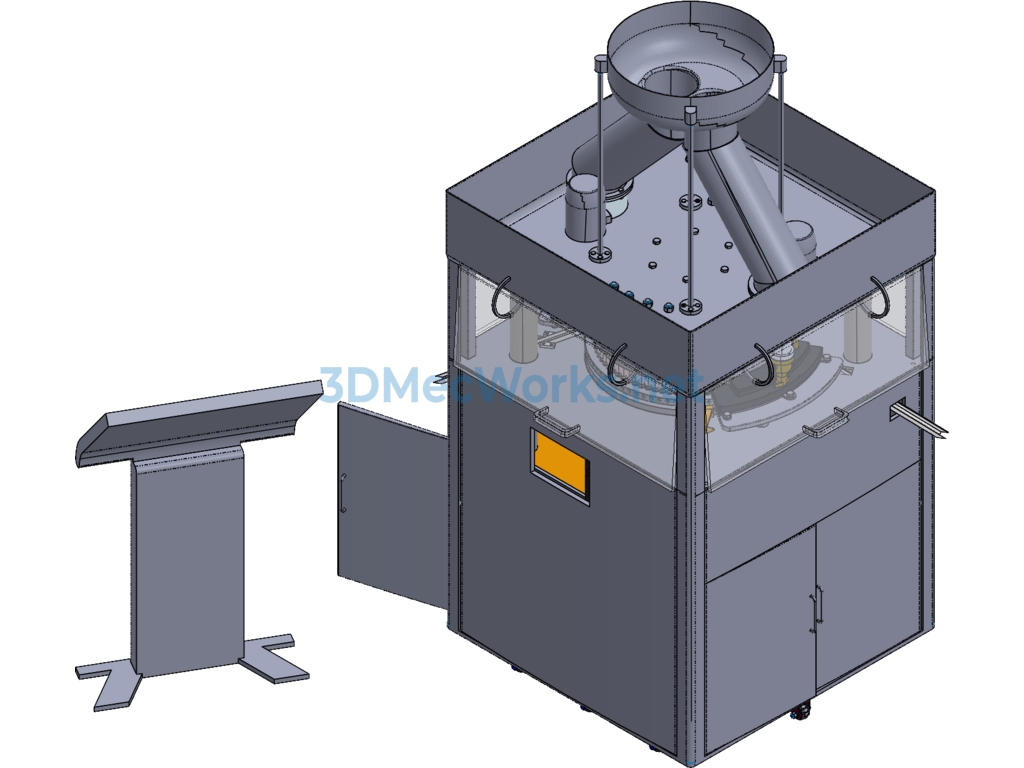

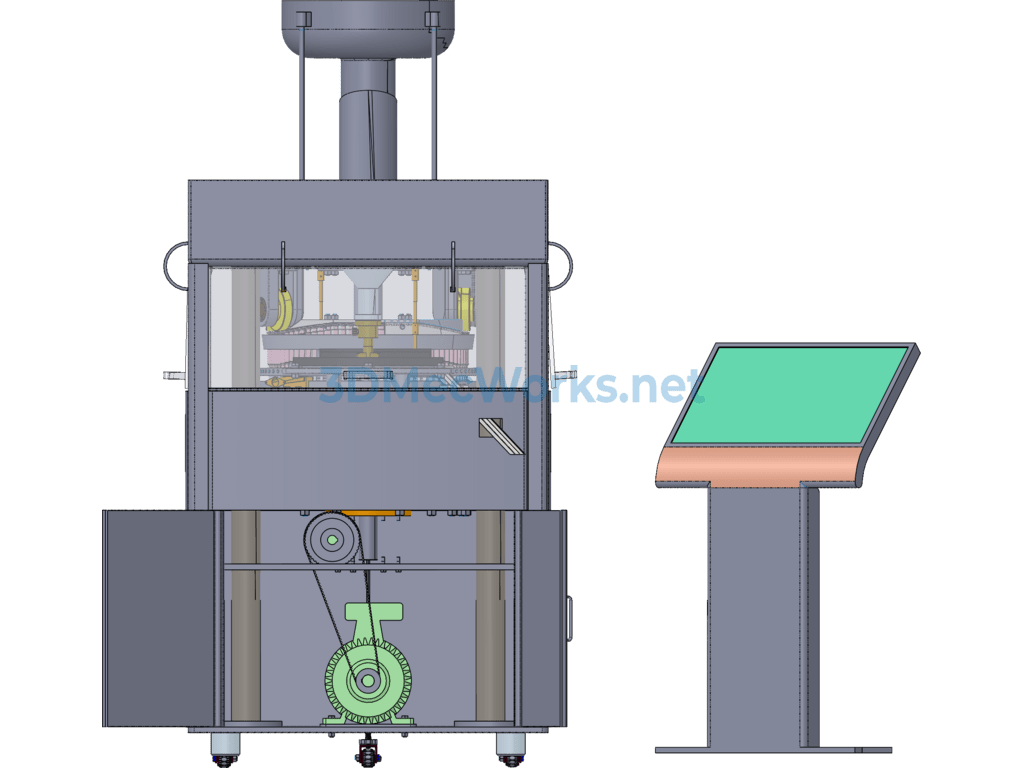

Spinning Machine, Rotary Tablet Press ProE Model (Quite Complex Mechanical Equipment) (Total of 180 Files) The General Assembly Drawing is: xt_shiyan.asm. Rotary Tablet Press: It can compress various dry powder materials into round and shaped tablets, making it a basic piece of equipment suitable for mass production. This design uses a double-feed double-discharge design, which can greatly improve production efficiency. To pursue higher output, this project is designed only for round tablets. The turntable on the workbench is equipped with 79 sets of dies, allowing for the compression of 158 tablets in one rotation. The design employs a variable frequency motor for stepless speed adjustment, thereby allowing the selection of output per unit time for the tablet press. Welcome to study and download.
