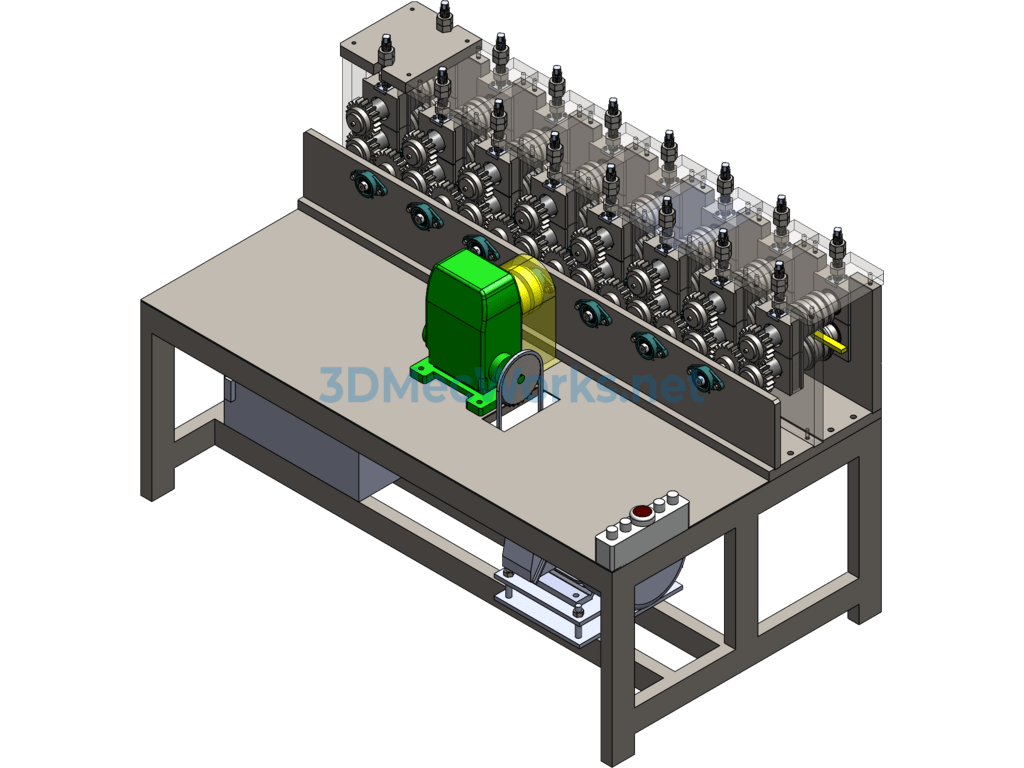

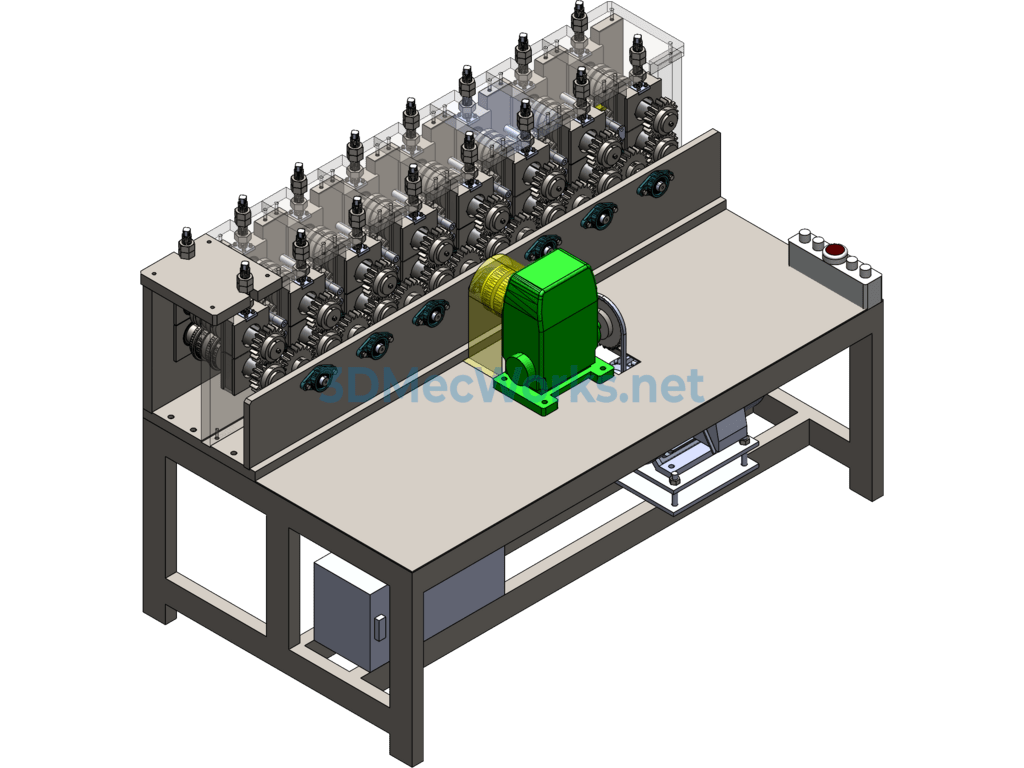

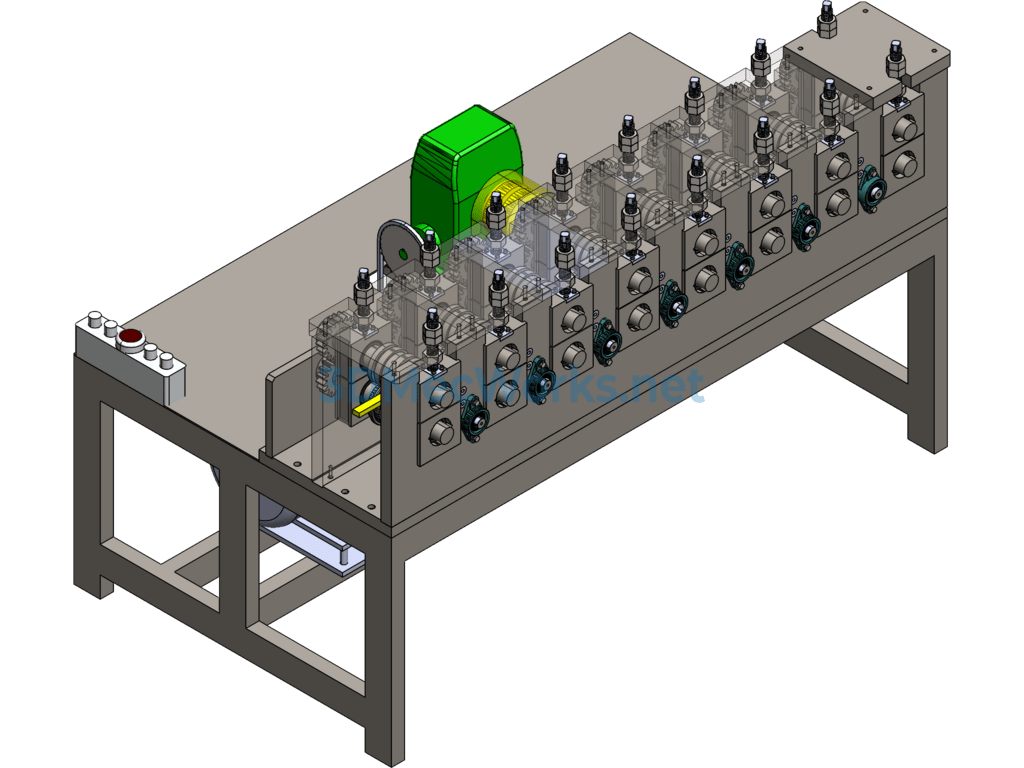

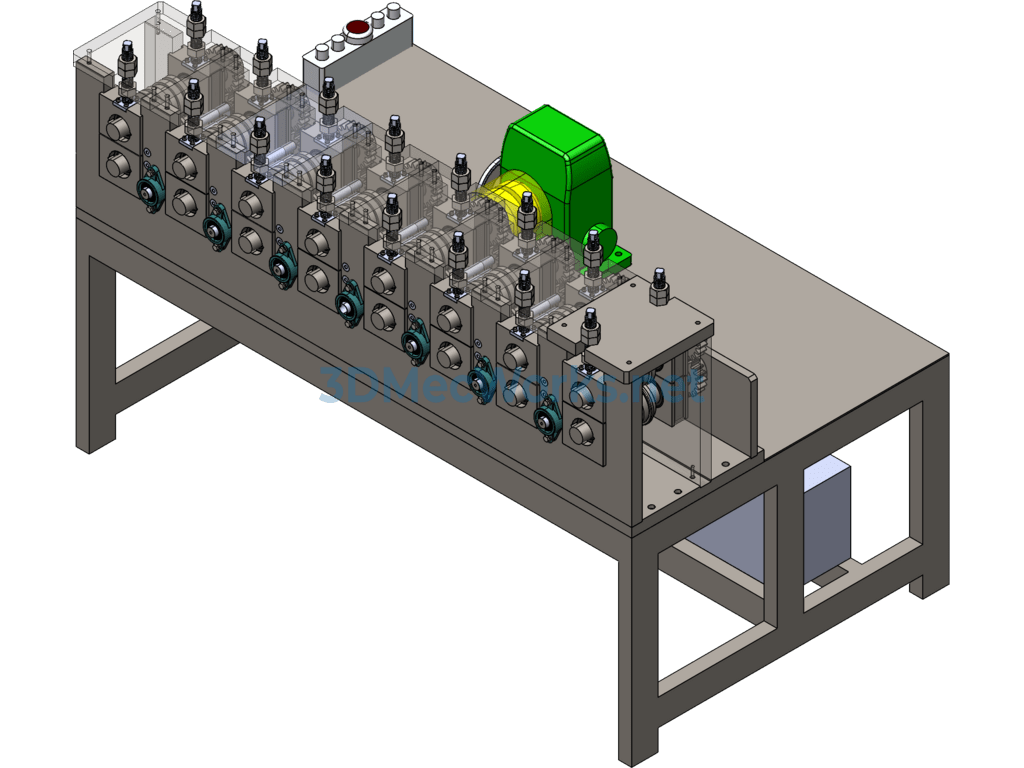

Roller Straightening Machine (Straightening Machine), multiple gear transmissions, and the distance between shafts can be adjusted via a rotating lead screw. This 3D model is provided as a Solidworks 2015 design sldprt. If your software version is lower, you can use “Kaiba Wang Format Conversion Service” to convert the format.

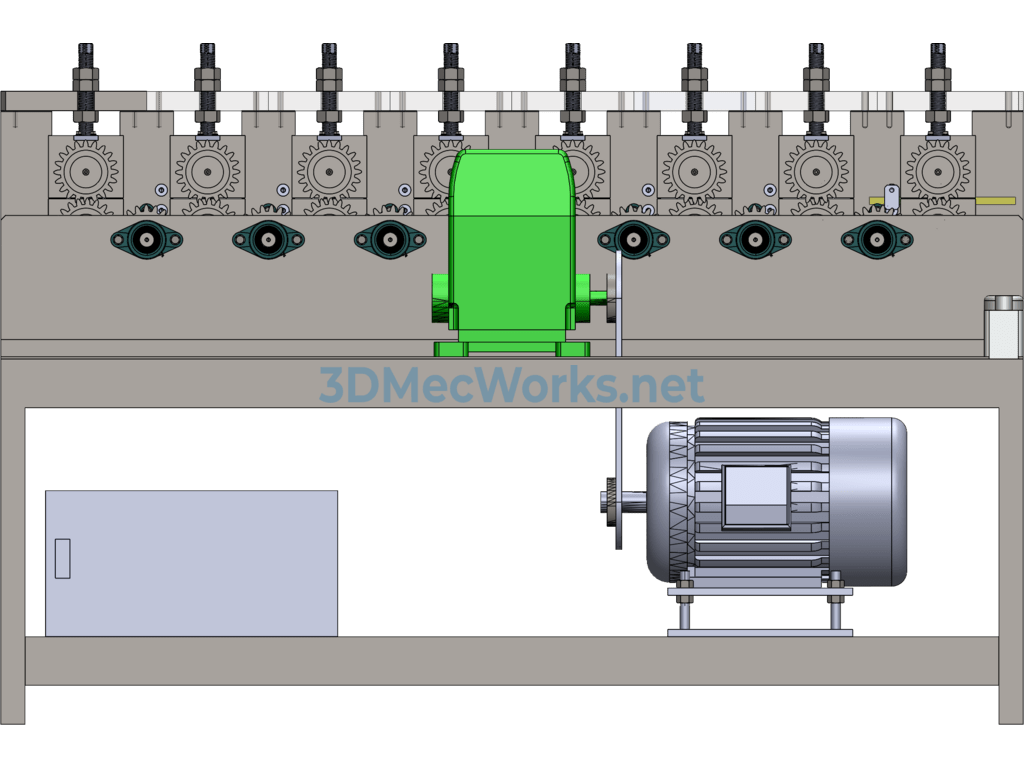

The model is composed of a motor, pulleys, belts, reducer, coupling, gear pairs, rolling shafts, electrical cabinet, and an emergency stop switch, among other components. The principle is that torque is transferred from the motor to the pulleys, from the pulleys to the reducer, from the reducer to the gear pair, and the gears drive each rolling shaft to rotate and straighten flat plate components. You are welcome to download it.
The straightening machine is equipment used for straightening metal profiles, bars, tubes, wires, etc. The straightening machine uses straightening rollers to squeeze bars or other materials to alter their straightness.
Specification: Roller Straightening Machine (straightening Machine)
|
