Roller Conveyor Shot Blasting Machine

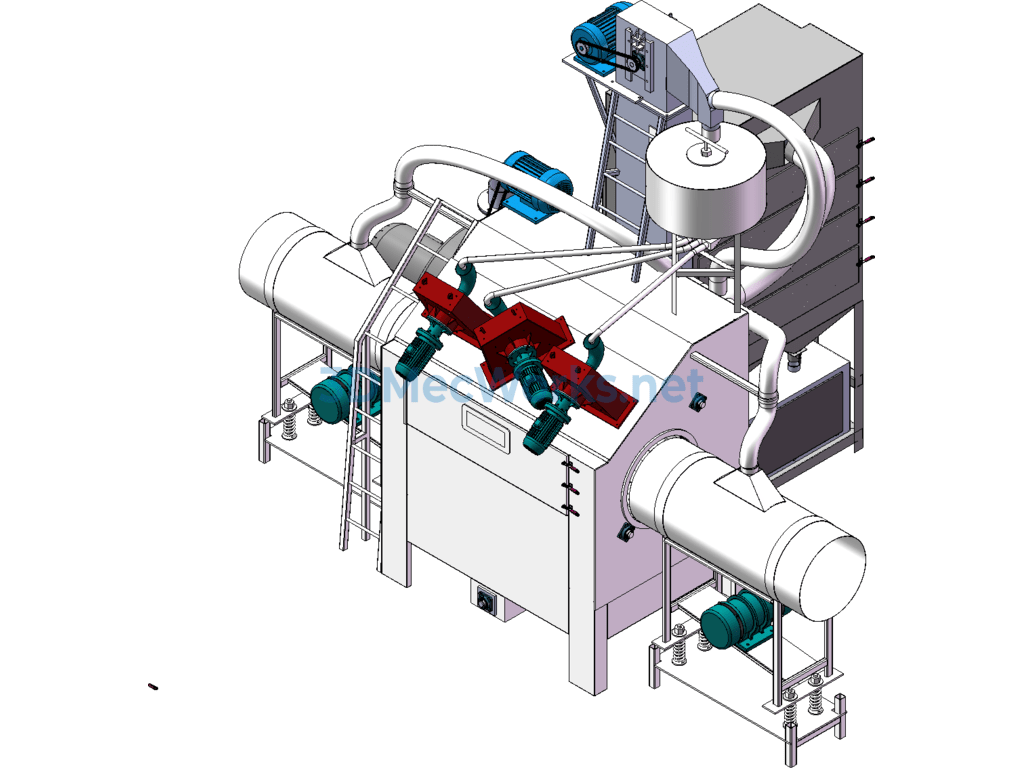

The drawing of the drum-through shot blasting machine is provided for reference and learning: The drum-through shot blasting machine is designed and modeled using Solidworks 2017, with two general formats XT and Step, and includes a CAD assembly drawing. The dimensions of the shot blasting chamber: 1800mmX2500mmX3000mm, featuring a design with three shot blasters and a universal vibrating conveyor to transport items. The shot blasting chamber, conveyor, cyclone separator, and other spare parts drawings include editable parameters. The elevator, dust collector, and fan do not have editable parameters.
