Rod-Type Material Supply Equipment for Plastic Parts

0
Sold by
MrBlue
@ MrBlue
[mecworks-btn]

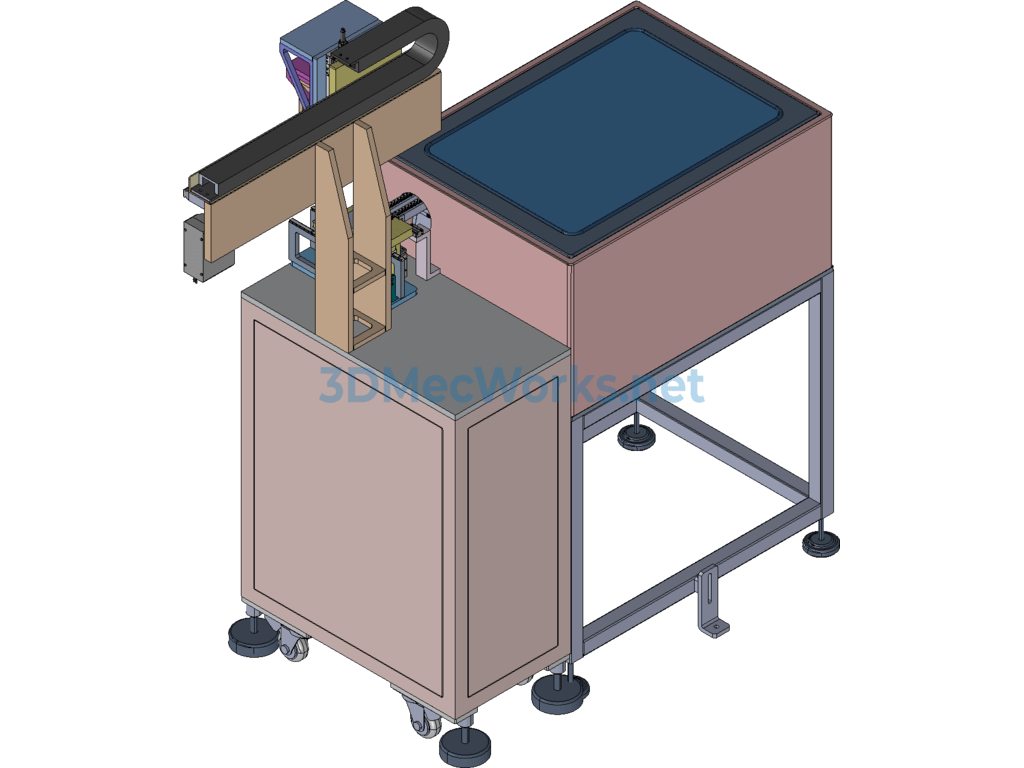

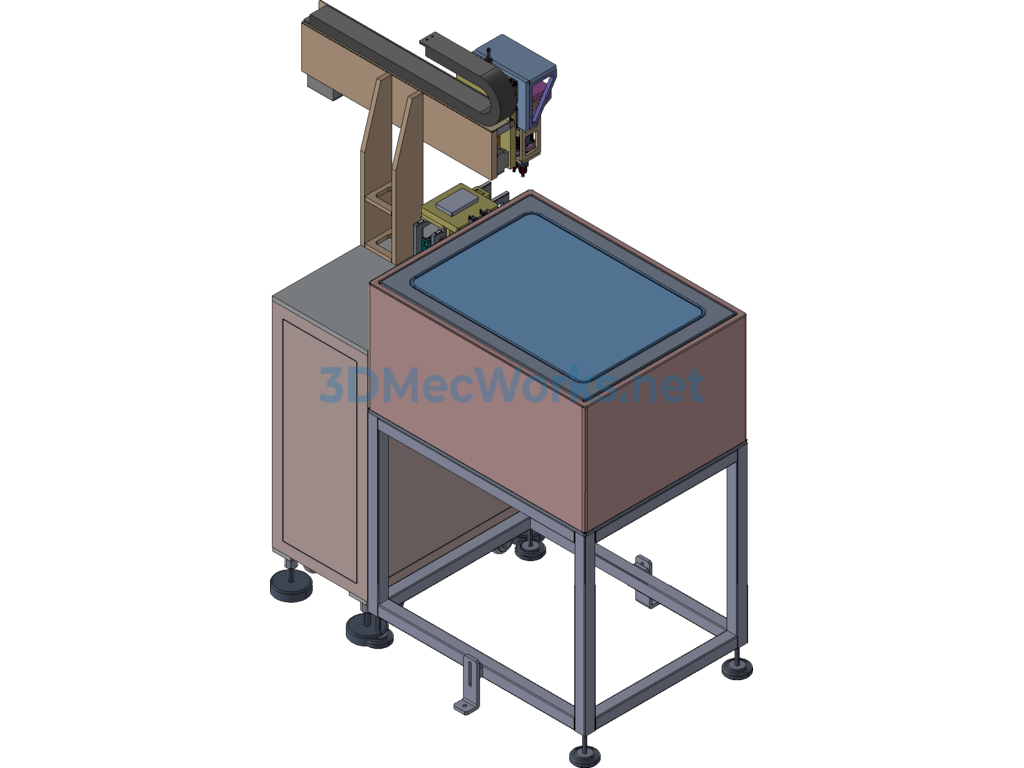

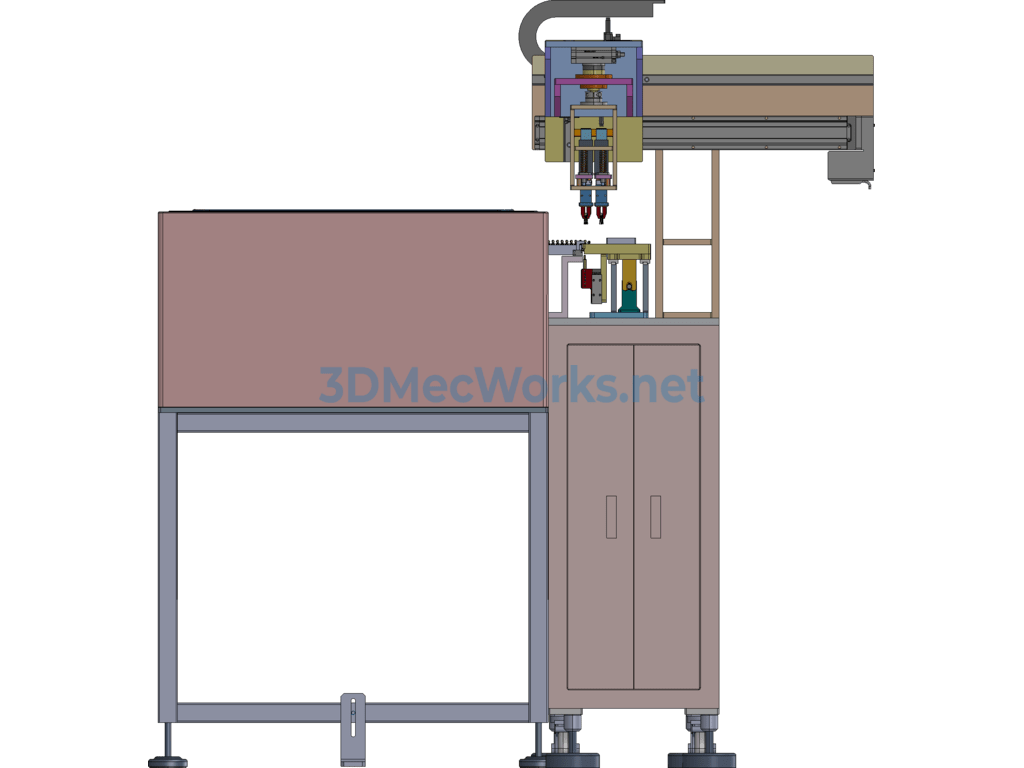

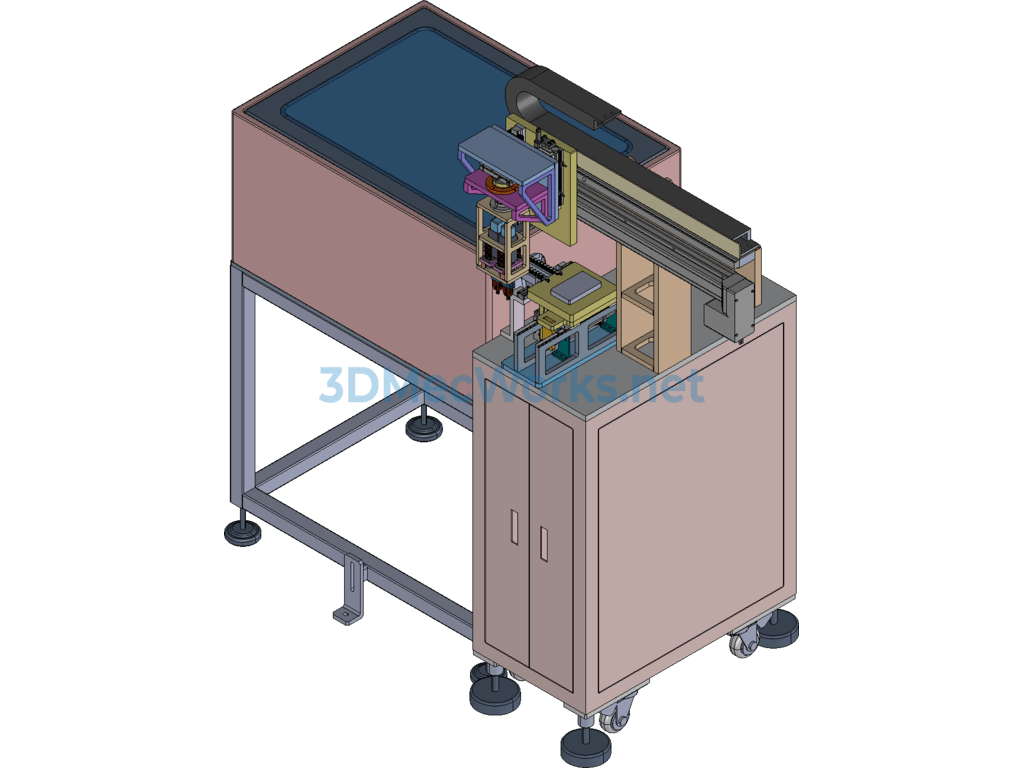

This equipment is a feeding device for plastic rod-type parts. It separates two rows of products through the vibrating plate discharge module, cooperates with the transfer component to drive the 2-position gripper, and then places them into the secondary positioning fixture for positioning. The assembly is done in the assembly fixture, and finally, the transfer axis moves the assembly to the next machine. The document contains files in stp format, welcome to download and refer!

Specification: Rod-Type Material Supply Equipment for Plastic Parts

Design Software

Editable

,

File Formats

, ,

Industry Application

, , , , ,

Sharing Level

Version
