Punch Press

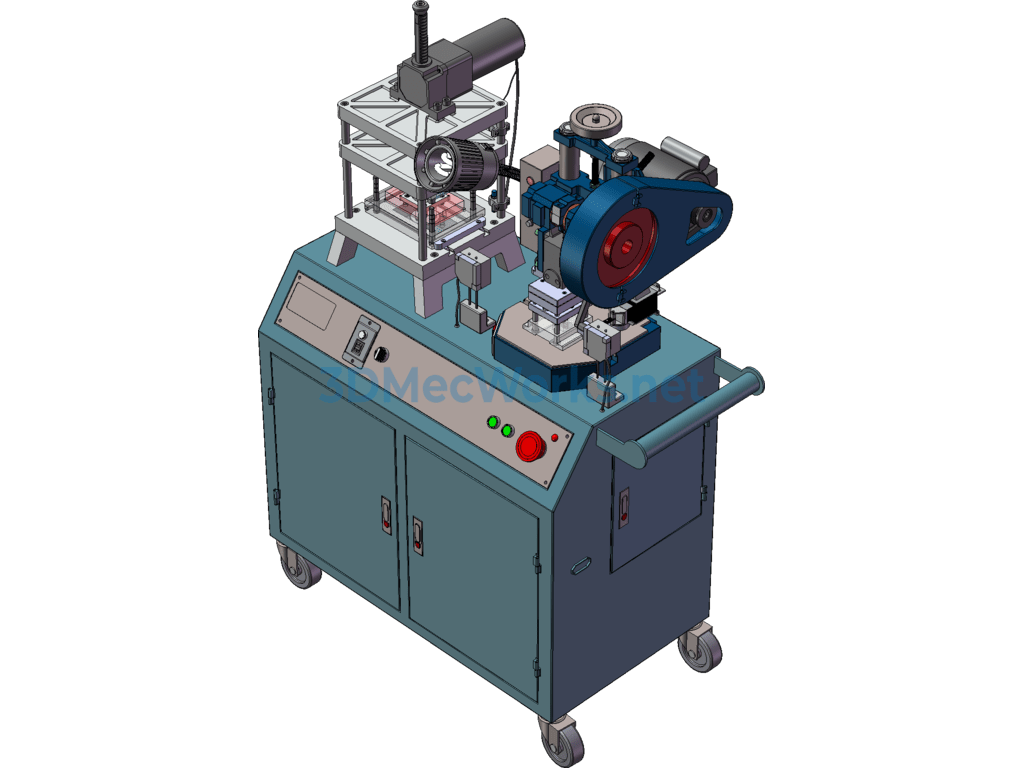

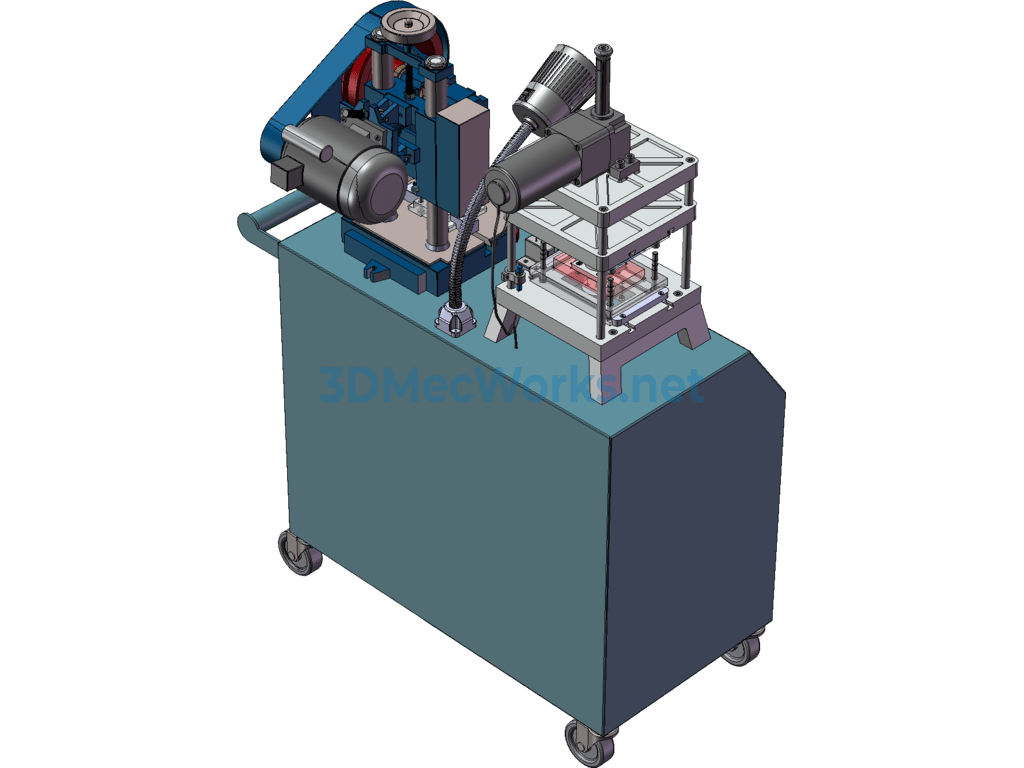

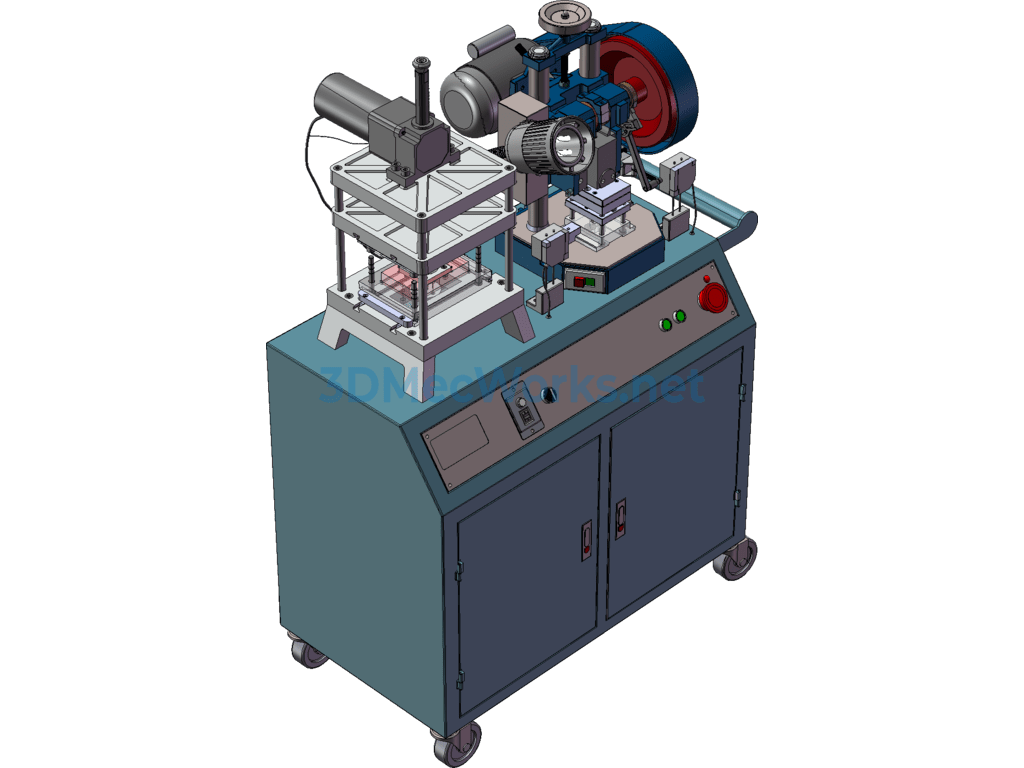

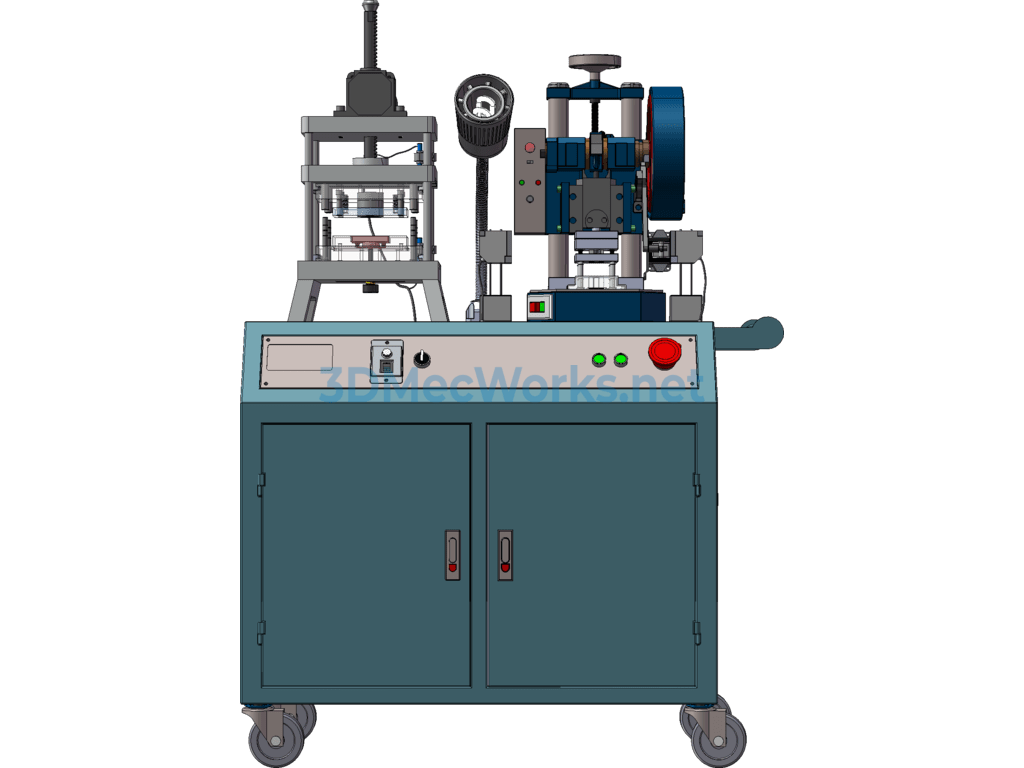

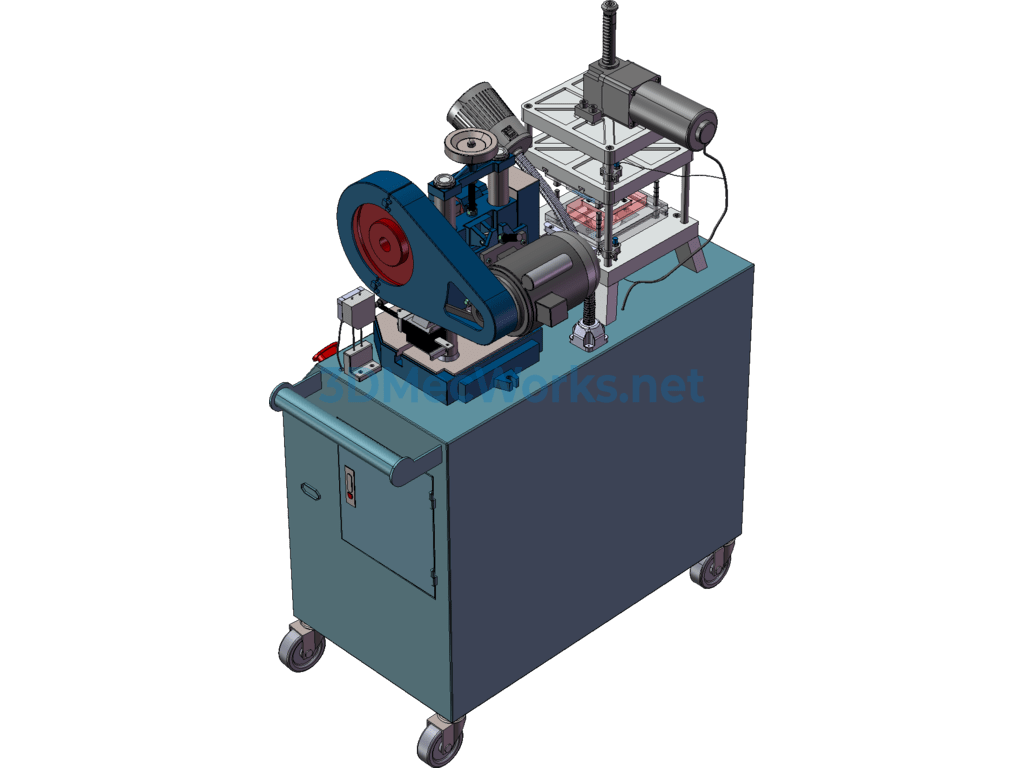

Punch press 3D model, SW design, detailed structure design, complete dimensions for each drawing, a good reference drawing!
Software version: Solidworks 2014
Drawing format: sldasm, sldprt files
Size: 86.6MB
The punch press is suitable for the electronics, instruments, cameras, jewelry, small hardware, clothing, and footwear industries; it can perform cutting, punching, blanking, forming, bending, and riveting processes on thin plates, strips, and coils; suitable for processing non-ferrous metals, plastic parts, etc.
