Product and Lead Assembly Inspection Machine Equipment

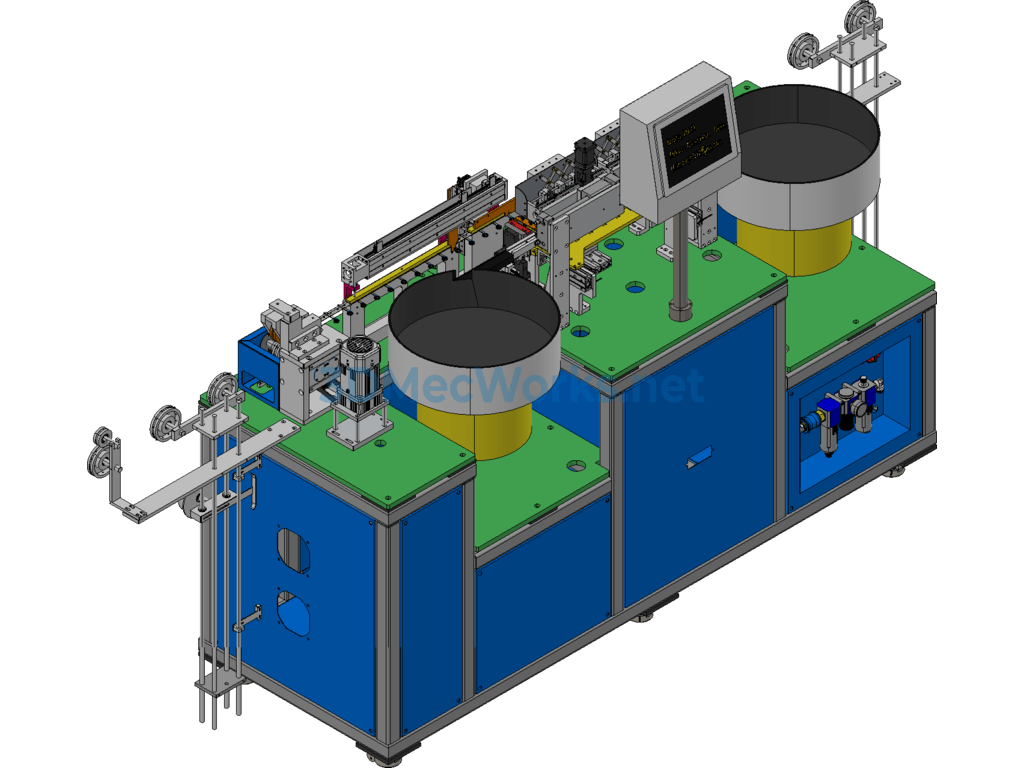

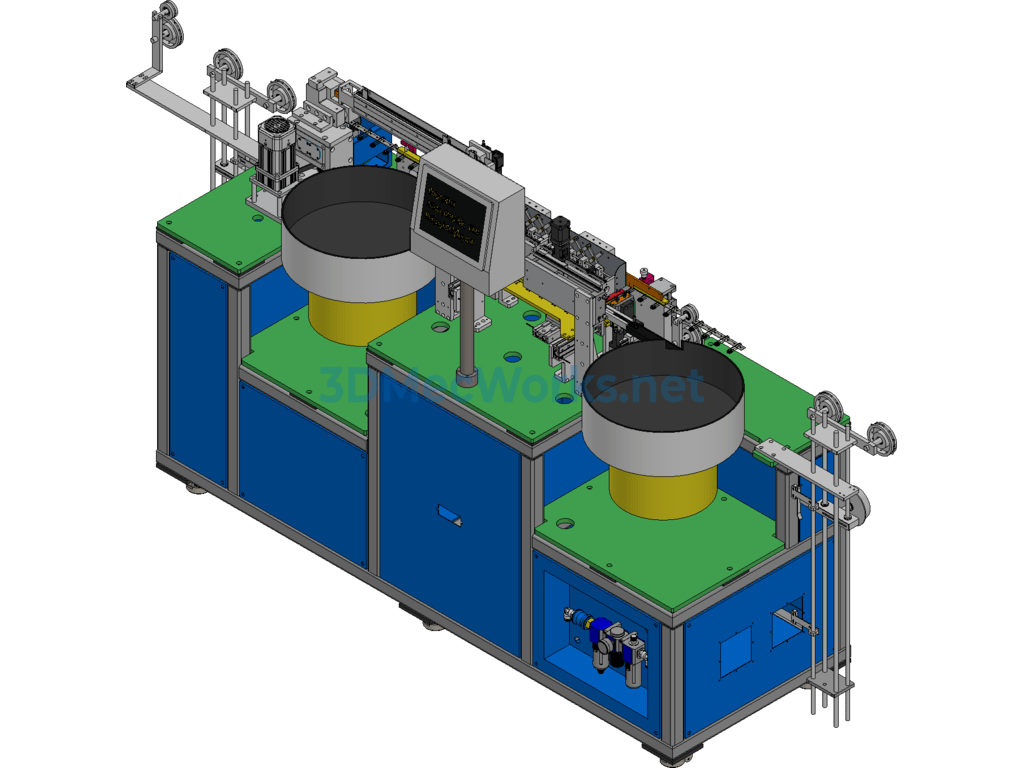

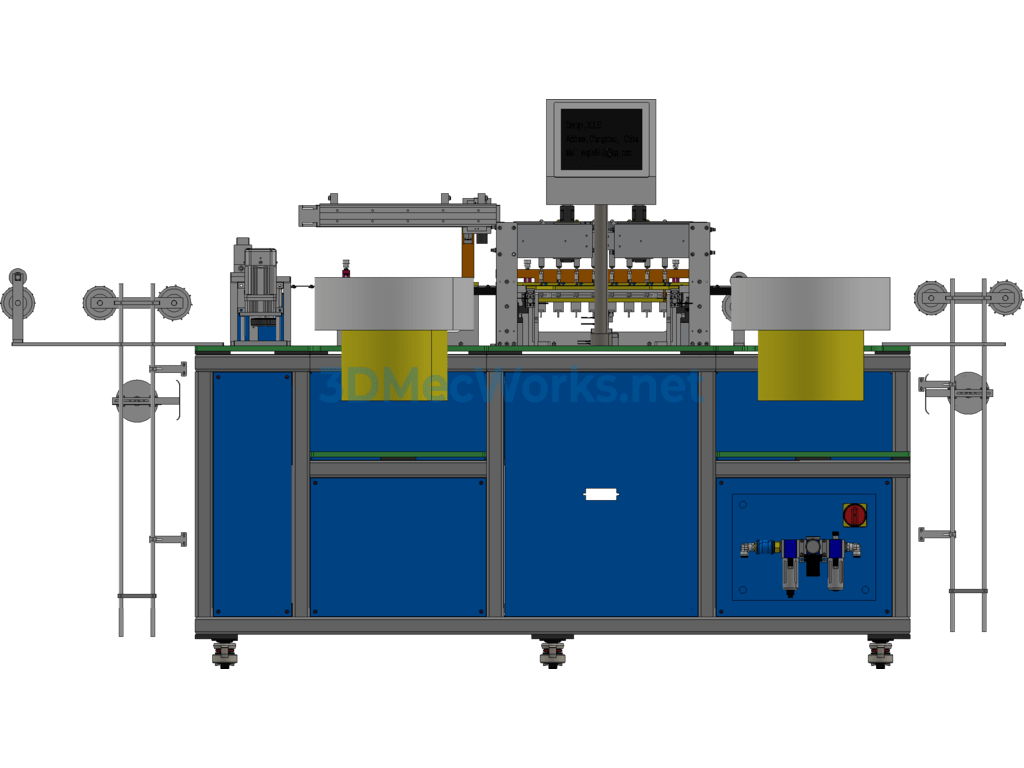

Product and lead assembly inspection production line equipment, the entire assembly of products and leads is ultimately inspected to achieve unmanned operation. The internal design principles are divided into: vibrating plate feeding, clamping, assembly, handling, flipping, etc. The vibrating plate feeding part adopts the method of belt plus flow fixture board for cyclical operation. You only need to place the product on the fixture, and then the conveyor belt will transfer the product for the robotic arm to pick and assemble. After completion, the fixture will work in a cycle. The structure of this drawing is very complex and of great learning value. I hope everyone will download it and not miss the opportunity.
