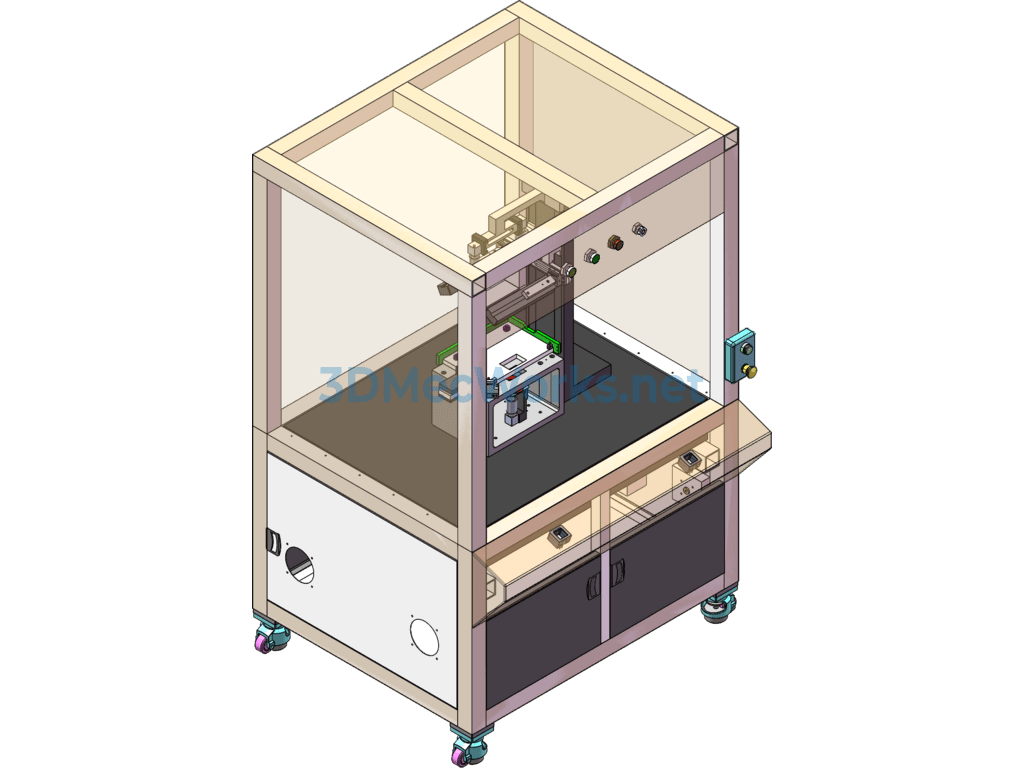

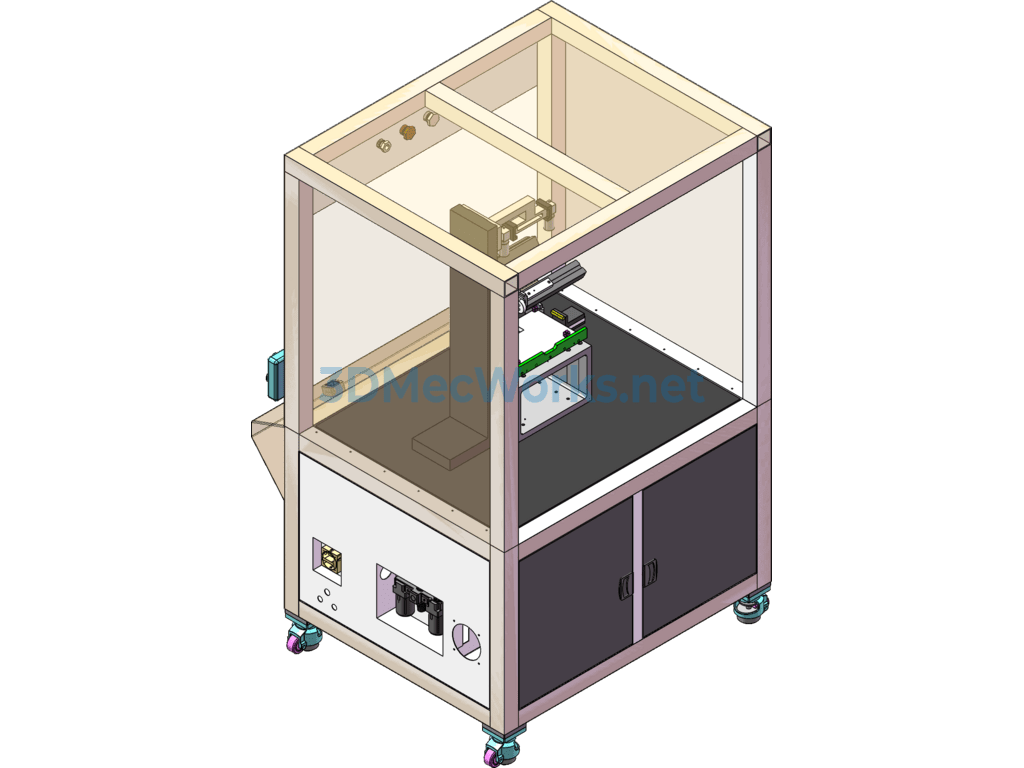

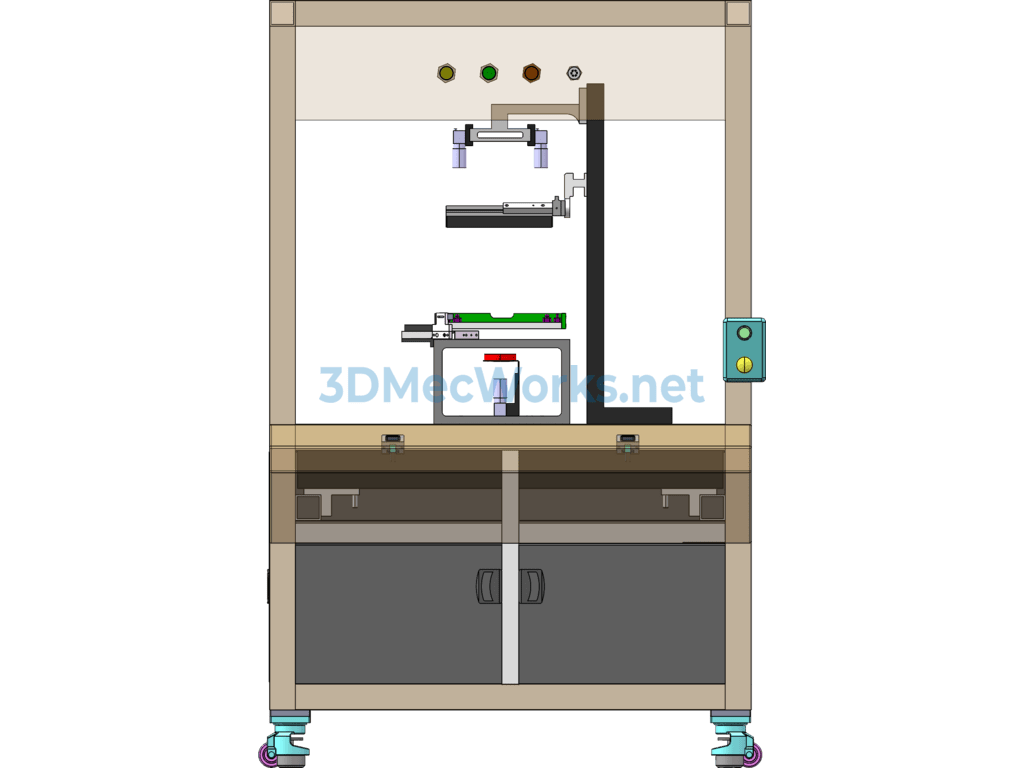

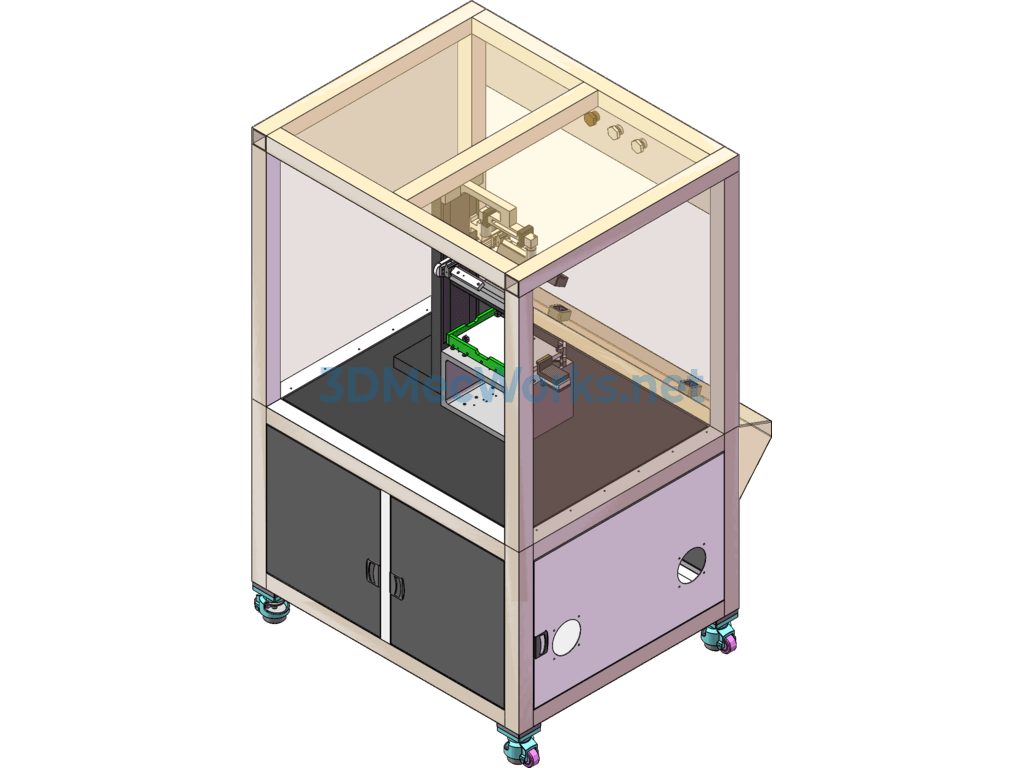

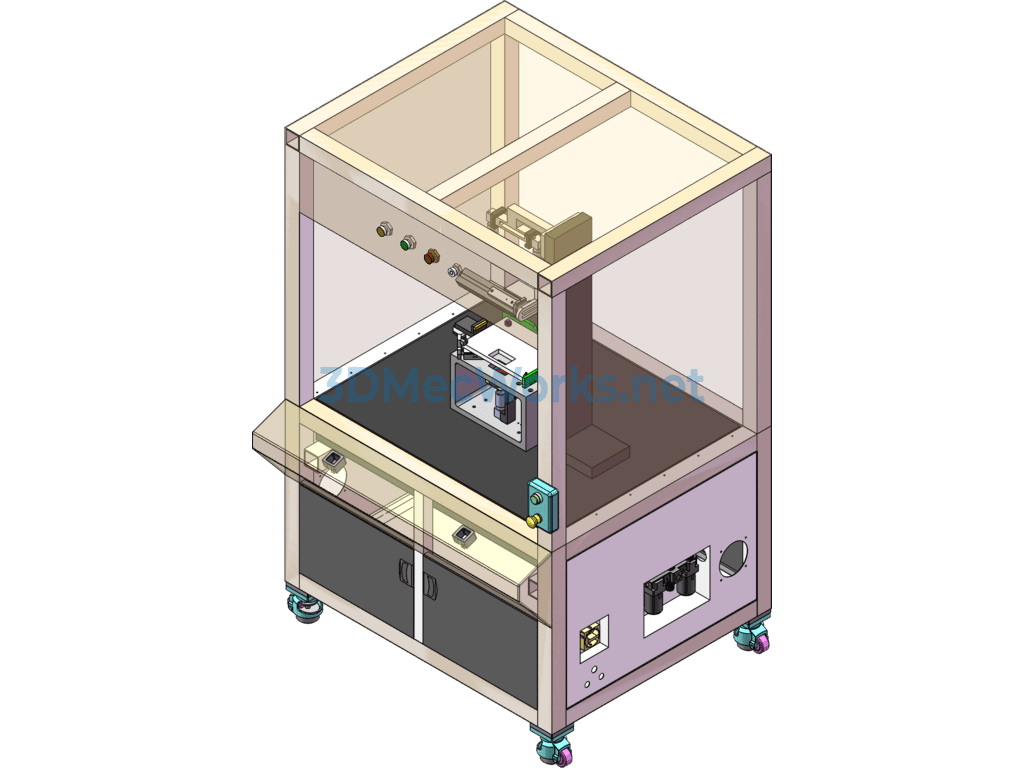

Produced Computer Vision Inspection Machine Project (including Dfm, Bom)

Summary of the Operational Process for the Produced Computer Vision Inspection Machine:
1. The fixture is equipped with a guiding and positioning pin and a side clamping cylinder module.
2. There are three sets of vision systems: a dual upper vision module and a lower vision module.
3. Manually place the product into the fixture, guided by the positioning pin, and clamp it with the side cylinder.
4. All three vision systems inspect simultaneously: the lower vision system checks if the product is installed correctly, while the dual upper vision systems inspect the assembly gap of the product.
