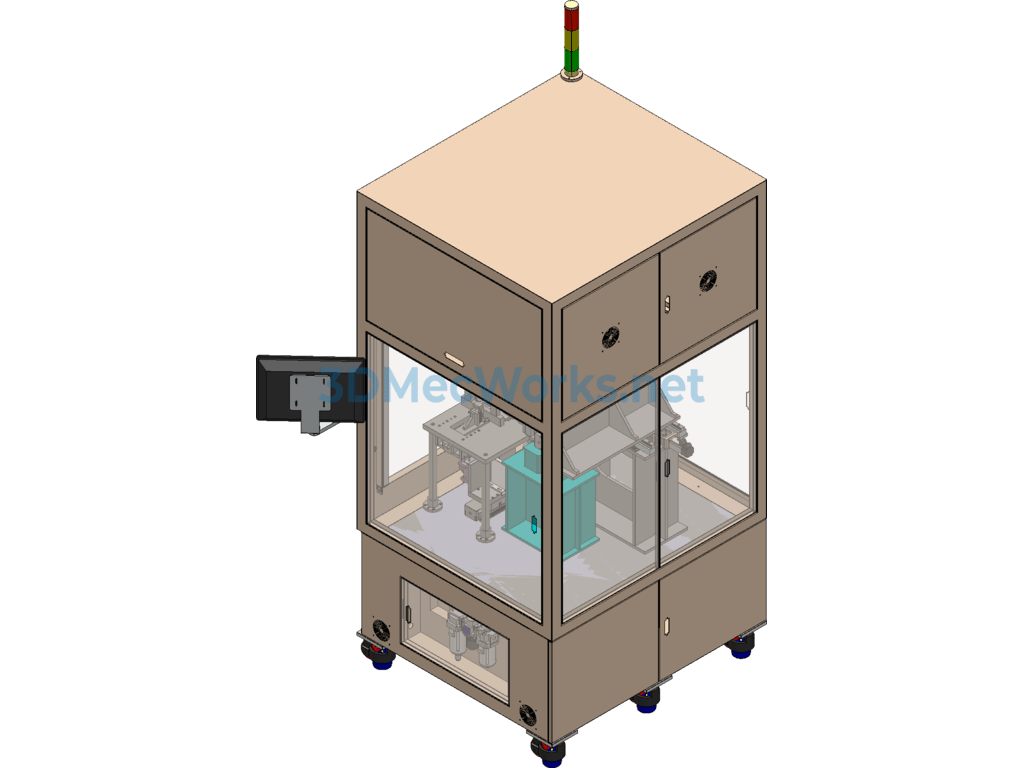

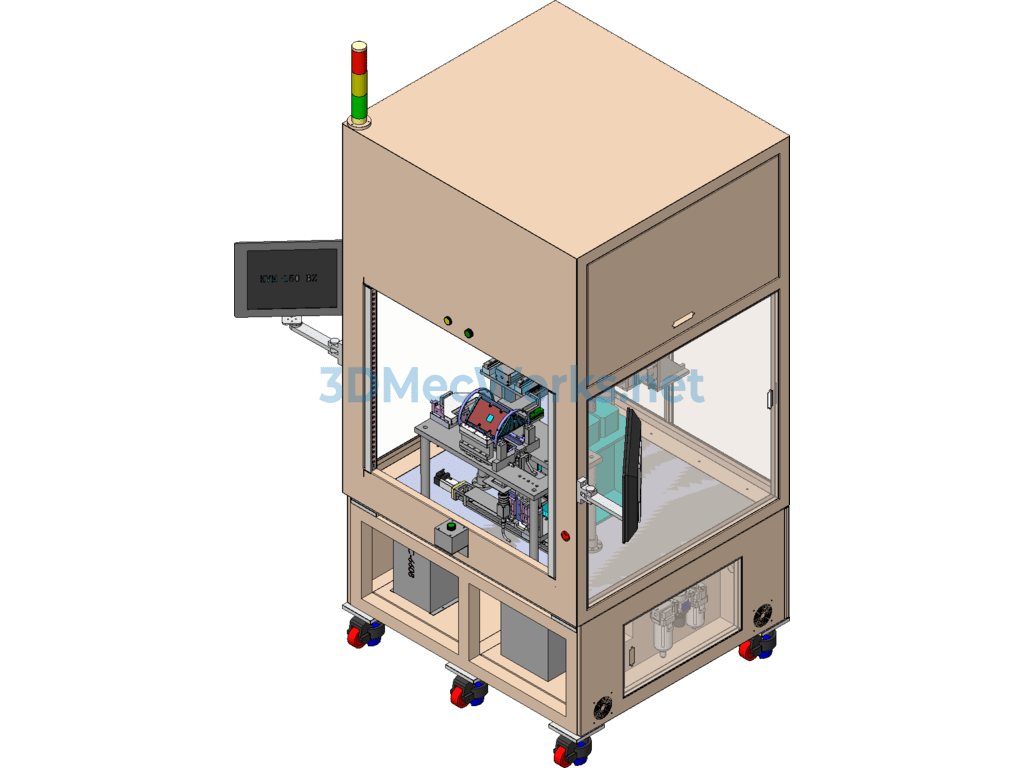

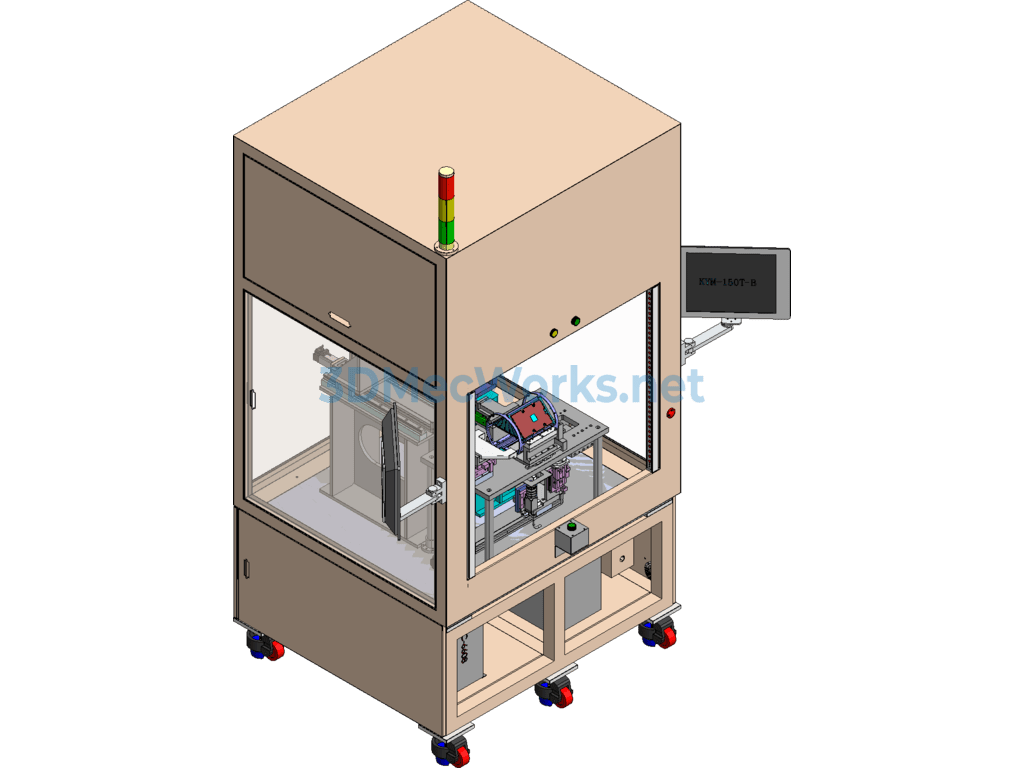

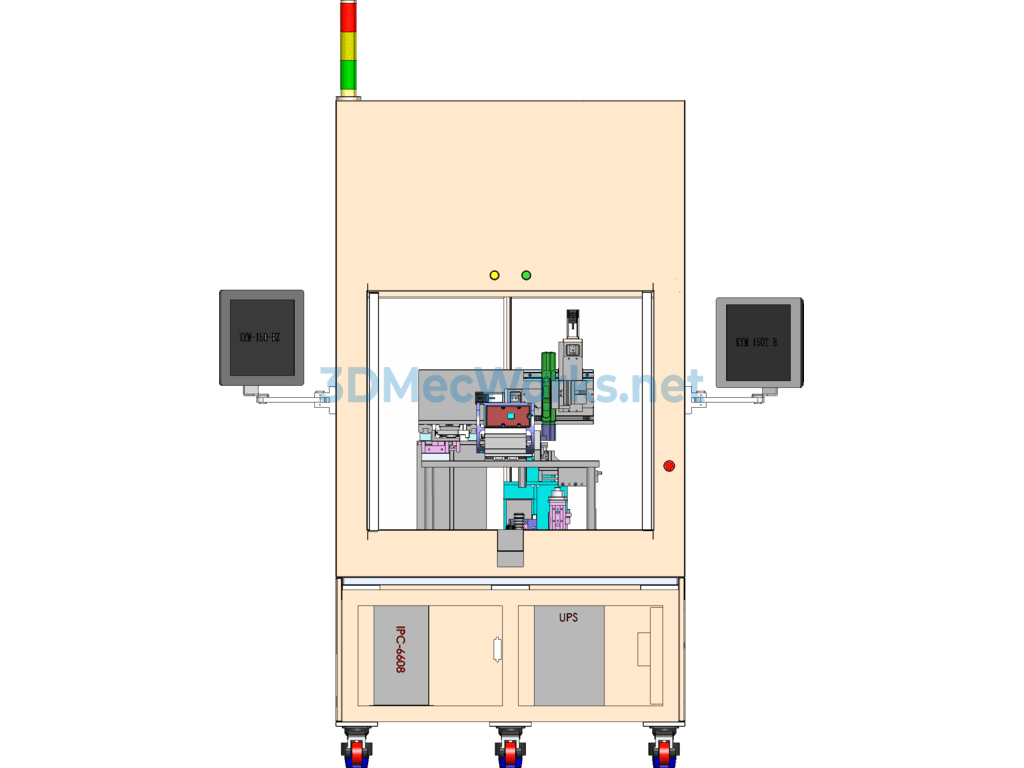

3D Model of Power Potentiometer Assembly Machine SW Design Source Files Shared, Some Parts in STP Format, Detailed Design, Reasonable Structure, Highly Recommended. Content includes: 01-Frame, 02-Cover, 03-Carrier, Electric Batch, AC Profiling, CCD Module, Plug, Spring Mechanism, Laser Module, Screw Locking, Carrier Linear Gauge, Power Assembly General Assembly, etc.
Work Process of Power Potentiometer Assembly Machine: Shaft Core → Sleeve → Resistor Sheet → Brush Sheet → Integrity Check → Shaft Riveting → Enclosure → Enclosure Riveting → Feeding.
Control Method: Programmable Logic Controller (PLC) and Touch Screen Parameter Setting and Command Input.
[Only SW2015 source files are provided by me, for other formats, please consult the “Drawing Conversion Engineer” on Kaiba website for conversion.]
Specification: Power Potentiometer Automatic Assembly Machine
|
