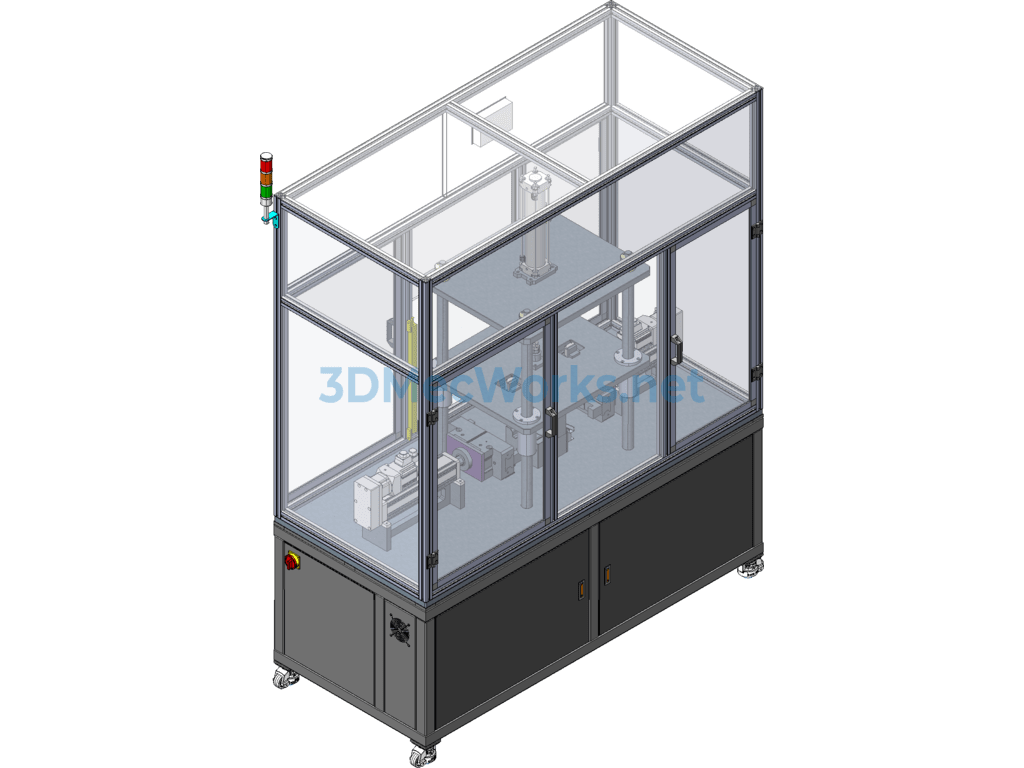

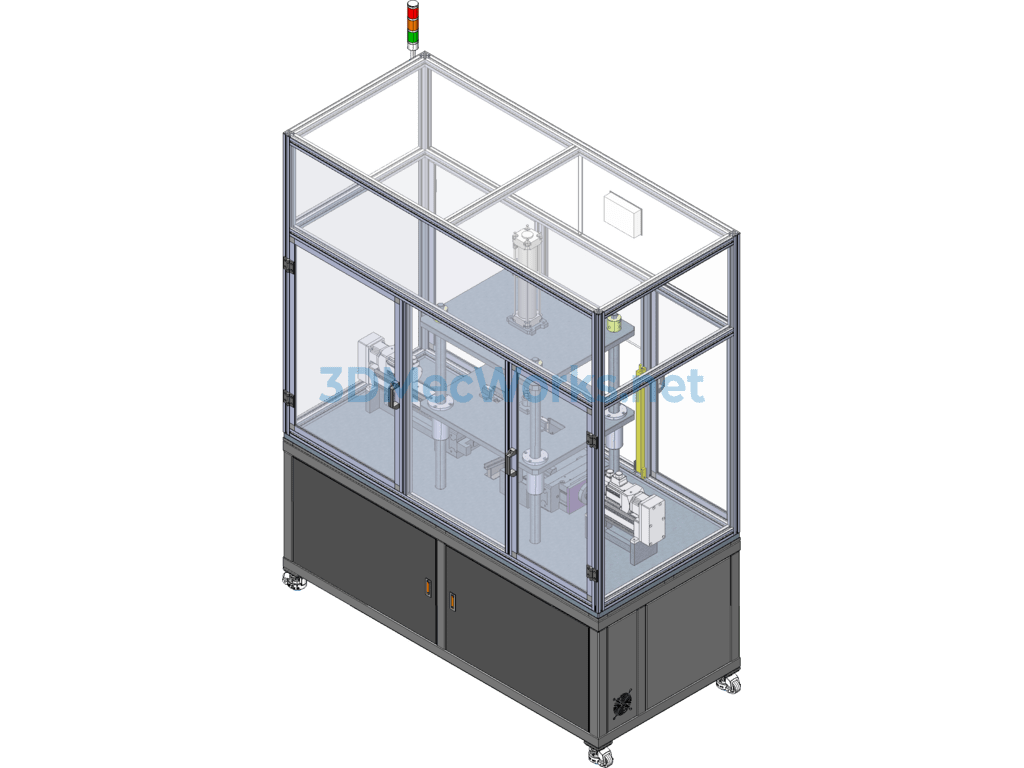

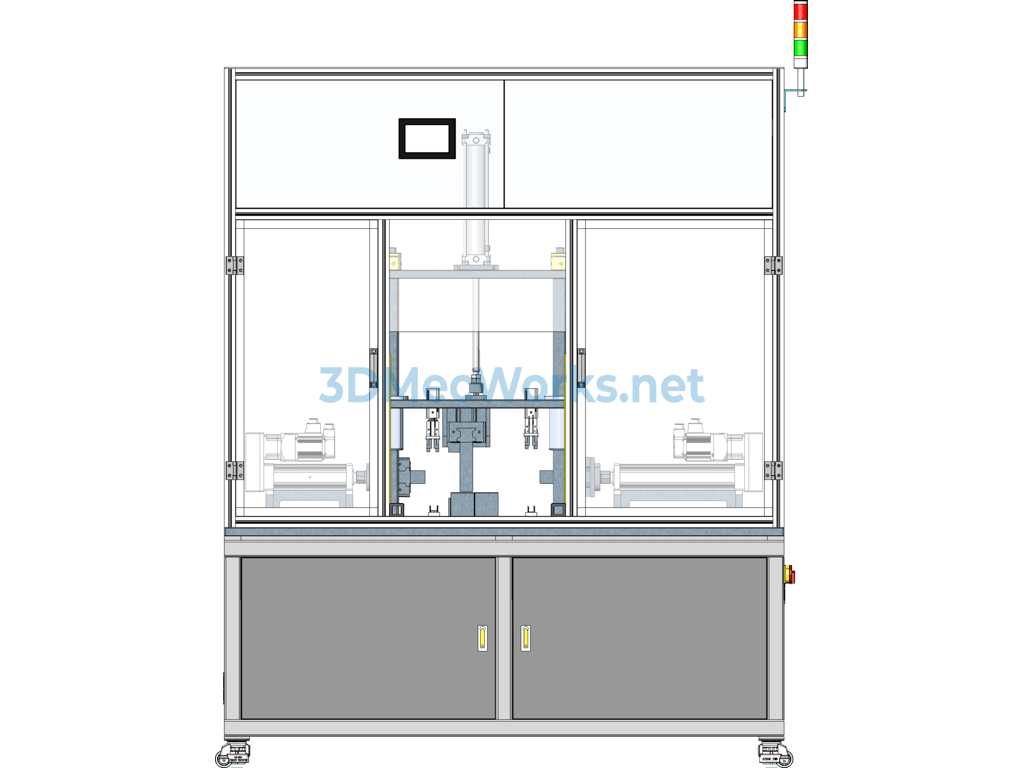

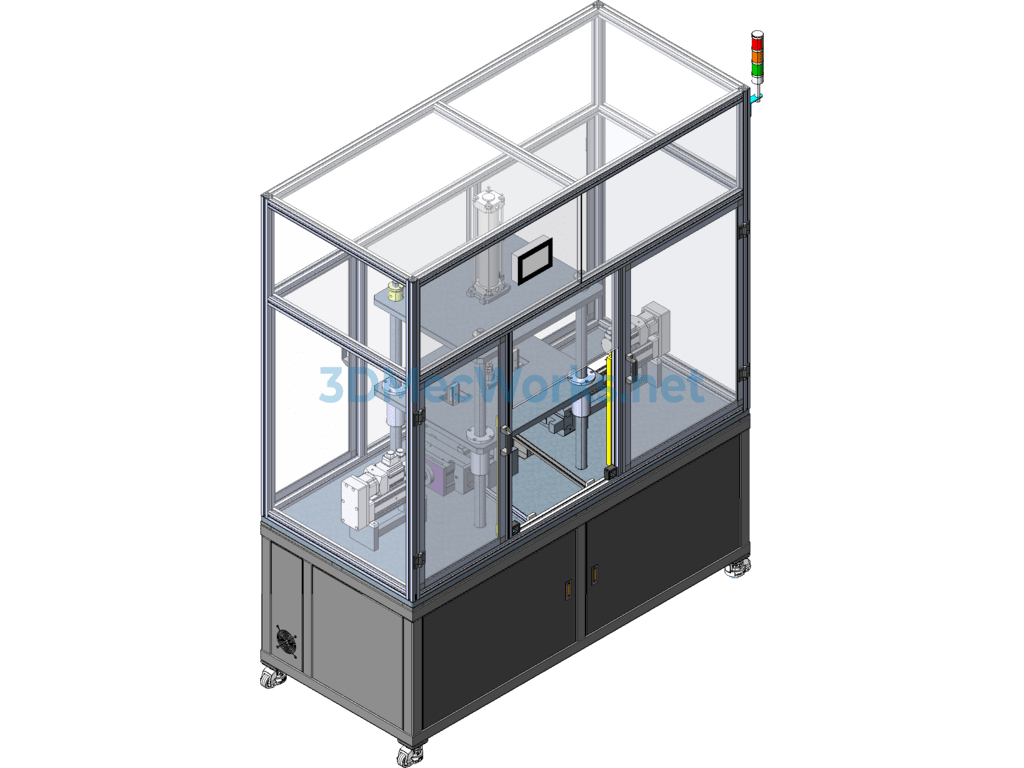

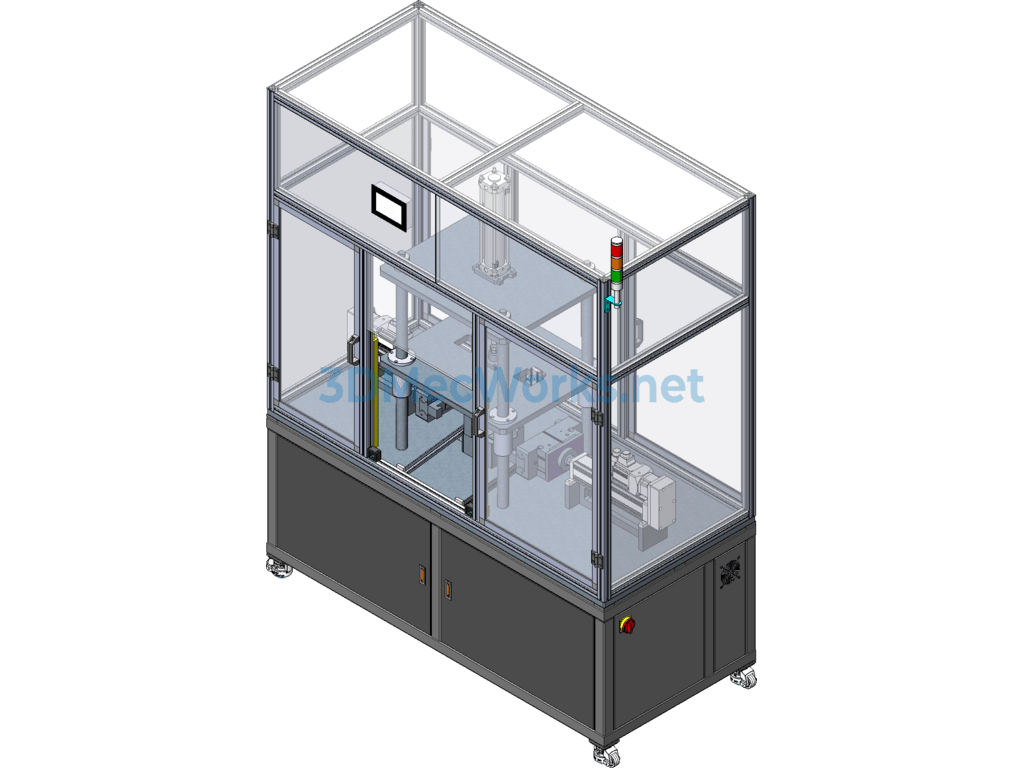

Introduction to the Operation of Potting Fixture Disassembly Equipment:
1. The operator places the potting fixture to be disassembled into the machine’s profiling jig;
2. The downward pressing cylinder descends to press the product;
3. The clamping cylinder clamps and secures the product;
4. The left and right sets of electric cylinders move simultaneously;
5. The left and right disassembly grippers simultaneously grip the fixture;
6. The right servo electric cylinder moves first to disassemble the right fixture;
