Pneumatic Stamping Fixture

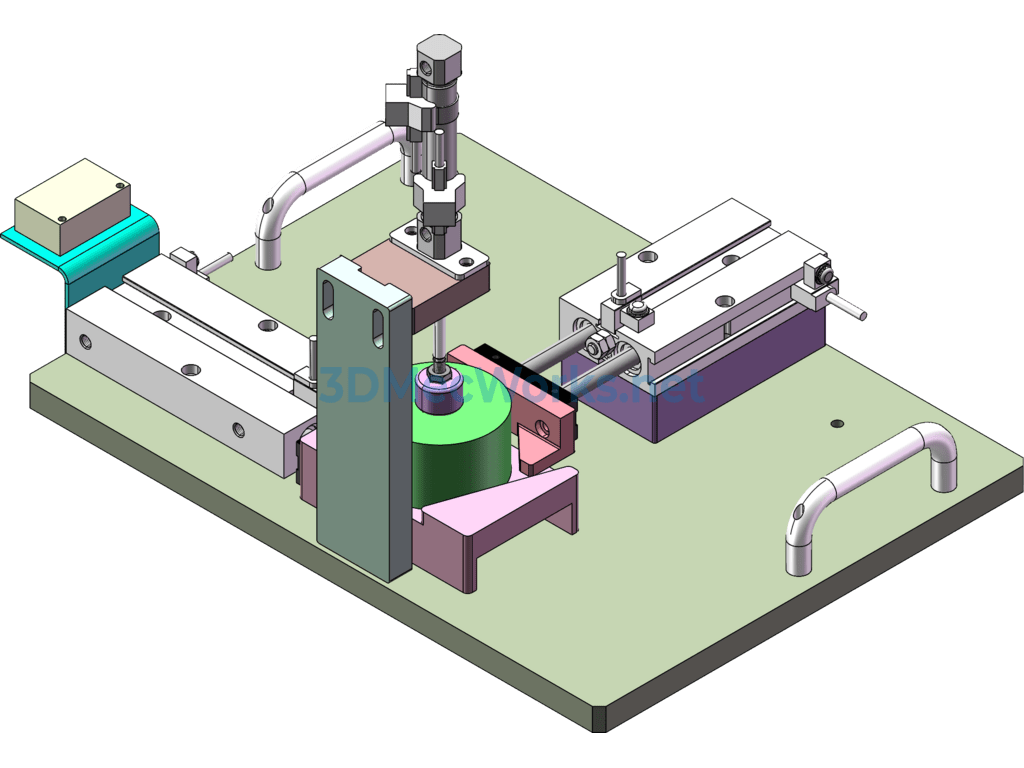

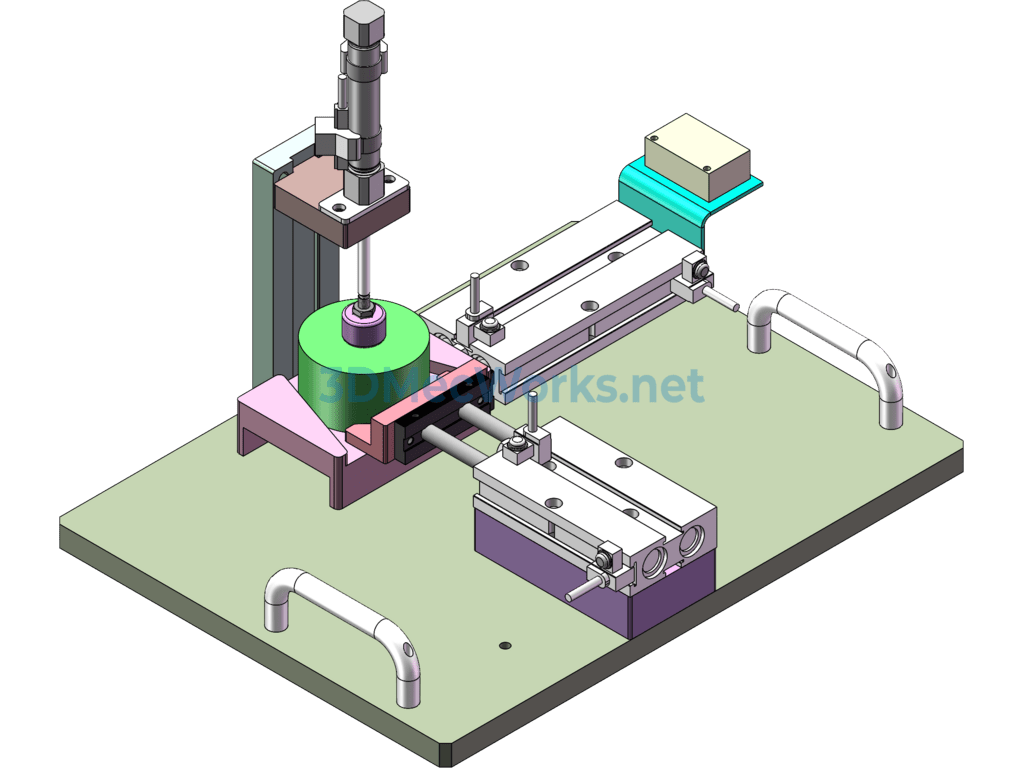

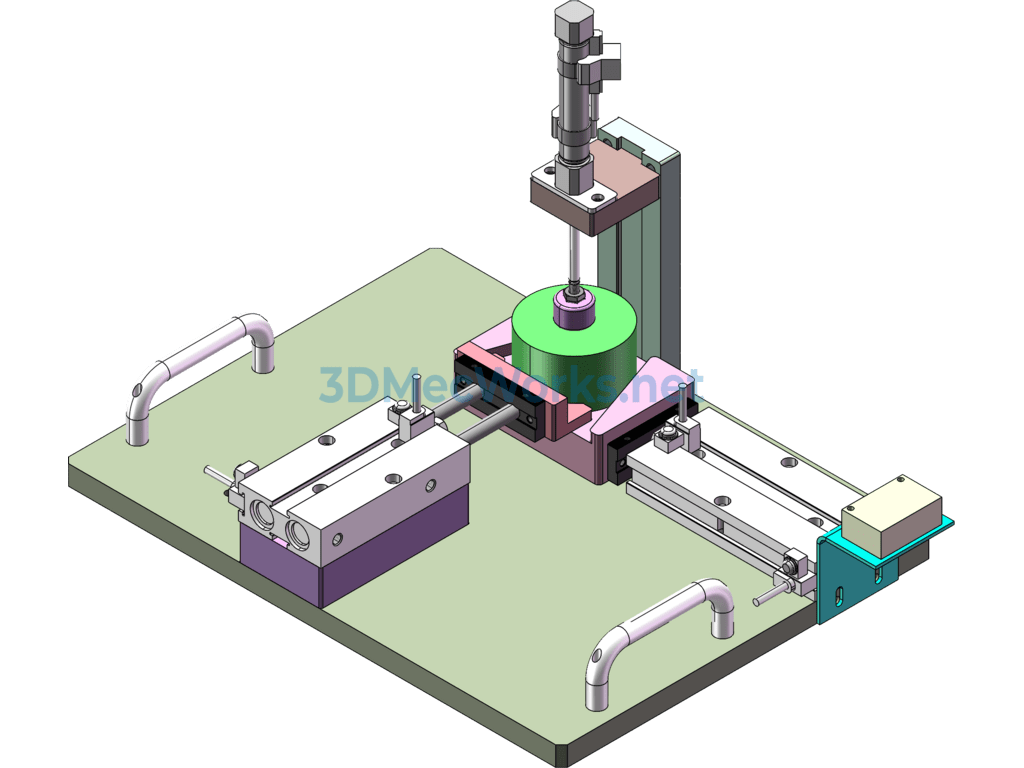

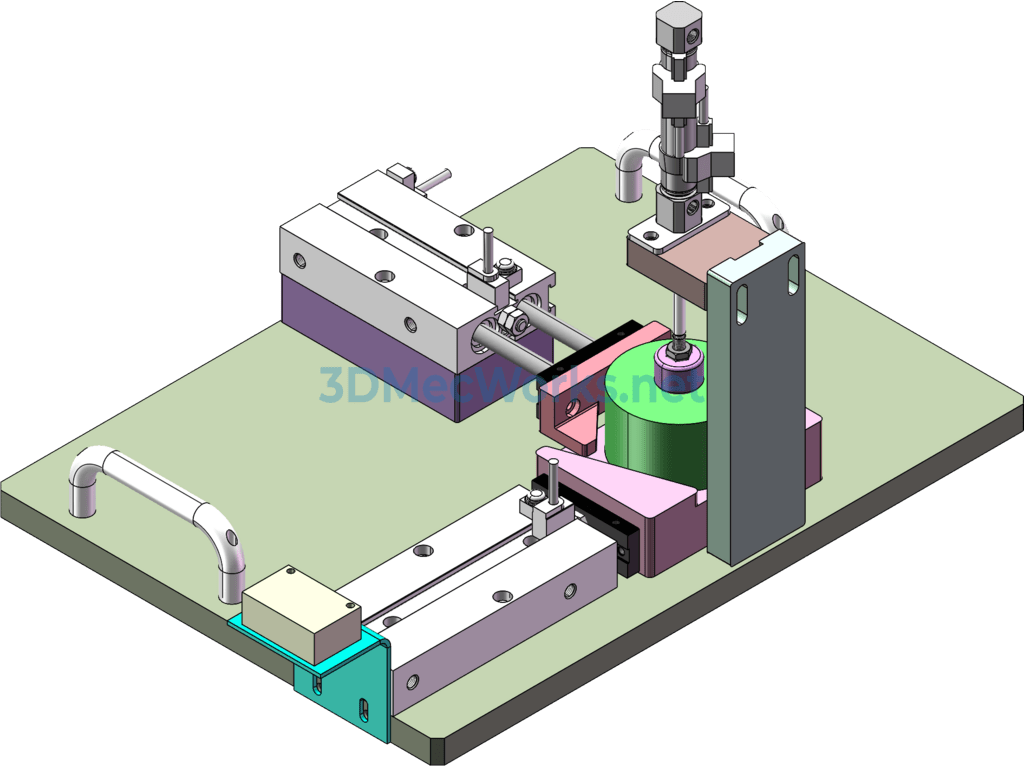

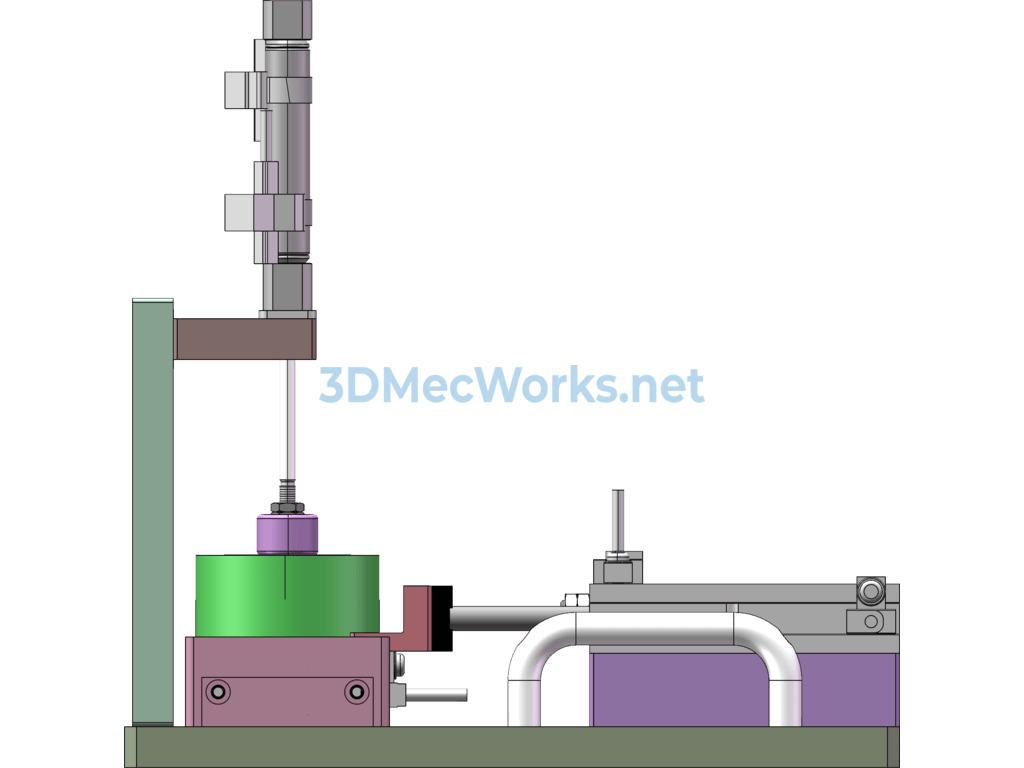

A pneumatic stamping fixture consists of two double-rod cylinders and one pen cylinder. When the long-stroke double-rod cylinder is in the extended state, the workpiece is placed into the front-end pallet, and the cylinder retracts. The short-stroke cylinder extends, and the front-end profiling push plate presses the workpiece tightly. Finally, the pen cylinder extends to complete the action of clamping the workpiece. Complete set of engineering drawings is included, allowing for direct machining, and parts can be edited and modified.
