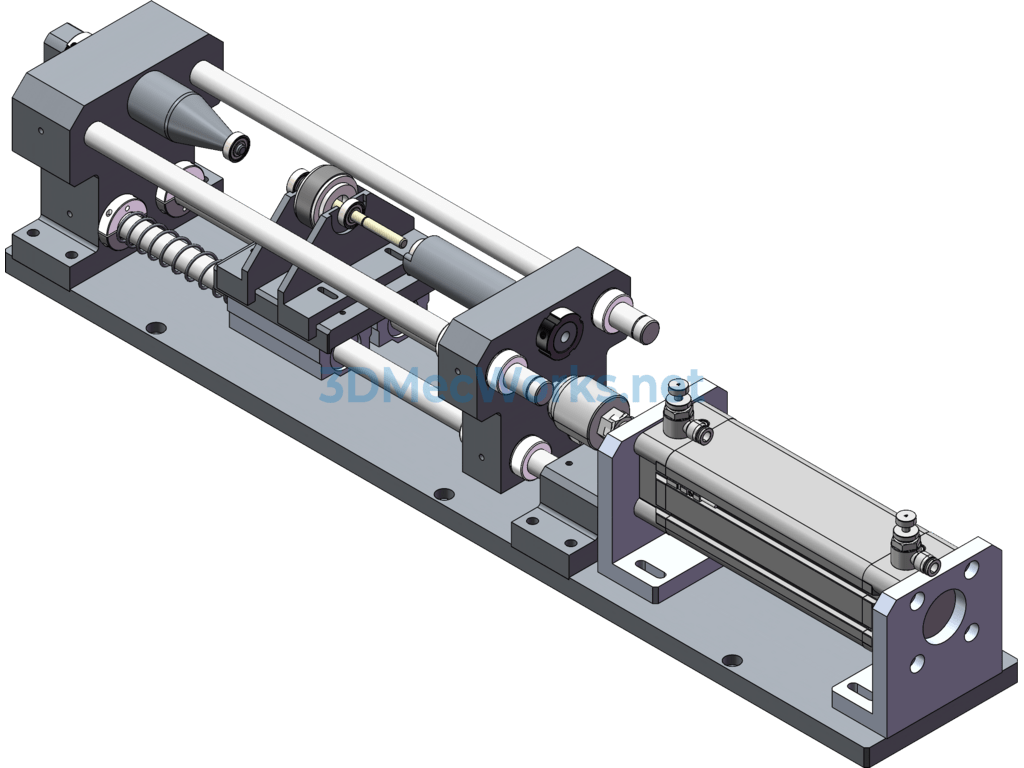

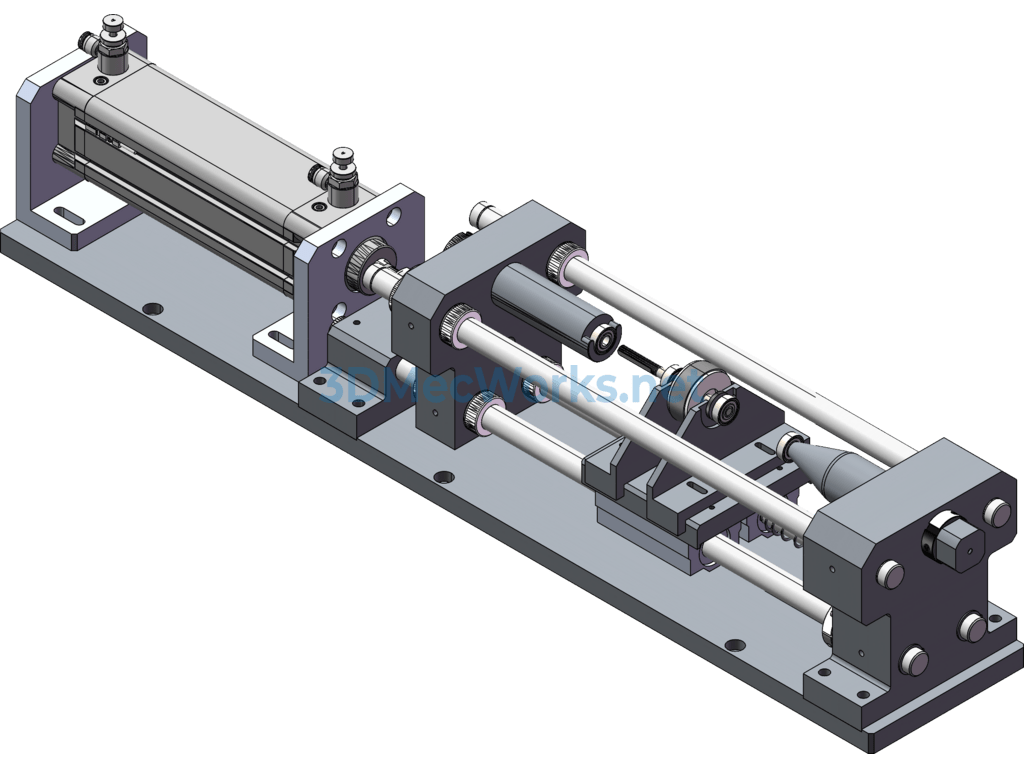

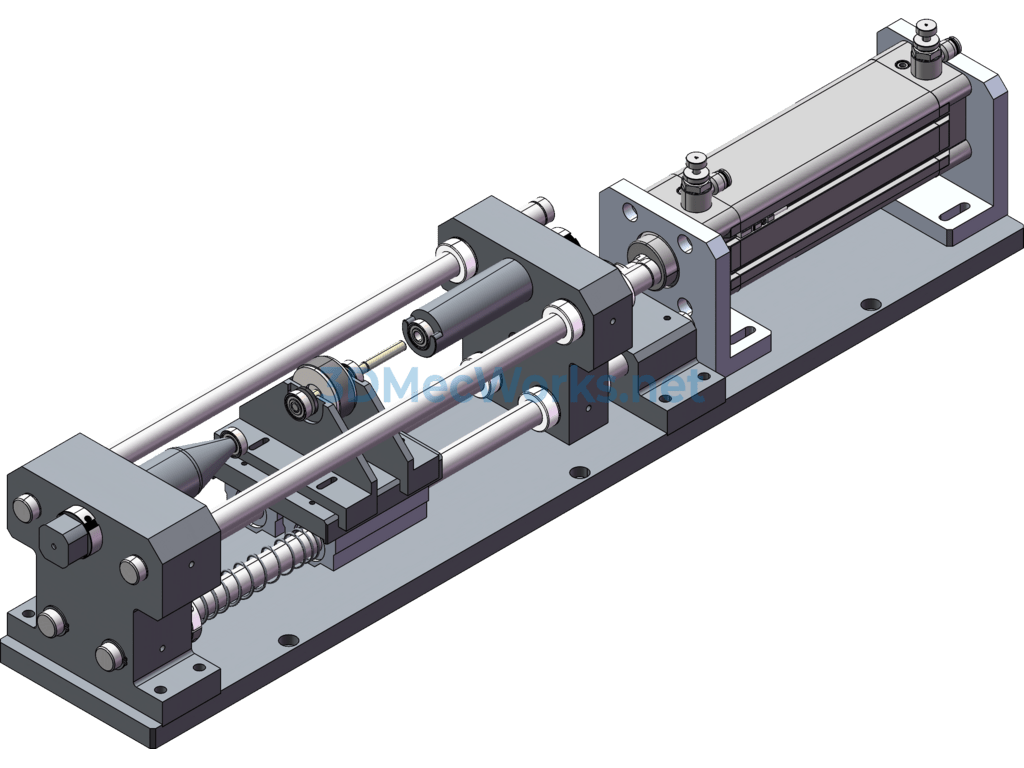

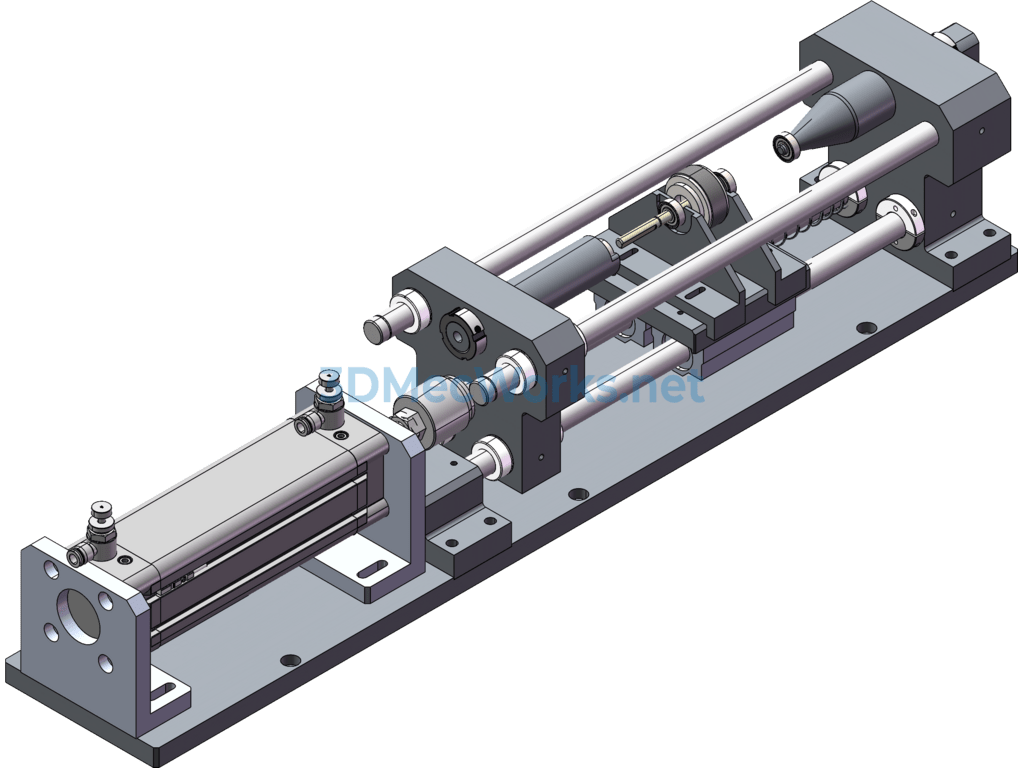

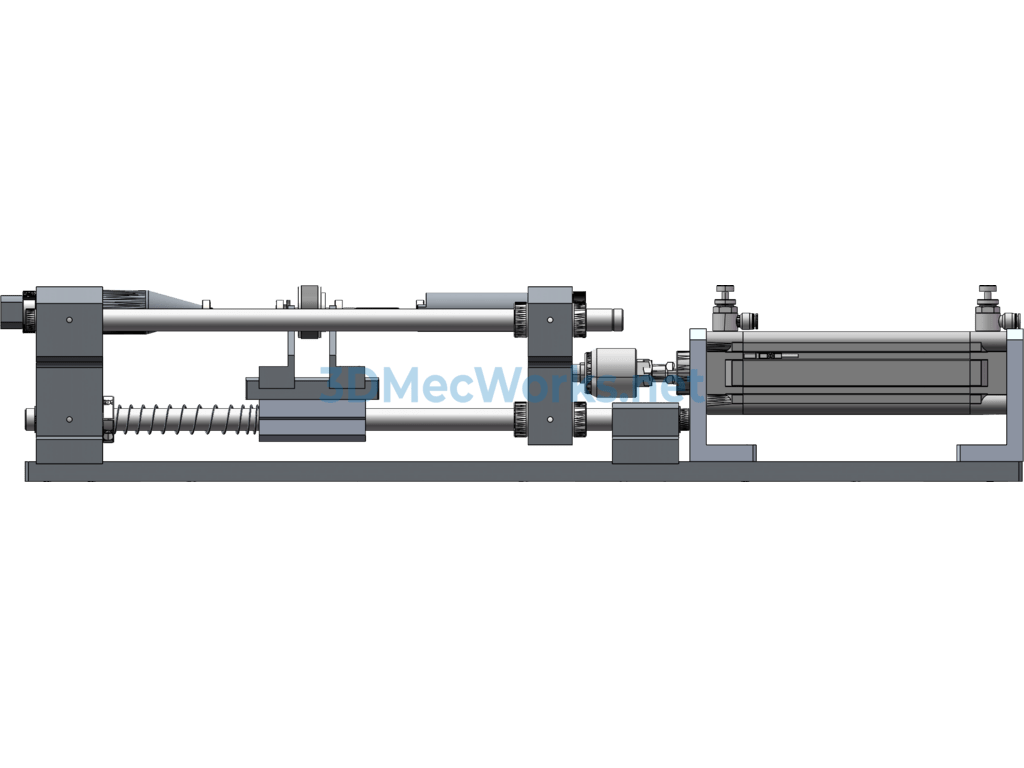

Pneumatic Pressure Bearing Magnetic Ring Machine

This set of tooling is primarily used for the pressing of bearings onto the rotors of PG plastic-sealed motors. It features a horizontal single-cylinder design to facilitate employee operation. The die offers high coaxiality and is suitable for switching between multiple models. The rotor bracket is processed using wire cutting, ensuring high symmetry and controllable axial height tolerance, resulting in high overall precision. The structure is simple and the operation is convenient. It is also used for the riveting assembly of magnetic rings and bearings.
