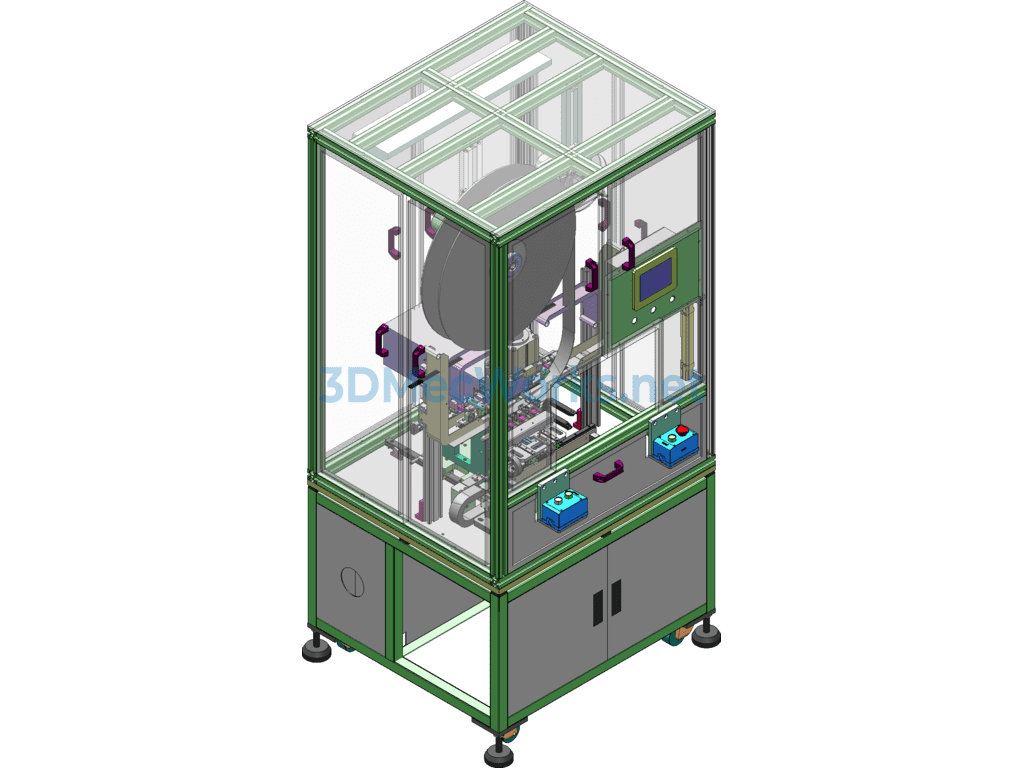

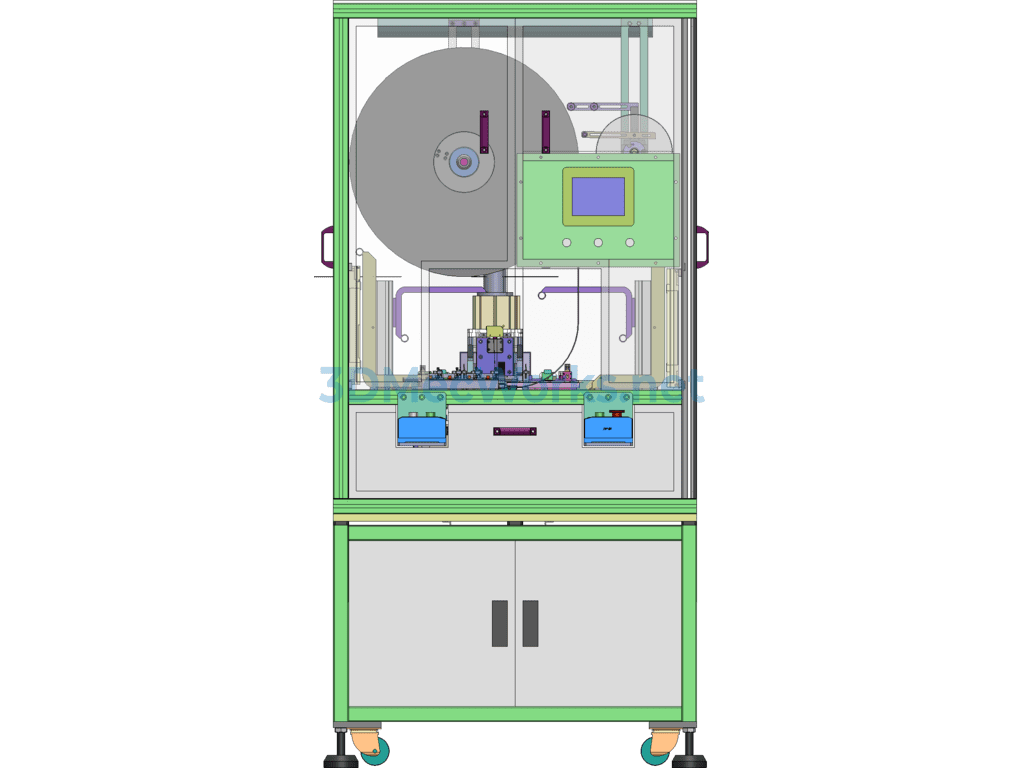

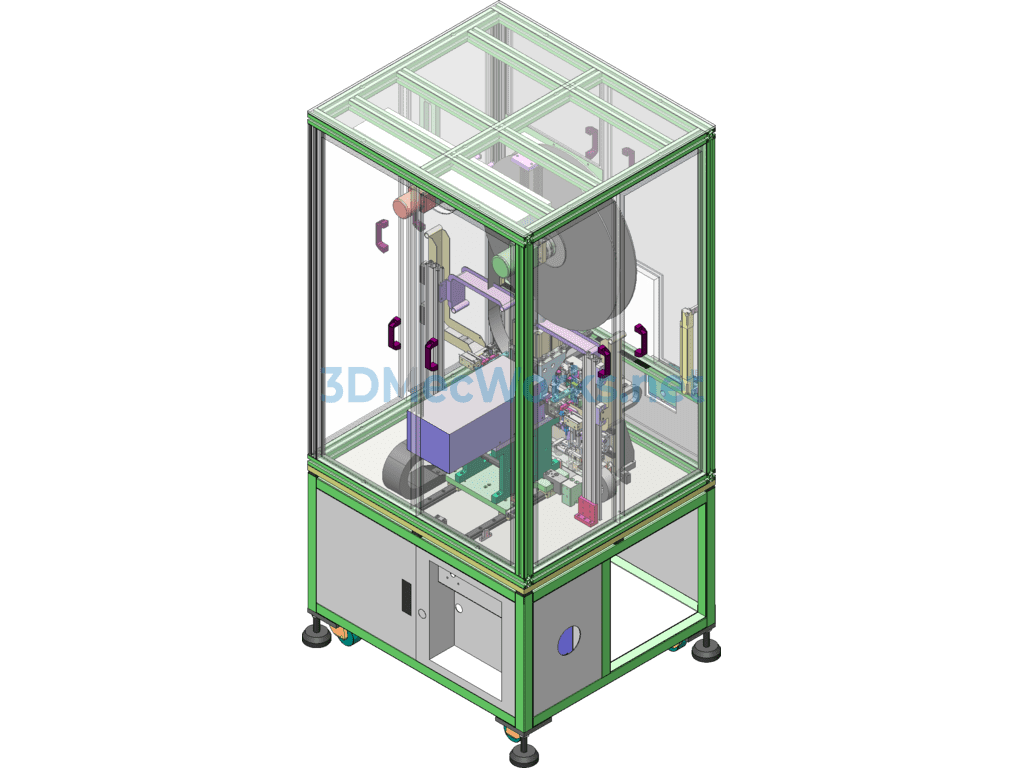

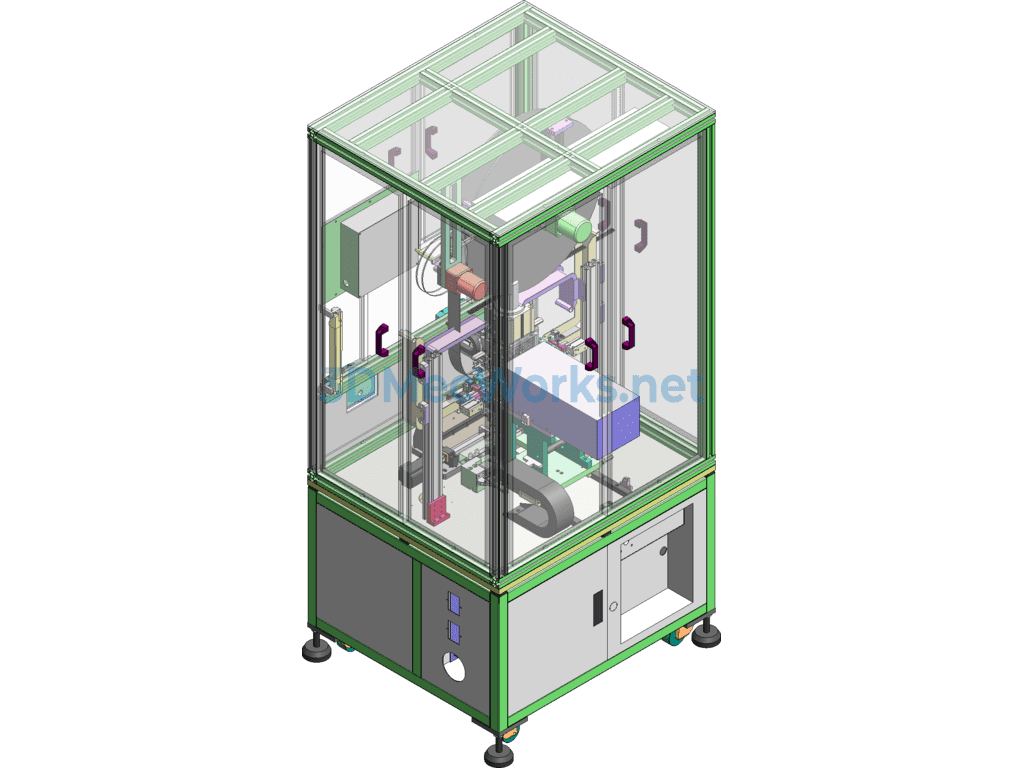

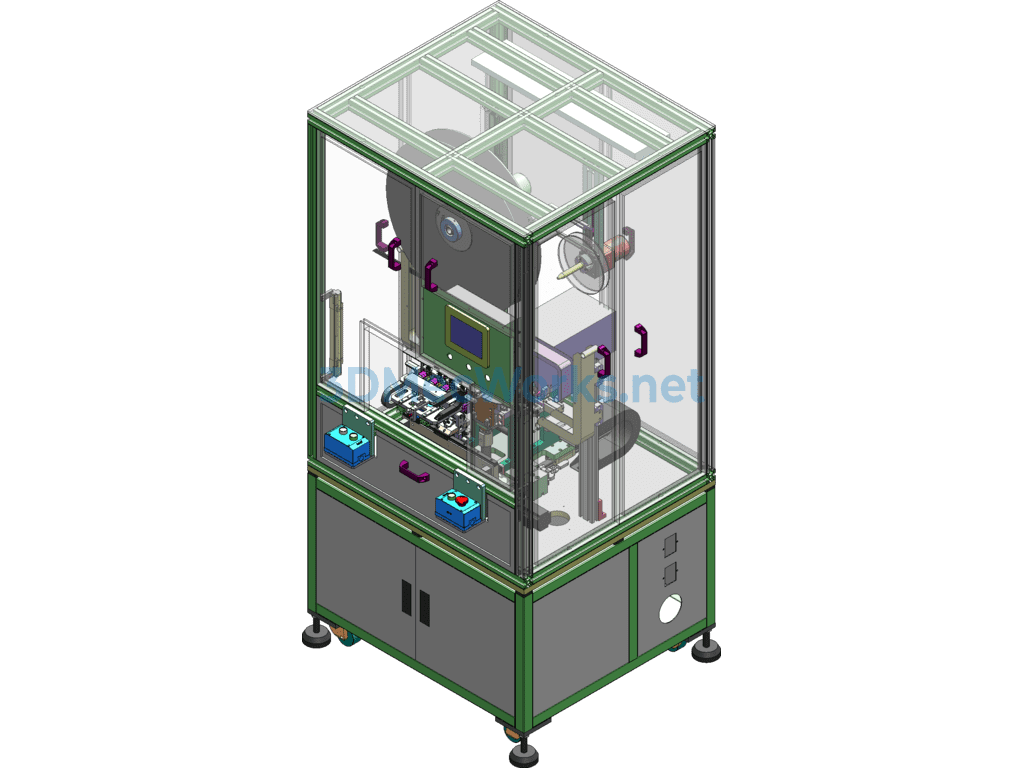

Automatic Automotive Connector Pin Insertion Machine with Cylinder Type One automatic connector pin insertion machine uses a cylinder as power, with a simple and reasonable design suitable for reference, and a finished product has been produced. This model is designed according to relevant standards for designers to refer to. Cylinder pin insertion machine. The specific design principles can be observed in the model for personal understanding. It is a very complete piece of equipment. Design principle: Manually place the product to be bent into the seat, and after sensing it, the servo moves left and right, the cylinder cuts and clamps the terminal, moving it into the connector. Provides Solidworks2012 model source file download for automotive connector cylinder pin insertion machine.
