Plastic Component Pin Insertion Detection Automation Machine

Plastic Part PIN Insertion Detection Automation Machine

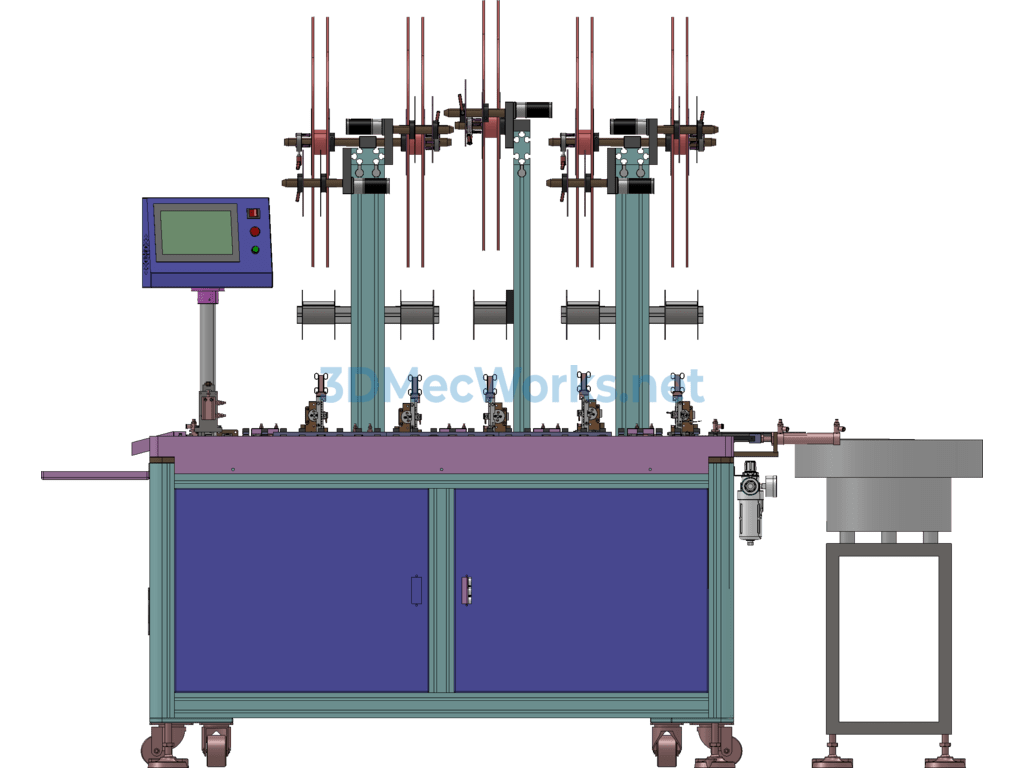

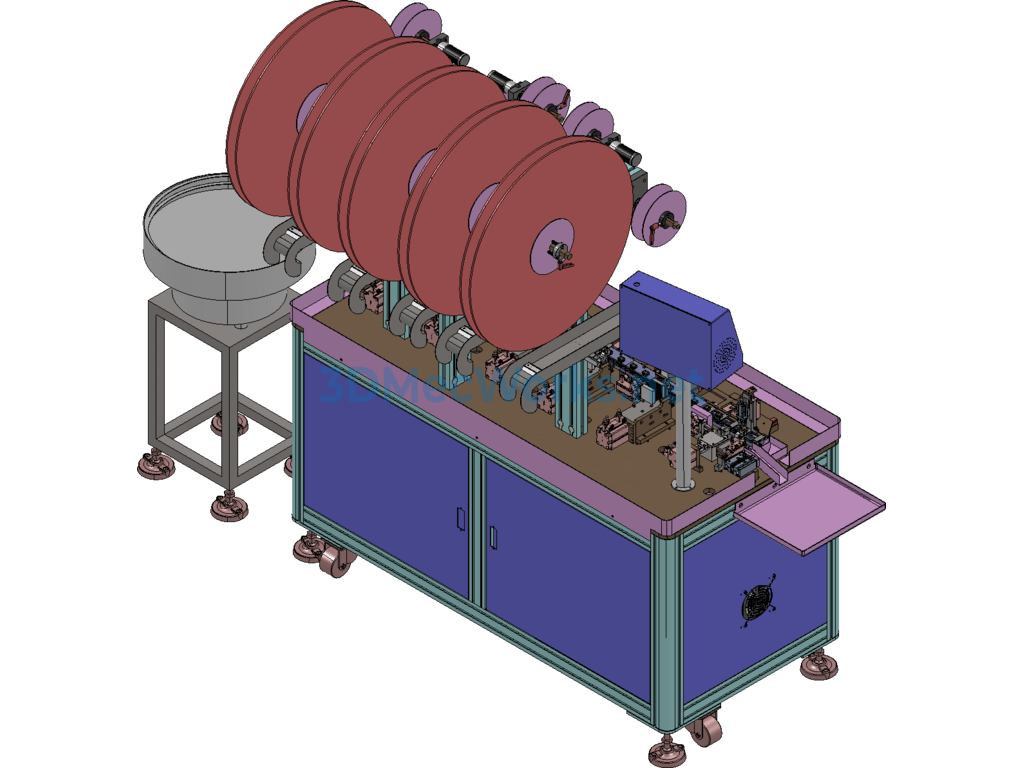

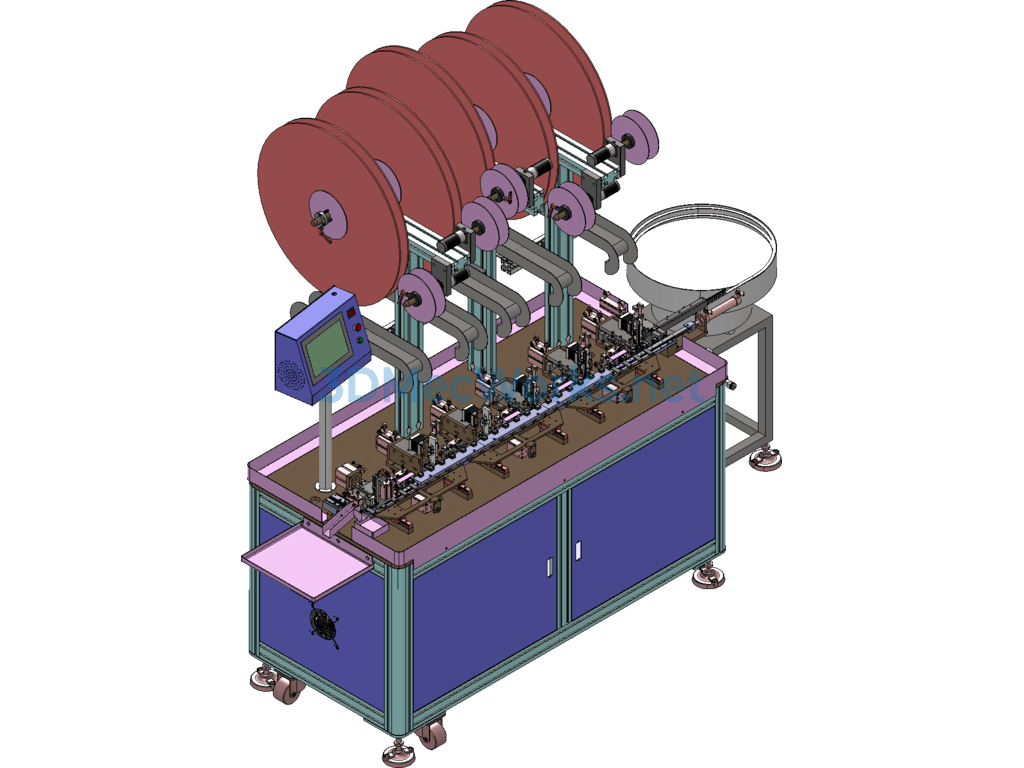

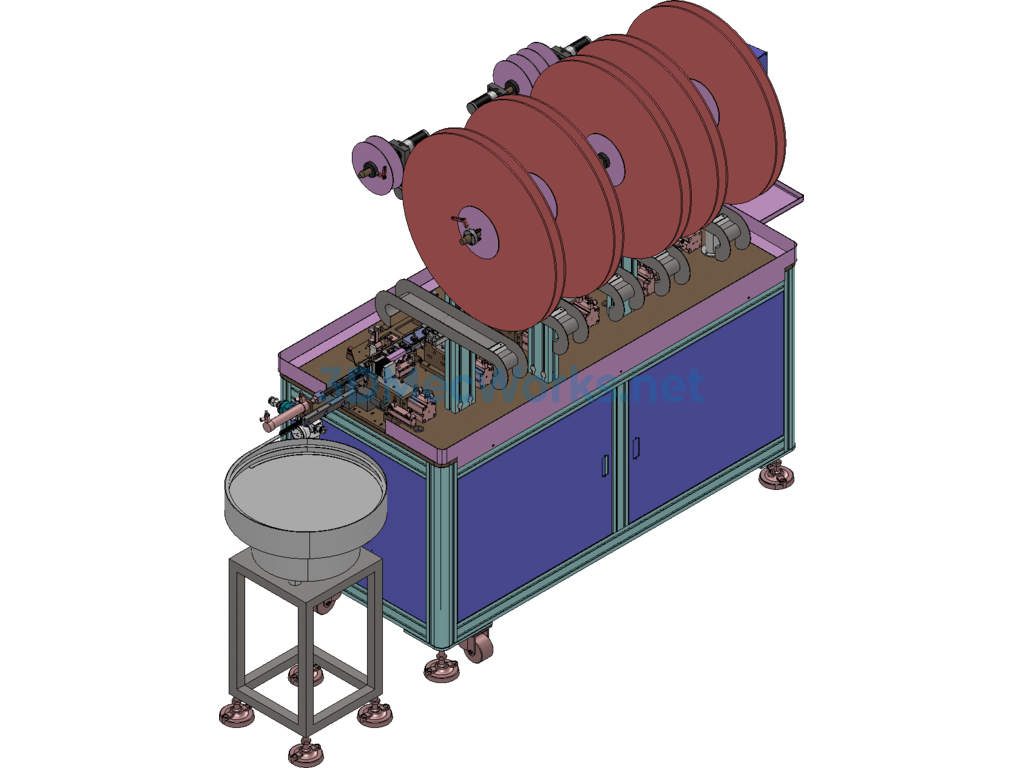

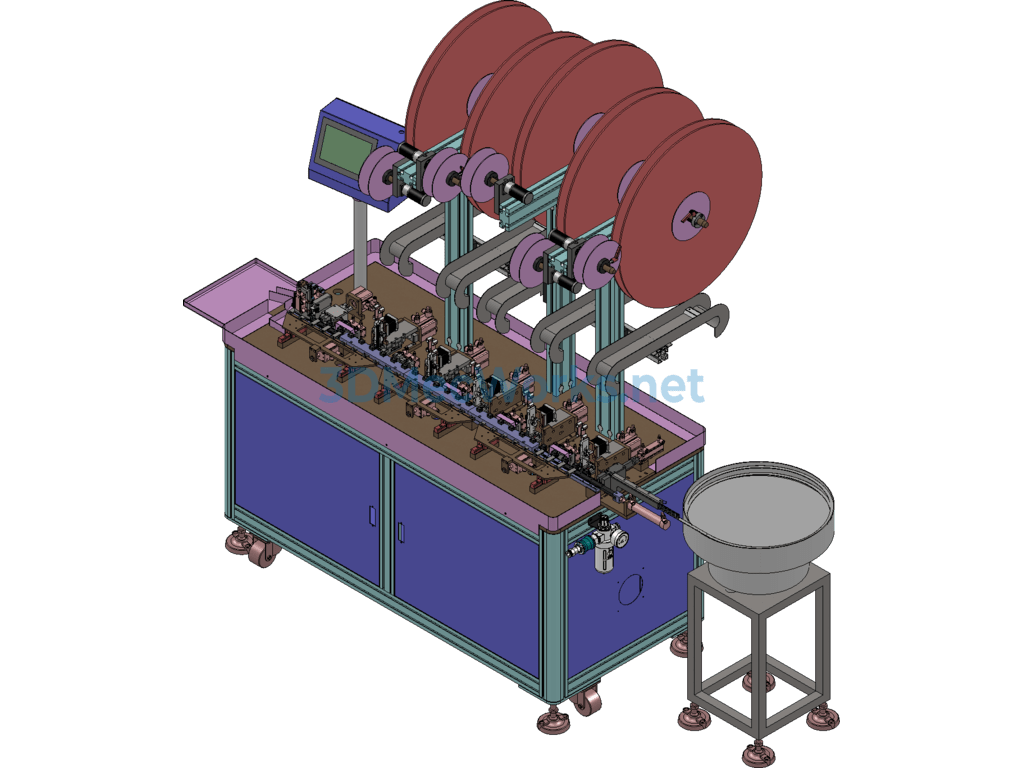

This equipment is a mass production machine. The original document is editable and includes 2D drawings and wiring IO table. The equipment operates stably. The feeding method is cylinder-driven claw feeding. The terminal feeding method uses a stepper motor gear feed. The pin insertion is divided into five stations, with the sixth station being a continuity test. Defective products are sorted out separately.
