Pipe Fitting Stacking Cam Feeding Mechanism

Pipe Fitting Stacking Cam Feeding Mechanism
Pipe Fitting Stacking Cam Feeding Mechanism - Image 2
Pipe Fitting Stacking Cam Feeding Mechanism - Image 3
Pipe Fitting Stacking Cam Feeding Mechanism - Image 4
Pipe Fitting Stacking Cam Feeding Mechanism - Image 5

0
Published by
Devon Walsh
43,315 views
|
35,951 downloads
70 Basic icons by Xicons.co Download this Project
SKU: A012501004408 Category: Tags: , , , ,

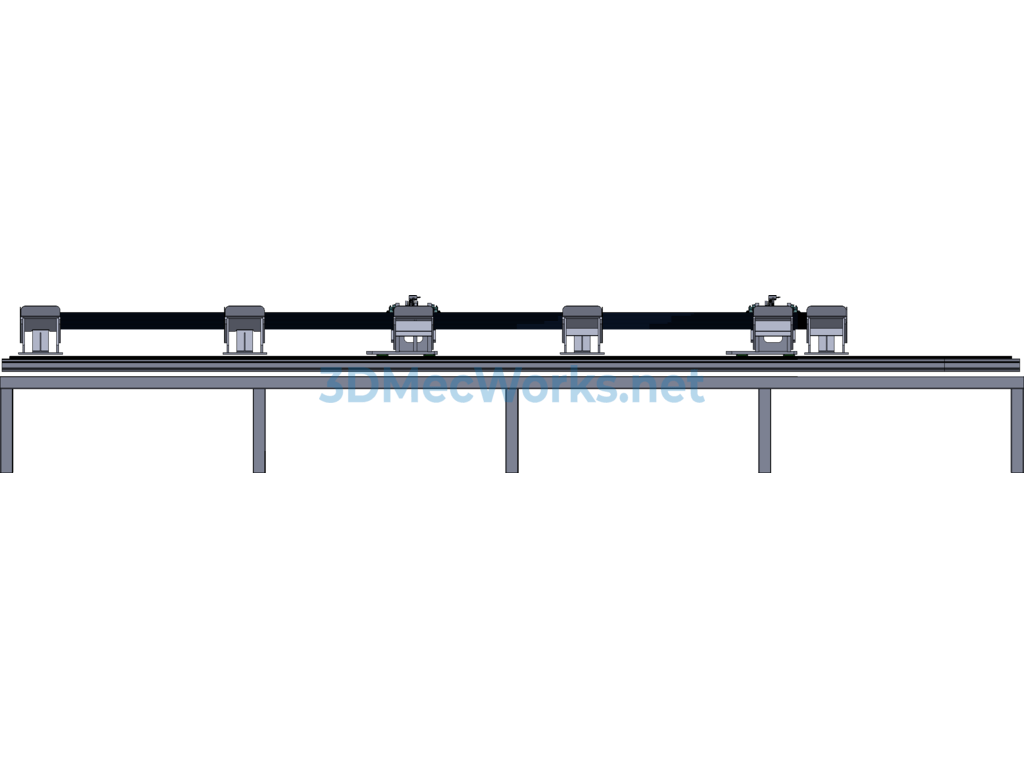

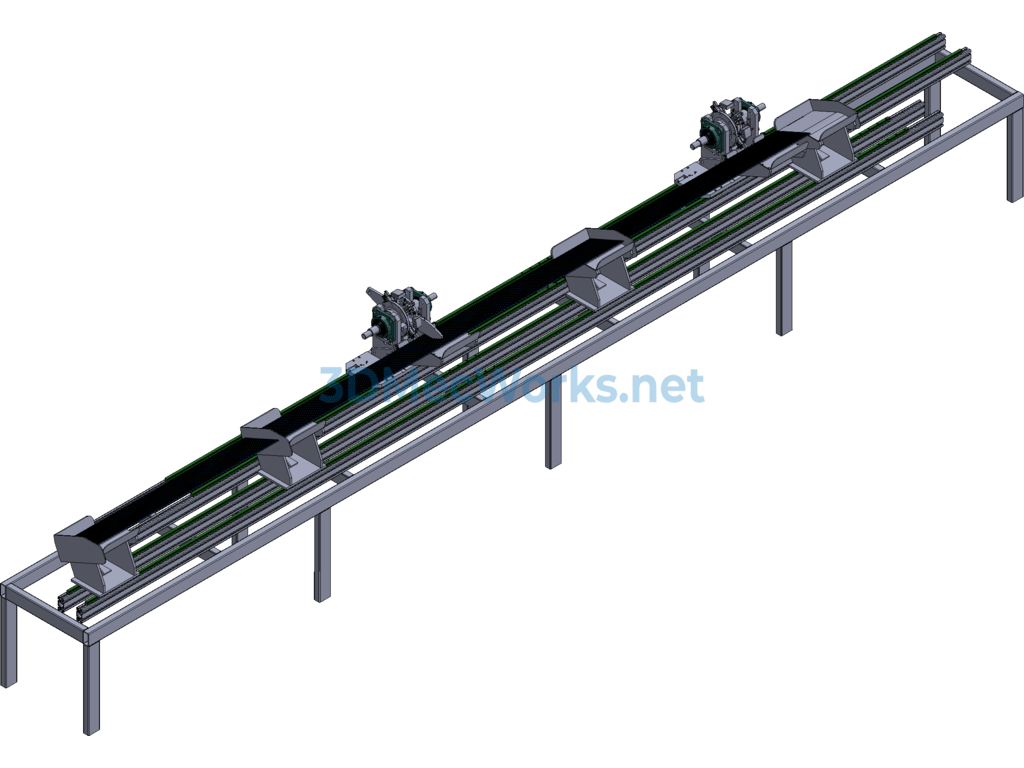

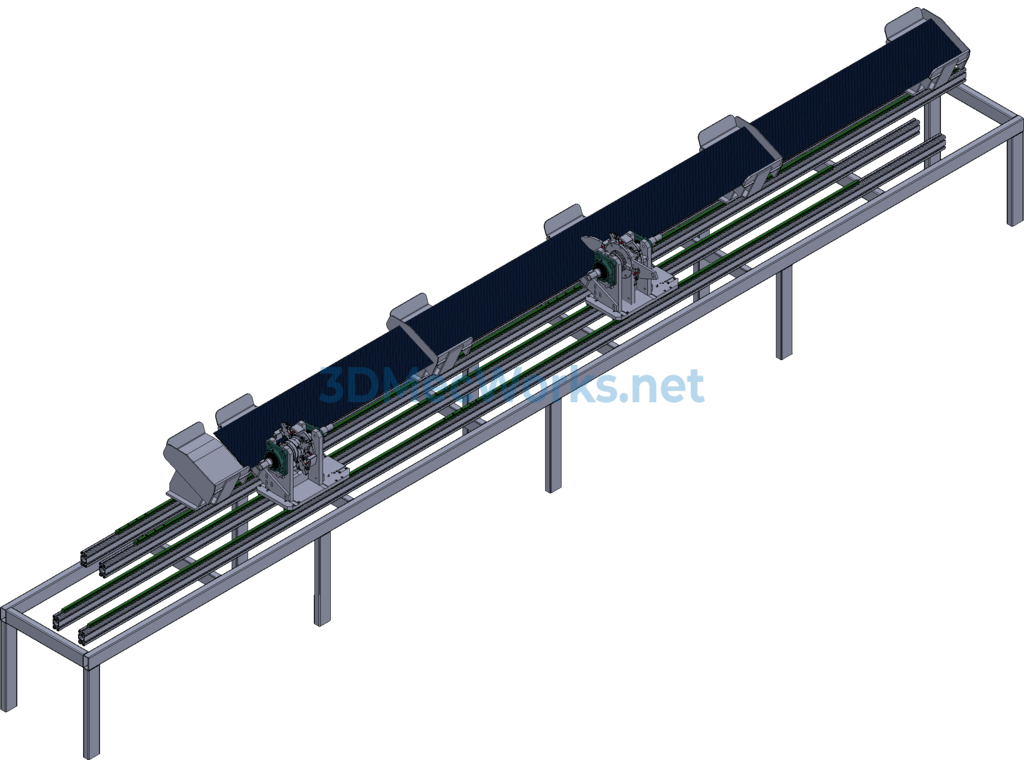

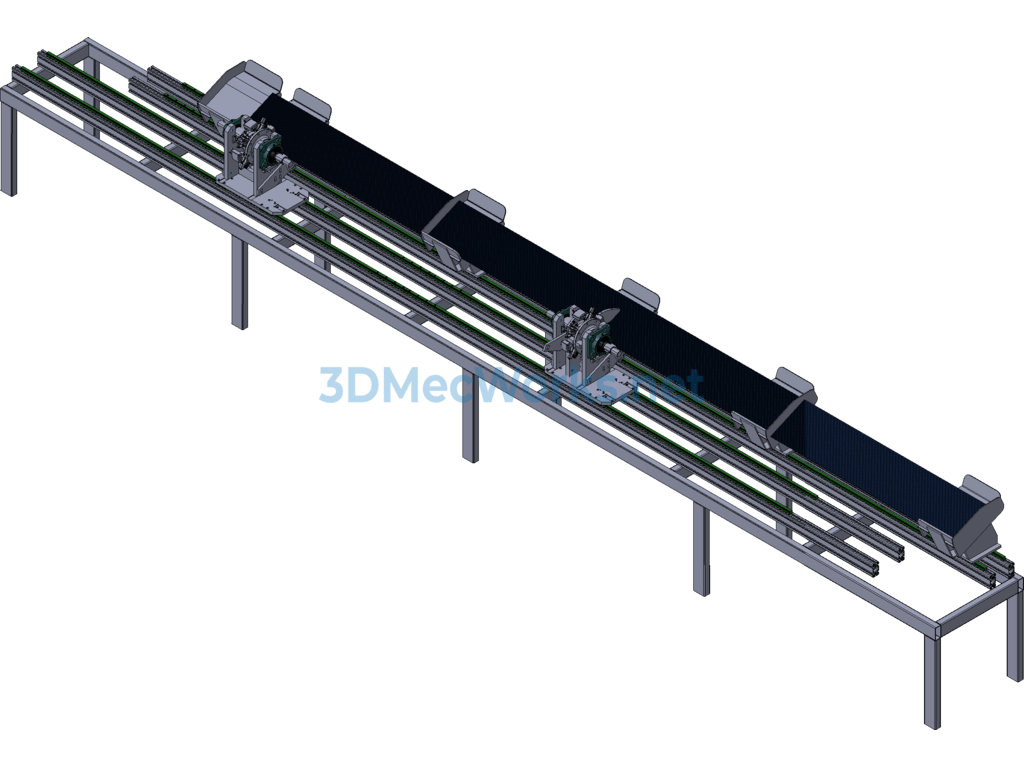

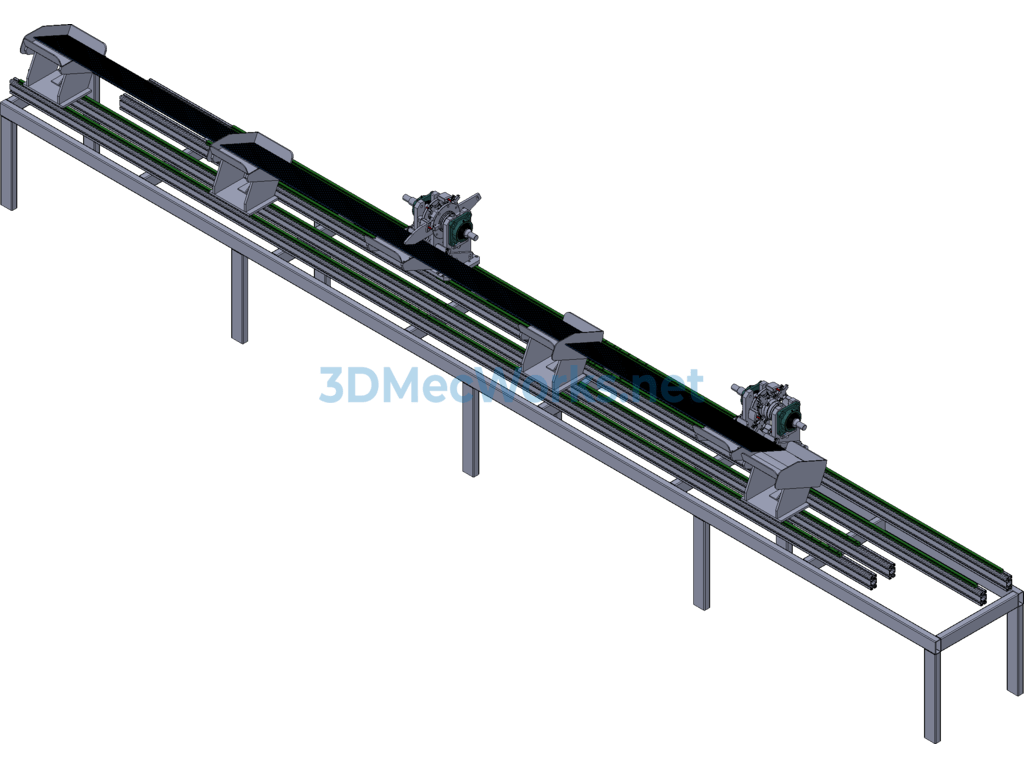

Used for sorting a pile of pipe fittings, with pipe fitting lengths ranging from 500MM to 5000MM. The distribution cam mechanism is adjustable, and the gripping block can be quickly replaced according to product diameter. It first separates the pile of pipe fittings, then automatically clamps and unloads them. The entire system is powered by only one motor.
