Pipe Cutting Machine Creo 7.0

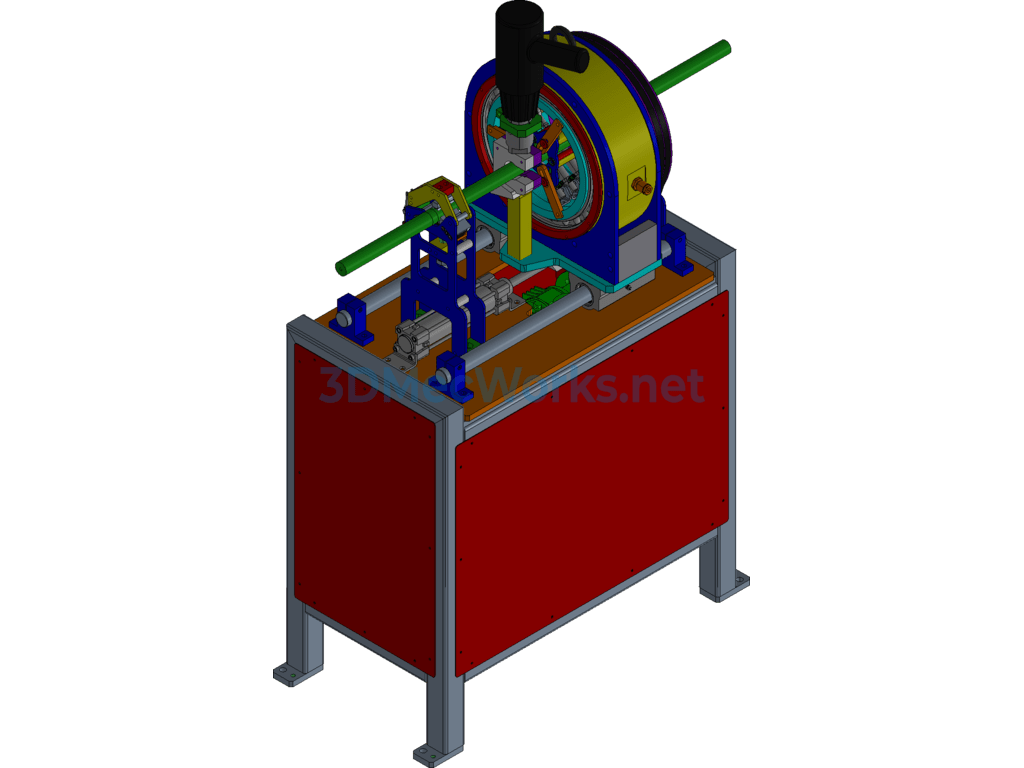

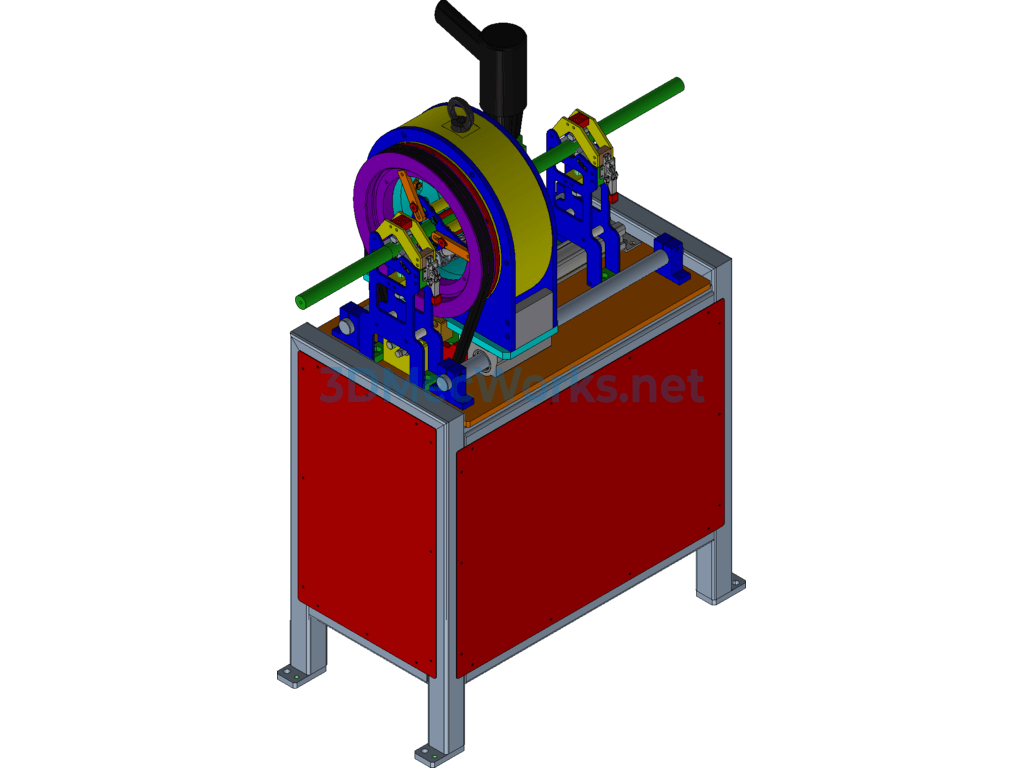

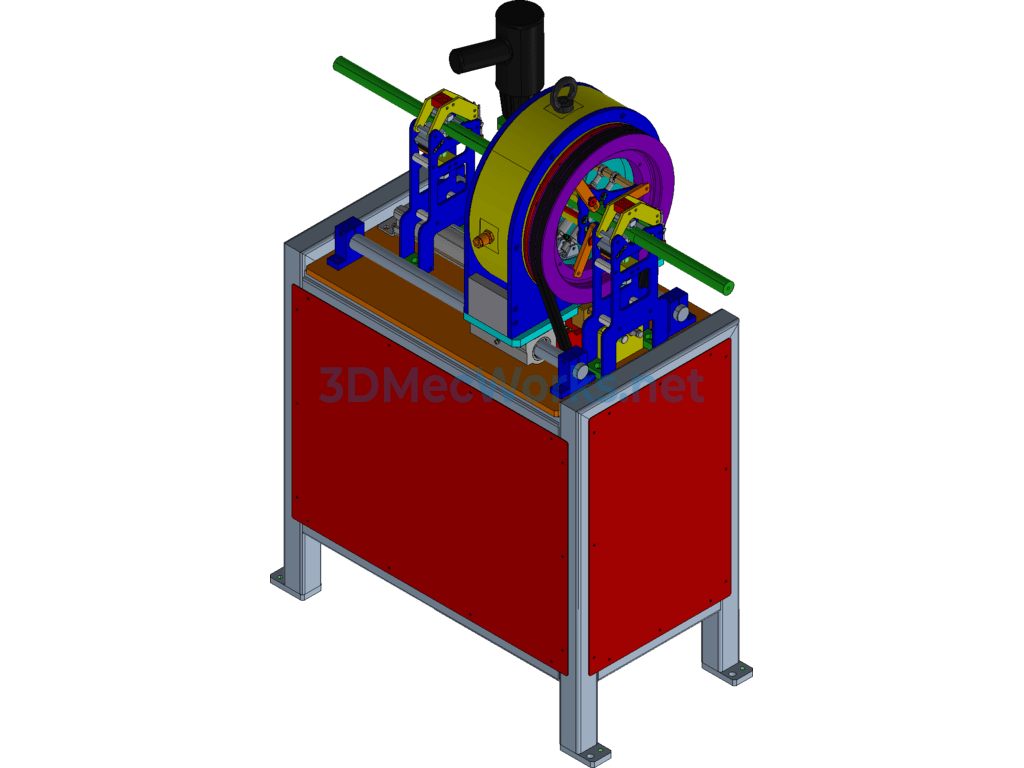

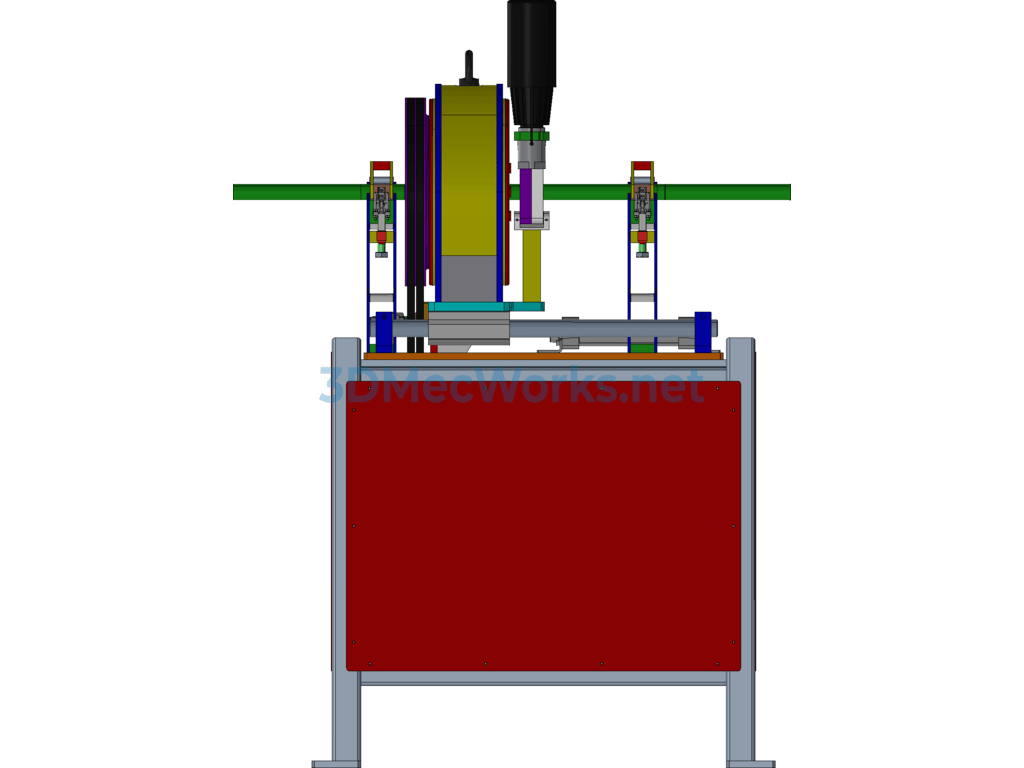

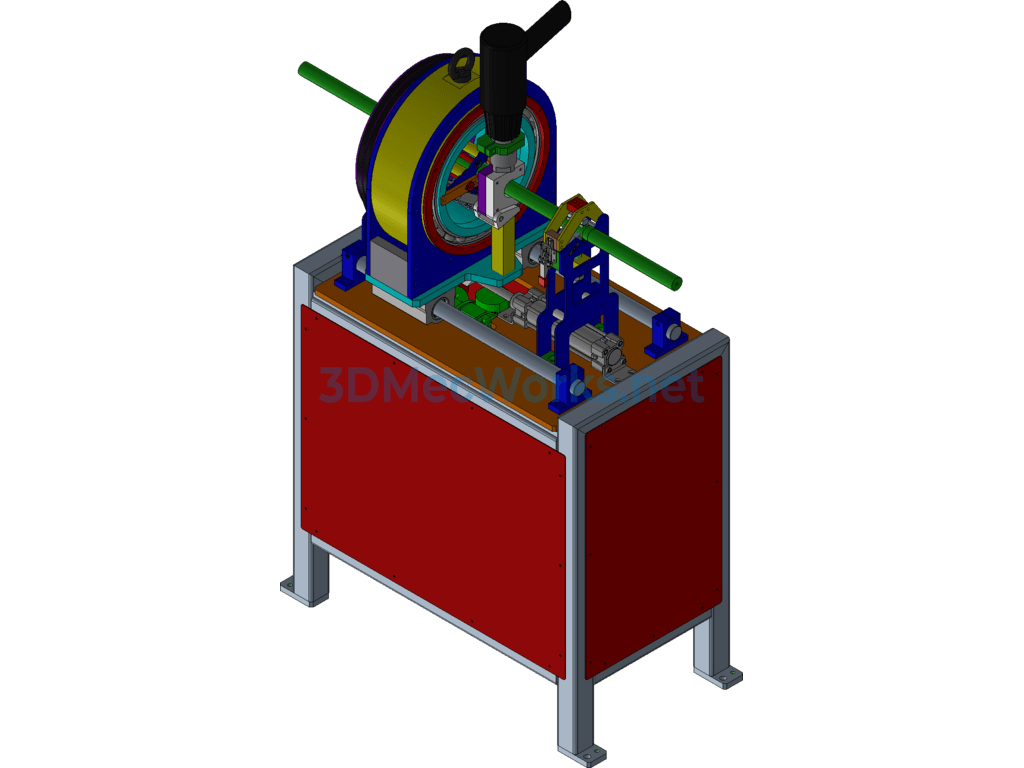

The design model of the automatic steel pipe cutting machine includes a cylinder feeding rack, a fixed rack, a cylinder chuck, built-in tools, and a positioning switch; the cylinder feeding rack clamps the steel pipe and drives it to move forward, moving through the fixed rack to the desired length; the cylinder on the fixed rack clamps the steel pipe; the cylinder chuck clamps the square pipe and the built-in tool rotates to cut the steel pipe. By reasonably setting up components such as the transmission motor, cylinder, built-in tool, and positioning switch, production efficiency and precision are effectively improved.
