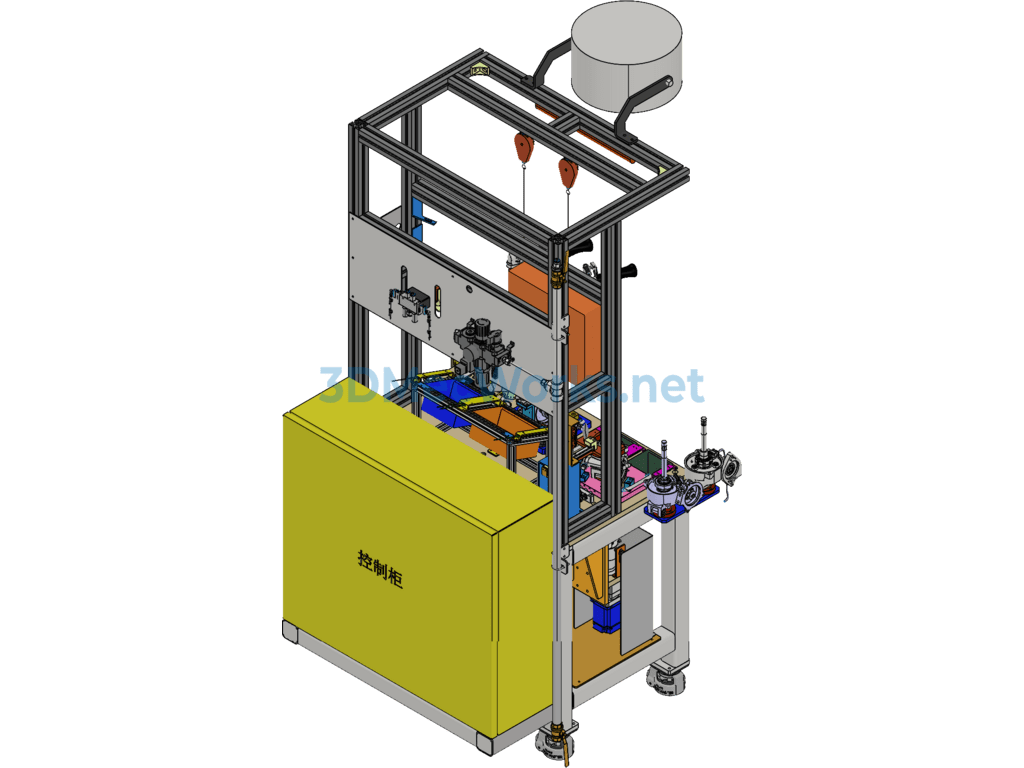

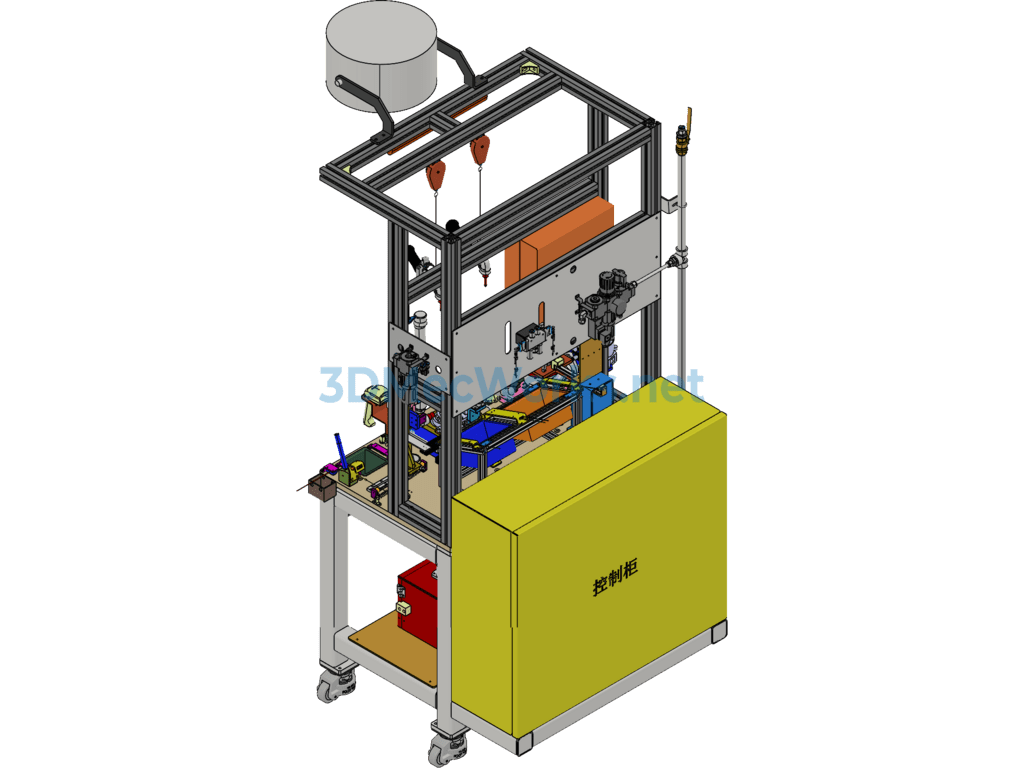

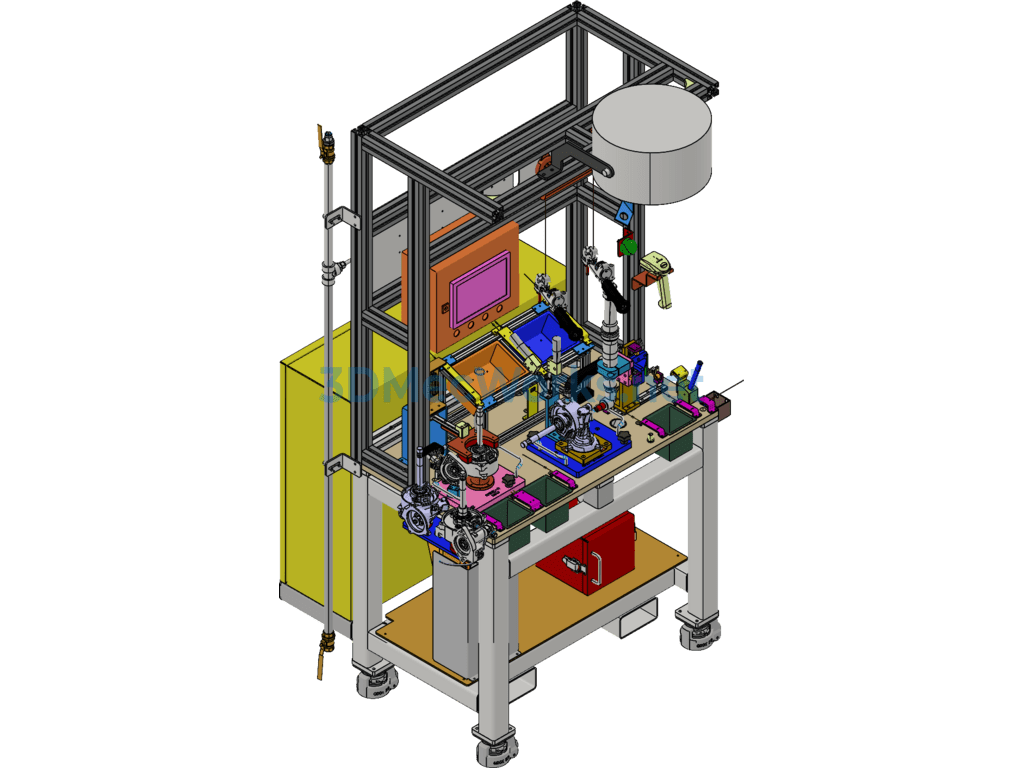

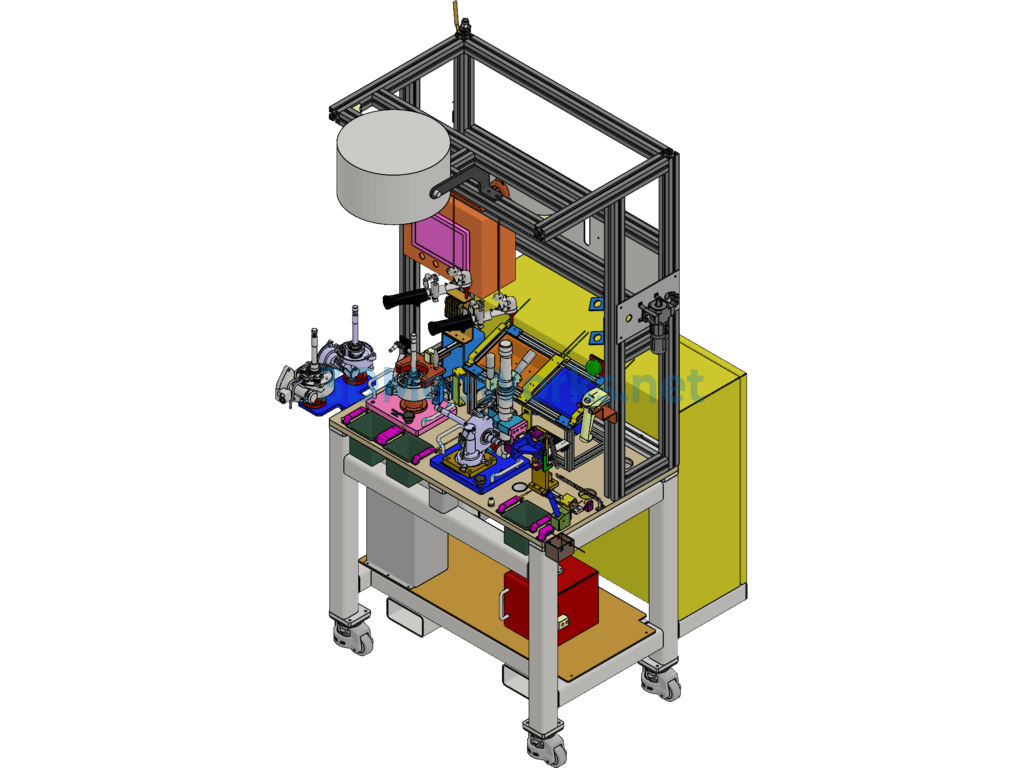

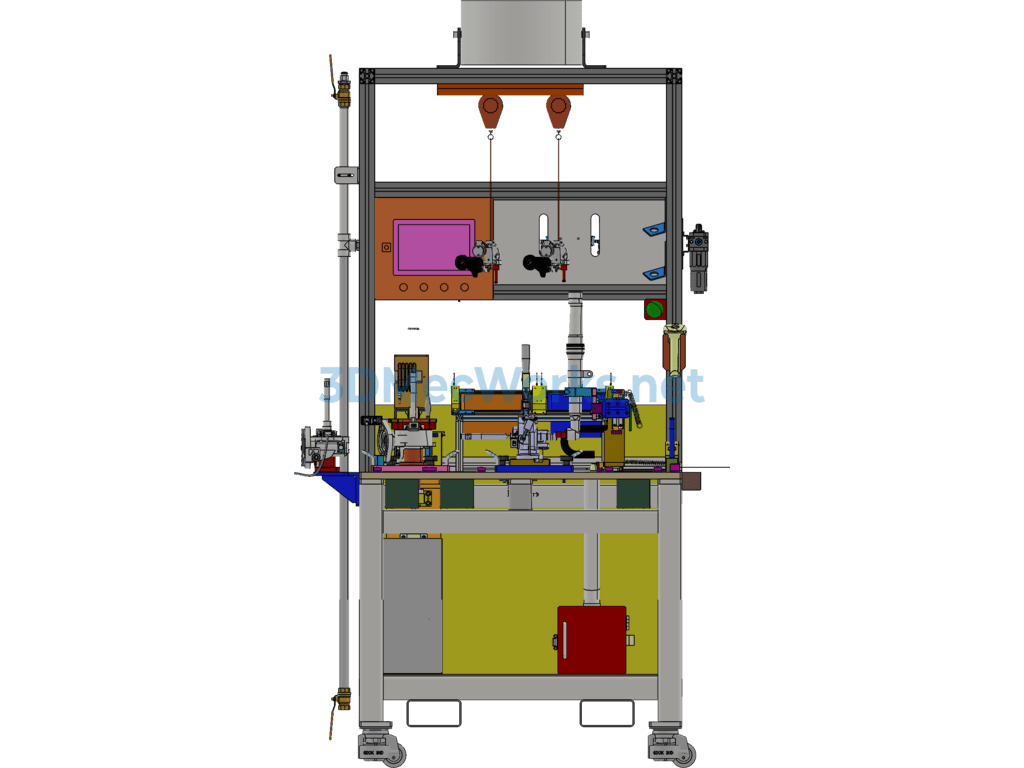

Tubular Column Output Assembly Station_x000D_
1. Purpose: Lock screws of tubular column output component; friction testing of tubular column output component;_x000D_
2. Compatible products: ES8D, ES8H, ES8F, ES8L2

Specification: Pipe Column Output Assembly Platform - Inventor - Free Download

Design Software	Inventor
Editable	Editable, With parameters
File Formats	step(stp)~\|~ipj~\|~ipt~\|~iam
Industry Application	Mechanical Equipment
Sharing Level	Diamond
Version	2016
