Pipe-Climbing Robot Designed in Solidworks 2018, Includes Step Format

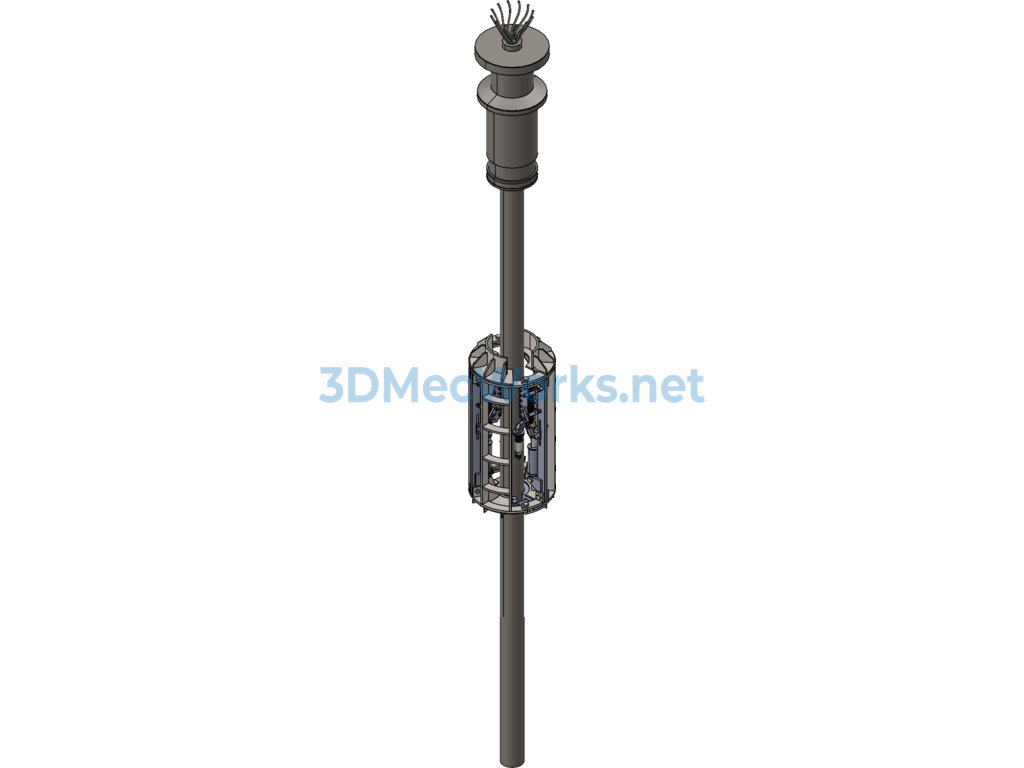

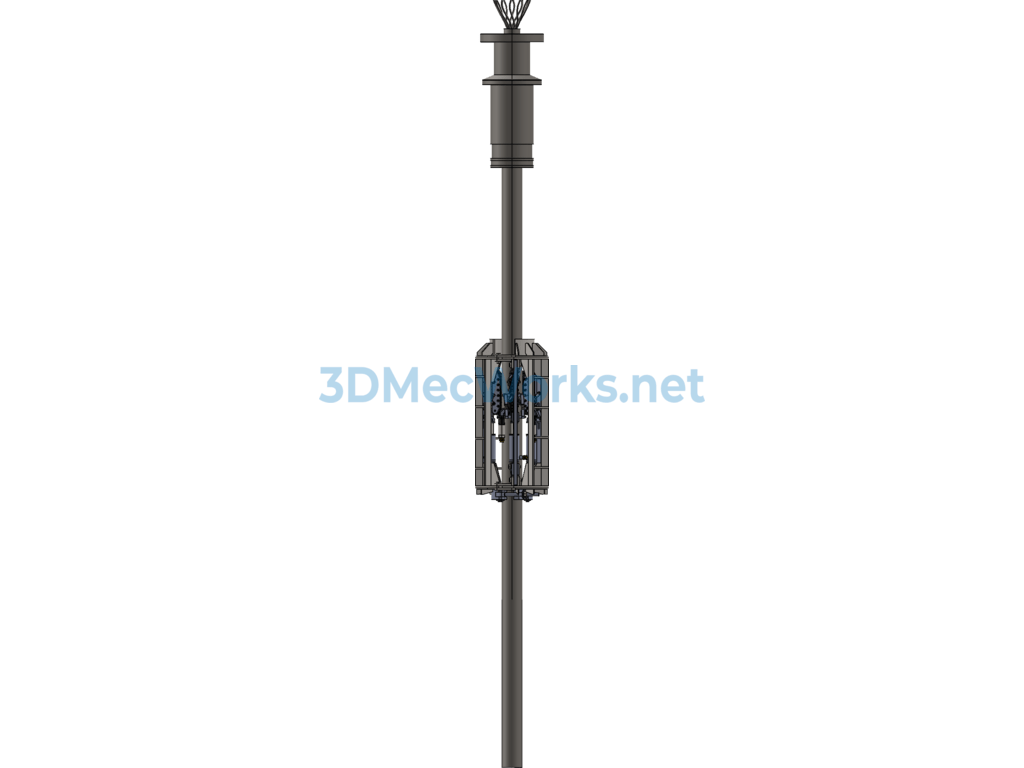

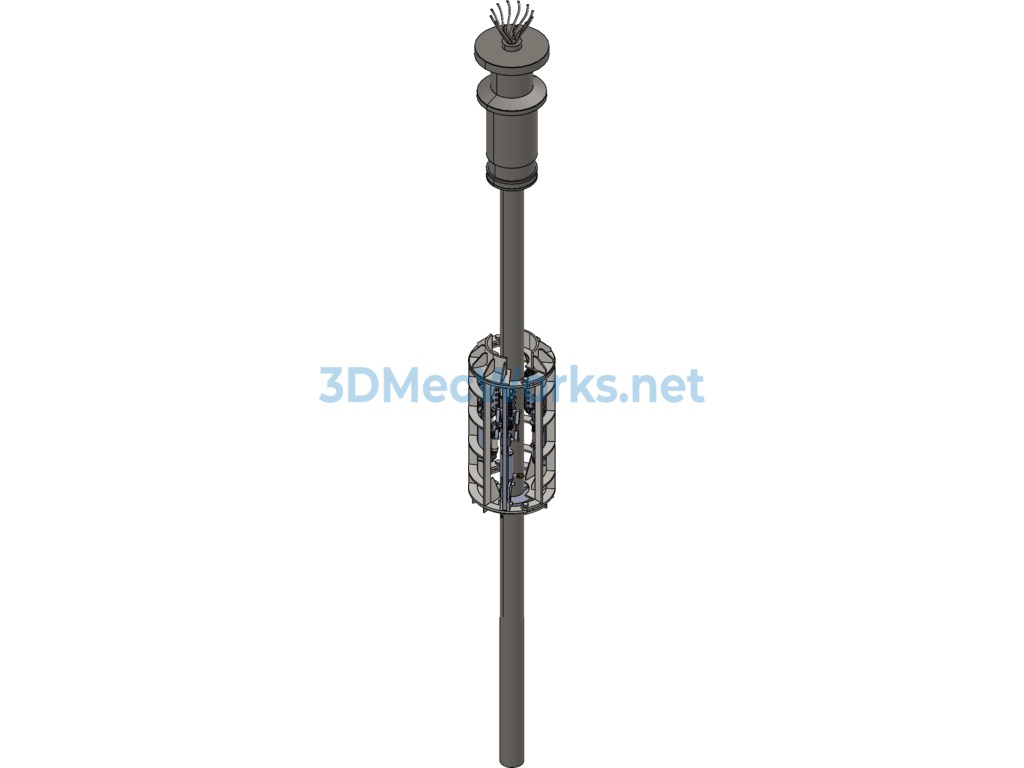

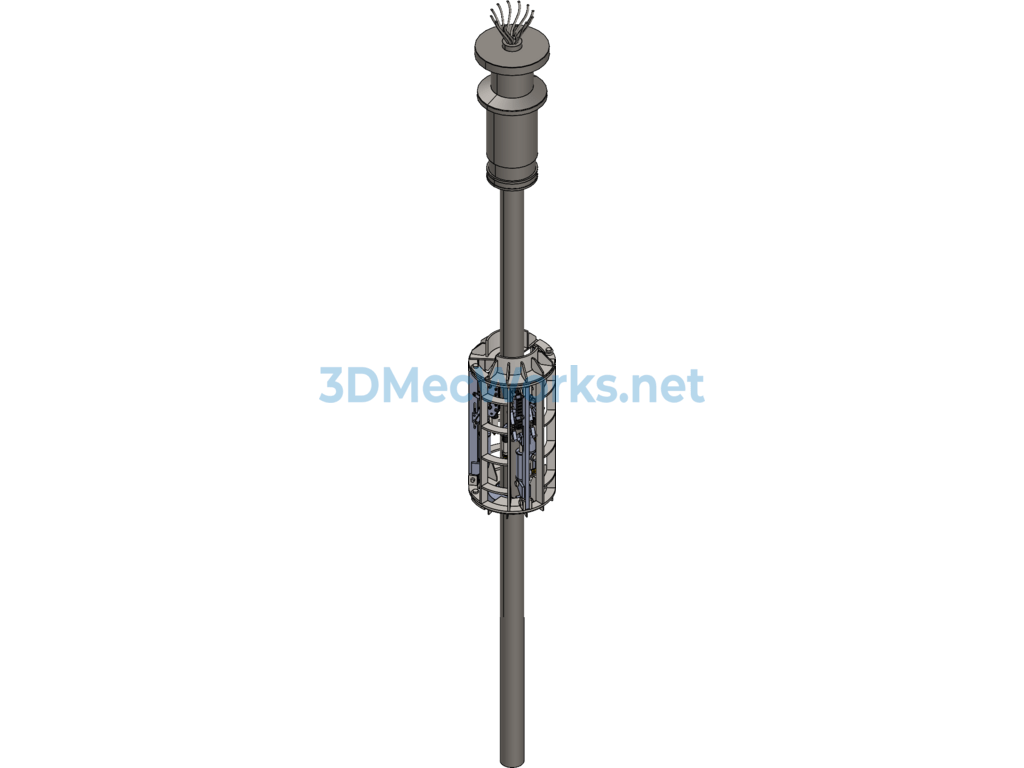

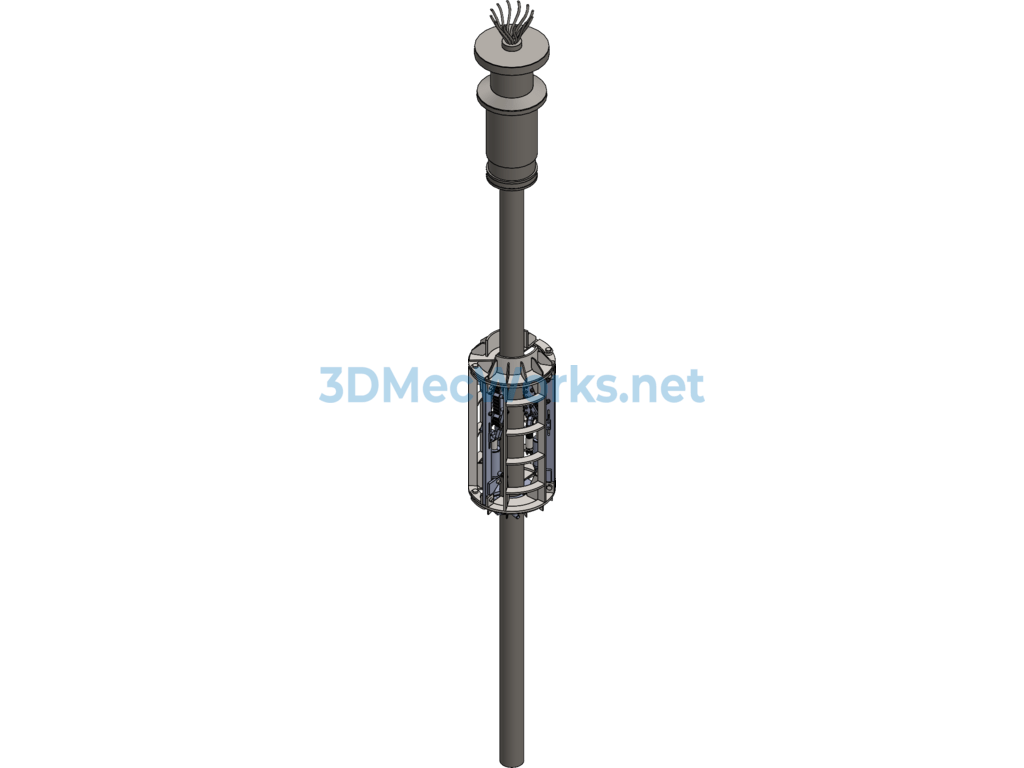

3D Modeling Drawings of Pipe Climbing Robot

Designed in Solidworks 2018, includes STEP format. Function introduction:

1. The climbing drive wheels are pressed tightly against the pipe wall by pneumatic or hydraulic pressure, and the climbing drive wheels are powered by pneumatic or hydraulic motors, allowing for vertical climbing;

2. It is applied in fields such as pipeline cleaning, pipeline electromagnetic damage detection, and pipeline maintenance;

3. The climbing drive wheels provide power to the robot.

4. Pneumatic or hydraulic power sources provide stable and reliable power, enabling the robot to work in wet environments.
