Pipe Chamfering Machine Sw Design

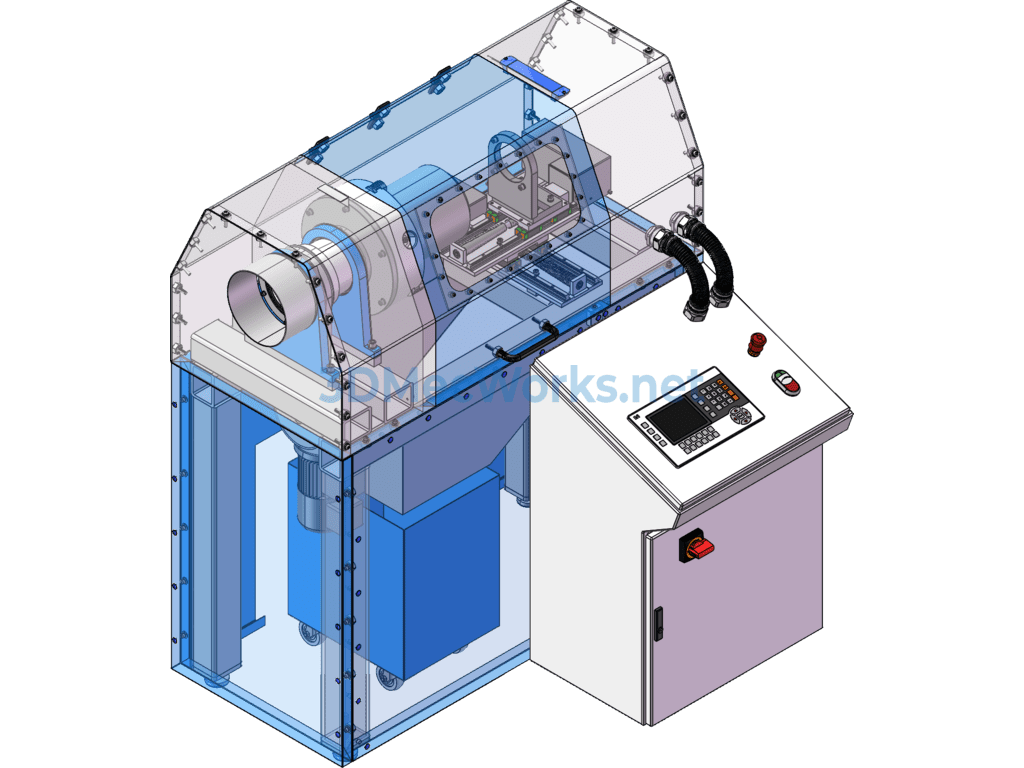

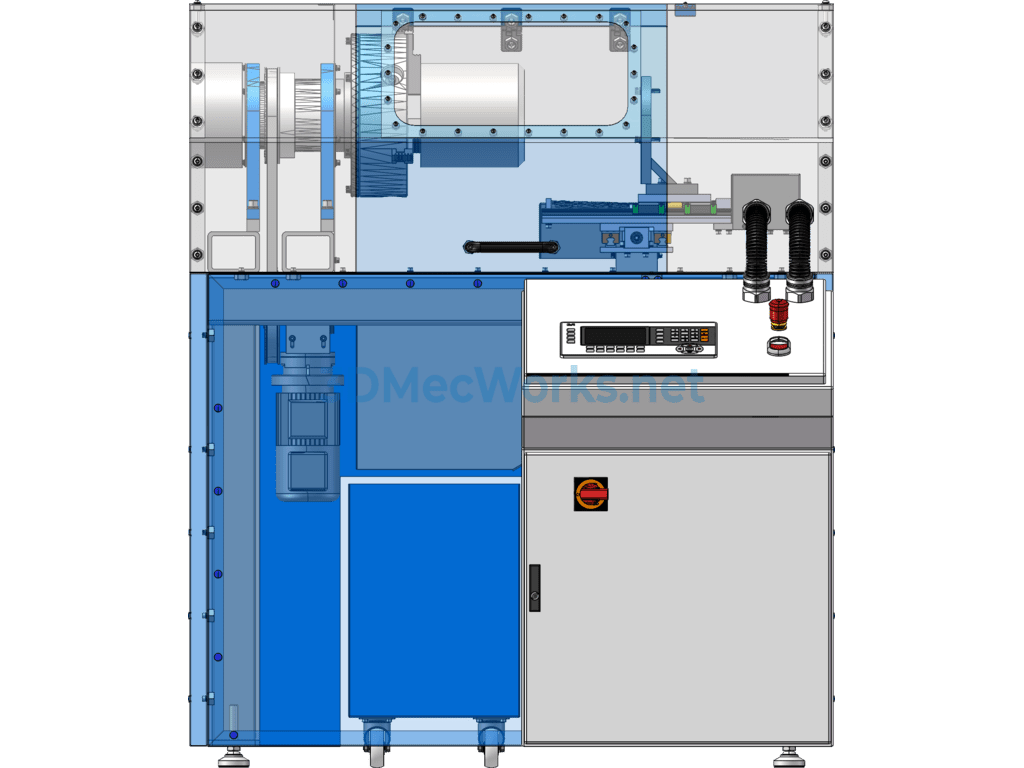

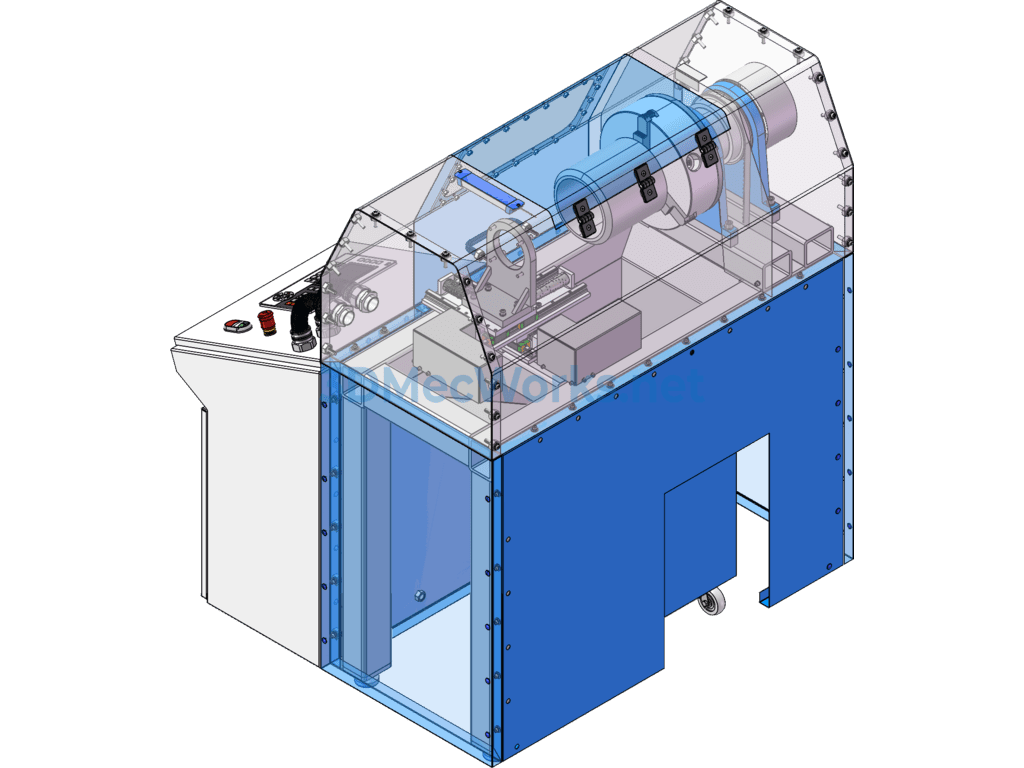

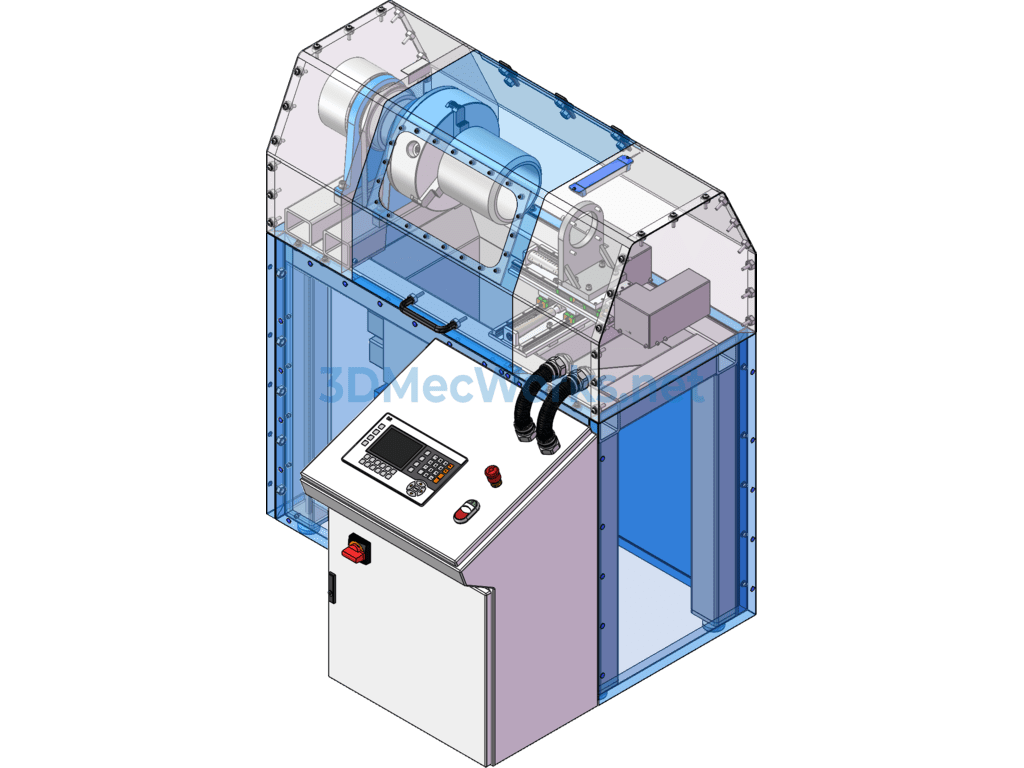

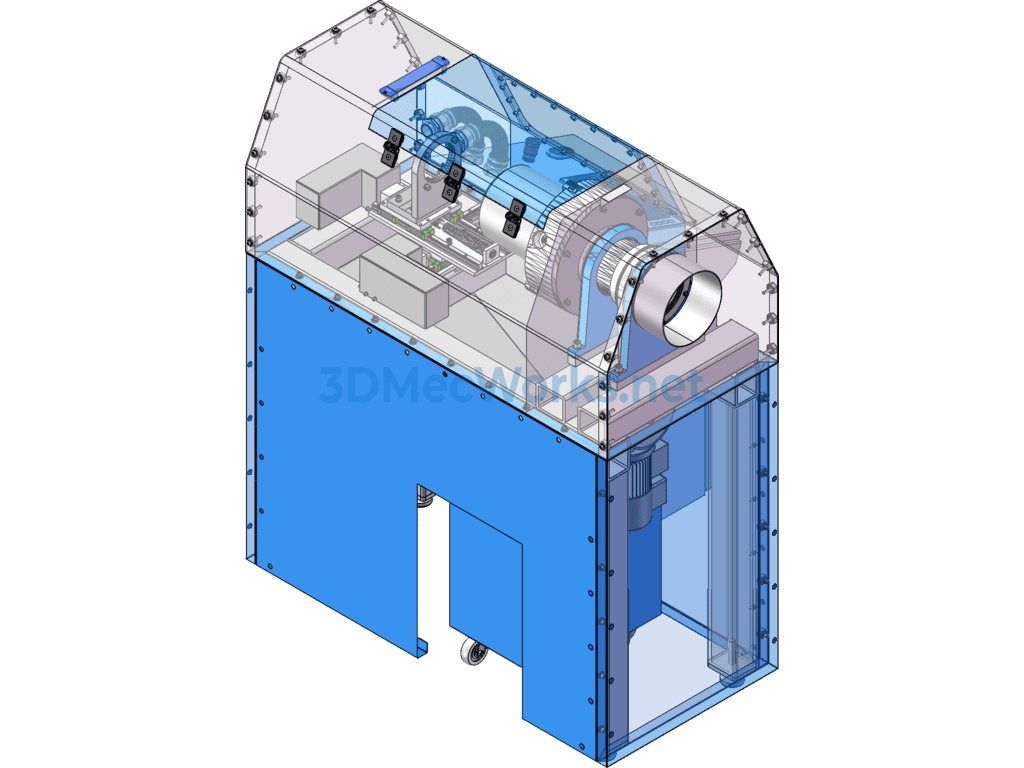

A pipe chamfering machine, with a reasonable design, has produced a finished product. The 3D model of this pipe chamfering machine was designed using SW, and the source file is available for sharing.
The machine utilizes imported indexable (diamond and square-shaped) blades, which are easy to replace. It is capable of chamfering and deburring parts made of carbon steel, stainless steel, copper, aluminum alloy, powder metallurgy materials, bakelite, and more. The chamfer size is adjustable between 0-3mm, ensuring precise dimensions and a smooth surface.
