Pin Shaft Manufacturing Machine

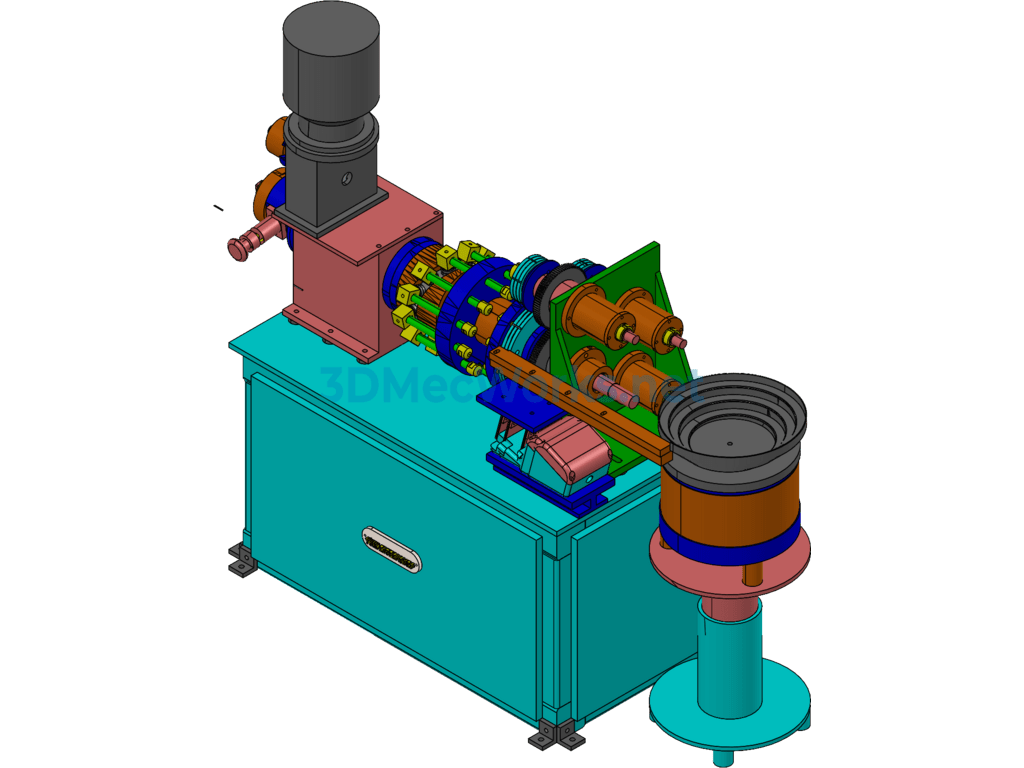

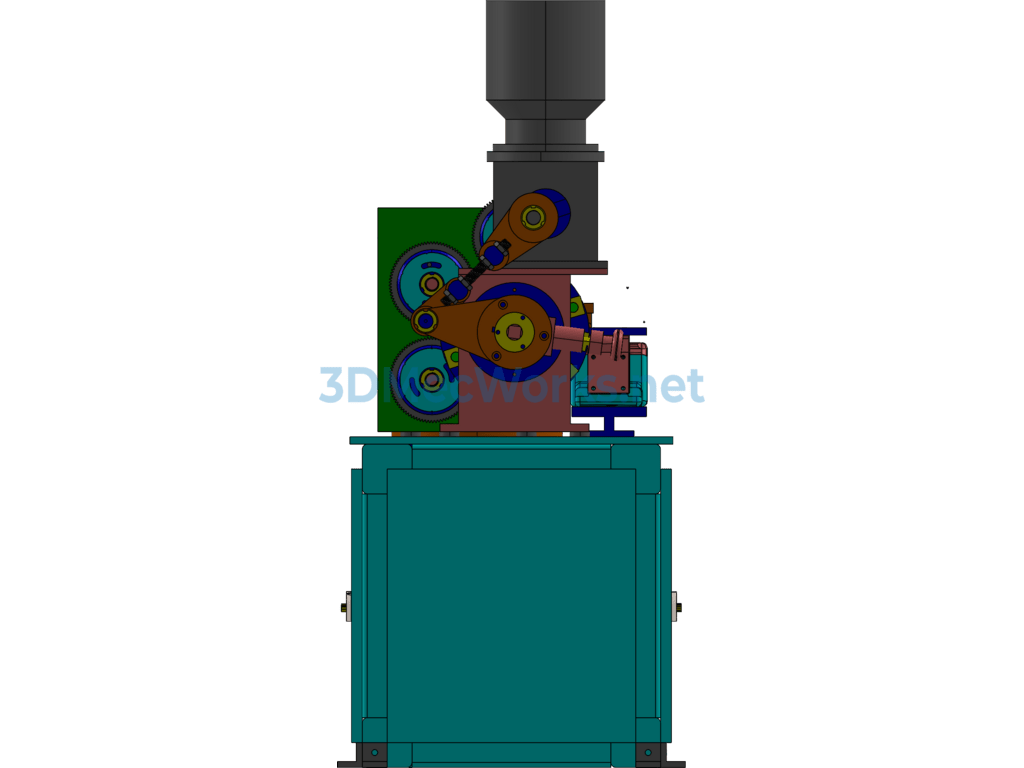

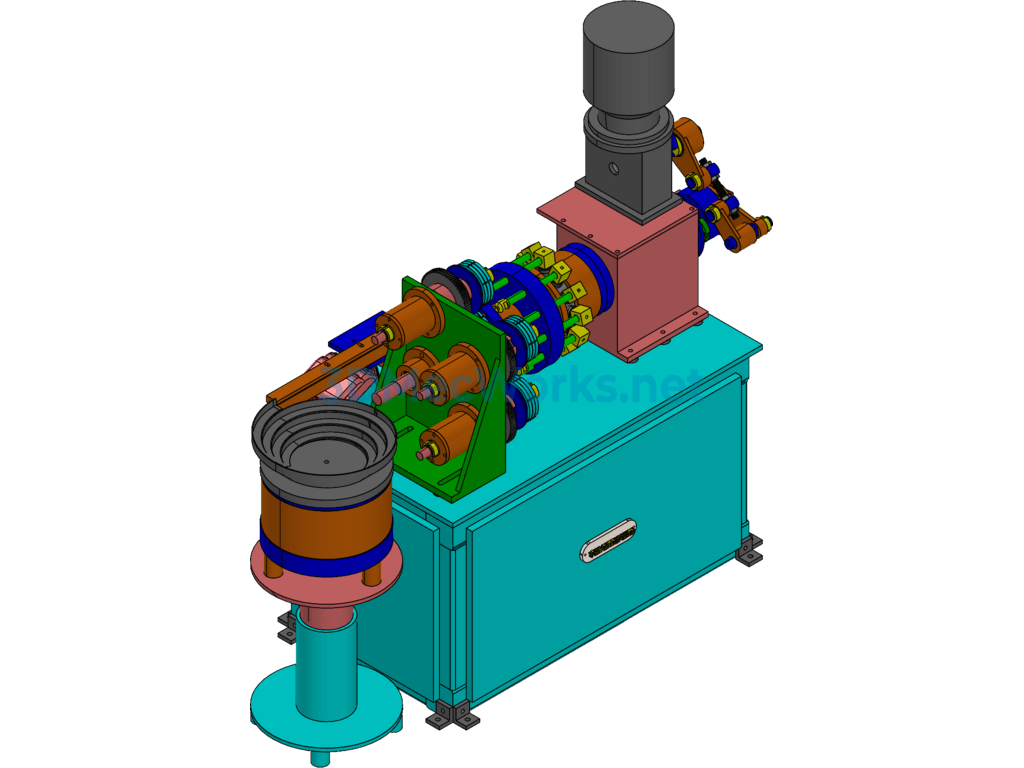

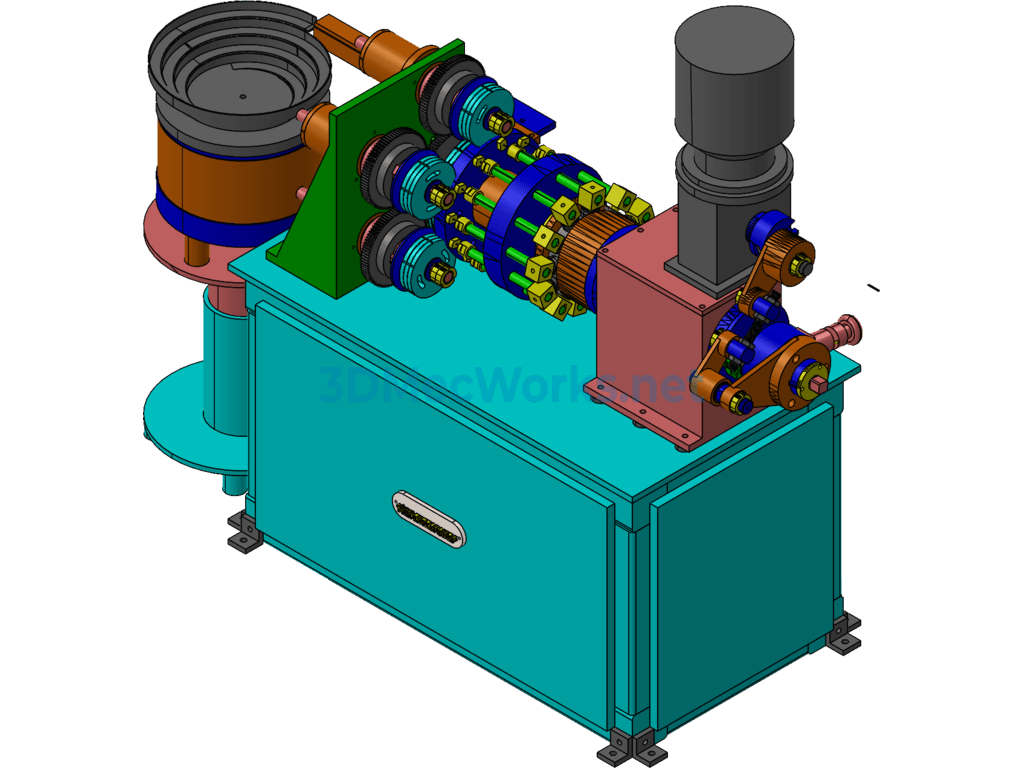

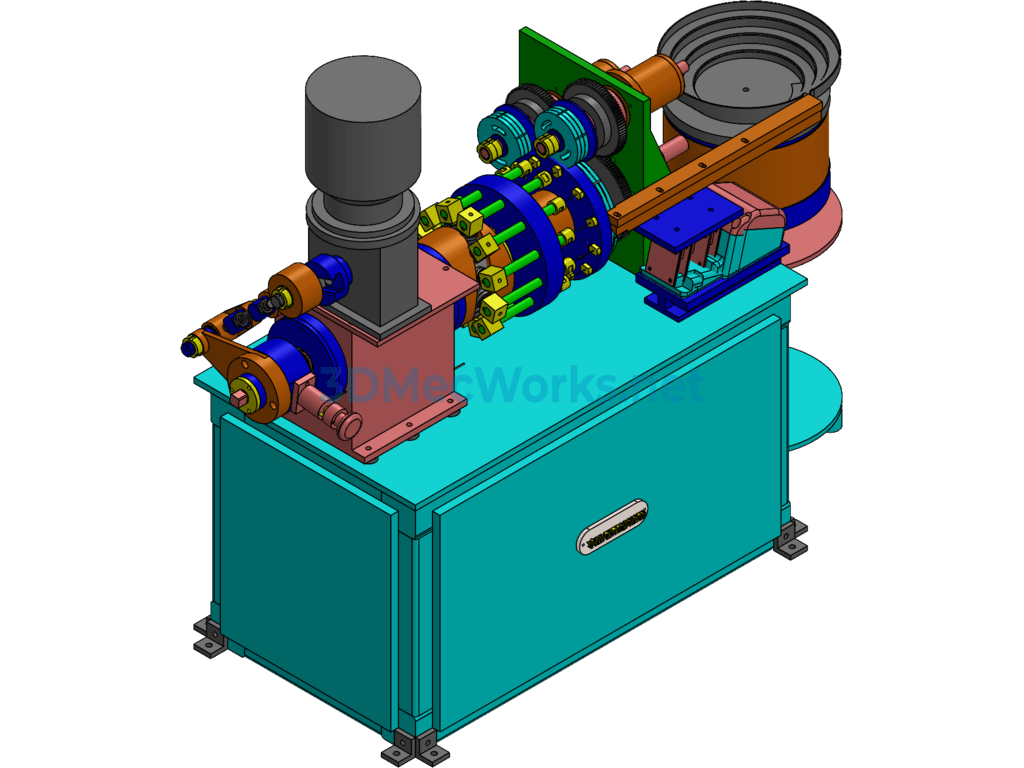

Pin Shaft Manufacturing Machine, this model is created in SolidWorks 2016, without parameters, and is editable. This equipment features a very classic mechanism with an innovative structure, using a dual-spindle layout. It includes a vibrating bowl feeder for the pin shafts and a complex turntable-style material handling system. A cylindrical cam positions the pin shafts on the turntable fixture. This is a classic piece of equipment for the fixed-length cutting of random pin shafts and is highly valuable for reference. Feel free to download and study if you are interested. An IGS format file is also available.
