Photovoltaic Power Generation Equipment: 250kw Photovoltaic Inverter

Photovoltaic inverters are indispensable electrical equipment in the process of photovoltaic power generation.
The structure of this product is modeled after the Rittal TC cabinet, and optional components are all international brands like ABB and Siemens. The design is reasonable and has successfully been integrated into the grid, meeting standards for heat dissipation and various parameters.

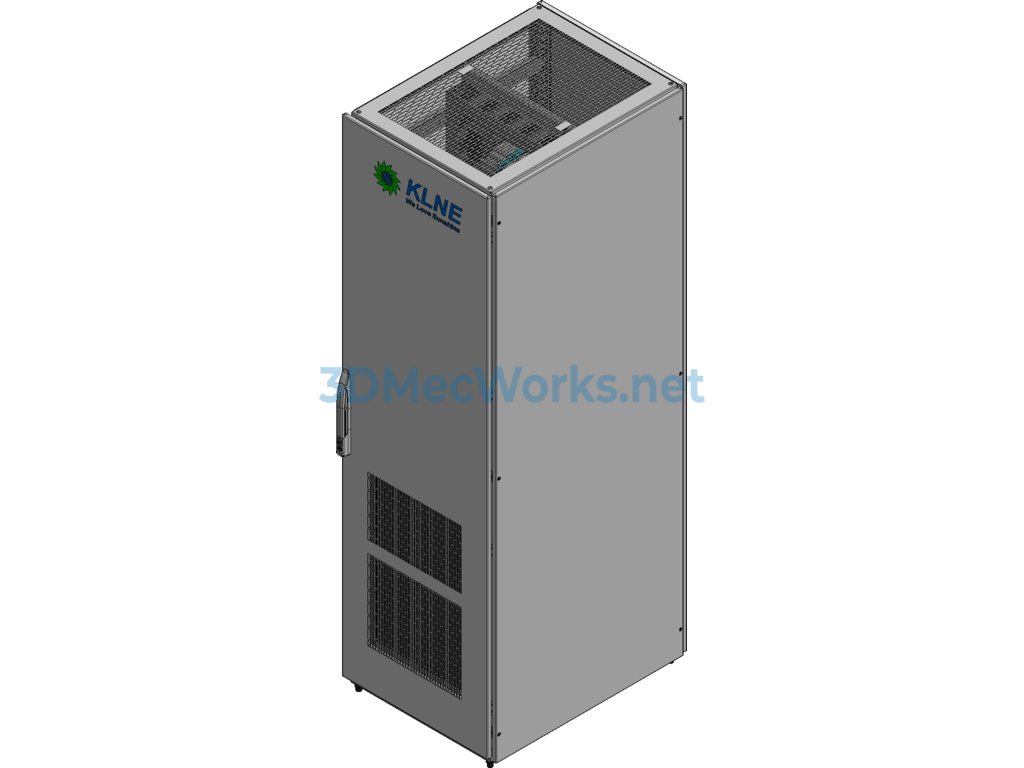

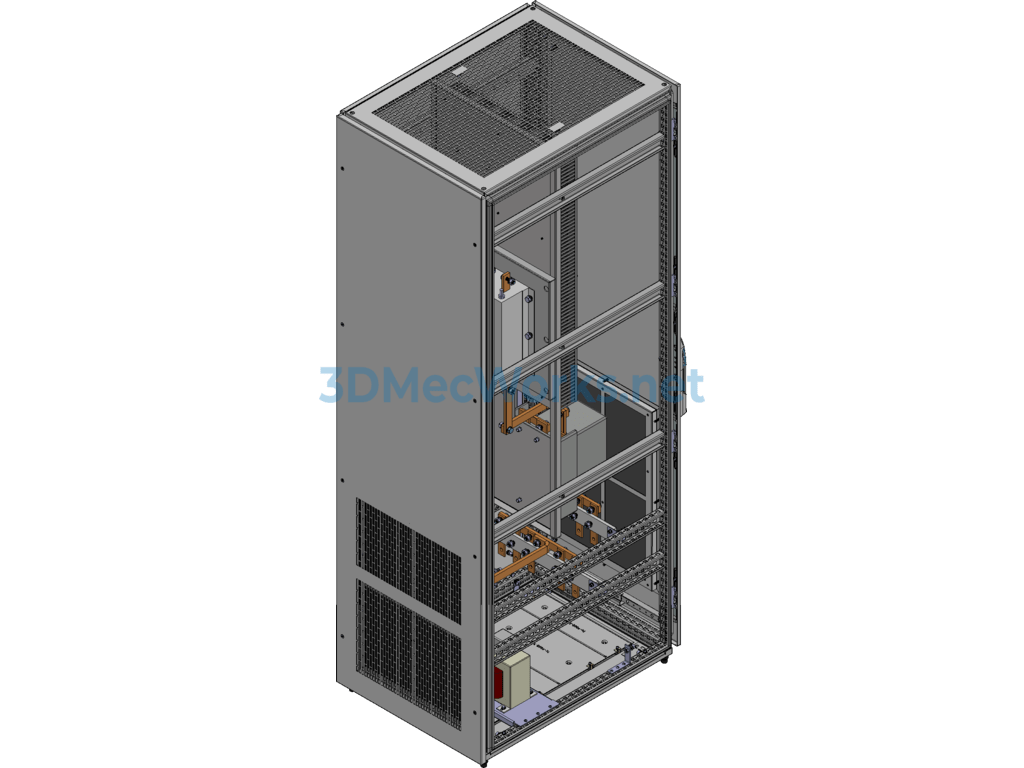

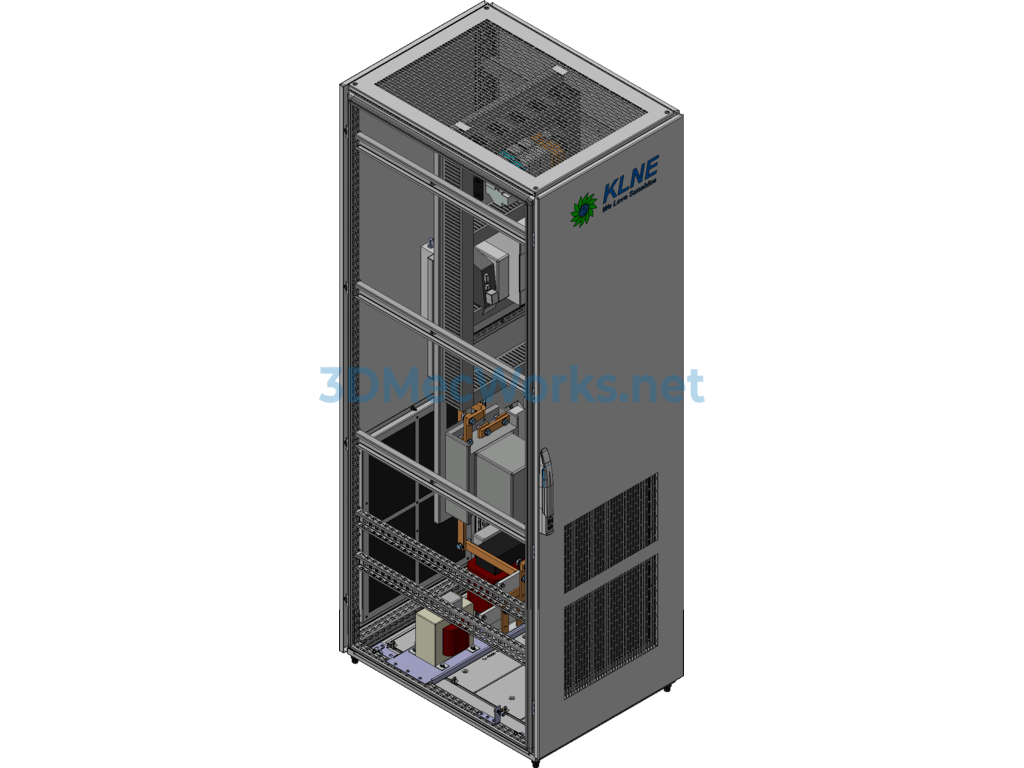

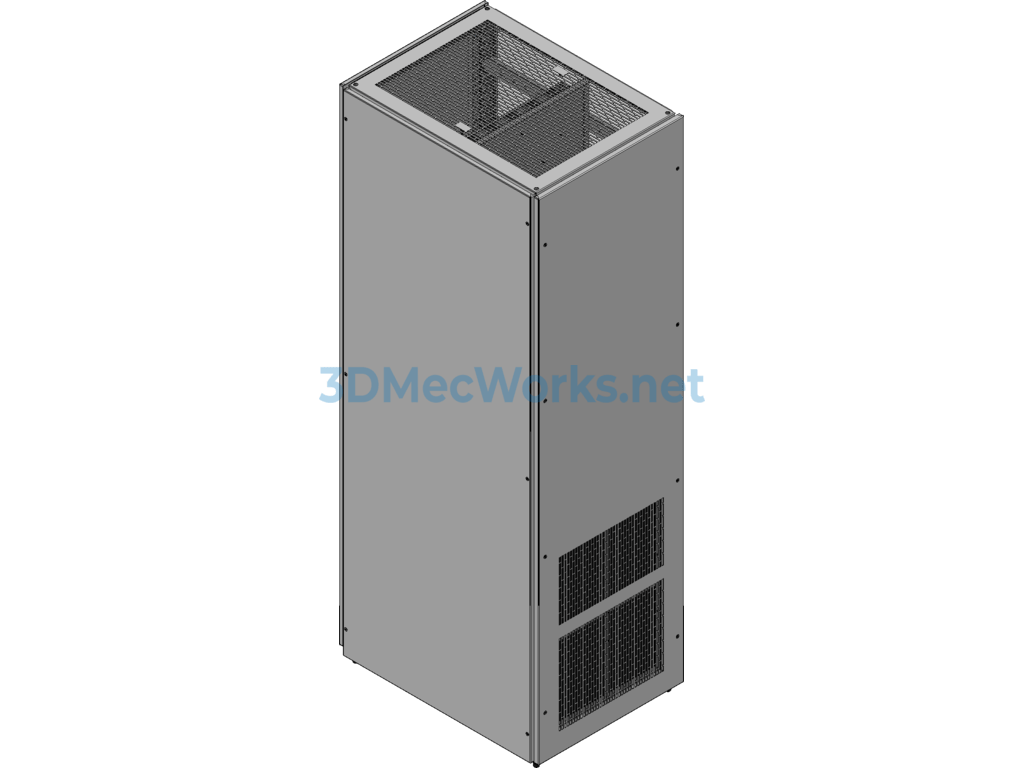

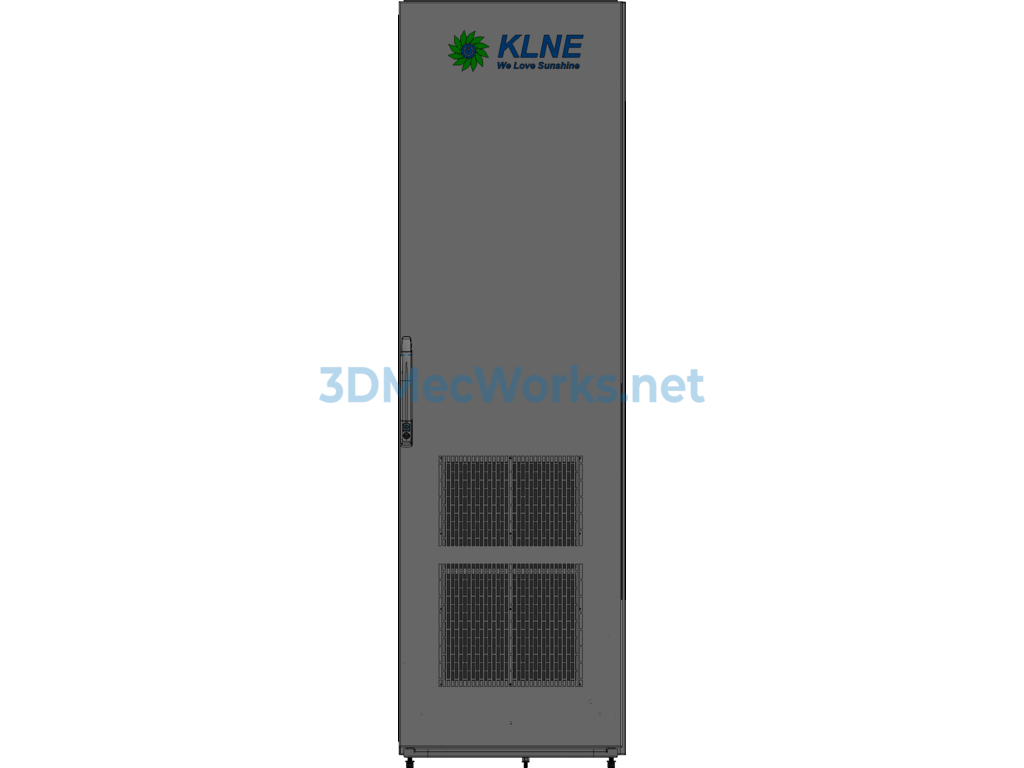

This drawing includes 3D models of cabinet design parts + CAD drawings, copper busbar processing drawings, and models of various components, offering high reference value. The overall model is divided into three sub-models converted to STP, just splice the three STP files together to get the assembly drawing!
