Pedestrian Passage System Tripod Turnstile Equipment

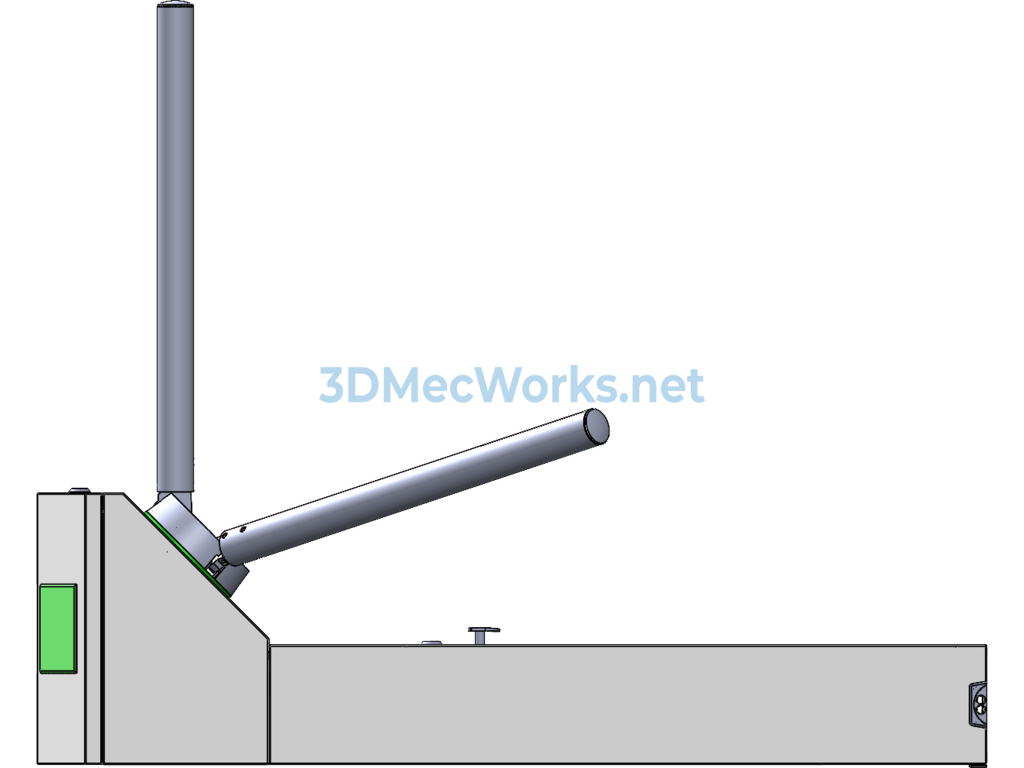

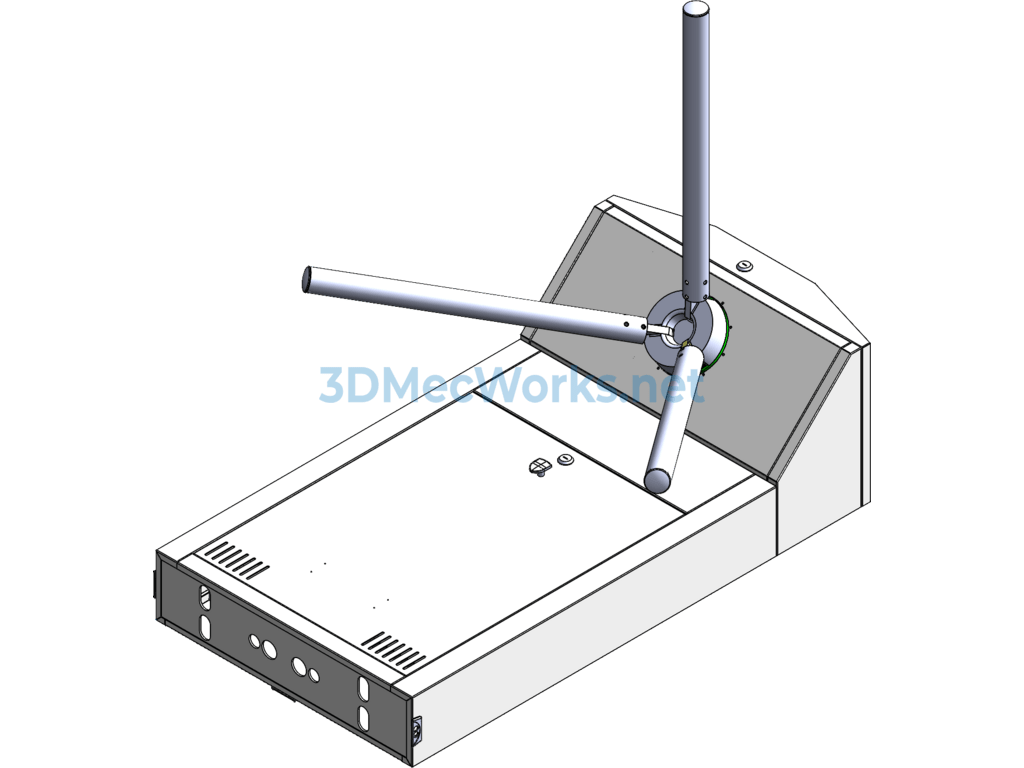

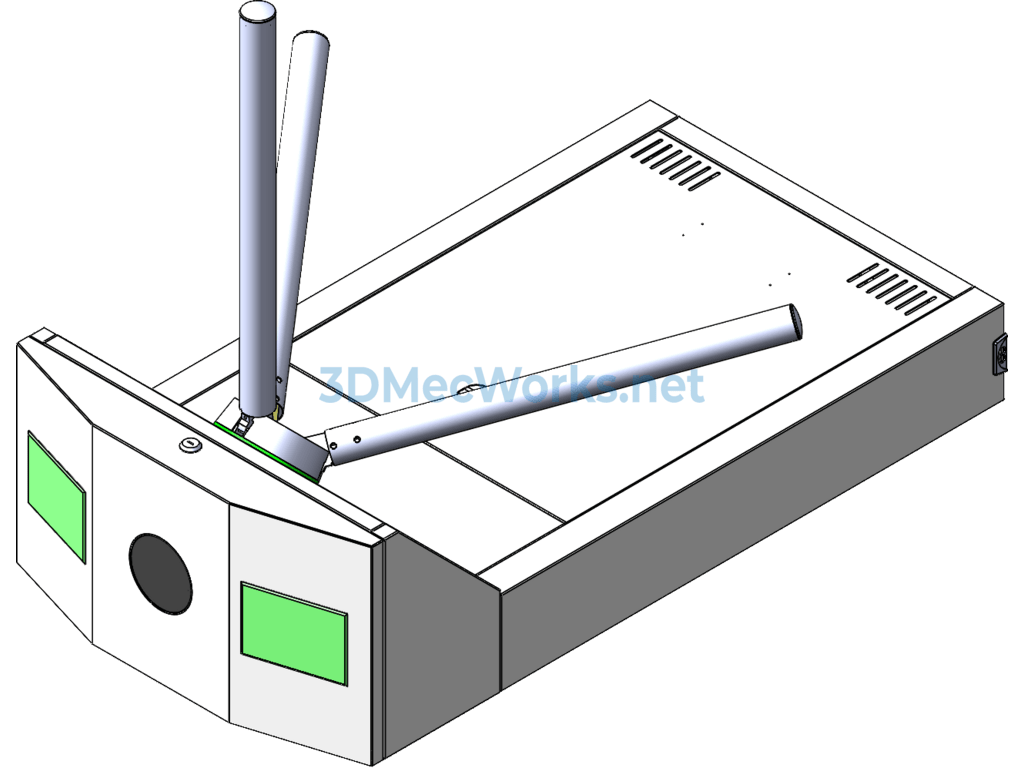

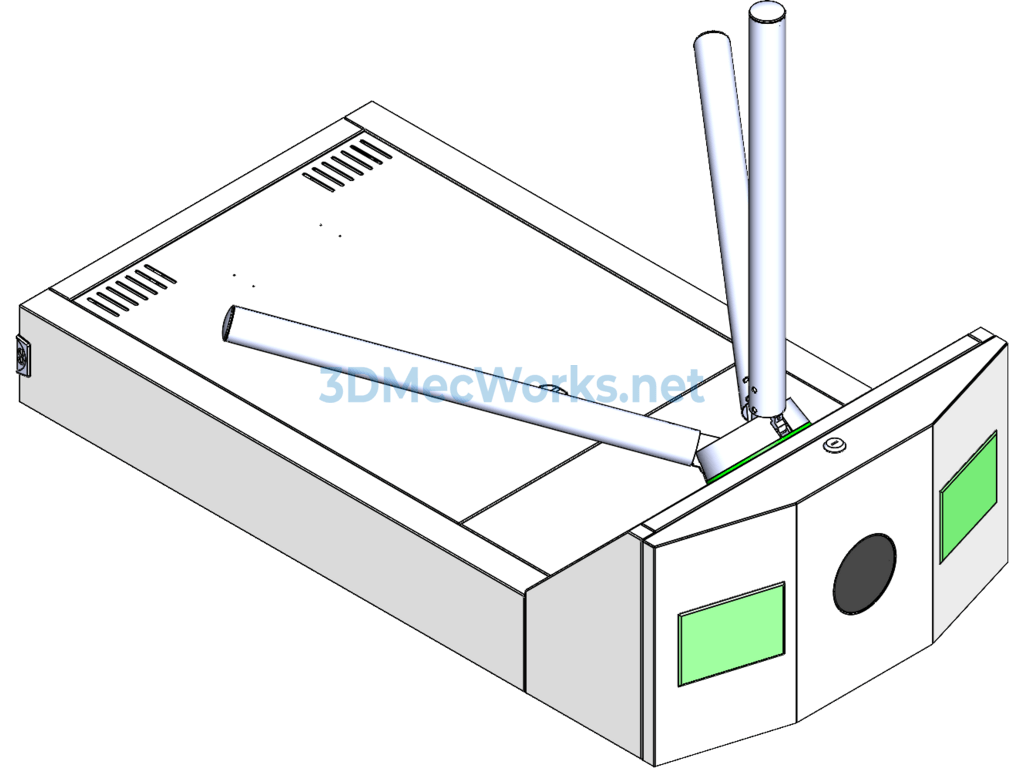

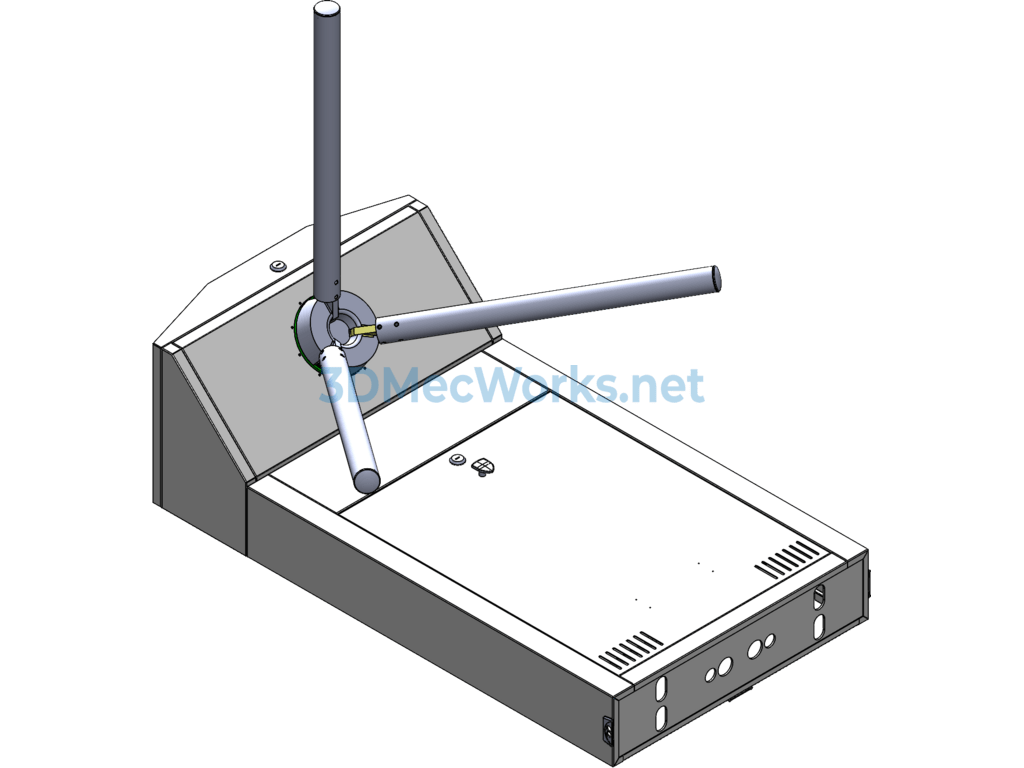

This equipment is a tripod turnstile machine that can accept input signals via QR code scanning, card swiping, fingerprint recognition, and facial recognition. It drives the electromagnetic clutch mechanism to operate the gate and is widely used in pedestrian channels such as parking lots, subways, and hotels. The drawing parameters and structure are detailed and complete, ready for direct use in production and processing. The model is an assembly containing all part files, and each part includes a reference for drawing methods. It includes relevant parameters with high reference value and has been tested to be open, editable, and modifiable in Solidworks 2014.
