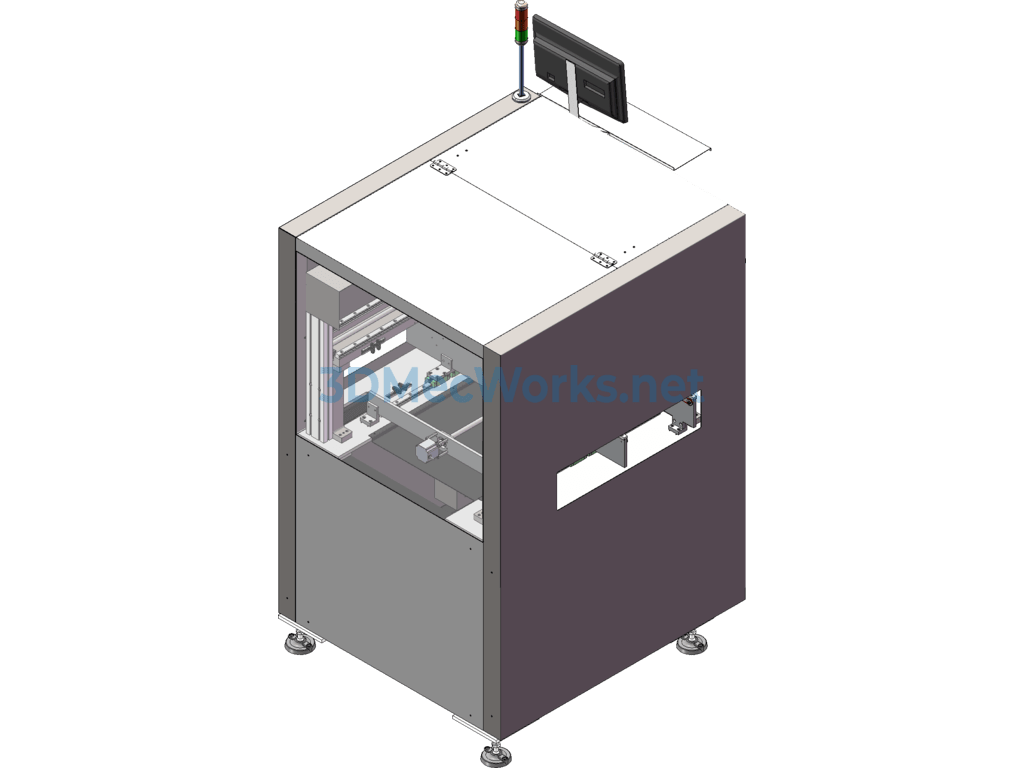

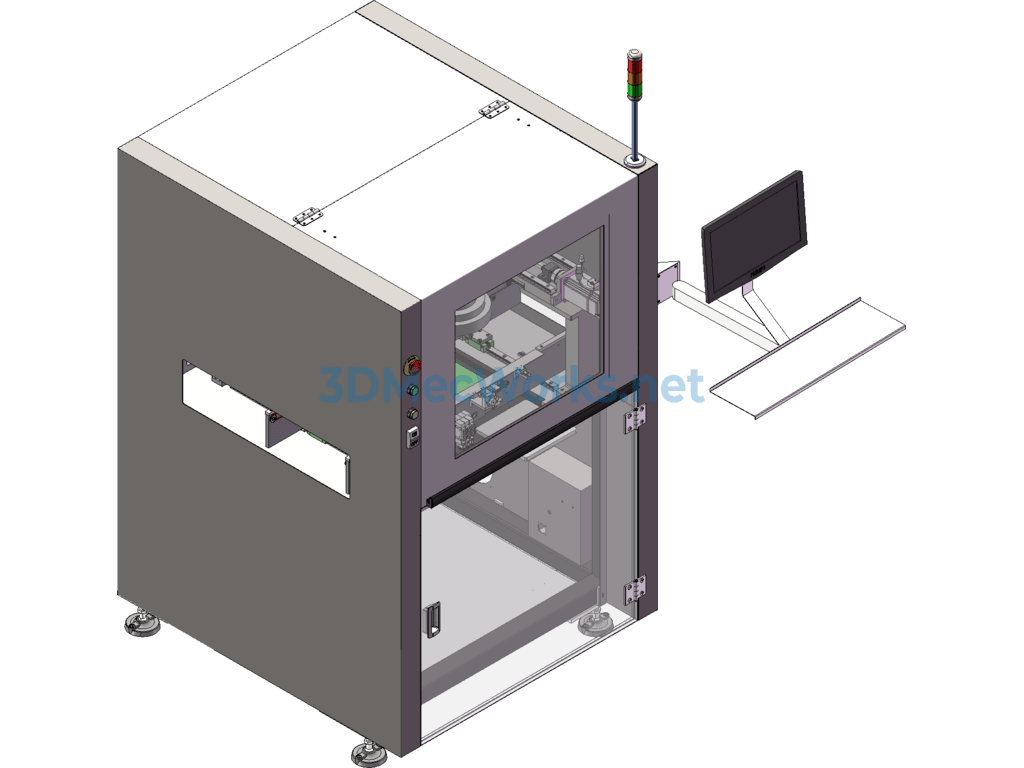

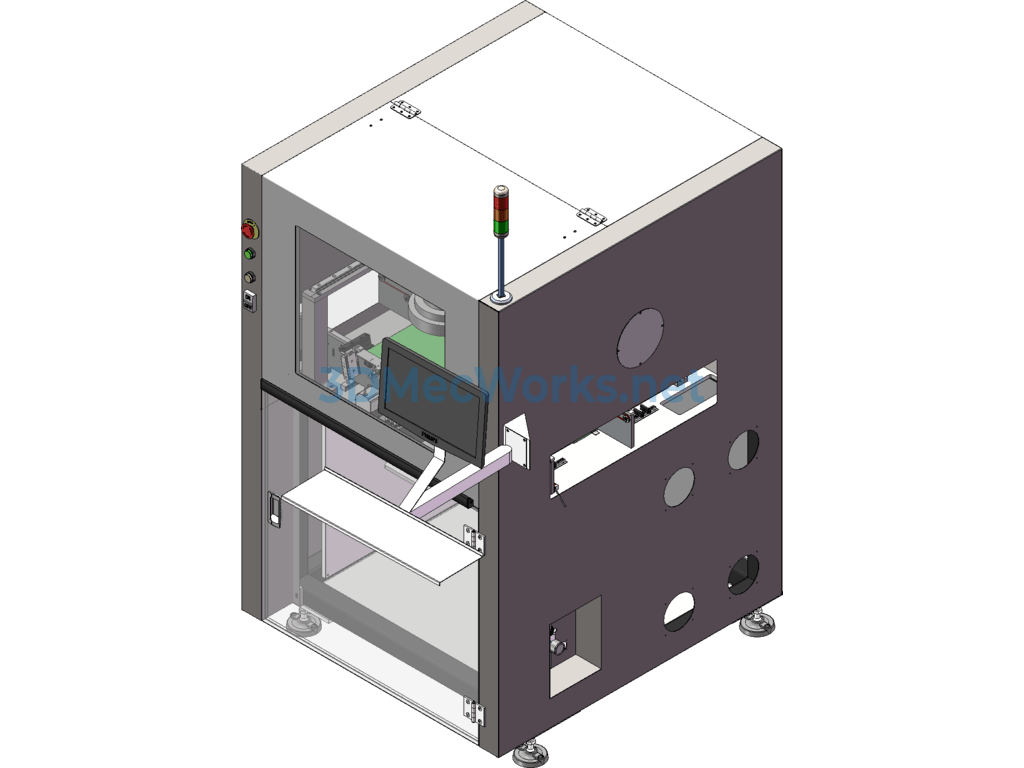

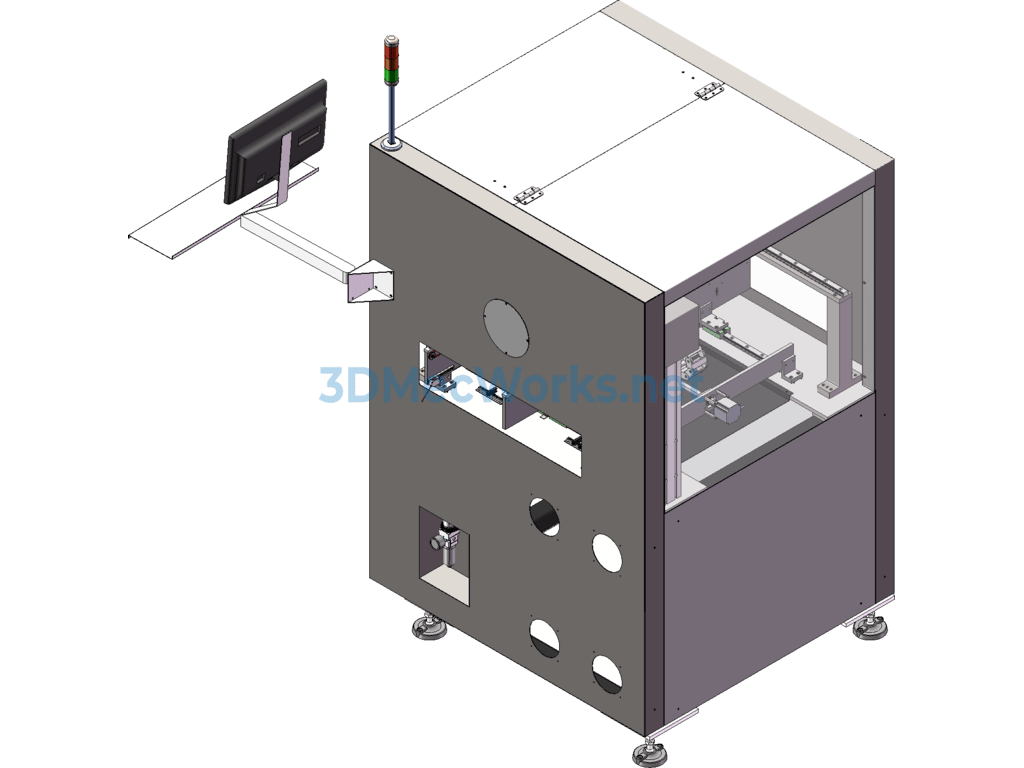

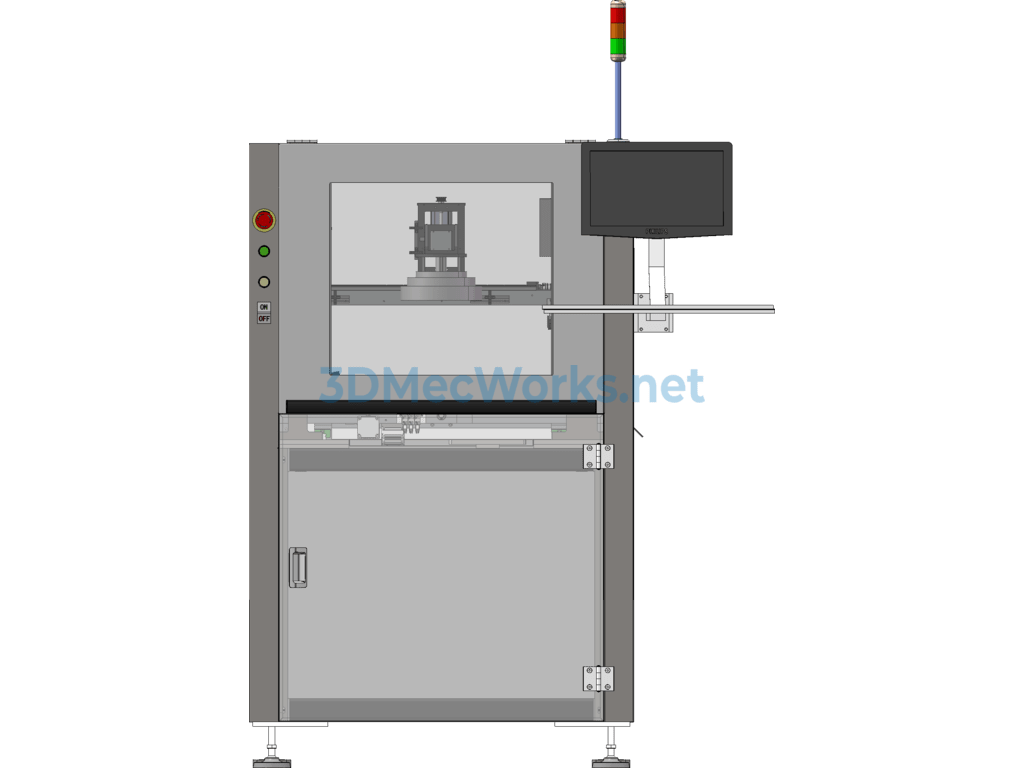

PCBA Online Visual Inspection Machine - SolidWorks - Free Download
Used for PCB board defect inspection, the device shell is designed with sheet metal, feeding panel, detection light source can be made in-house if conditions allow, YZ movement ASM, using servo motor, if space is tight, you can modify it to Panasonic or Yaskawa, XYZ movement ASM, the main crossbeam in the middle is recommended to use casting, the conveyor line body uses a servo mechanism to adjust the width automatically.
Specification: PCBA Online Visual Inspection Machine - SolidWorks - Free Download
|
