Pcb Board Flipping Machine, Rotation Mechanism Drawings

Flip Mechanism Drawings PCB Board Flipper

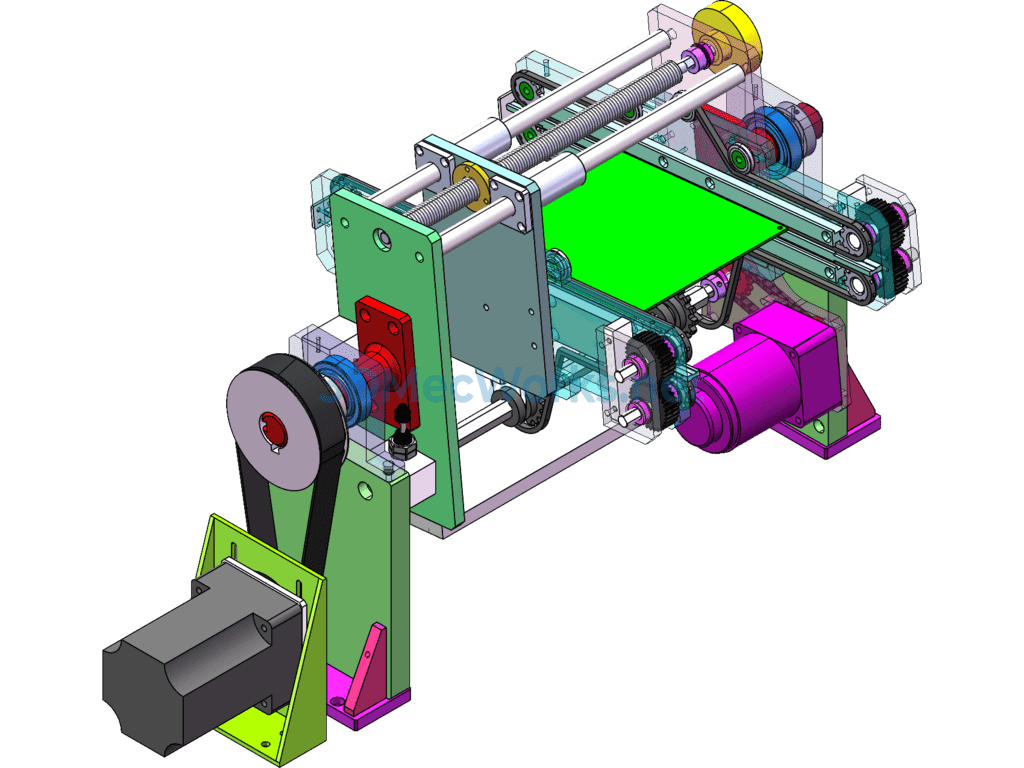

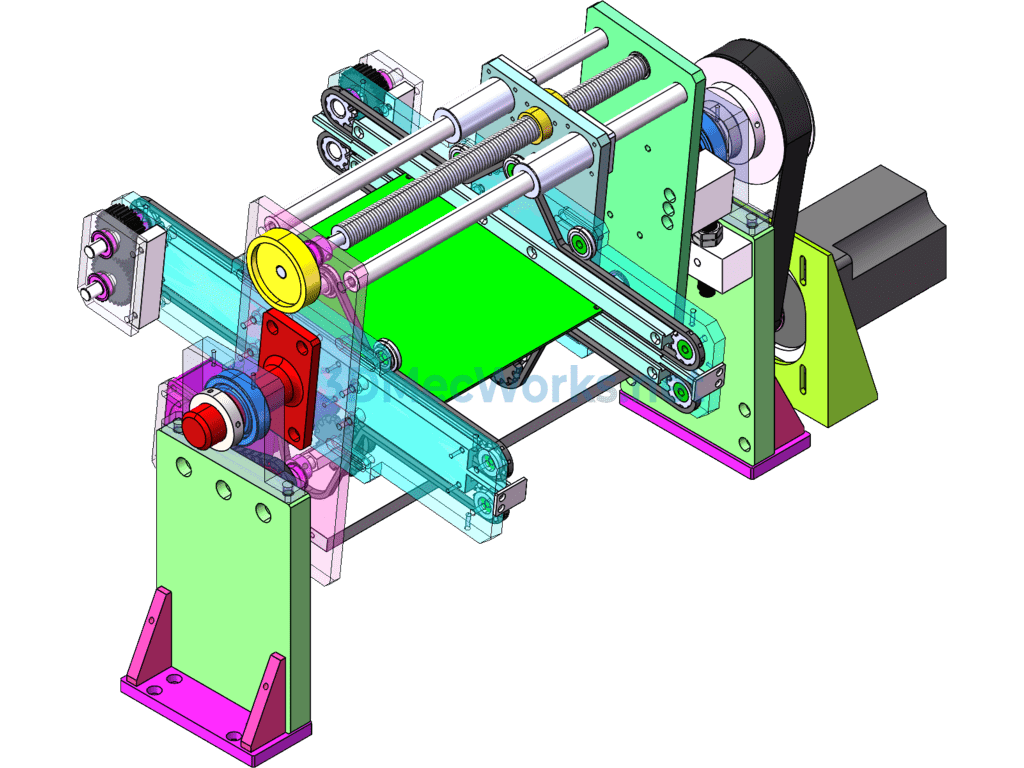

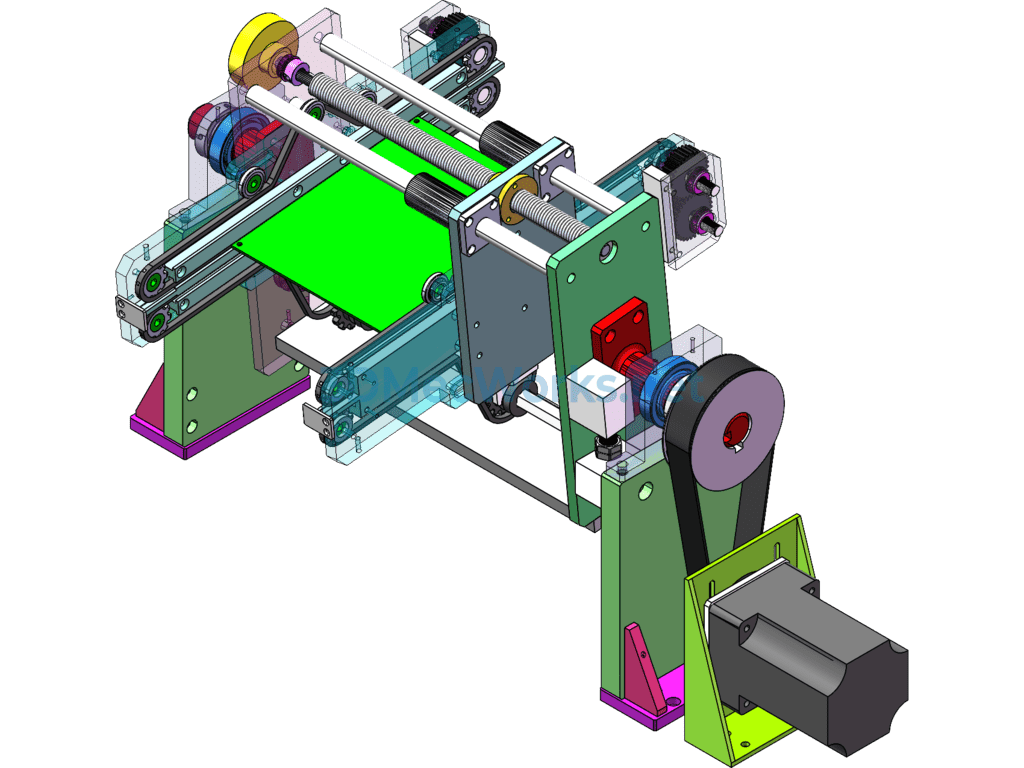

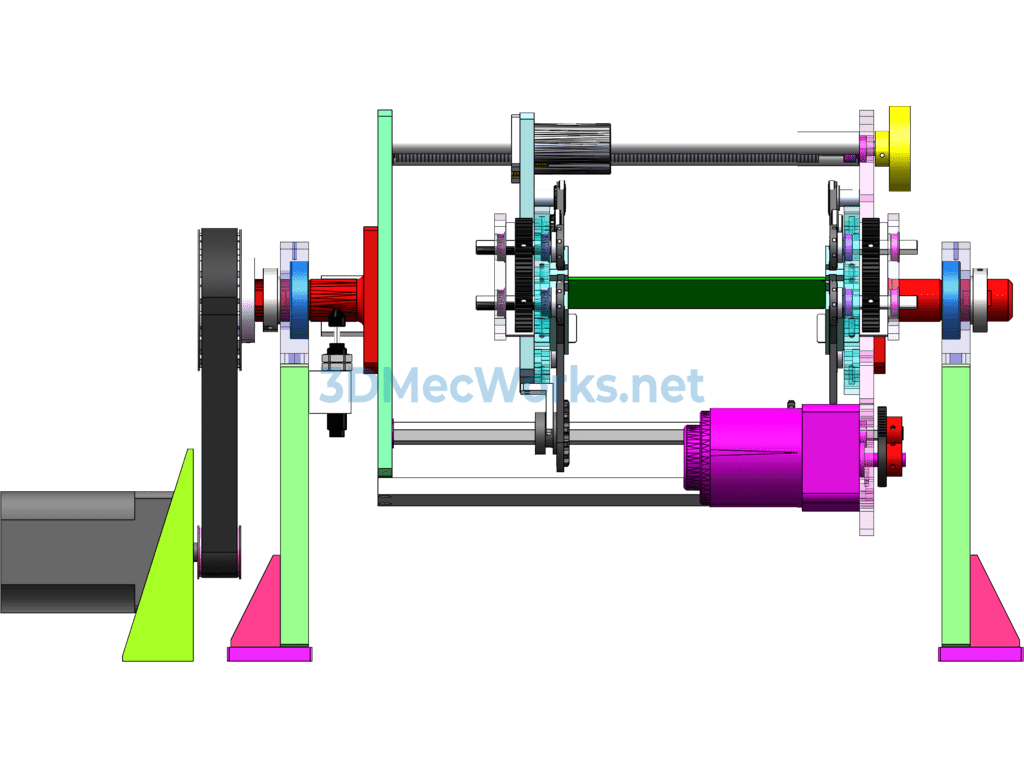

This is a set of flip mechanism drawings used for conveying products and performing flipping operations. Many products, such as PCB boards, require operations like dispensing or soldering on the reverse side after the front side processing is complete. This structure includes functions such as flipping conveyance and width adjustment. Different product specifications can be accommodated by adjusting the track’s width to fit products of various sizes. The synchronized wheel of the PCB board flipper utilizes a 1:5 ratio to ensure flipping strength and stability. This flip mechanism has been mass-produced and is very stable. We welcome anyone interested to download and study it.
