PCB Automatic Loading, Glue Dispensing, And Drying Line - SolidWorks - Free Download

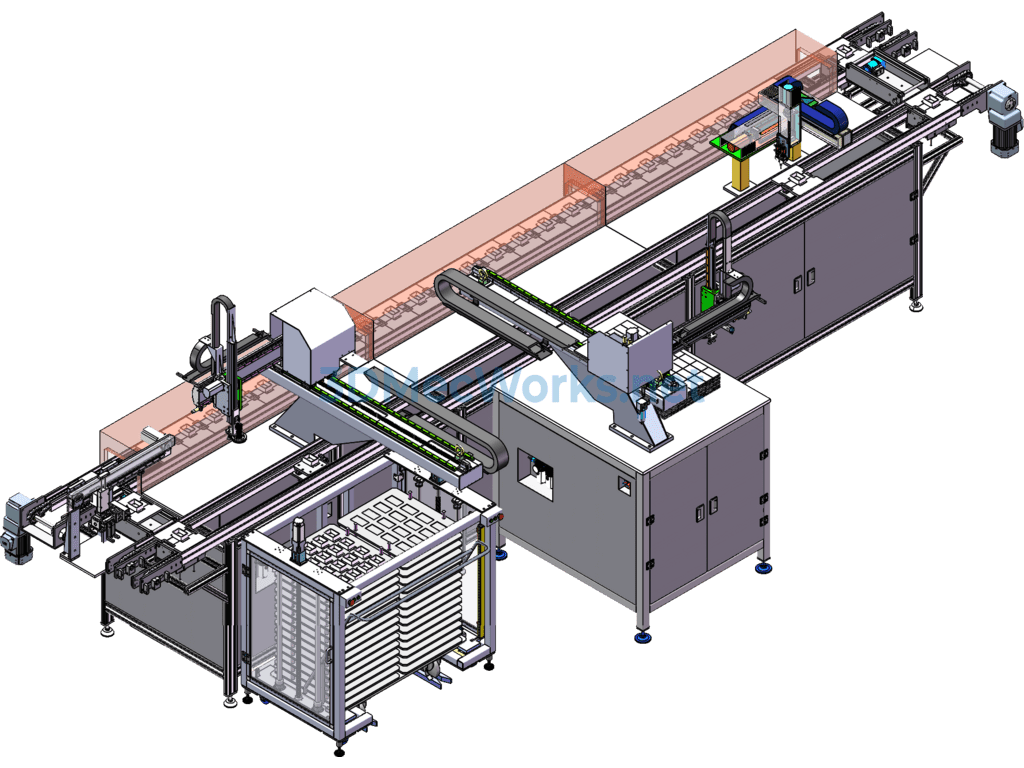

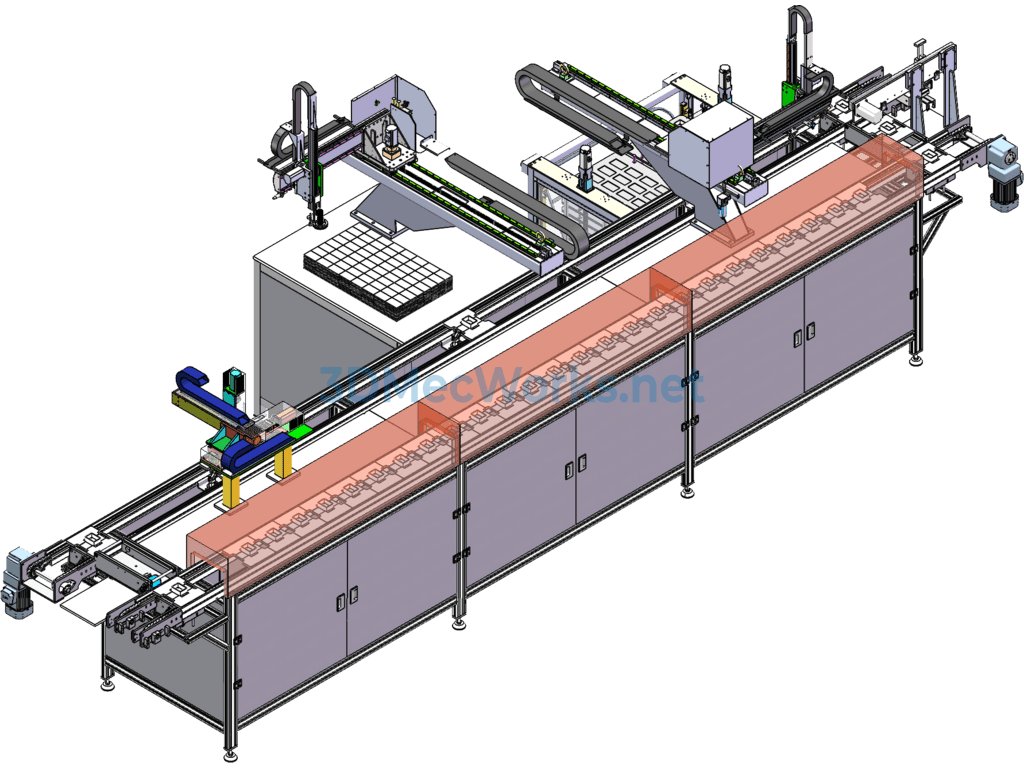

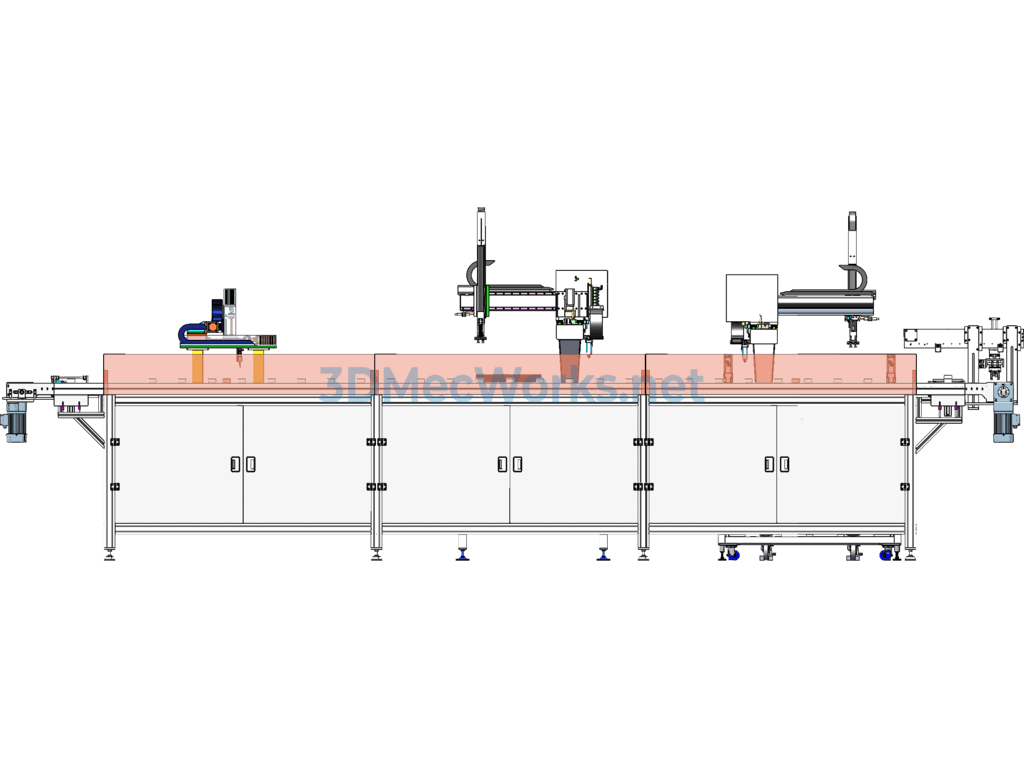

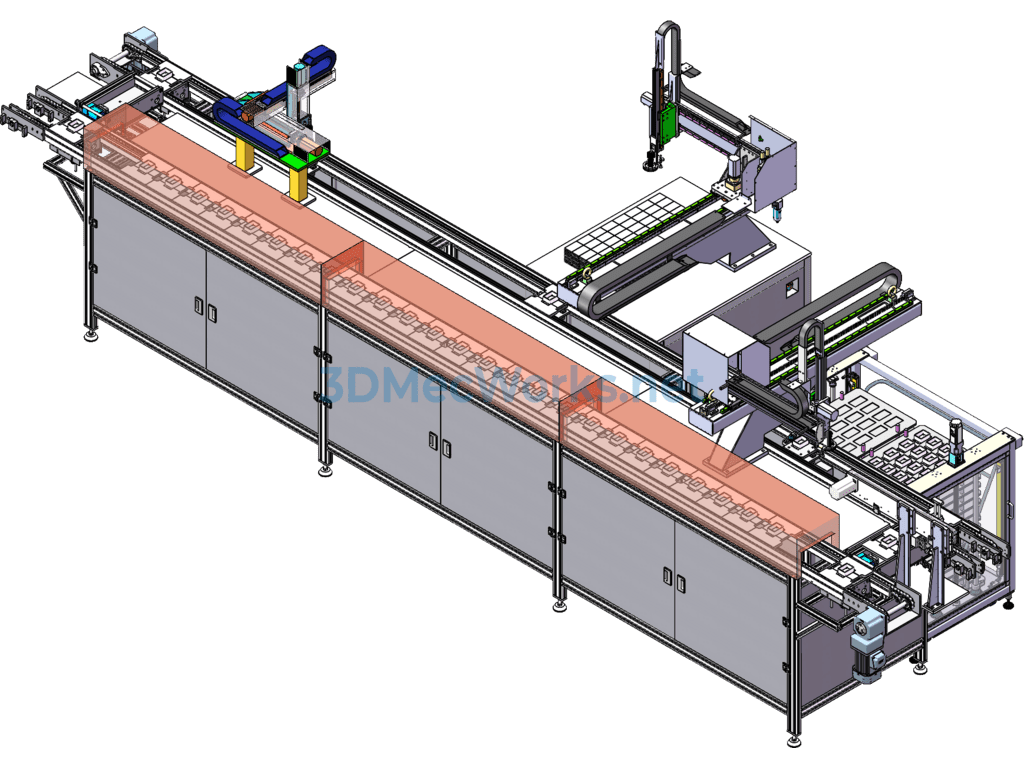

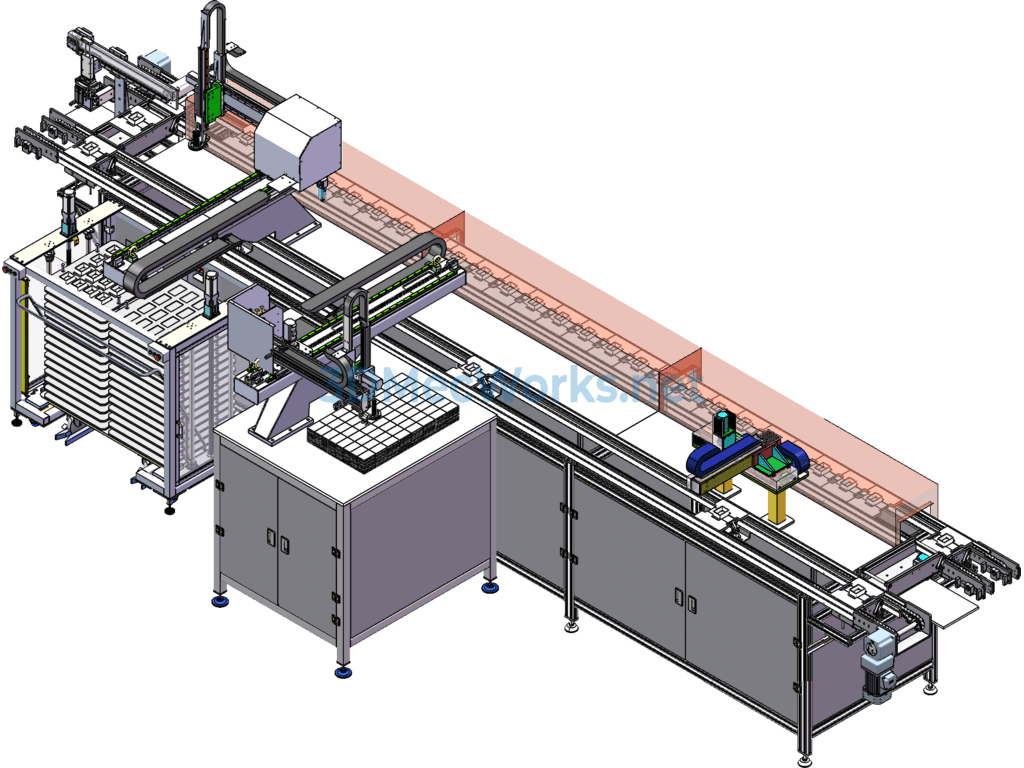

This drawing is for the automatic feeding, dispensing, and drying line of the PCB board and housing. The housing is automatically fed through a tray, with dual stations for left depalletizing and right palletizing. PCB boards are placed in a box for the robotic arm to pick them up from specified positions. The three-axis dispensing system ensures the uniformity of the glue application. It enters the oven through a lift translation mechanism. The length of the oven is set according to the glue curing period. After the oven process is complete, the robotic arm discharges the material. The fixture circulates to the feeding station. Version SW2021, with parameters, editable.
