Paper Feeding and Conveying Mechanism (applicable for Packaging Machines, Paper Cutting Machines, Etc.)

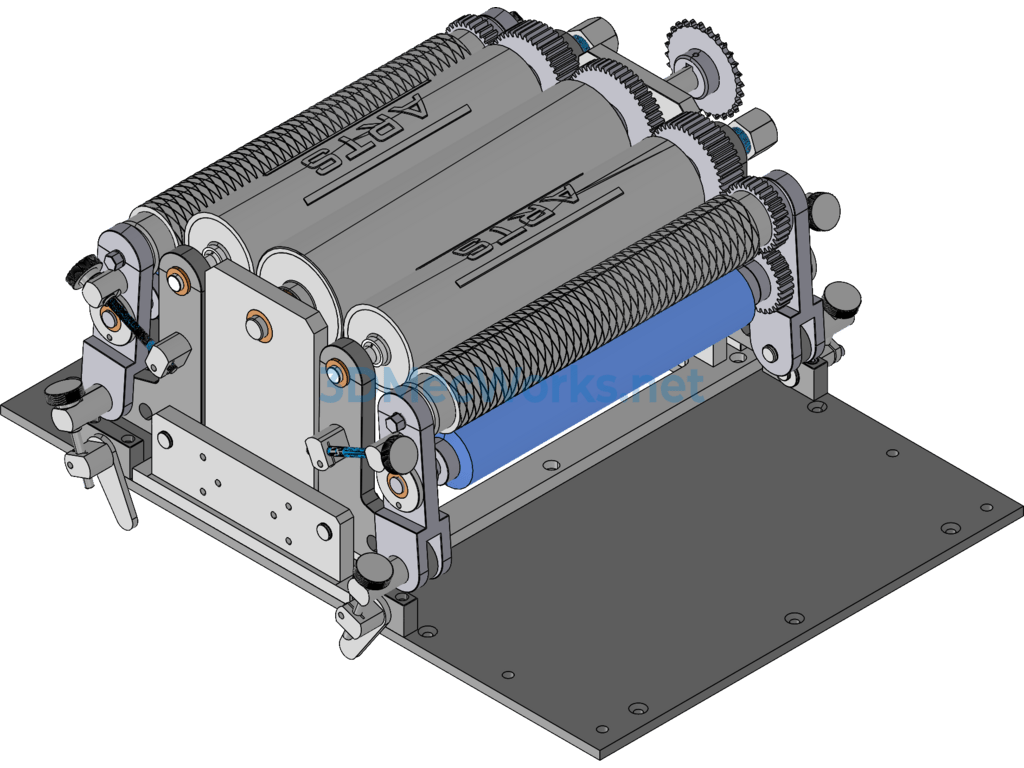

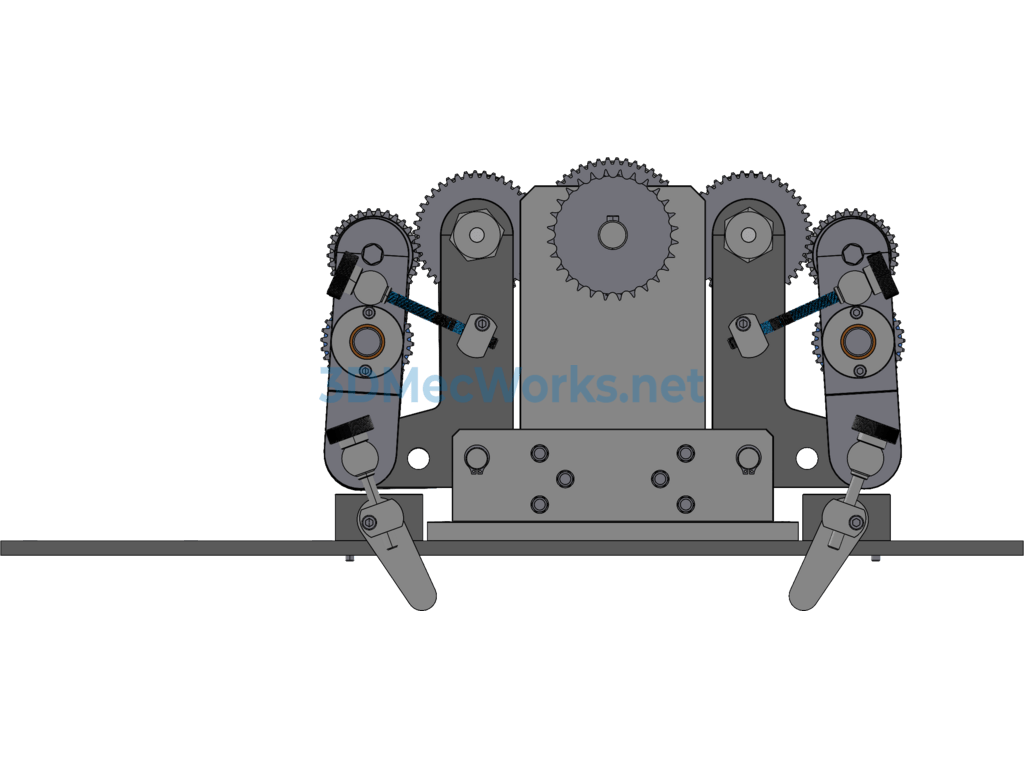

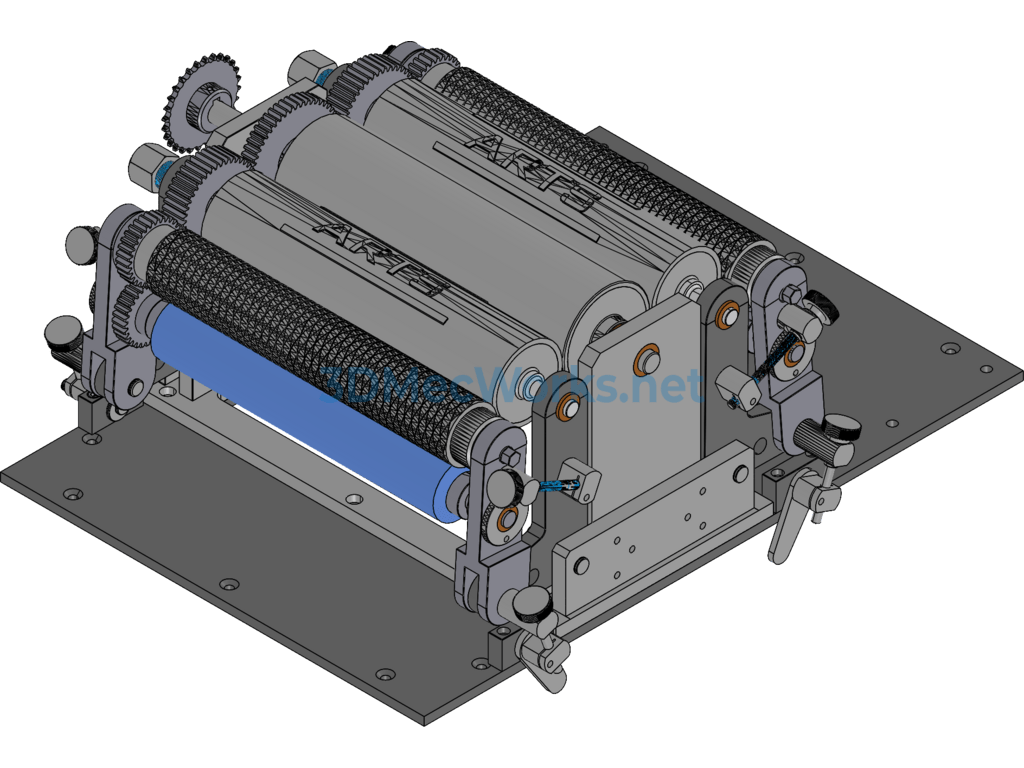

Paper Feeding and Conveying Mechanism 3D Model

This device is designed with SW2013. The structure of this device is very complex and detailed, providing great reference value for those involved in manufacturing packaging machines, paper cutting machines, and similar equipment. This equipment is a technological device used for box rolling, featuring a four-bar cutting mechanism that is stable and reliable. The structure of the conveying roller is unique and offers substantial learning value!

For issues related to the conveying system, a variable frequency motor drive control is used, ensuring precision and reliability. You are welcome to download and study it.
