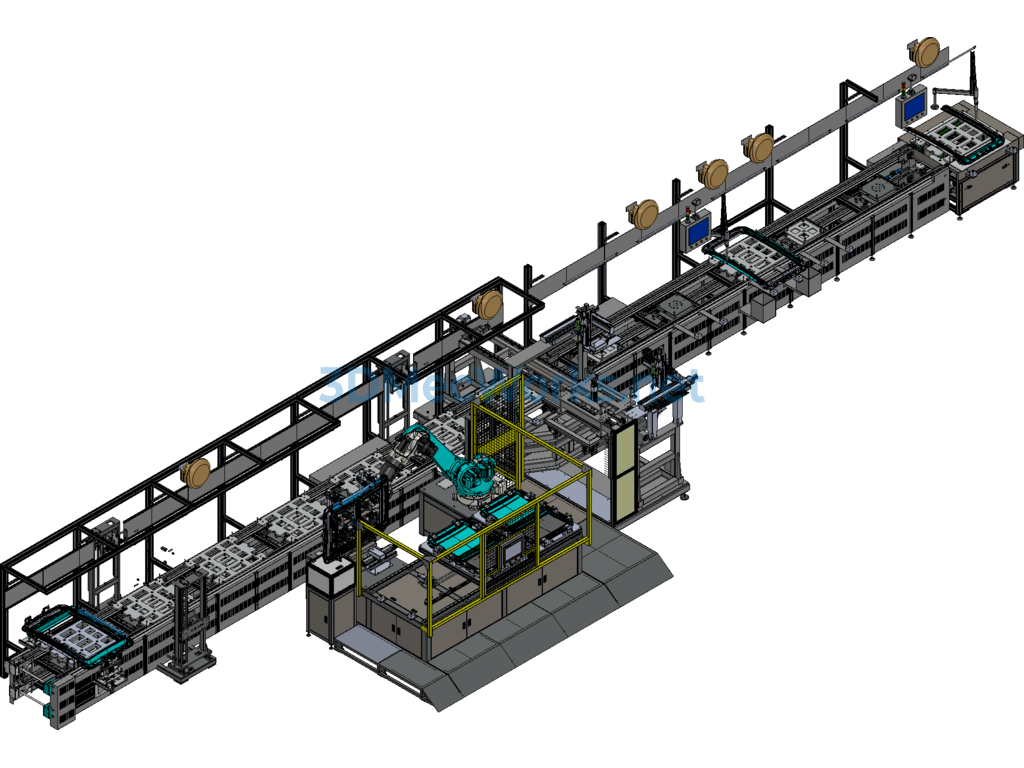

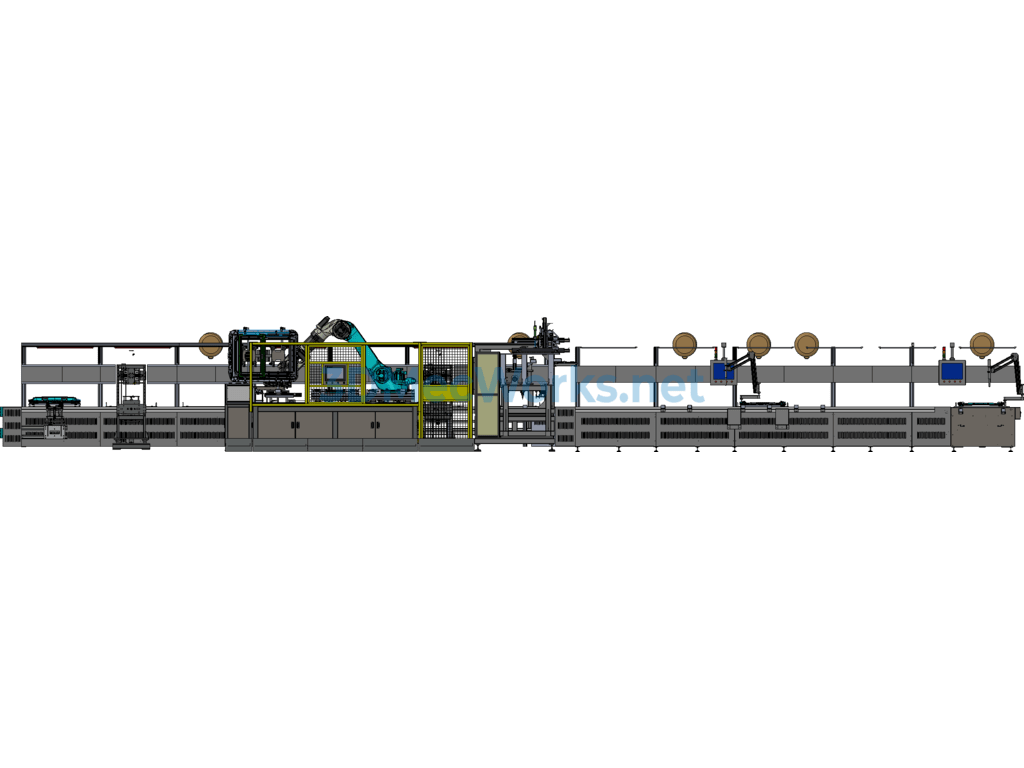

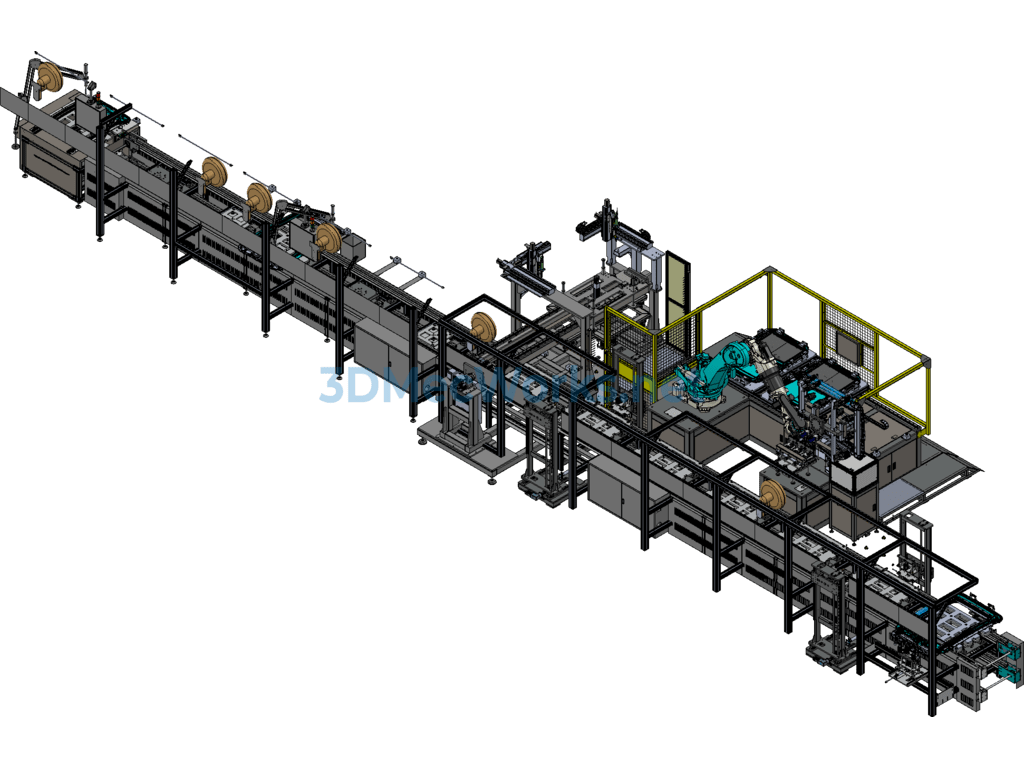

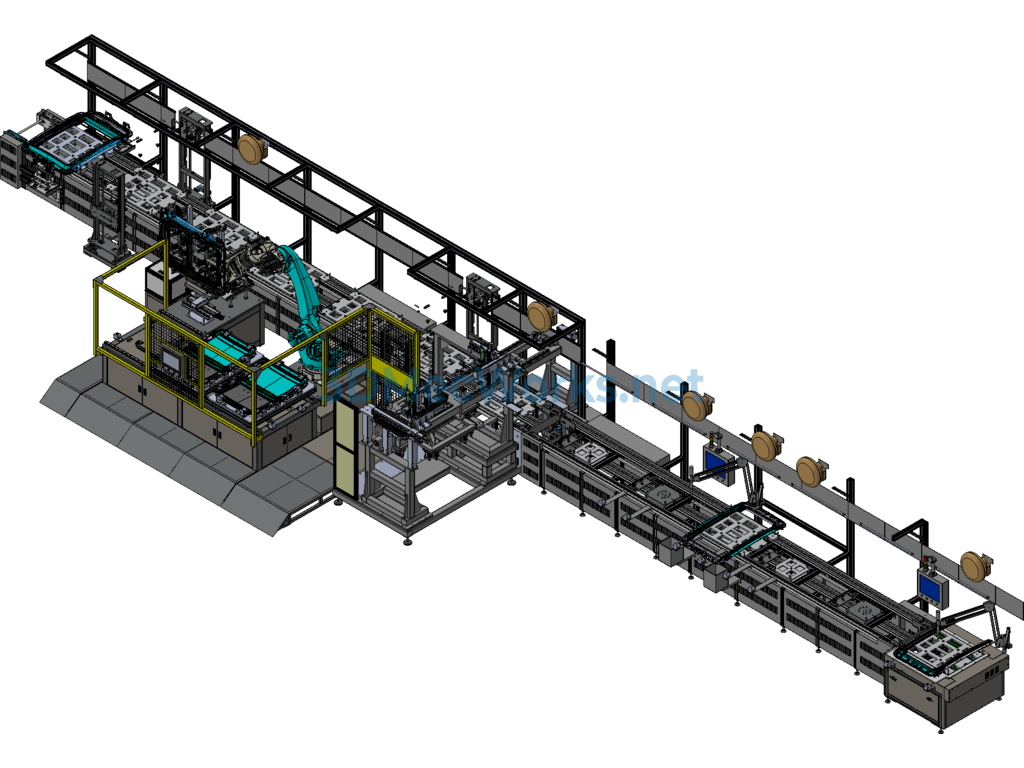

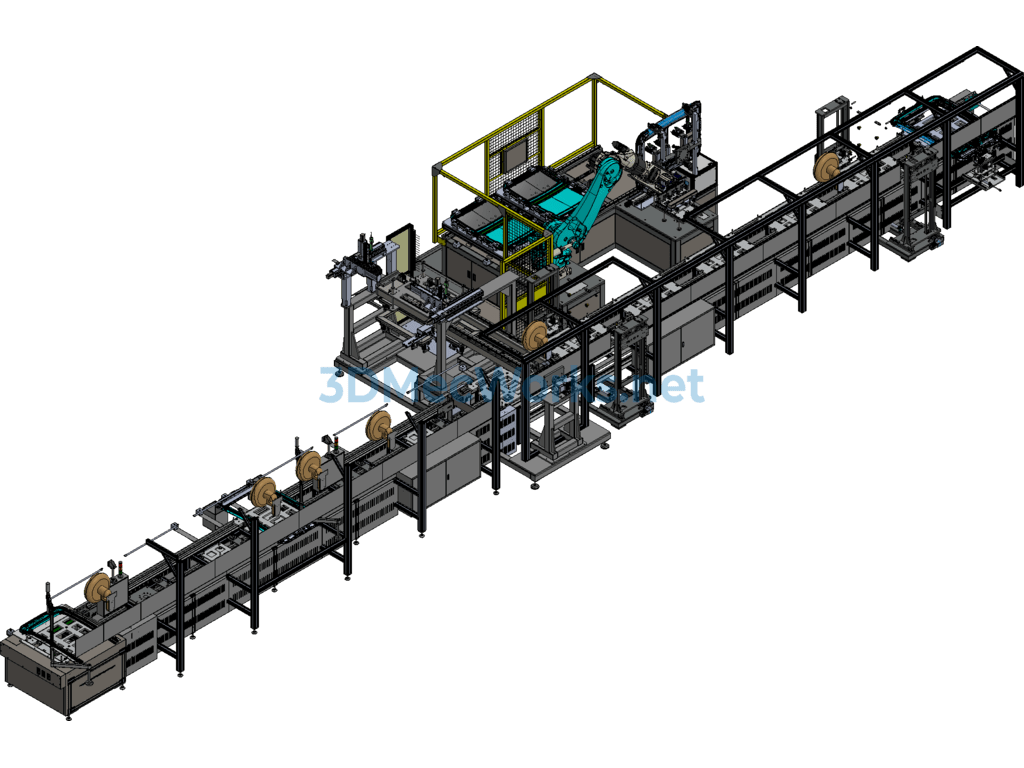

Panoramic Sunroof Assembly Production Line (rapid Chain Conveyor System)

The skylight production line equipment is placed on the fast cycle chain flow line for circulation. For workstations with high precision requirements (motor fastening, glass fastening), independent off-line positioning assembly is used. Workstations that require adjustments are equipped with precision adjustment mechanisms and LVDT real-time adjustments to ensure that over 90% of products are qualified for dimensional tolerance upon first delivery. If not qualified, they can be manually repaired at the station to avoid high defect rates in final products. A Kawasaki six-axis robot is used in the process.

Reviewer comments: The non-standard automated panorama skylight assembly production line 3D model file is nearly 1GB after decompression. It takes a while to open with SolidWorks, so please be patient!
