Panel Automatic Loading Hot Melt Machine (Including DFM, BOM) - SolidWorks - Free Download

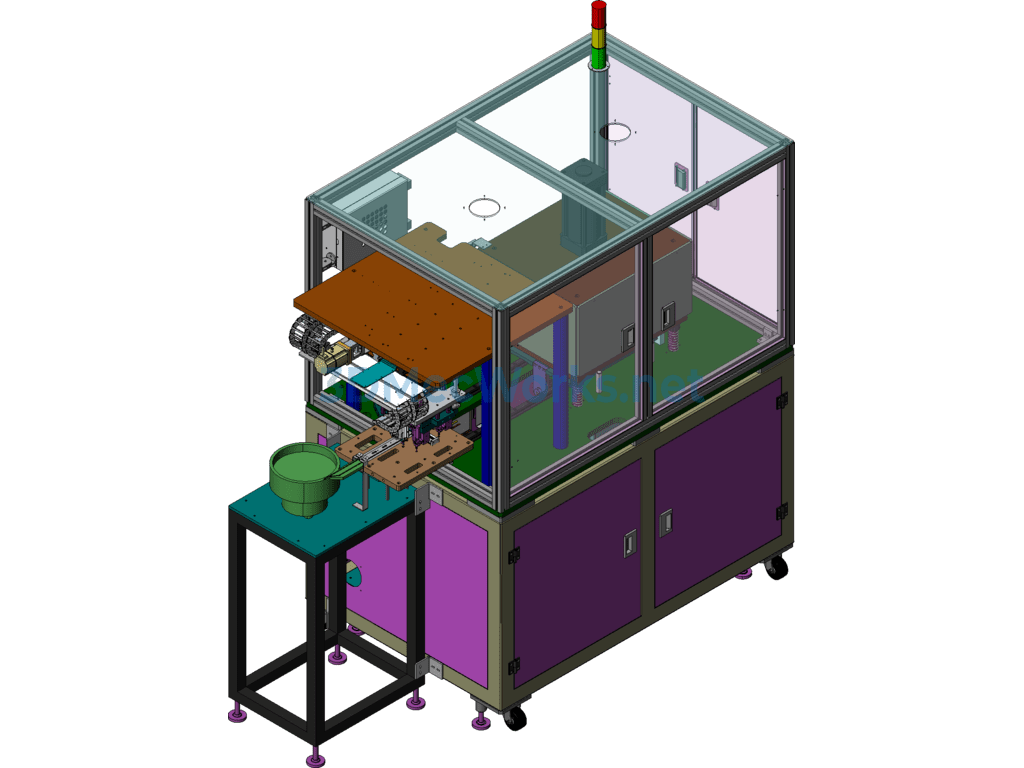

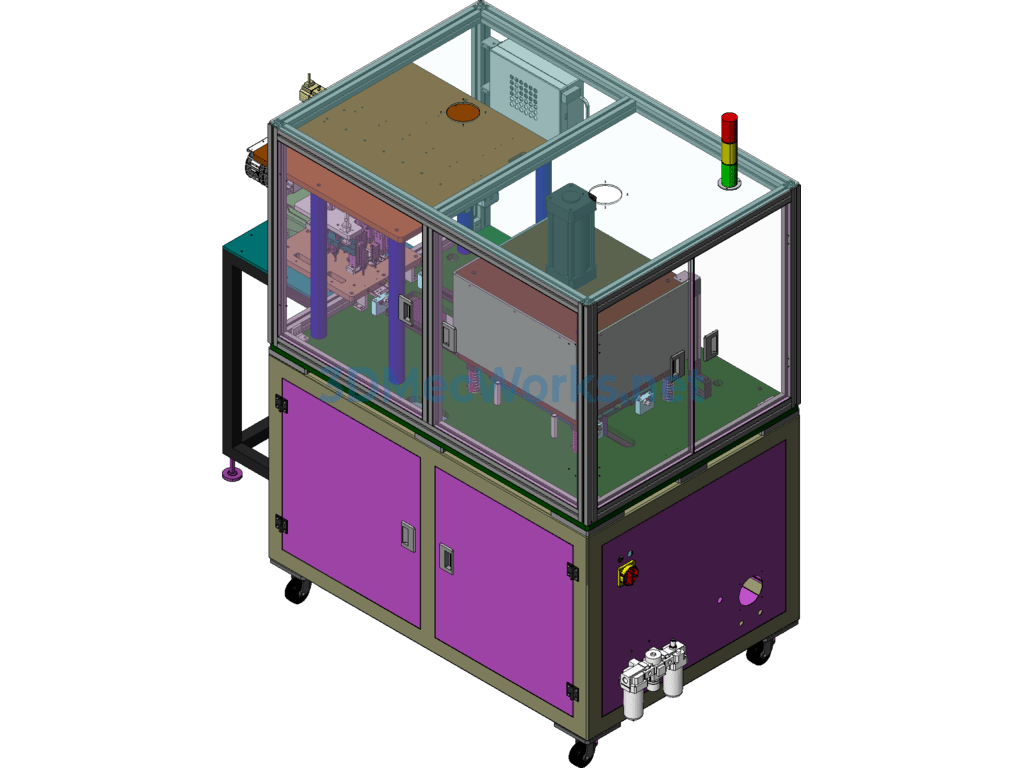

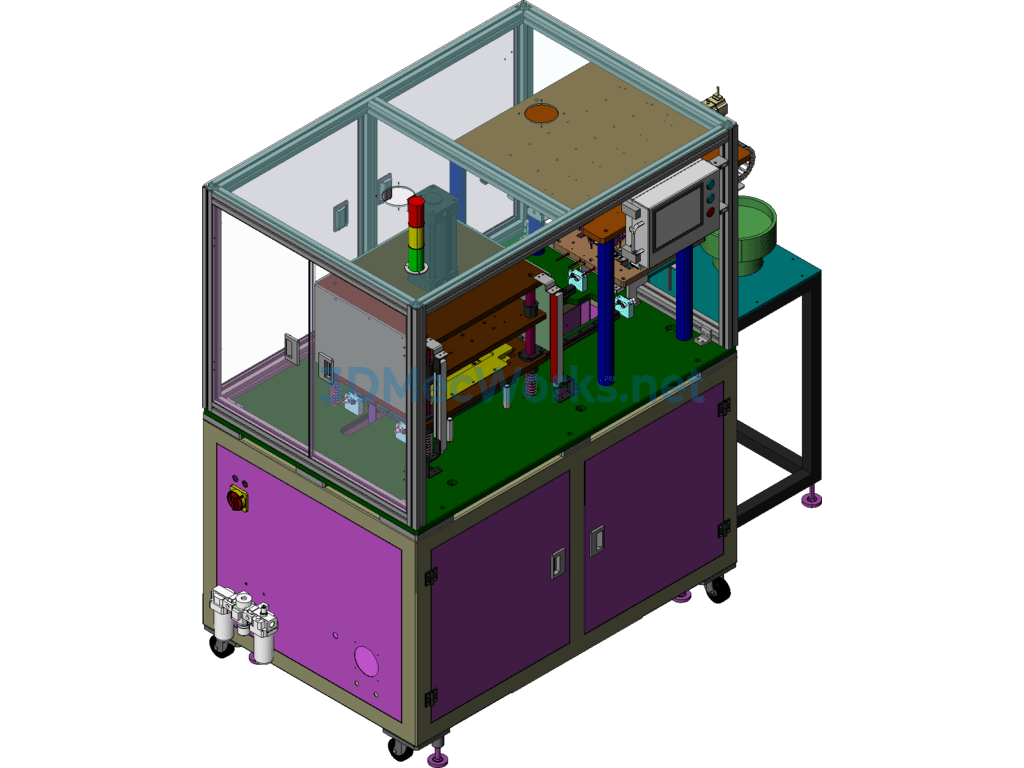

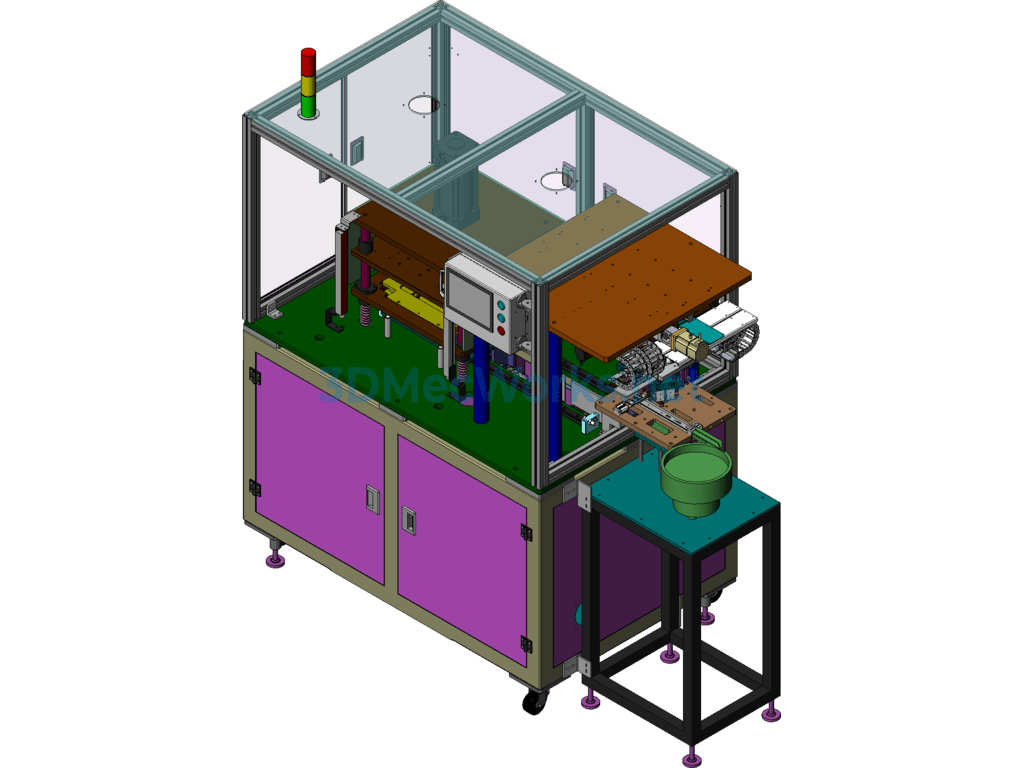

Panel Automatic Feeding Hot Melt Machine Equipment Process:
1. Manually place the product into the hot melt fixture;
2. The positioning pin is fed to the positioning mechanism by vibration and linear vibration, and then the grabbing module, equipped with a clamping module, moves to grab and feed;
3. The hot melt base can move left and right. During feeding, the lower mold moves to the right side, and the moving module grabs the positioning pin and inserts it into the lower mold positioning;
4. After hot melting is completed, it is manually removed.
