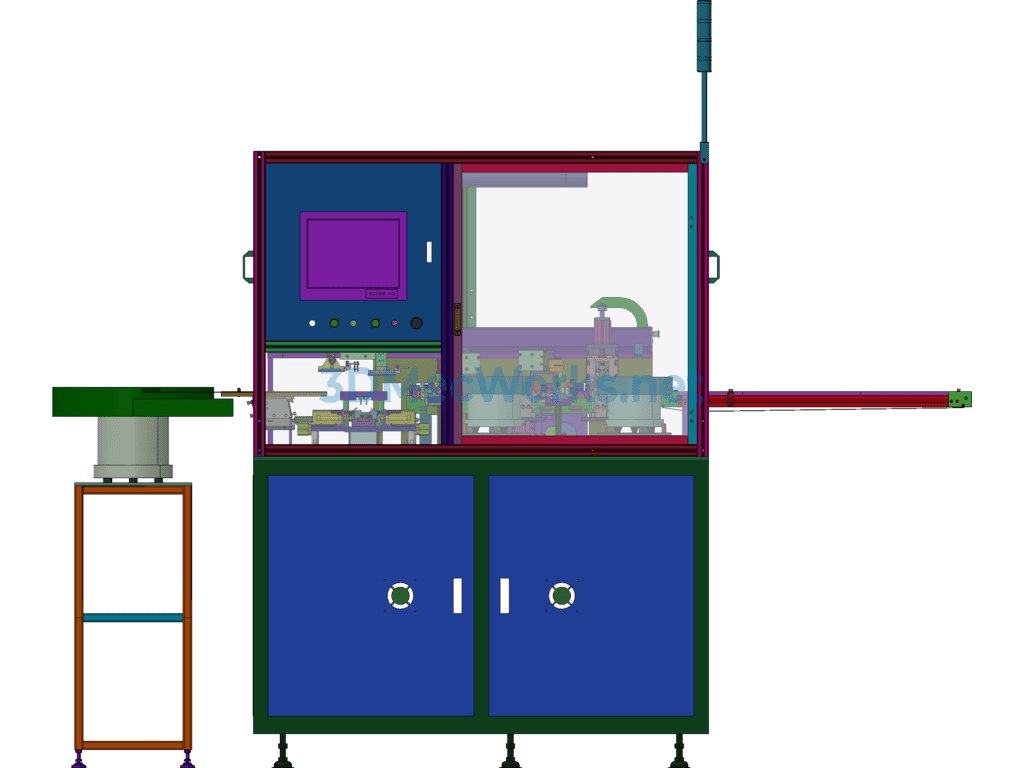

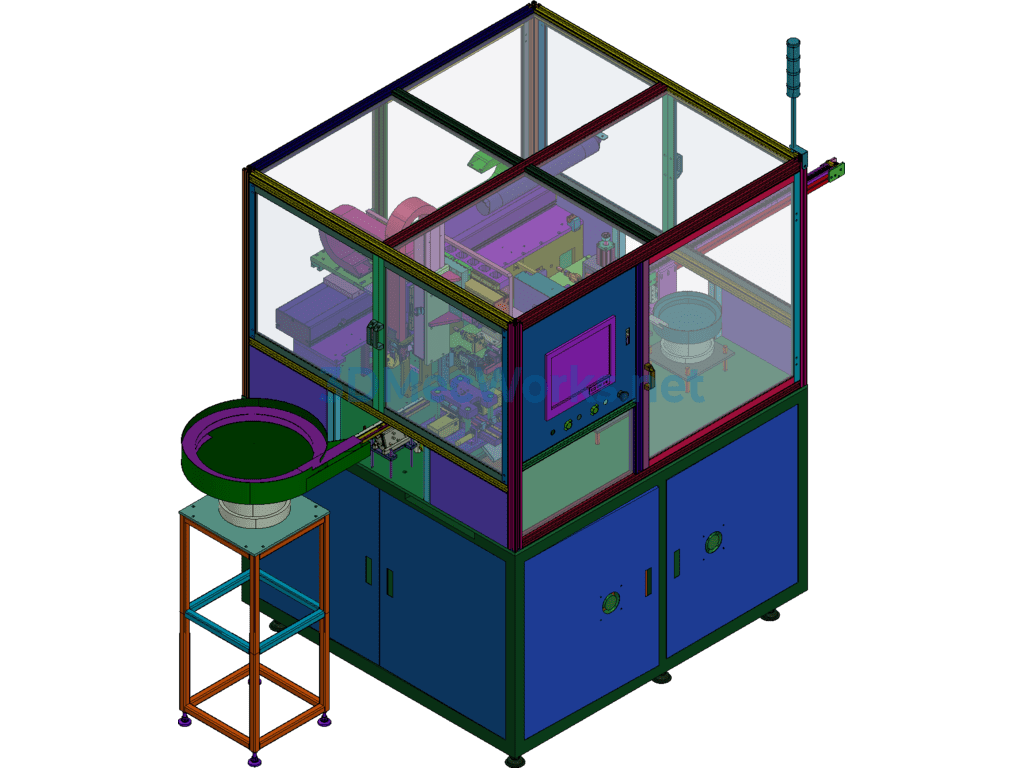

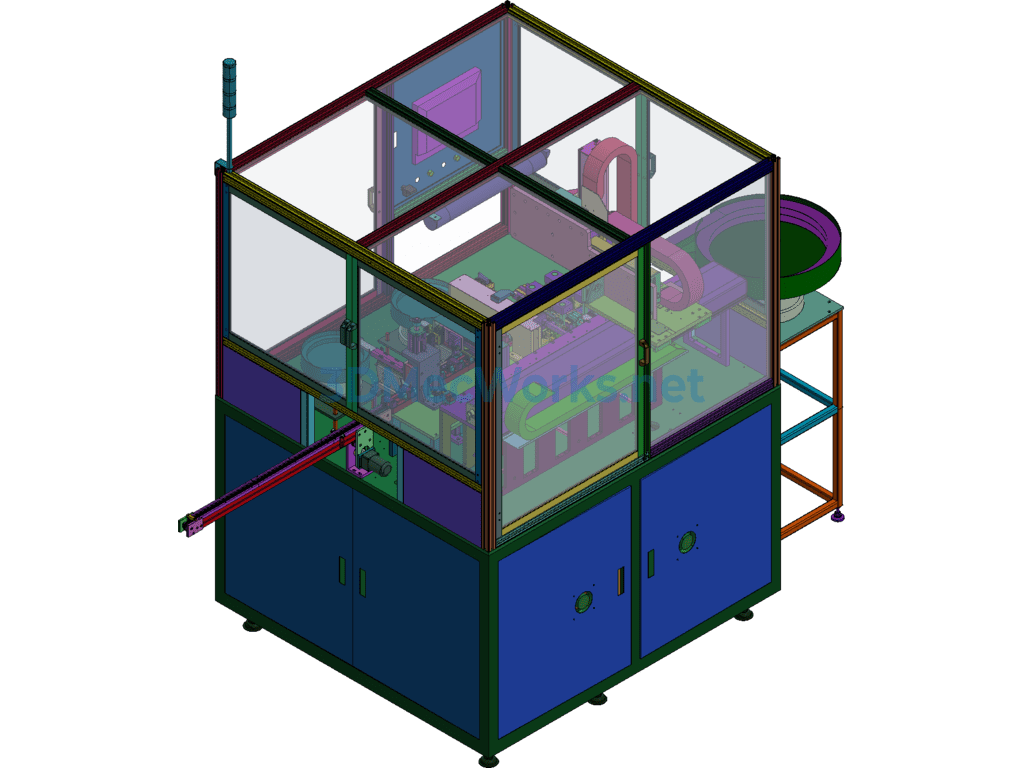

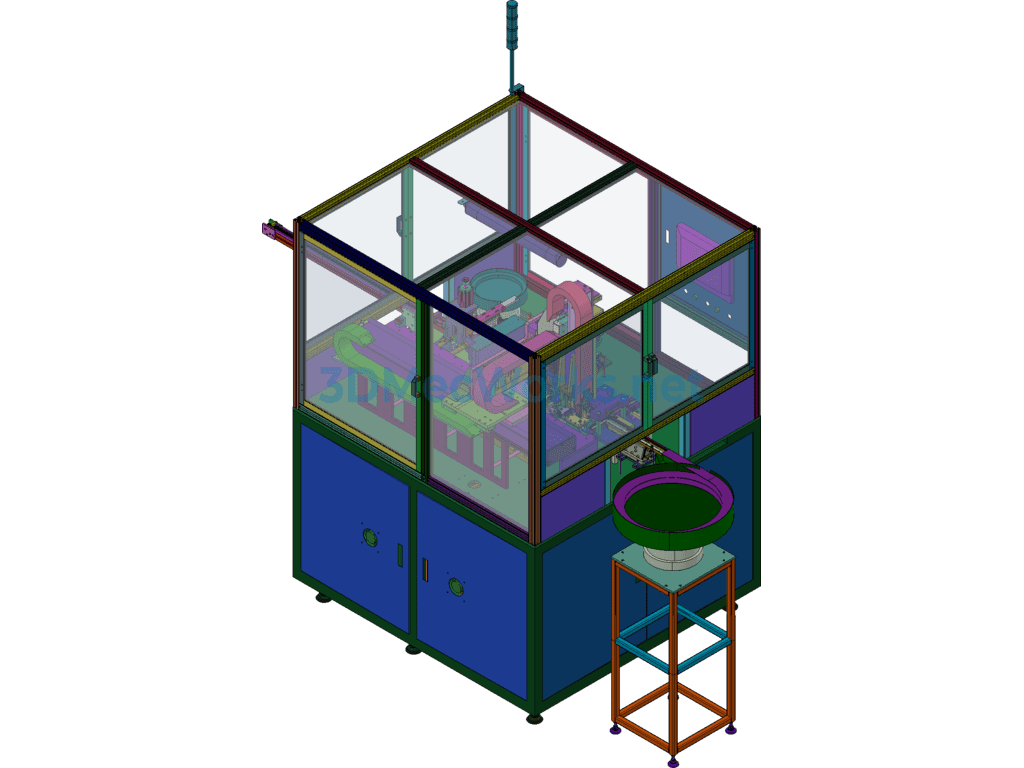

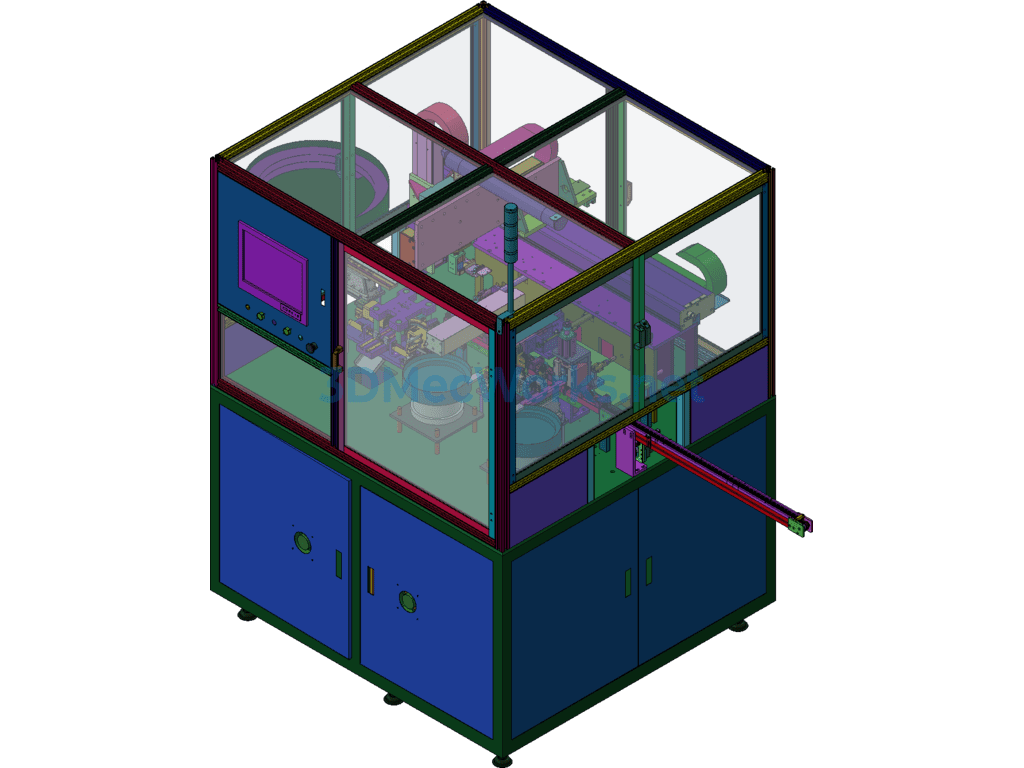

The mechanism of this equipment is designed by SW2016, including editable part features, using thin SO6L packaged optocouplers “TLP5705H” and “TLP5702H”, which can be used as insulated gate driver ICs in small-sized IGBTs/MOSFETs. Utilizing a mounting machine for positioning improves product yield and production efficiency. The thin assembly (SO6L) with a thickness of only 2.3 mm (maximum) can provide a product with a peak output current rating of ±5.0A. Rational design of assembly action beats enhances precision and efficiency, increasing processes that ensure product yield. Buffer circuits for current amplification allow medium to small inverters and servo amplifiers to be driven directly by these optocouplers through IGBTs/MOSFETs. The peak output current rating of the TLP5702H is ±2.5A. The SO6L package is compatible with SDIP6’s solder pads, offering greater flexibility for circuit board component layout, supporting backside mounting of the circuit board. The component feeding method uses two sets of cylinders to flatten deformed pins simultaneously, with the upper cylinder and flattening block responsible for leveling, reaching speeds of up to 2000, with a wide application range for new circuit designs where component height is restricted. The maximum operating temperature ratings reach 125°C (Ta = -40°C to 125°C), making it easier to design and maintain temperature margins. The SO6L (LF4) package offers lead forming options. High peak output current ratings (@Ta = -40°C to 125°C) IOP = ±2.5A (TLP5702H) IOP = ±5.0A (TLP5705H) Thin SO6L package high operating temperature rating: Topr (maximum) = 125°C, main specifications at °C, @Ta = -40°C to 125°C. It includes standard editable formats STP and UG.
