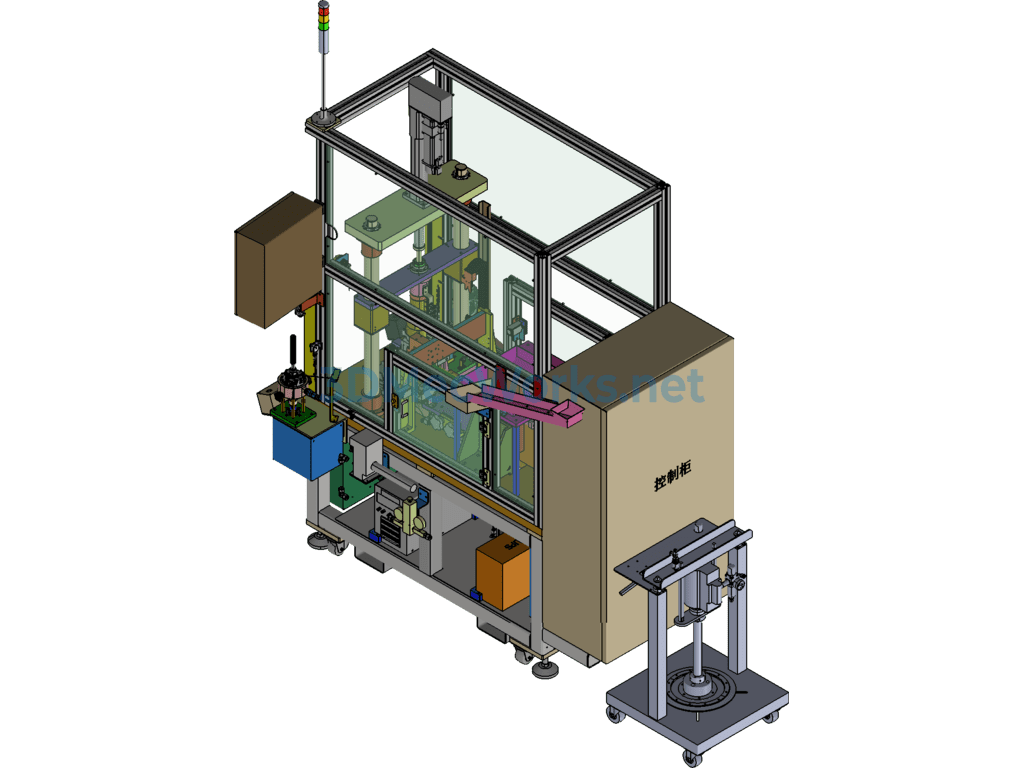

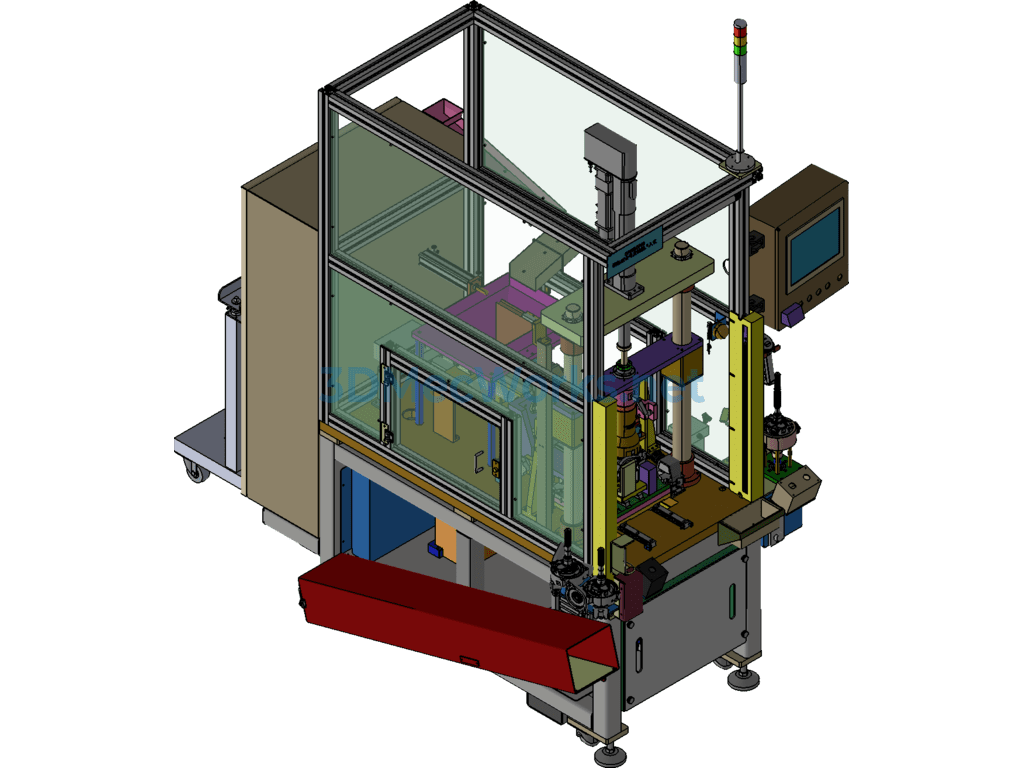

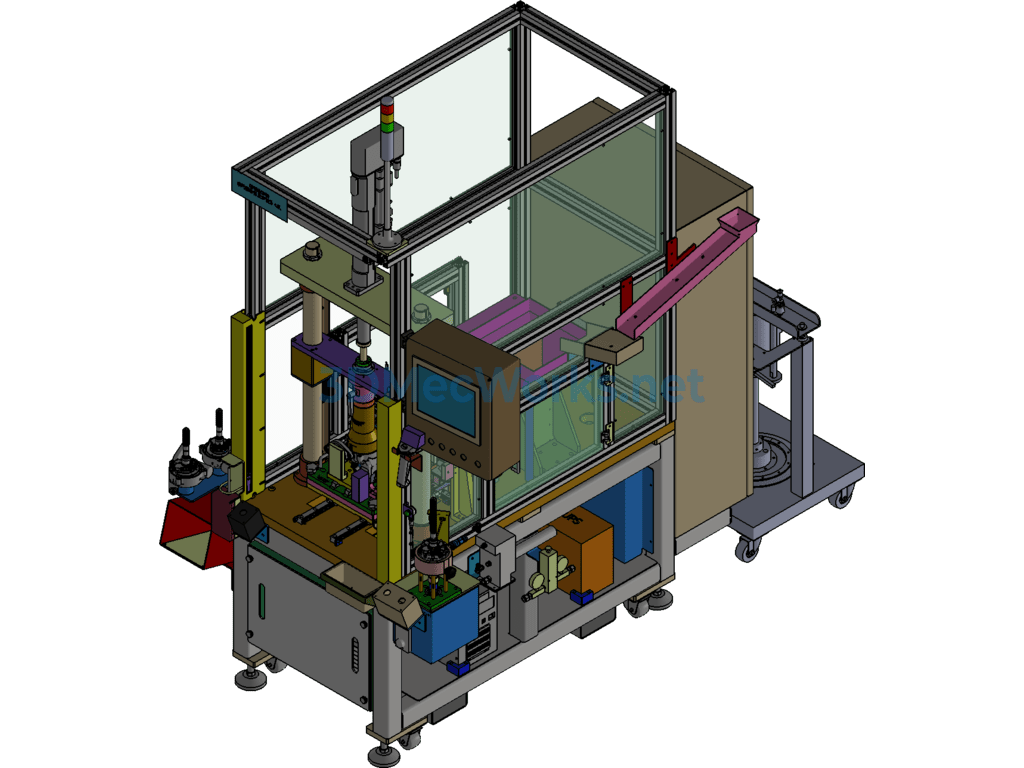

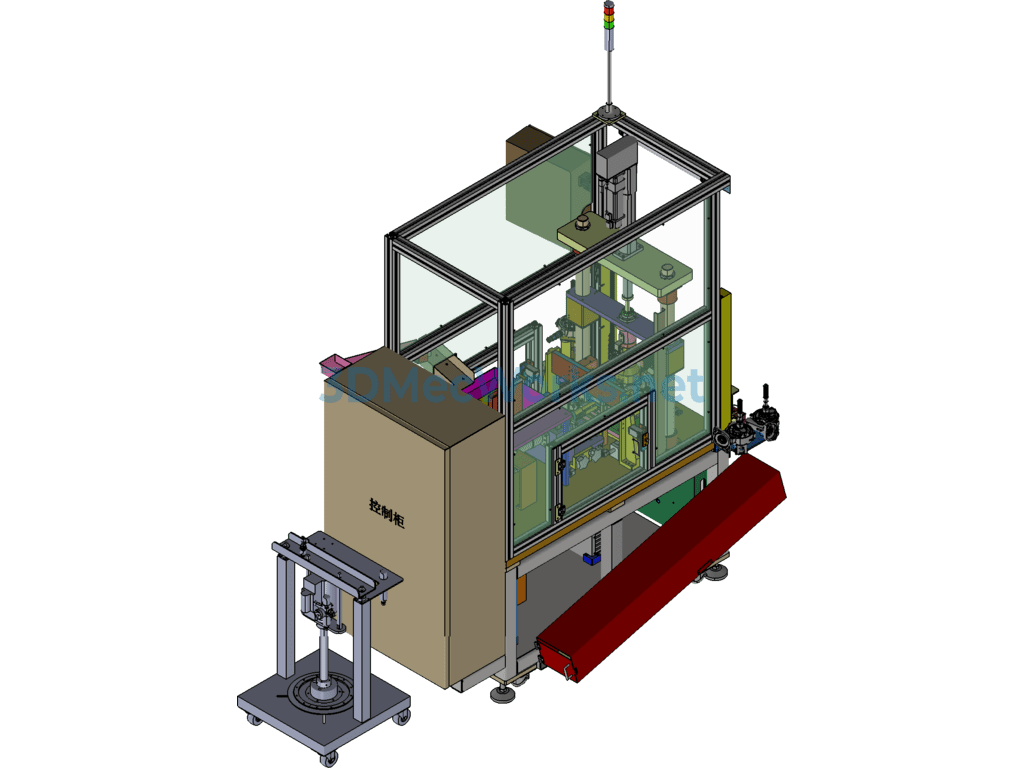

OP80&OP90 Worm Gearbox Assembly and Pin Shaft Press-in Machine_x000D_
1. Purpose: Quantitative oiling of the worm gear tooth surface (no oil is needed on the side face); press the worm gear assembly, bushing (manually), and pin shaft into the worm gearbox._x000D_
2. Compatible products: A13TE, FE-3DA, ZTM11E_x000D_
3. Equipment operation process (42s)_x000D_
1. Install the worm gear sensor assembly into the oiling fixture (manual, 2s)_x000D_
2. Oiling the worm gear (automatic 4s)_x000D_
3. Manually press the bushing into the worm gearbox, then place the reducer into the lower fixture (manual 8s)_x000D_
4. Install the worm gear sensor assembly into the worm gearbox, extend the directional mechanism (manual 2s)_x000D_
5. Start the pull rod switch (manual 1s)_x000D_
6. Clamp the worm gearbox, vertical servo press descends, pressing the worm gear sensor assembly into the worm gearbox (automatic 7s)_x000D_
7. Horizontal servo press descends, automatically pressing the pin shaft into the worm gearbox (automatic 7s)_x000D_
8. All actuators return to the initial position (automatic 5s)_x000D_
9. Manual unloading (manual 2s).
