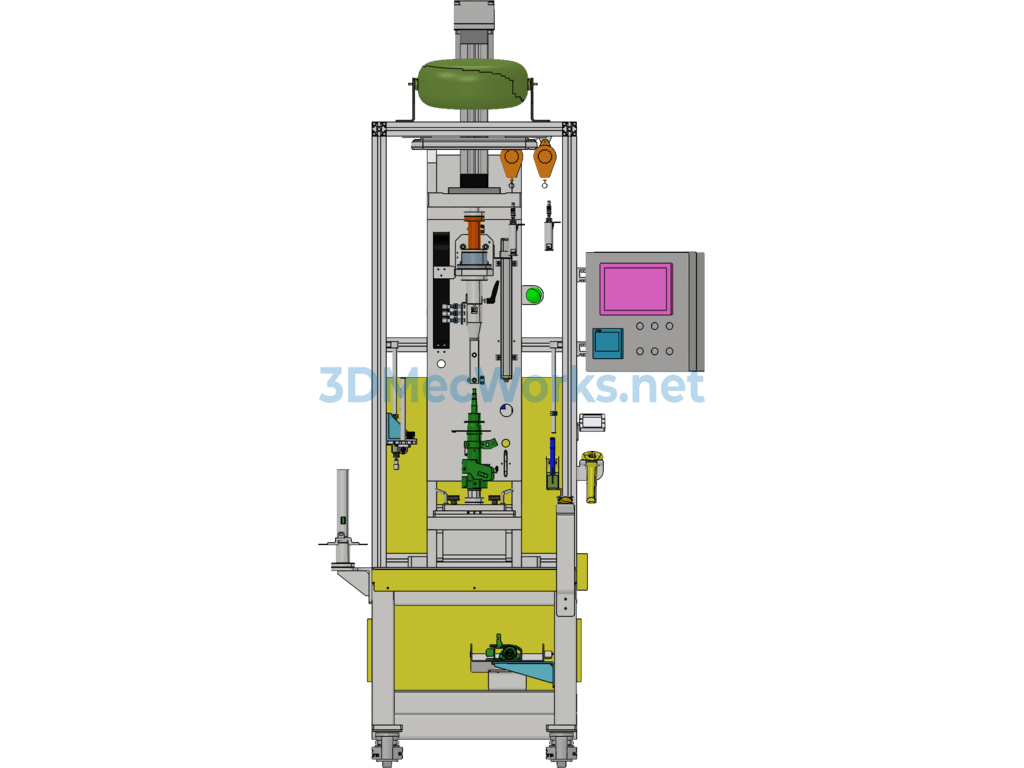

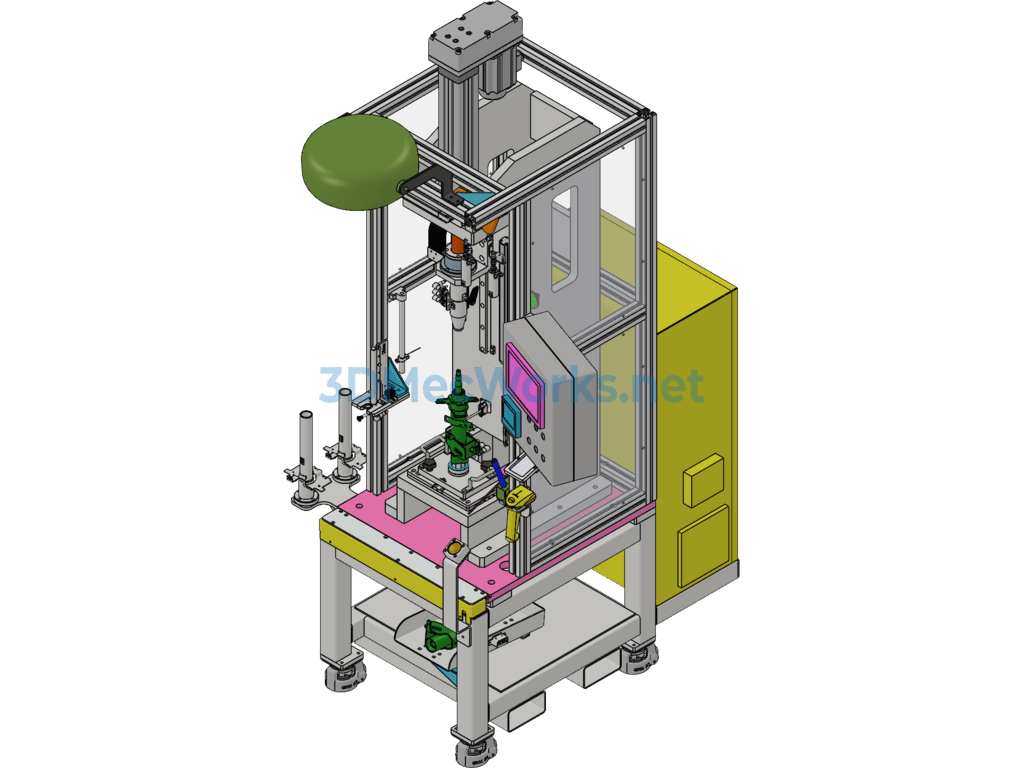

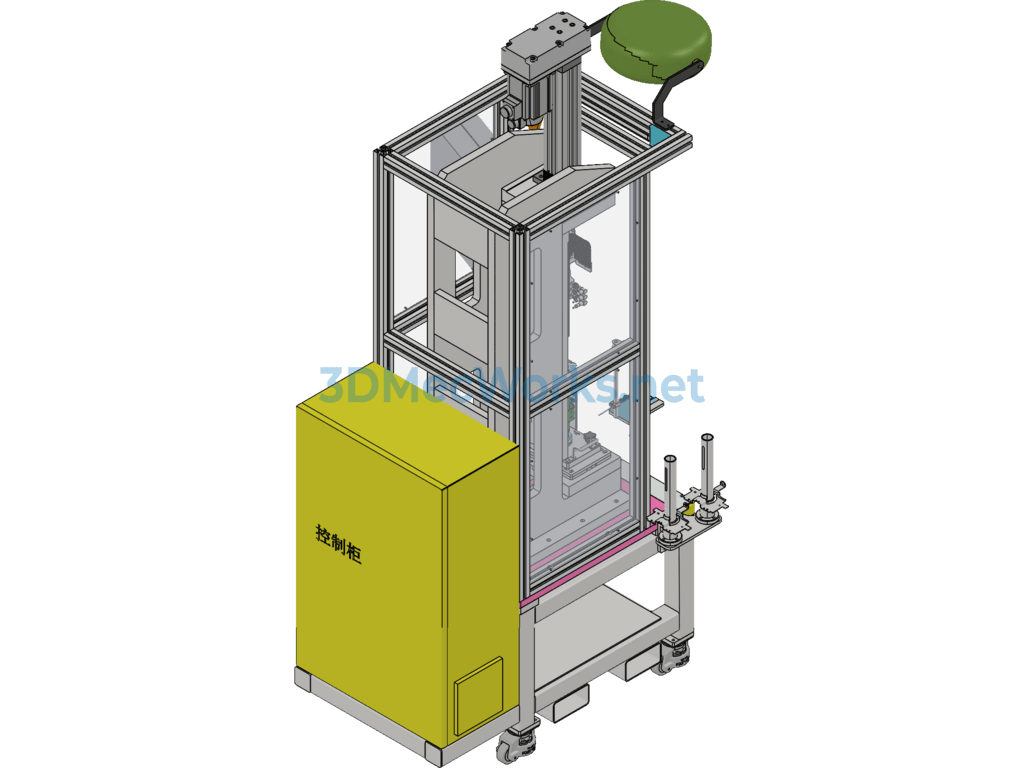

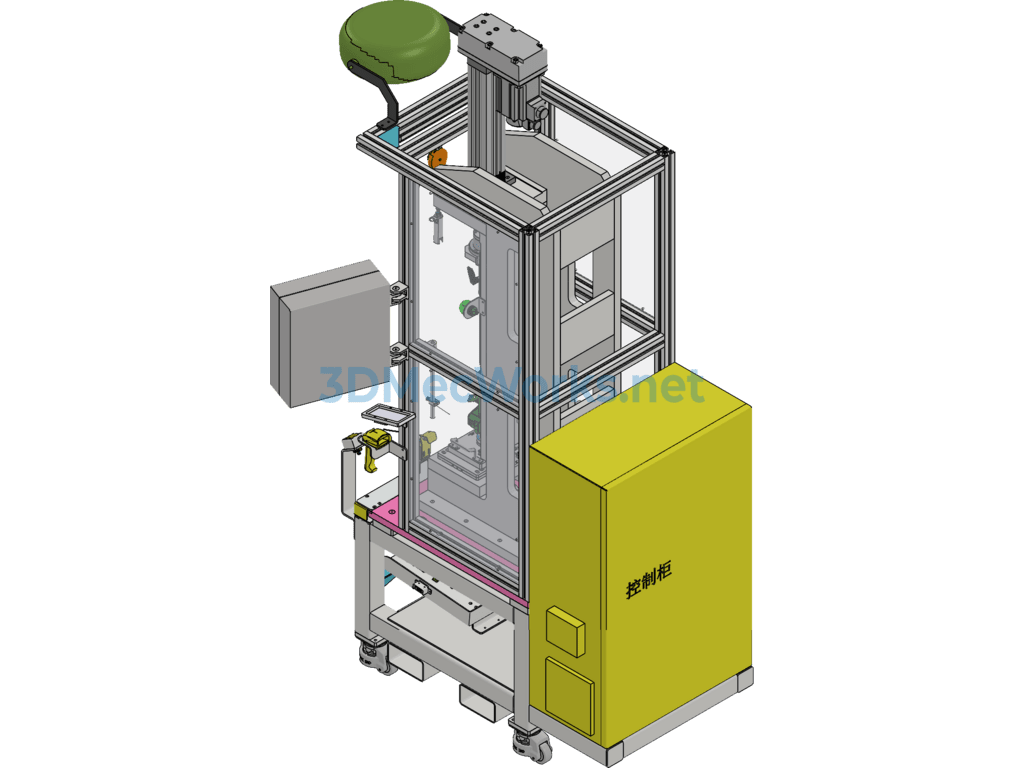

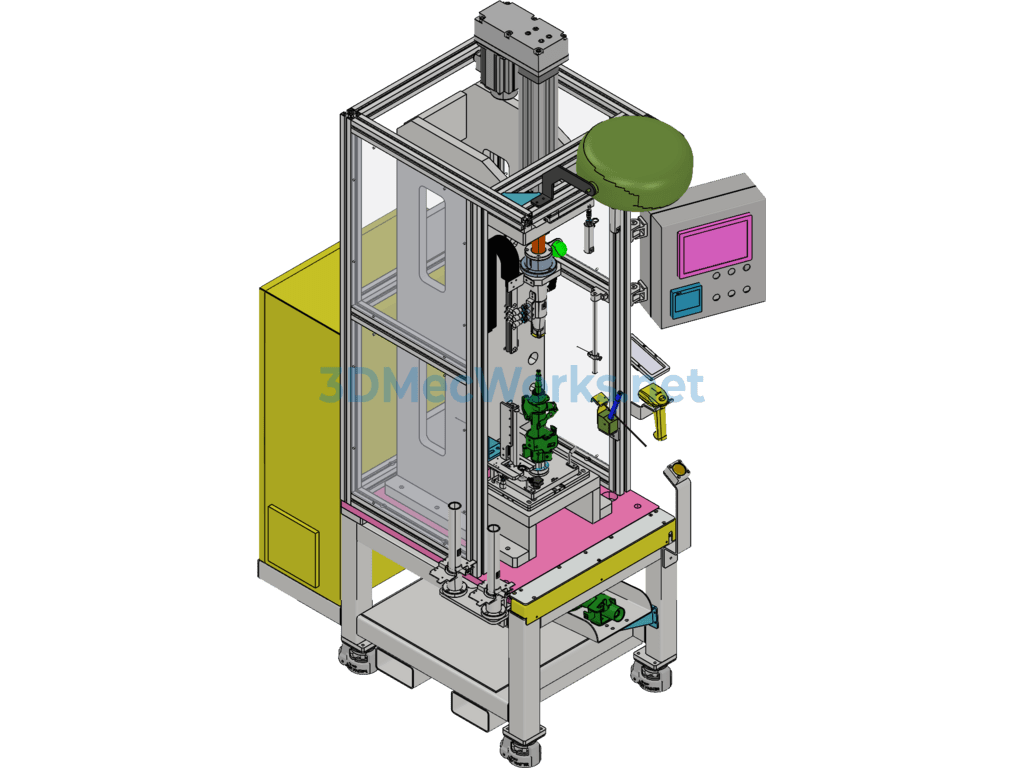

OP75 Input Shaft Pressed into Outer Tubing Column
1. Purpose: Press the input shaft into the outer tubing column and install the snap ring
2. Compatible Products: ES8D, ES8H, ES8L2

Specification: Op75 Input Shaft Pressed Into Outer Tube Column
