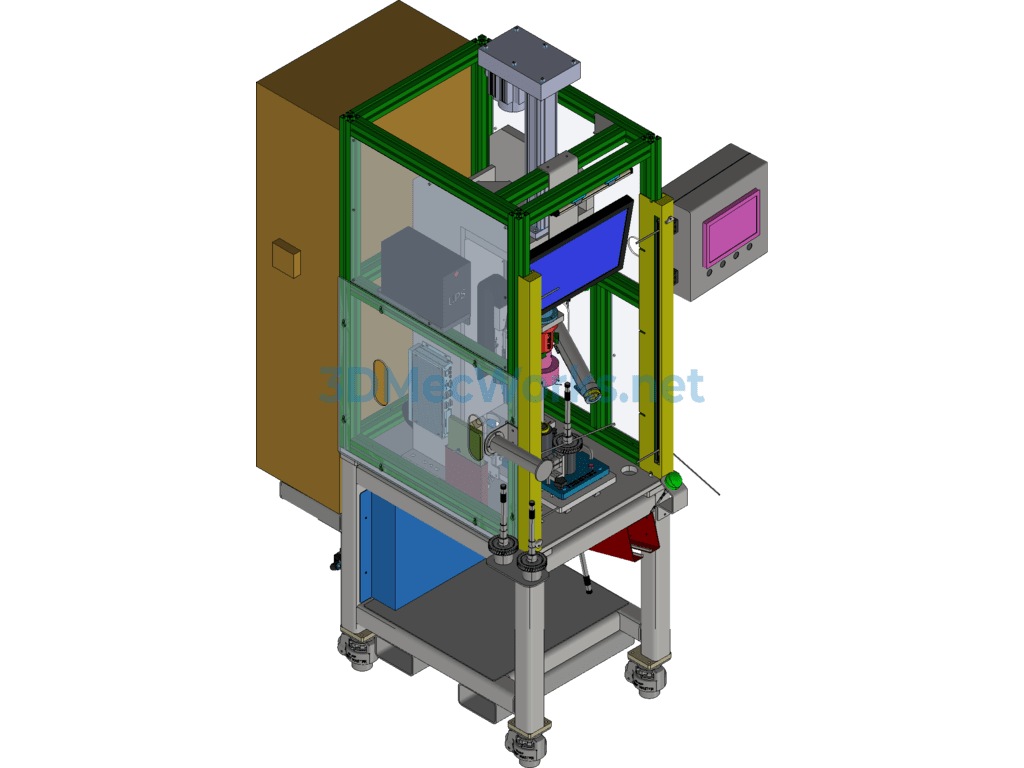

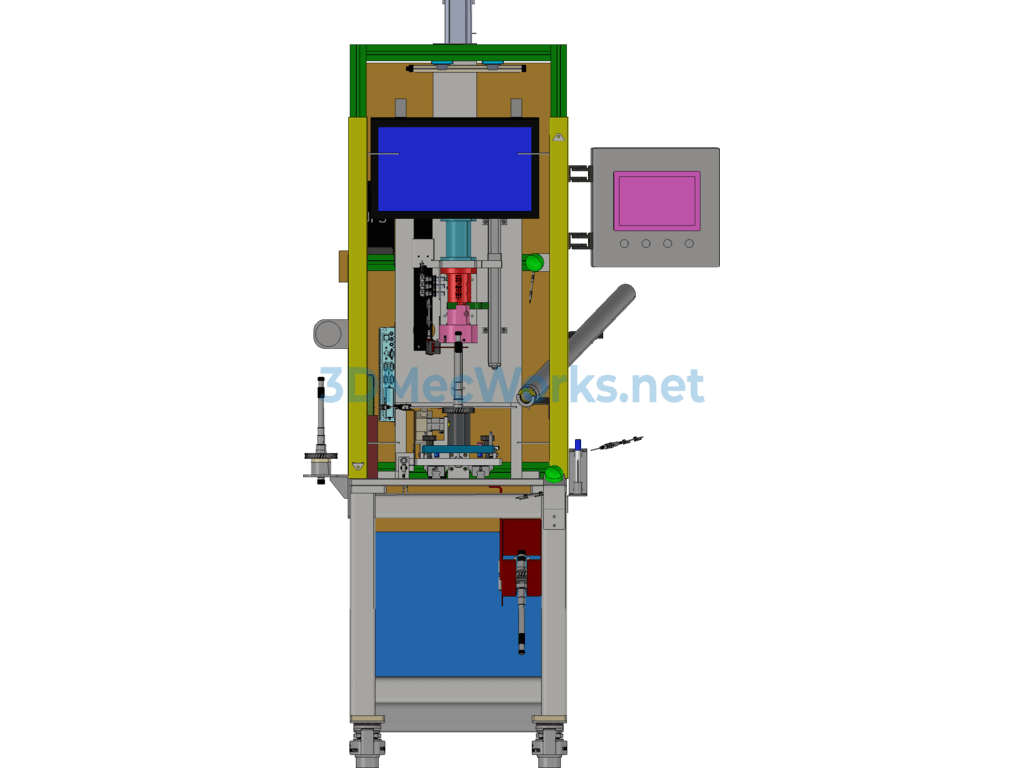

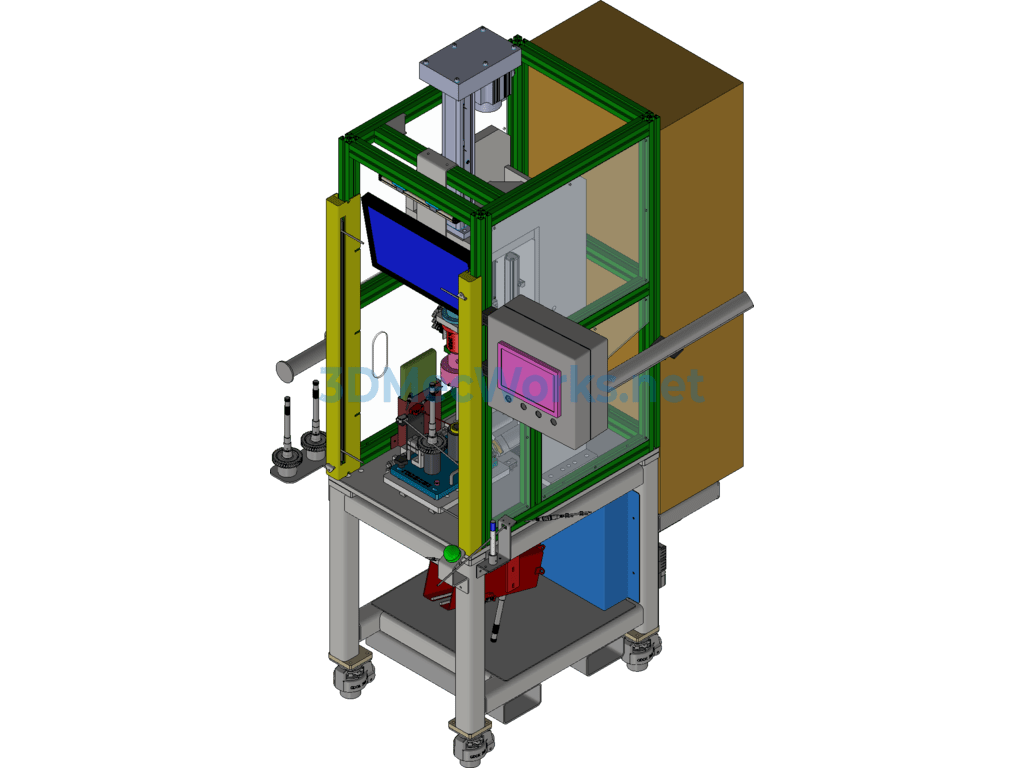

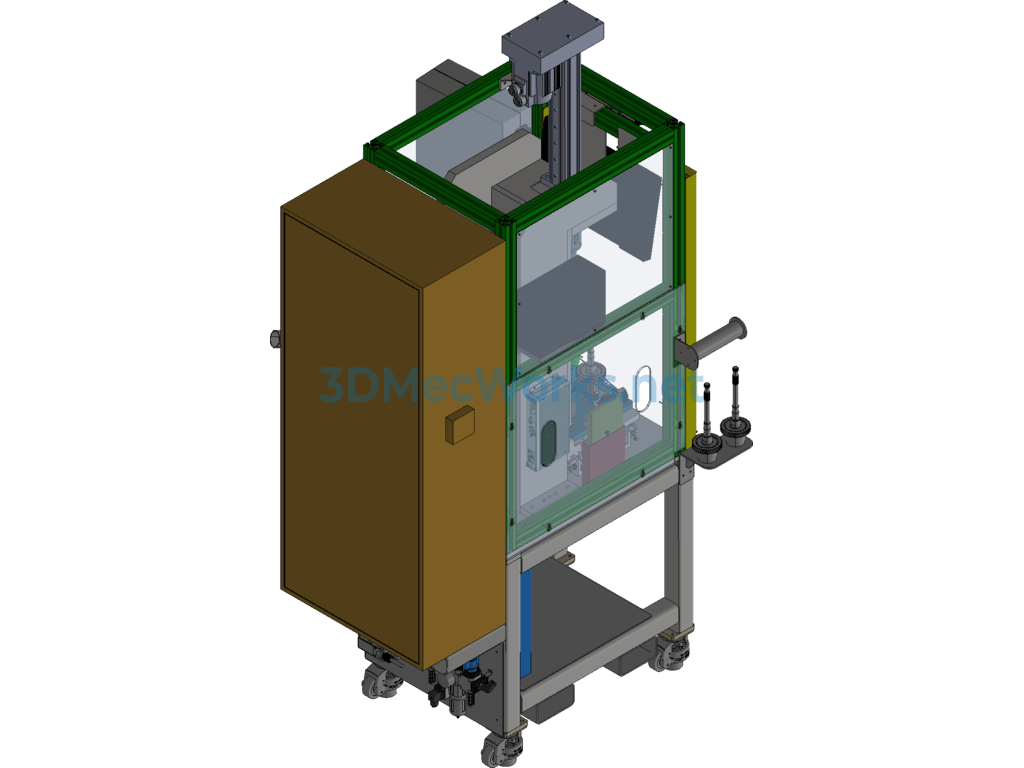

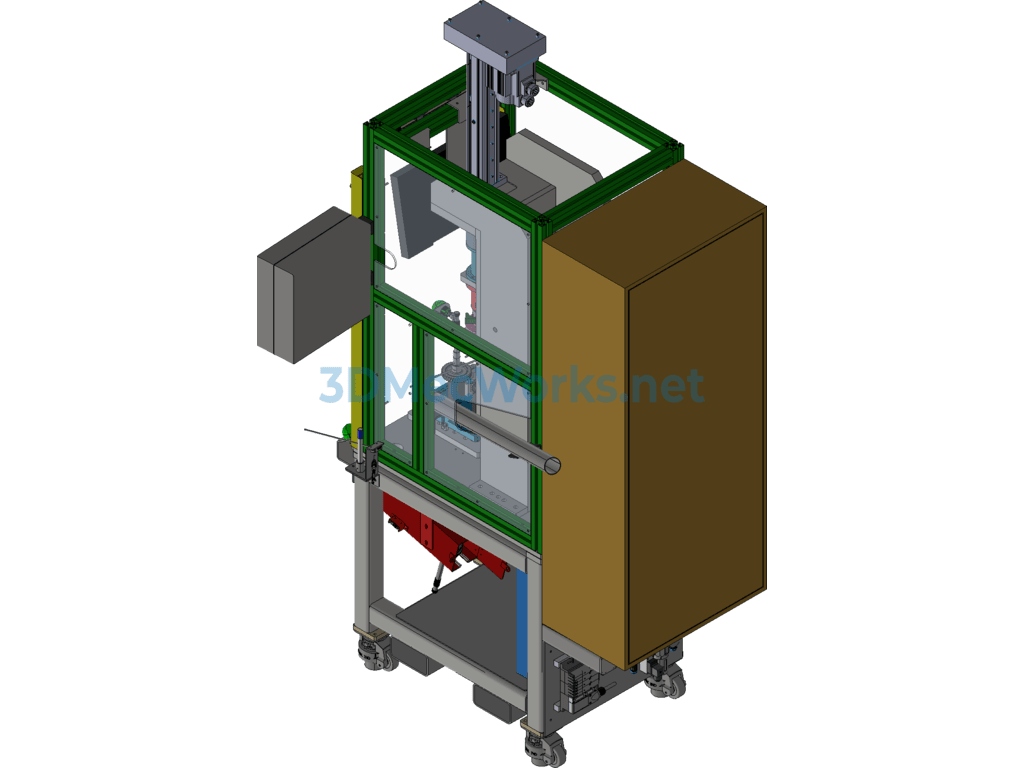

OP50 Sensor Bracket Press-fit:_x000D_
1. Purpose: Press the sensor bracket with O-rings into the bearing; Press-fit the sensor bracket assembly and the turbine assembly;_x000D_
2. Compatible Products: XK507C, JLFC3C, SP232C_x000D_
3. Equipment Specifications: 800mm(W)x 1200mm(L)x2000mm(Aluminum Profile H)._x000D_
4. Equipment Technical Parameters_x000D_
4.1 Equipment Power: 2kw;_x000D_
4.2 Air Source: ≥ 0.5Mpa oil-free, water-free clean compressed air source._x000D_
4.3 Equipment Operation Form: Product loading/unloading performed by the operator (manual), press-fitting operation completed by the equipment (automatic)_x000D_
4.4 Pressing Force Monitoring: Press force of 5KN, pressure sensor accuracy 0.3%FS, equipment with self-calibration function, segmented monitoring curve._x000D_
4.5 Press-in Displacement Monitoring: Accuracy ±0.02mm, full stroke monitoring._x000D_
4.6 Qualification Judgment: Whether pressure and displacement are within the qualified range._x000D_
4.7 Position Accuracy: Coaxial alignment of the press head positioning center hole and the fixture positioning installation hole is less than 0.05mm, perpendicularity of the press head to the worktable surface is 0.05mm._x000D_
4.8 Equipment Requirements: Press head adopts a floating mechanism, ensuring rigidity at the same time; The press head and clamp feature identifiable sensors, and the equipment can automatically recognize._x000D_
34 trays._x000D_
4.9 Equipment CPK value ≥1.33; The part precision and press-fit precision are inspected according to the drawing requirements.
