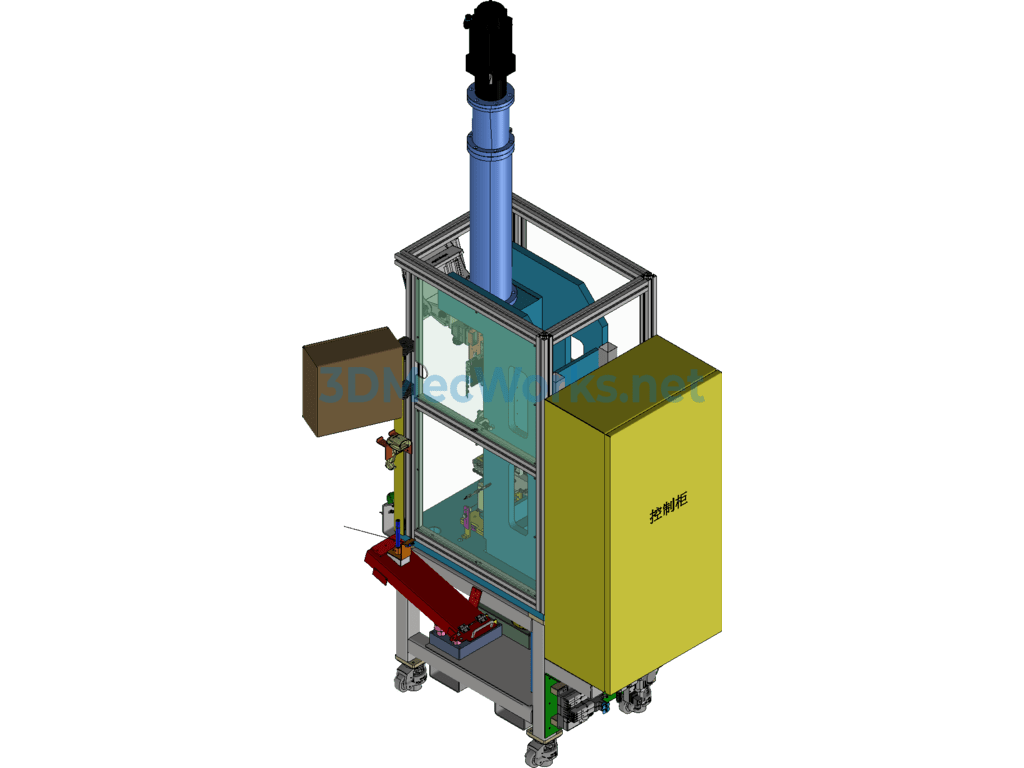

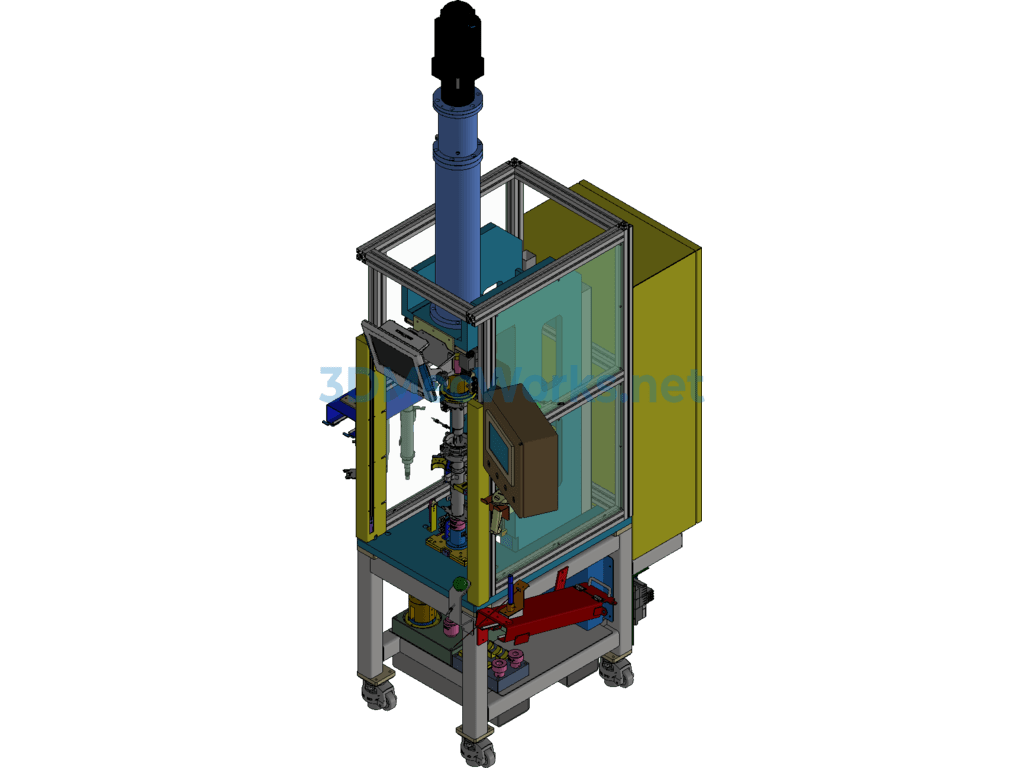

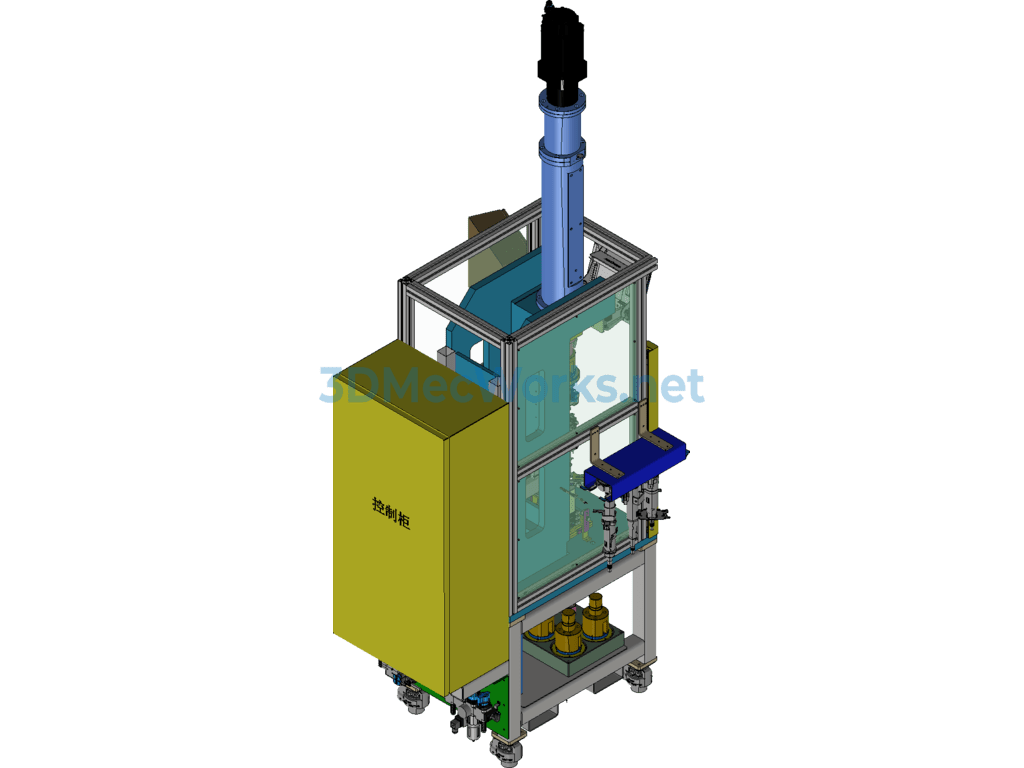

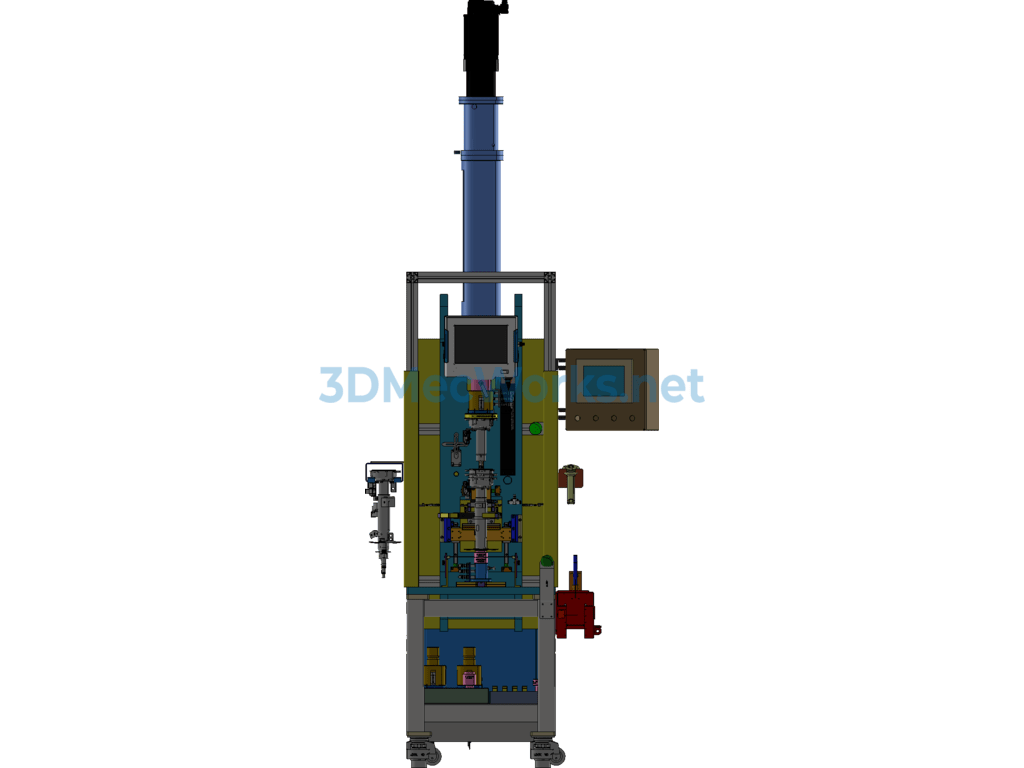

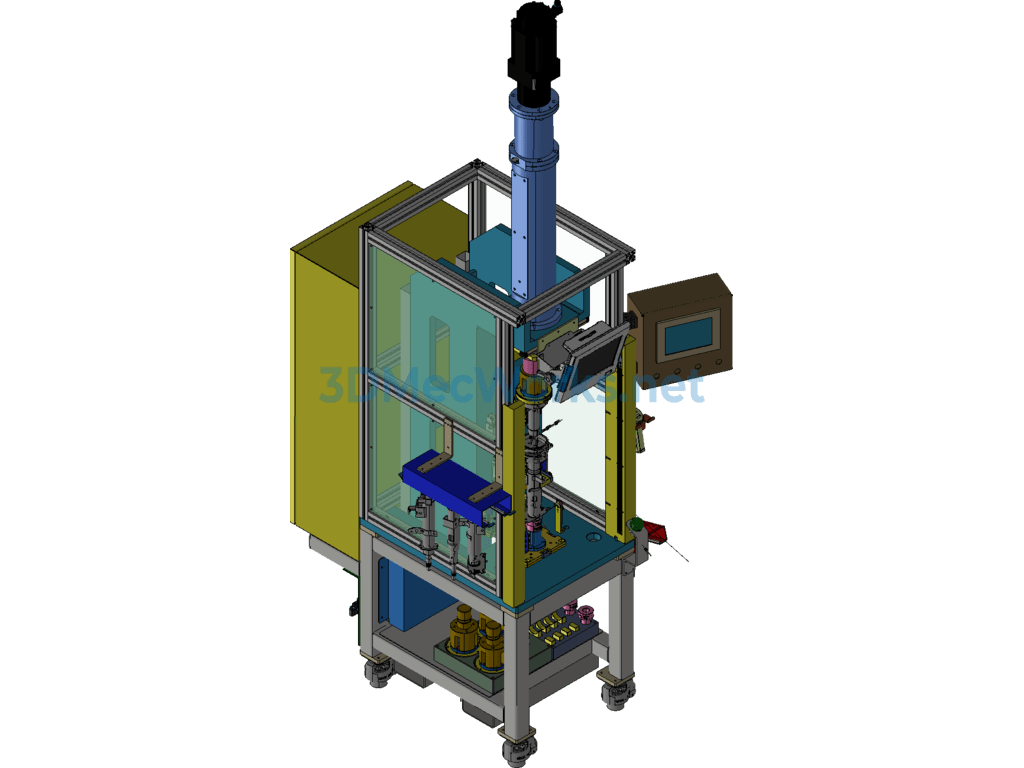

OP230 Upper and Lower Pipe Column Press Fitting_x000D_
1. Purpose: Press the upper pipe column assembly into the lower pipe column assembly; the bracket of the upper pipe column has a phase relationship with the installation hole of the lower pipe column._x000D_
2. Equipment Specifications: 800mm(W)x1200mm(L)x2000mm(Aluminum Profile H)._x000D_
3. Equipment Technical Parameters_x000D_
3.1 Equipment Power: 4kW;_x000D_
3.2 Air Source: ≥ 0.5Mpa oil-free, water-free clean compressed air source. Air consumption: 1L/min._x000D_
3.3 Equipment Operation Form: Product loading/unloading executed by operator (manual), assembly work completed by equipment (automatic)._x000D_
3.4 Press Force Monitoring: Press machine pressure at 10kN, pressure sensor accuracy 0.3%FS, equipment with self-calibration function, segmented monitoring curve available._x000D_
3.5 Press-in Displacement Monitoring: Accuracy ±0.02mm, full stroke monitoring._x000D_
3.6 Qualification Judgment: Whether pressure and displacement are within the qualified range._x000D_
3.7 Position Accuracy: Coaxiality of the press head positioning center hole and the fixture positioning installation hole less than 0.05mm, perpendicularity of the press head to the workbench surface is 0.05mm._x000D_
3.8 Equipment Requirements: Press head uses a floating mechanism while ensuring rigidity; press head and fixtures equipped with recognizable sensors, equipment can automatically identify._x000D_
3.9 Model Change: Fixture to be replaced placed under the equipment, with a specially made placement tray._x000D_
3.10 Equipment CPK value ≥1.33; the precision of the pressed parts and press fitting accuracy inspected according to drawing requirements._x000D_
4. Compatible Products: XK507C, JLFC3C, SP232C
